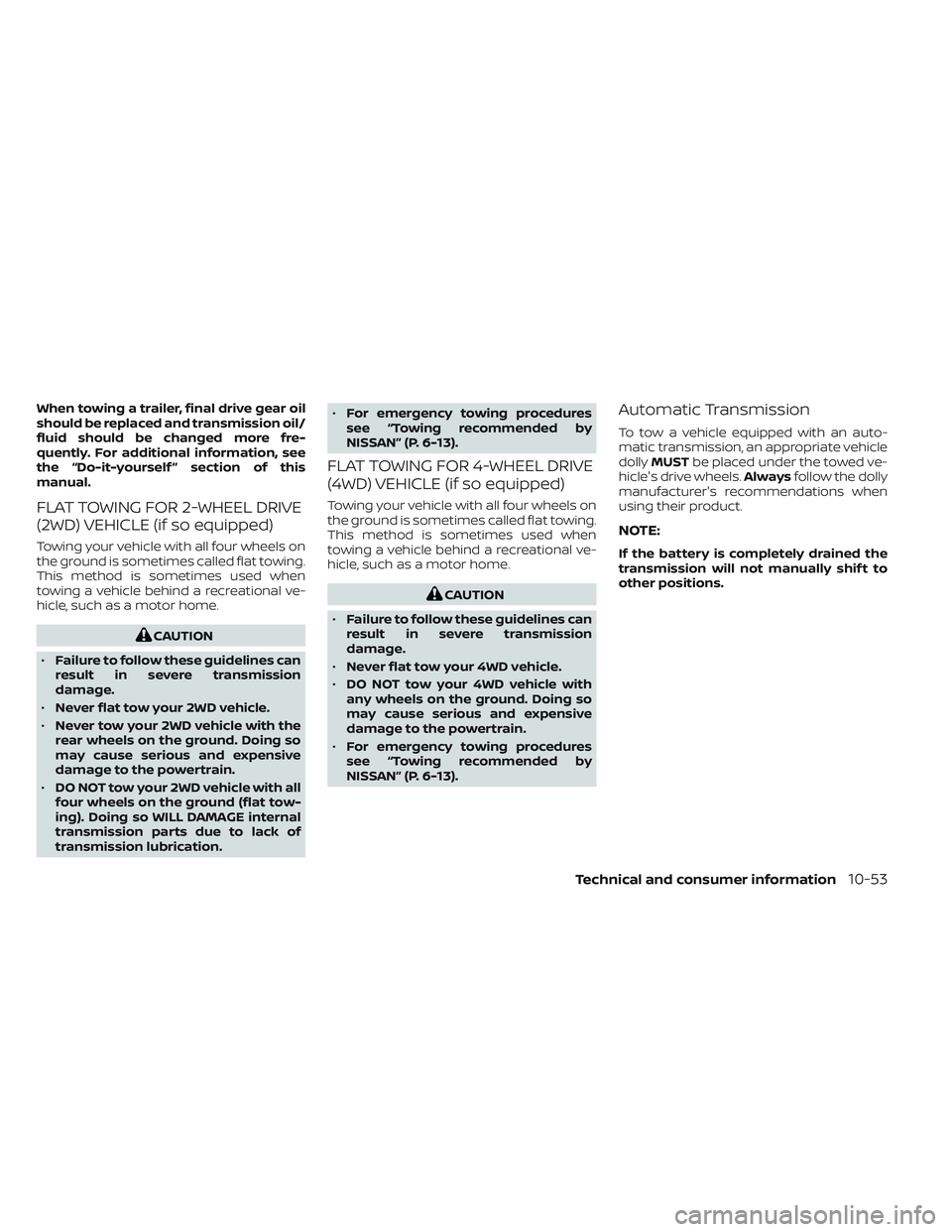

When towing a trailer, final drive gear oil
should be replaced and transmission oil/
fluid should be changed more fre-
quently. For additional information, see
the “Do-it-yourself ” section of this
manual.
FLAT TOWING FOR 2-WHEEL DRIVE
(2WD) VEHICLE (if so equipped)
Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when
towing a vehicle behind a recreational ve-
hicle, such as a motor home.
CAUTION
• Failure to follow these guidelines can
result in severe transmission
damage.
• Never flat tow your 2WD vehicle.
• Never tow your 2WD vehicle with the
rear wheels on the ground. Doing so
may cause serious and expensive
damage to the powertrain.
• DO NOT tow your 2WD vehicle with all
four wheels on the ground (flat tow-
ing). Doing so WILL DAMAGE internal
transmission parts due to lack of
transmission lubrication. •
For emergency towing procedures
see “Towing recommended by
NISSAN” (P. 6-13).
FLAT TOWING FOR 4-WHEEL DRIVE
(4WD) VEHICLE (if so equipped)
Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when
towing a vehicle behind a recreational ve-
hicle, such as a motor home.
CAUTION
• Failure to follow these guidelines can
result in severe transmission
damage.
• Never flat tow your 4WD vehicle.
• DO NOT tow your 4WD vehicle with
any wheels on the ground. Doing so
may cause serious and expensive
damage to the powertrain.
• For emergency towing procedures
see “Towing recommended by
NISSAN” (P. 6-13).
Automatic Transmission
To tow a vehicle equipped with an auto-
matic transmission, an appropriate vehicle
dolly MUST be placed under the towed ve-
hicle's drive wheels. Alwaysfollow the dolly
manufacturer's recommendations when
using their product.
NOTE:
If the battery is completely drained the
transmission will not manually shif t to
other positions.
Technical and consumer information10-53

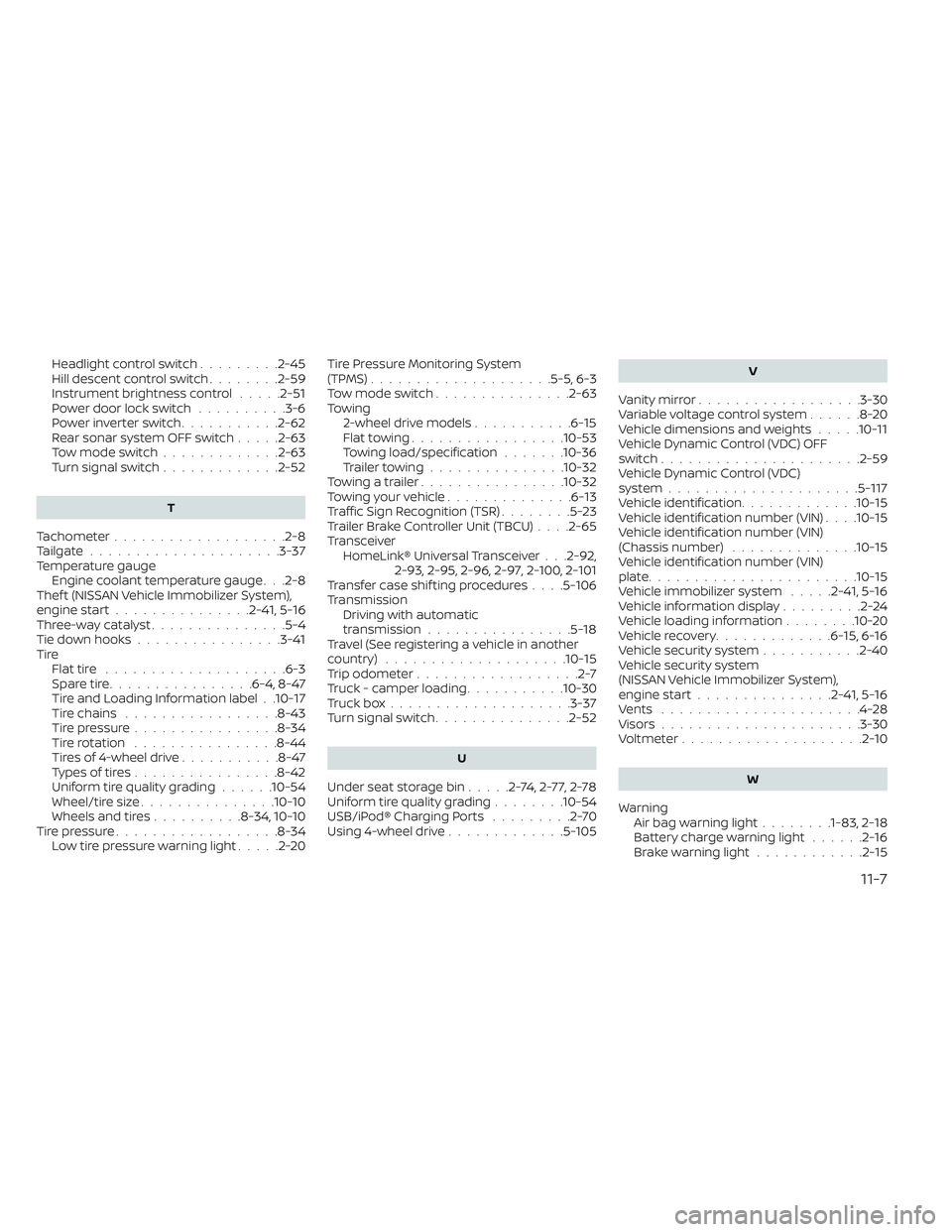

Headlight control switch.........2-45Hill descent control switch........2-59Instrument brightness control.....2-51Power door lock switch..........3-6Power inverter switch...........2-62Rear sonar system OFF switch.....2-63Tow mode switch.............2-63Turn signal switch.............2-52
T
Tachometer...................2-8Tailgate.................... .3-37Temperature gauge
Engine coolant temperature gauge. . .2-8Thef t (NISSAN Vehicle Immobilizer System),
engine start...............2-41, 5-16Three-way catalyst...............5-4Tie down hooks................3-41TireFlat tire................... .6-3Spare tire................6-4, 8-47Tire and Loading Information label. .10-17Tire chains.................8-43Tire pressure................8-34Tire rotation................8-44Tires of 4-wheel drive...........8-47Types of tires................8-42Uniform tire quality grading......10-54Wheel/tire size...............10-10Wheels and tires..........8-34, 10-10Tire pressure................. .8-34Low tire pressure warning light.....2-20
Tire Pressure Monitoring System
(TPMS)................... .5-5, 6-3Tow mode switch...............2-63Towing
2-wheel drive models...........6-15Flat towing................ .10-53Towing load/specification.......10-36Trailer towing...............10-32Towing a trailer................10-32Towing your vehicle..............6-13Traffic Sign Recognition (TSR)........5-23Trailer Brake Controller Unit (TBCU). . . .2-65Transceiver
HomeLink® Universal Transceiver. . .2-92,
2-93, 2-95, 2-96, 2-97, 2-100, 2-101
Transfer case shif ting procedures. . . .5-106Transmission Driving with automatic
transmission
................5-18Travel (See registering a vehicle in another
country)................... .10-15Trip odometer..................2-7Truck - camper loading...........10-30Truck box....................3-37Turn signal switch...............2-52
U
Under seat storage bin.....2-74,2-77,2-78Uniform tire quality grading........10-54USB/iPod® Charging Ports.........2-70Using 4-wheel drive.............5-105
V
Vanity mirror..................3-30Variable voltage control system......8-20Vehicle dimensions and weights.....10-11Vehicle Dynamic Control (VDC) OFF
switch..................... .2-59Vehicle Dynamic Control (VDC)
system.....................5-117Vehicle identification.............10-15Vehicle identification number (VIN). . . .10-15Vehicle identification number (VIN)
(Chassis number)..............10-15Vehicle identification number (VIN)
plate...................... .10-15Vehicle immobilizer system.....2-41, 5-16Vehicle information display.........2-24Vehicle loading information........10-20Vehicle recovery.............6-15,6-16Vehicle security system...........2-40Vehicle security system
(NISSAN Vehicle Immobilizer System),
engine start
...............2-41, 5-16Vents......................4-28Visors......................3-30Voltmeter....................2-10
W
Warning
Air bag warning light........1-83, 2-18Battery charge warning light......2-16Brake warning light............2-15
11-7
