2023 NISSAN PATHFINDER USB port

Horn........................................... 2-89
Climate controlled seat switches
(if so equipped) ................................. 2-90
Heated seat switches (if so equipped) ..........2-91
Heated 2nd row seat switches
(if so equipped) ................................. 2-92
Heated steering wheel switch (if so equipped) . . 2-93
Hill descent control switch (if so equipped) .....2-94
Steering Assist switch (for vehicles with
ProPILOT Assist) (if so equipped) ................2-95
Head Up Display (HUD) (if so equipped) .........2-95
HowtousetheHUD......................... 2-96
Driver Assistance/Navigation linking ........2-97
Emergency call (SOS) button (if so equipped) . . . 2-98 Emergency support ......................... 2-98
Rear Door Alert ................................ 2-100
Power outlets ................................. 2-101
12v outlets ................................. 2-101
120v outlet (if so equipped) .................2-102
USB/iPod® charging ports .....................2-103
Wireless charger (if so equipped) ..............2-104
Wireless charger indicator ..................2-105Wireless charger operation
.................2-105
Extended storage switch ......................2-106
Storage ....................................... 2-107
Front-door pockets ........................ 2-107
Lower console storage tray ................2-108
Seatback pockets (if so equipped) ..........2-108
Storagetrays............................... 2-109
Glovebox .................................. 2-110
Console box ................................ 2-110
2nd row console (if so equipped) ...........2-110
Overhead sunglasses storage ...............2-111
Cup holders ................................ 2-112
Cargo area storage bin .....................2-114
Luggage hooks ............................ 2-115
Roof rack (if so equipped) ..................2-116
Windows ....................................... 2-117
Power windows .............................
2-117
R

ear door sunshade (if so equipped) .......2-120
Power moonroof (if so equipped) ..............2-120
Automatic moonroof and sunshade .......2-121
Interior lights .................................. 2-123
Map lights .................................. 2-123

•Avoid using power outlets when the
air conditioner, headlights or rear
window defroster is on.
• Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF.
• Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
• When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.

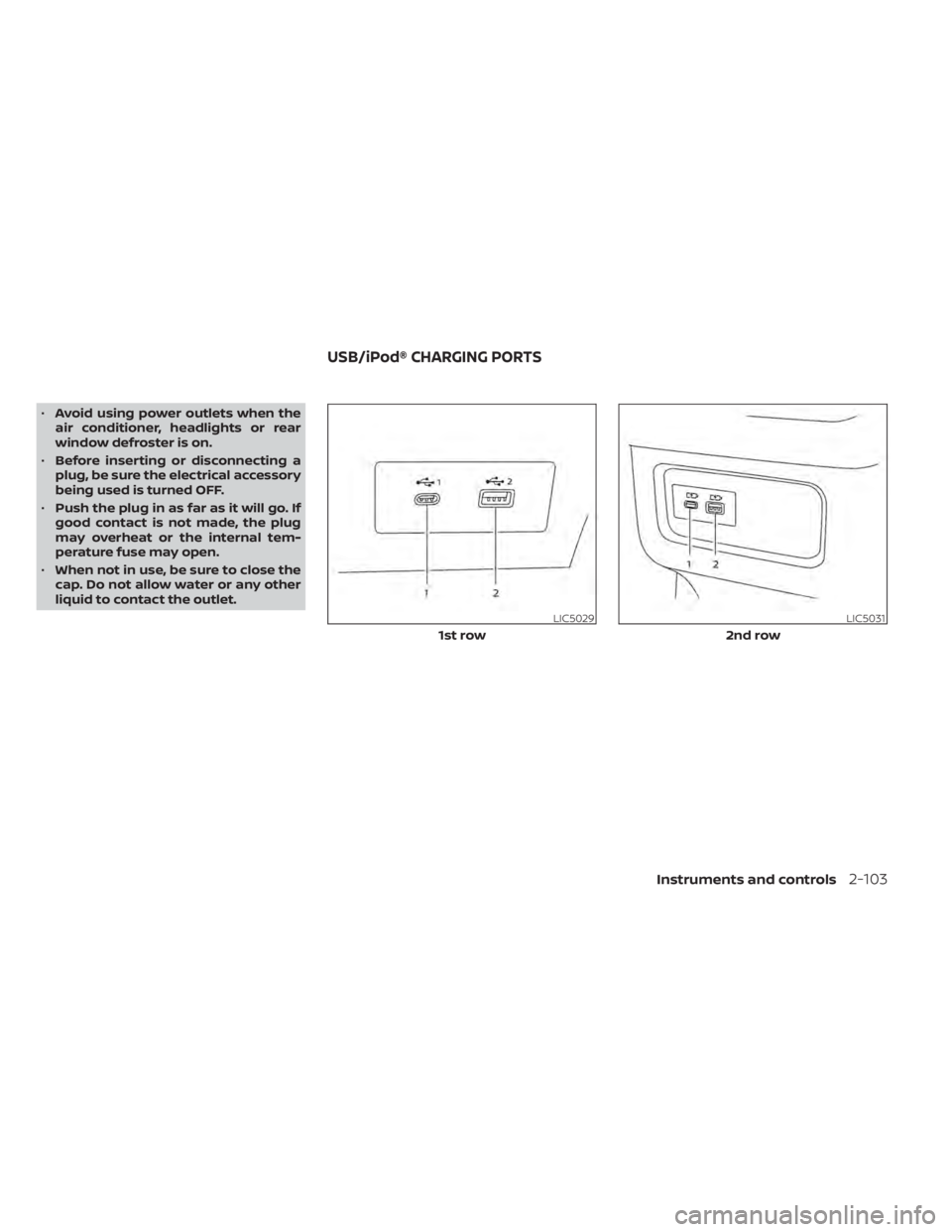

LIC5029
1st row
LIC5031
2nd row
USB/iPod® CHARGING PORTS
Instruments and controls2-103

1. Type-C USB
2. Type-A USB
There are USB/iPod® charging ports lo-
cated in 1st row, two in the front media
pocket below the climate controls and one
in the console box, in the 2nd row on the
back of the center console and in the 3rd
row by the cup holders. These ports will
charge compatible devices.
NOTE:
• Not all of the USB/iPod® charging portswill operate with the display screen.
Only the USB connection ports located
under the climate controls will allow
operation of USB/iPod® devices
through the audio system.
• For best results, it is recommended to use the manufacturer cables, which
are sold separately. A USB Type-A to
USB Type-C adapter (or vice versa) can
also be purchased separately; how-
ever, results may vary.
CAUTION
• Do not force a USB device into the
connector. Inserting the USB device
tilted or up-side down into the con-
nector may damage the connector.
Make sure that the USB device is con-
nected correctly into the connector.
• Do not use a reversible USB cable. Us-
ing the reversible USB cable may

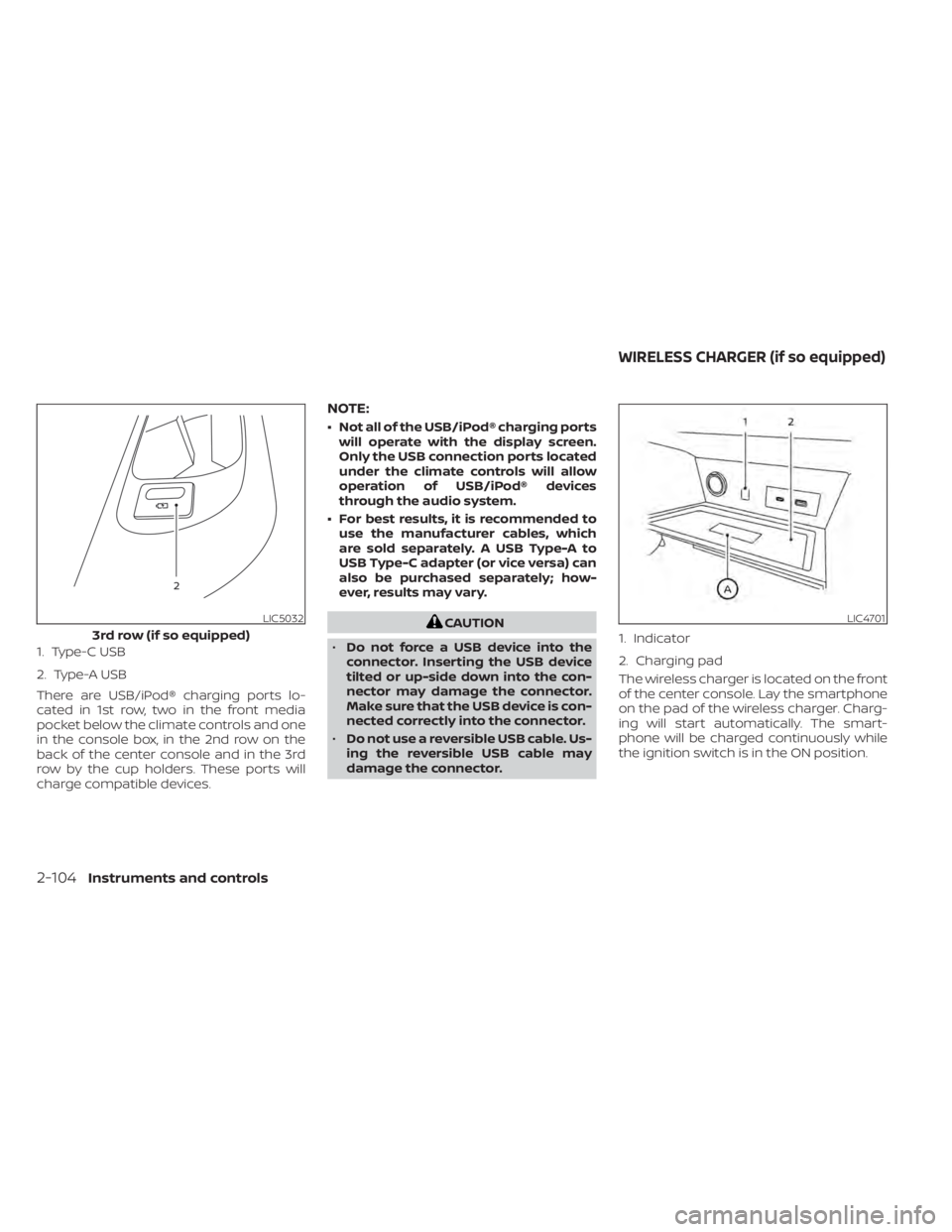

damage the connector. The wireless charger is located on the front
of the center console. Lay the smartphone
on the pad of the wireless charger. Charg-
ing will start automatically. The smart-
phone will be charged continuously while
the ignition switch is in the ON position.LIC5032
3rd row (if so equipped)
LIC4701
1. Indicator
2. Charging pad
WIRELESS CHARGER (if so equipped)
2-104Instruments and controls

Wheel/tire size...............10-10Wheels and tires..........8-28,10-10Tire pressureLow tire pressure warning light.....2-18Tire Pressure Monitoring System (TPMS).5-5Top tether strap child restraint.......1-40Towing2-wheel drive models...........6-164-wheel drive models...........6-15Flat towing................ .10-32Tow truck towing..............6-14Towing load/specification.......10-23Trailer towing...............10-20Towing a trailer................10-20Traffic Sign Recognition (TSR)........5-35Transceiver
HomeLink® Universal
Transceiver
........2- 125, 2-128, 2-129Transmission
Driving with automatic
transmission
................5-18Travel (See registering a vehicle in another
country).................... .10-11Trip odometer..................2-7Turn signal switch..............2-88
U
Uniform tire quality grading........10-33USB/iPod® Charging Ports.........2-103
V
Vanity mirror..................3-36Variable voltage control system......8-15Vehicle dimensions and weights.....10-10Vehicle Dynamic Control (VDC)
system.....................5-177Vehicle identification.............10-11Vehicle identification number (VIN). . . .10-11Vehicle identification number (VIN) (Chassis
number)................... .10-11Vehicle identification number (VIN)
plate...................... .10-11Vehicle immobilizer system.....2-77,5-16Vehicle information display.....2-23,2-48Vehicle loading information........10-15Vehicle recovery................6-17Vehicle security system...........2-76Vehicle security system (NISSAN Vehicle Im-
mobilizer System), engine start. . .2-77, 5-16Vents...................... .4-31Visors......................3-36
W
Walk away lock function...........3-17Warning
Air bag warning light........1-80, 2-16Battery charge warning light......2-15Brake warning light............2-14Engine oil pressure warning light. . . .2-15Hazard warning flasher switch......6-2Low fuel warning light.......2-41, 2-67
Low tire pressure warning light.....2-18Low windshield-washer fluid warning
light................. .2-41, 2-68Seat belt warning light.......1-23,2-16Supplemental air bag warning
light..................1-80, 2-16Vehicle security system..........2-76Warning labels (for SRS)..........1-80Warning/indicator lights and audible
reminders..................2-12Warning lights.................2-12Warning lights, indicator lights and audible
reminders....................2-12Warning/indicator lights and audible
reminders....................2-12Audible reminders.............2-12Indicator lights...............2-12Warning lights................2-12Washer switch
Rear window wiper and washer
switches
.................. .2-80Weights (See dimensions and
weights)................... .10-10Wheel/tire size................10-10Wheels and tires............8-28,10-10When traveling or registering in another
country.................... .10-11Windows....................2-117Locking passengers' windows.....2-118Powerrearwindows...........2-118Power windows..............2-117Rear power windows...........2-118Windshield wiper blades...........8-18Windshield-washer fluid...........8-11
11-7
