2023 MAZDA MX5 MIATA check engine light

SignalWarning
Electronic Brake Force
Distribution System Wa r n i n g If the electronic brake force distribution
control unit determines that some compo‐
nents are operating incorrectly, the cont rol unit may illuminate the brake system
warning light and the ABS warning light si multaneously. The problem is likely to be
the electronic brake force distribution system.
WARNING
Do not drive with both the ABS warning light and brake warning light illuminated.
Have the vehicle towed to an Authorized Mazda Dealer to have the brakes inspected as
soon as possible:
Driving when the brake system warning li ght and ABS warning light are illuminated
simultaneously is dangerous.
When both lights are illuminate d, the rear wheels could lock more quickly in an emer‐
gency stop than under normal circumstances.
Charging System Warn ‐
ing Indication/Warning Light If the warning light illuminates while drivin
g, it indicates a malfunction of the alter‐
nator or of the charging system.
Drive to the side of the ro ad and park off the right-of -way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the charging system warning light is illuminated be‐
cause the engine could stop unexpectedly.
Engine Oil Warning Light This warning light indicates low engine oil pressure.
CAUTION
Do not run the engine if the oil pressure is
low. Otherwise, it could result in extensive
engine damage.
If the light illuminates or the warning indication is displayed while driving:
1. Drive to the side of the road and pa rk off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes fo r the oil to drain back into the oil pan.
3. Inspect the engine oil level (page 6-21). If it's low, add the appropriate amount of
engine oil while being careful not to overfill.
CAUTION
Do not run the engine if the oil level is low. Otherwise, it could result in extensive
engine damage.
4. Start the engine and check the warning light.

If the light remains illuminated even though th e oil level is normal or after adding oil,
stop the engine immediately and have your vehicle towed to an Authorized Mazda
Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-34
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

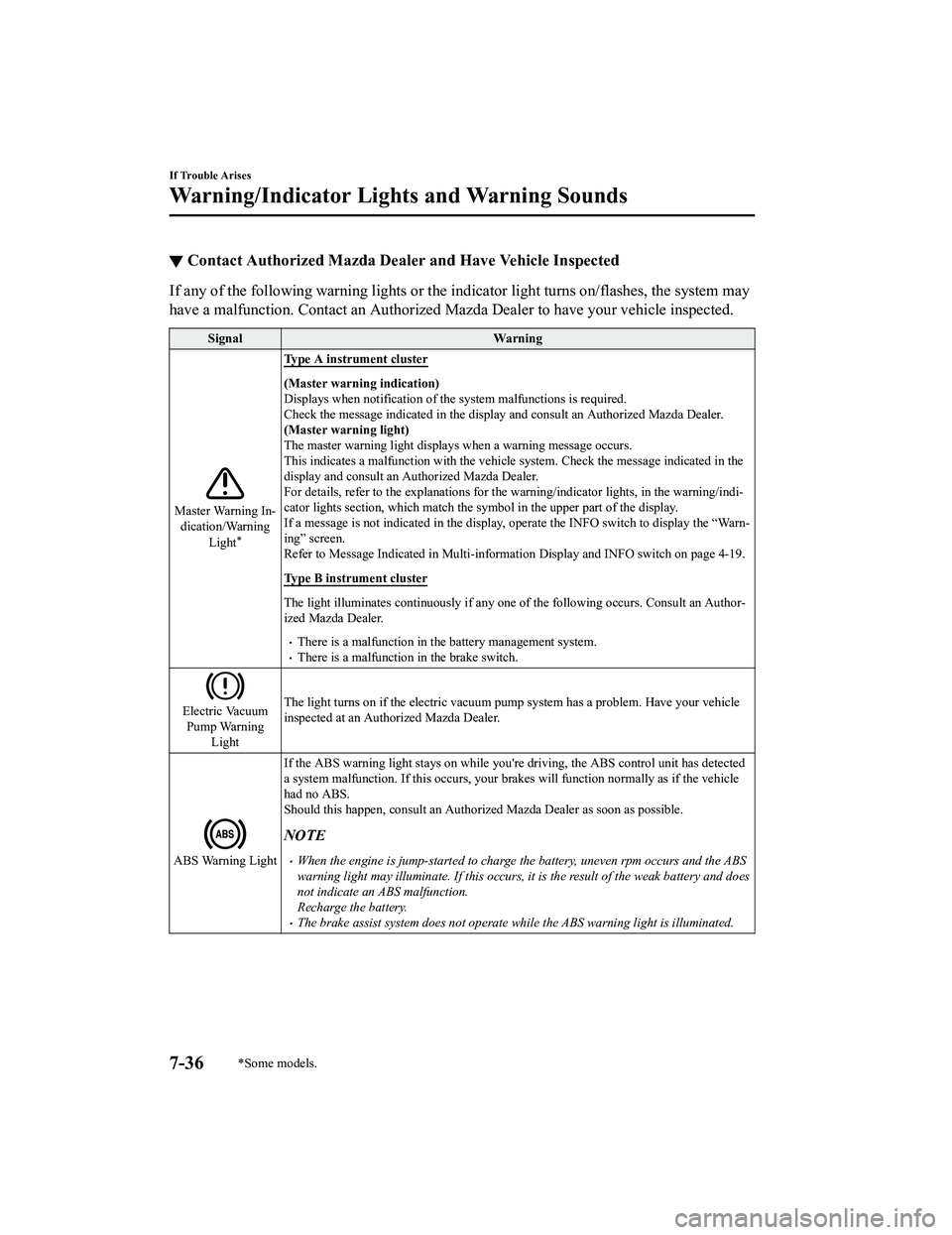

▼Contact Authorized Mazda Deal
er and Have Vehicle Inspected
If any of the following warning lights or the i ndicator light turns on/flashes, the system may
have a malfunction. Contact an Authorized Mazda Dealer to have your vehicle inspected.
Signal Warning
Master Warning In‐
dication/Warning
Light
*
Type A instrument cluster
(Master warning indication)
Displays when notification of the system malfunctions is required.
Check the message indicated in the display and consult an Authorized Mazda Dealer.
(Master warning light)
The master warning light displays when a warning message occurs.
This indicates a malfunction with the vehicl e system. Check the message indicated in the
display and consult an Authorized Mazda Dealer.
For details, refer to the explanations for the warning/indicator lights, in the warning/indi ‐
cator lights section, which match the symb ol in the upper part of the display.
If a message is not indicated in the display, operate the INFO switch to display the “Warn ‐
ing” screen.
Refer to Message Indicated in Multi-information Display an d INFO switch on page 4-19.
Type B instrument cluster
The light illuminates continuously if any one of the following occurs. Consult an Author‐
ized Mazda Dealer.
There is a malfunction in the battery management system.There is a malfunction in the brake switch.
Electric Vacuum
Pump Warning Light The light turns on if
the electric vacuum pump system has a problem. Have your vehicle
inspected at an Authorized Mazda Dealer.
ABS Warning Light If the ABS warning light stays on while you're
driving, the ABS control unit has detected
a system malfunction. If this occurs, your br akes will function normally as if the vehicle
had no ABS.
Should this happen, consult an Authori zed Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
The brake assist system does not operate while the ABS warning light is illuminated.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-36*Some models.
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

SignalWarning
Check Engine LightIf this light illuminates while
driving, the vehicle may have a problem. It is important to
note the driving conditions wh en the light illuminated and consult an Authorized Mazda
Dealer.
The check engine light may illumi nate in the following cases:
The engine's electrical system has a problem.The emission control system has a problem.The fuel tank level being very low or approaching empty.The fuel-filler cap is missing or not tightened securely.
If the check engine light remains on, or it flashes continuously , do not drive at high
speeds and consult an Authorized M azda Dealer as soon as possible.
Automatic Trans‐
mission Indication/
Warning Light
*
The indication/light illuminates wh en the transmission has a problem.
CAUTION
If the automatic transmission warning indication/light illuminates, the transmission has an
electrical problem. Continuing to drive your Mazda in this condition could cause damage to
your transmission. Consult an Authorized Mazda Dealer as soon as possible.
(Turns on)
TCS/DSC Indicator Light If the light stays on, the TCS, DSC or the br
ake assist system may have a malfunction and
they may not operate correctly. Take your vehicle to an Authorized Mazda Dealer.
Air Bag/Seat Belt
Pretensioner System Warning Light A system malfunction is indicated
if the warning light constantly flashes, constantly illu‐
minates or does not illuminate at all when the ignition is switched ON. If any of these oc ‐
cur, consult an Authorized M azda Dealer as soon as possible. The system may not operate
in an accident.WA R N I N G
Never tamper with the air bag/pretensioner systems and always have an Authorized Mazda
Dealer perform all servicing and repairs:
Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner could
accidentally activate or become disabled causing serious injury or death.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-37
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

SignalWarning
(Flashing)
Tire Pressure Moni ‐
toring System
Warning Light If the tire pressure monitoring system has a
malfunction, the tire pressure warning light
flashes. Have your vehicle checked by an Au thorized Mazda Dealer as soon as possible.
WA R N I N G
If the tire pressure monitoring system warning light illuminates or flashes, or the tire pres‐
sure warning beep sound is heard, decrease vehicle speed immediately and avoid sudden
maneuvering and braking:
If the tire pressure monitoring system warnin g light illuminates or flashes, or the tire pres‐
sure warning beep sound is heard, it is dang erous to drive the vehicle at high speeds, or
perform sudden maneuver ing or braking. Vehicle drivabilit y could worsen and result in an
accident.
To determine if you have a slow leak or a flat, pull over to a safe position where you can
check the visual condition of the tire and determine if you have enough air to proceed to a
place where air may be added and the system monitored again by an Authorized Mazda
Dealer or a tire repair station.
Do not ignore the TPMS Warning Light:
Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated. Have
the problem taken care of as soon as possible before it develops into a more serious situa‐
tion that could lead to tire failure and a dangerous accident.
(Amber)
KEY Warning Indi ‐
cation
*
“Keyless System malfunction” is displayed
This message is displayed if the advanced keyless entry & push button start system has a
problem.
Contact an Authorized Mazda Dealer.
CAUTION
If the message is indicated, or the push button start indicato r light (amber) flashes, the en‐
gine may not start. If the engine cannot be started, try starting it using the emergency oper‐
ation for starting the engine, and have the vehicle inspected at an Authorized Mazda Deal‐
er as soon as possible.
Refer to Emergency Operation for St arting the Engine on page 4-10.
“Ignition is on” is displayed
This message is displayed when the driver's door is opened without switching the ignition
off.
“Key not detected” is displayed
This message is displayed when any of the fo llowing operations is performed with the key
out of the operational range or placed in areas inside the cabin where it is difficult for the
key to be detected.
The push button start is pressed with the ignition switched offThe ignition is switched onAll doors are closed without switching the ignition off
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-38*Some models.
MX-5_8LE7-EA-22K_Edition1_old 2022-8-4 8:12:24

SignalWarning Action to be taken
Seat Belt Warning
Light The seat belt warning light turns on if the
driver or passenger's seat is occupied and
the seat belt is not fastened with the ignition
switched ON.
If the driver or passenger's seat belt is un
‐
fastened (only when the passenger's seat is
occupied) and the vehi cle is driven at a
speed faster than abou t 20 km/h (12 mph),
the warning light flashes. After a short time,
the warning light stops flashing, but re ‐
mains illuminated.
NOTE
The warning light flashes for about 6
seconds if the driver's seat belt is not fas ‐
tened when the ignition is switched ON.
To allow the passenger occupant classifi ‐
cation sensor to function properly, do not
place and sit on an additional seat cush ‐
ion on the passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause sen ‐
sor interference.
If a small child is seated on the passeng ‐
er's seat, the warning light may not oper ‐
ate. Fasten the seat belts.
Door-Ajar/Trunk
lid-Ajar Warning Indi ‐
cation/Warning Light The light turns on if any door/trunk lid is
not closed securely.
Close the door/trunk
lid securely.
Low Fuel Warning
Light The light turns on when the remaining fuel
is about 9.0 L (2.3 US gal, 1.9 Imp gal).
NOTE
The light illumination timing may vary be
‐
cause fuel inside the fuel tank moves
around according to the driving conditions
and the vehicle posture. Add fuel.
Check Fuel Cap Warn
‐
ing Light If the check fuel cap warning light illumi
‐
nates while driving, the fuel-filler cap may
not be installed properly. Stop the engine and re
install the fuel-filler
cap.
Refer to Refueling on page 3-25
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-41
