Adjusting the height on the front edge
of the seat bottom
Adjust the height on the front edge of
the seat bottom to the position where
the back of your knees contacts the
front edge of the seat bottom.
1. With your right foot set on theaccelerator pedal, adjust the height
on the front edge of the seat
bottom so that the back of your
knees lightly contacts the front edge
of the seat bottom.
2. Depress the accelerator pedal and make sure that you no longer feel
cramping in the back of your knees.
1. Manual Seat
2. Power Seat

Adjusting the steering wheel position
Adjust the steering wheel to the
position where it can be operated
easily and the gauges can be viewed
easily.
1. With your back resting against theseatback, extend both arms, place
them on the top of the steering
wheel, and pull the steering wheel
towards you to the position of your
wrists.
2. Adjust the steering wheel height so
that the gauges can be viewed
easily.
3. Raise the lever to securely lock the steering wheel.
Adjusting the head restraint position
To prevent shock to the head and
neck, adjust the head restraints to their
correct positions.
Refer to Height Adjustment on page
2-17.
Essential Safety Equipment
Seats
2-10
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Child-RestraintPrecautions
▼ Child-Restraint Precautions
Mazda strongly urges the use of
child-restraint systems for children
small enough to use them.

You are required by law to use a
child-restraint system for children in
the U.S. and Canada.
Check your local and state or
provincial laws for specific
requirements regarding the safety of
children riding in your vehicle.

Whatever child-restraint system you
consider, please pick the appropriate
one for the age and size of the child,
obey the law and follow the
instructions that come with the
individual child-restraint system.

A child who has outgrown
child-restraint systems should sit in the
rear and use seat belts, both lap and
shoulder. If the shoulder belt crosses
the neck or face, move the child closer
to the center of the vehicle in the
outboard seats, and towards the
buckle on the right if the child is seated
on the center seat.

Statistics confirm that the rear seat is
the best place for all children up to 12
years of age, and more so with a
supplemental restraint system (air
bags).

A rear-facing child-restraint system
should
NEVER be used on the front
seat with the air bag system activated.
The front passenger's seat is also the
least preferred seat for other
child-restraint systems.

(With Front Passenger Occupant
Classification System)
To reduce the chance of injuries
caused by deployment of the front
passenger air bag , the front passenger
seat weight sensors occupant
classification sensor works as a part of
the supplemental restraint system. This
system deactivates the front passenger
front and side air bags and knee air
bags, and also the front passenger seat
belt pretensioner system when the
front passenger air bag deactivation
indicator light illuminates.

When an infant or small child sits on
the front passenger seat, the system
shuts off the front passenger front and
side air bags and knee air bags, and
seat belt pretensioner system, so make
sure the front passenger air bag
deactivation indicator light illuminates.

Even if the front passenger air bag is
shut off, Mazda strongly recommends
that children be properly restrained
and child-restraint systems of all kinds
are properly secured on the rear seats
which are the best place for children.

For more details, refer to "Front
passenger seat weight sensors" (page
2-70).

Essential Safety Equipment
Child Restraint
2-31
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

3Before Driving
Use of various features, including keys, doors, mirrors and
windows.
Keys........................................ 3-2 Keys...................................... 3-2
Keyless Entry System...............3-4
Advanced Keyless Entry
System.....................................3-9 Advanced Keyless Entry
System
*................................. 3-9
Operational Range...............3-10
Doors and Locks..................... 3-11 Door Locks.......................... 3-11
Liftgate/Trunk Lid.................3-20
Inside Trunk Release Lever (4-
door)
*................................. 3-24
Fuel and Emission................... 3-26 Fuel and Engine Exhaust
Precautions......................... 3-26
Fuel-Filler Lid and Cap..........3-28
Mirrors.................................. 3-31 Mirrors................................3-31
Windows............................... 3-35 Power Windows...................3-35
Moonroof*.......................... 3-38
Security System.......................3-42 Modification and Add-
On Equipment..................... 3-42
Immobilizer System..............3-42
Theft-Deterrent System
*........3-44
Driving Tips............................ 3-46 Break-In Period.................... 3-46
Saving Fuel and Protection of the
Environment........................ 3-46
Hazardous Driving............... 3-47
Floor Mat............................ 3-48
Rocking the Vehicle..............3-48
Winter Driving..................... 3-49
Driving In Flooded Area........3-51
Overloading........................ 3-51
Driving on Uneven Road.......3-52
Turbocharger Information
(SKYACTIV-G 2.5T).............. 3-52
Towing.................................. 3-53 Trailer Towing...................... 3-53
Recreational Towing............. 3-53
*Some models.3-1
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

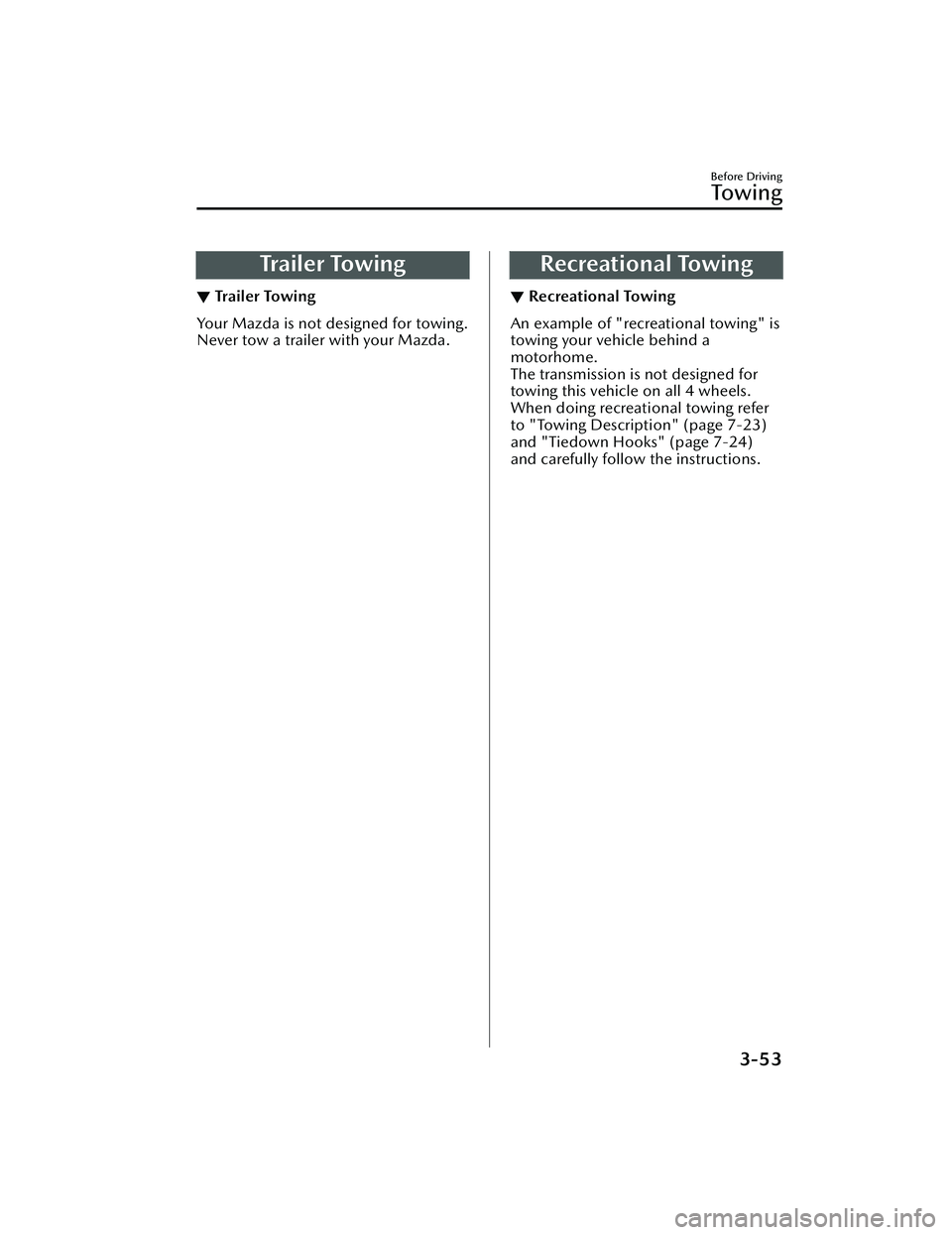

Tra i l e r To w i n g
▼Tra i l e r To w i n g
Yo u r M a z d a i s n o t d e
signed for towing.
Never tow a trailer with your Mazda.
Recreational Towing
▼ Recreational Towing
An example of "recreational towing" is
towing your vehicle behind a
motorhome.
The transmission is not designed for
towing this vehicle on all 4 wheels.
When doing recreational towing refer
to "Towing Description" (page 7-23)
and "Tiedown Hooks" (page 7-24)
and carefully follow the instructions.
Before Driving
Towing
3-53
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

WARNING
Do not rely completely on the vehicle
roll prevention function.
The vehicle roll prevention function
is a supplementary function which
operates for a maximum of 2
seconds after releasing the brake
pedal and accelerating the vehicle
from an engine idling stop condition.
Over reliance on the system may
result in an unexpected accident if
the vehicle were to suddenly
accelerate. Before starting to drive
the vehicle, always confirm the safety
of the surroundings and operate the
selector lever, brake pedal, and
accelerator pedal appropriately.
Note that the vehicle may move
suddenly depending on the vehicle's
load or if it is towing something.
 Note that the vehicle may move
suddenly after the vehicle roll
prevention function is released while
the vehicle is under the following
conditions:
 The selector lever is in the N
position.
 If the selector lever is shifted to the
N position and the brake pedal is
released while the i-stop function
is operating, the brake force is
gradually released. To accelerate
the vehicle, release the brake pedal
after the engine restarts and shift
the selector lever to a position
other than the N position.
NOTE
When the vehicle is stopped on a
steep grade, the vehicle roll
prevention function does not
operate because engine idling is not
stopped.
The brake pedal response may
change, sound may occur from the
brakes, or the brake pedal could
vibrate from the operation of the
vehicle roll prevention function.
However, this does not indicate a
malfunction.
▼ i-stop Warning Light (Amber)/
i-stop Indicator Light (Green)
To ensure safe and comfortable use of
the vehicle, the i-stop system
constantly monitors the driver's
operations, the vehicle's interior and
exterior environment, and the
operational status of the vehicle, and
uses the i-stop warning light (amber)
and i-stop indicator light (green) to
inform the driver of various cautions
and warnings.
NOTE
On vehicles equipped with the center
display, the i-stop operation status is
displayed in the fuel efficiency monitor
display.
Refer to the Fuel Efficiency Monitor
section in the Mazda Connect
Owner's Manual.
i-stop warning light (amber)
The light turns on/flashes continuously
if the system has a problem. Have the
vehicle inspected by an Authorized
Mazda Dealer.
i-stop indicator light (green)
When Driving
Start/Stop Engine
4-16
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

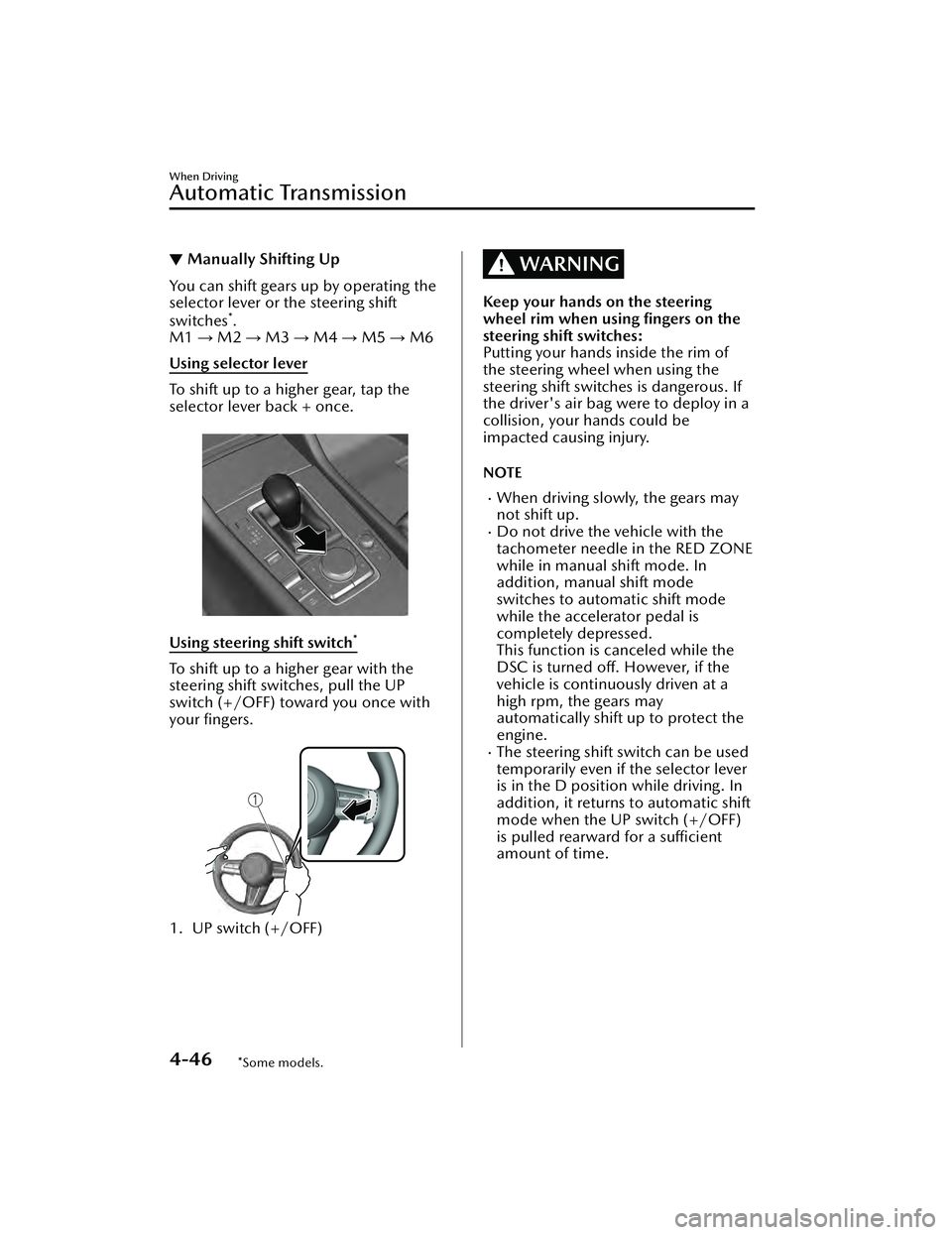

▼Manually Shifting Up
You can shift gears up by operating the
selector lever or the steering shift
switches
*.
M1 → M2 → M3 → M4 → M5 → M6
Using selector lever
To shift up to a higher gear, tap the
selector lever back + once.

Using steering shift switch*
To shift up to a higher gear with the
steering shift switches, pull the UP
switch (+/OFF) toward you once with
your fingers.

1. UP switch (+/OFF)
WARNING
Keep your hands on the steering
wheel rim when using fingers on the
steering shift switches:
Putting your hands inside the rim of
the steering wheel when using the
steering shift switches is dangerous. If
the driver's air bag were to deploy in a
collision, your hands could be
impacted causing injury.
NOTE
When driving slowly, the gears may
not shift up.
Do not drive the vehicle with the
tachometer needle in the RED ZONE
while in manual shift mode. In
addition, manual shift mode
switches to automatic shift mode
while the accelerator pedal is
completely depressed.
This function is canceled while the
DSC is turned off. However, if the
vehicle is continuously driven at a
high rpm, the gears may
automatically shift up to protect the
engine.
The steering shift switch can be used
temporarily even if the selector lever
is in the D position while driving. In
addition, it returns to automatic shift
mode when the UP switch (+/OFF)
is pulled rearward for a sufficient
amount of time.
When Driving
Automatic Transmission
4-46*Some models.
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

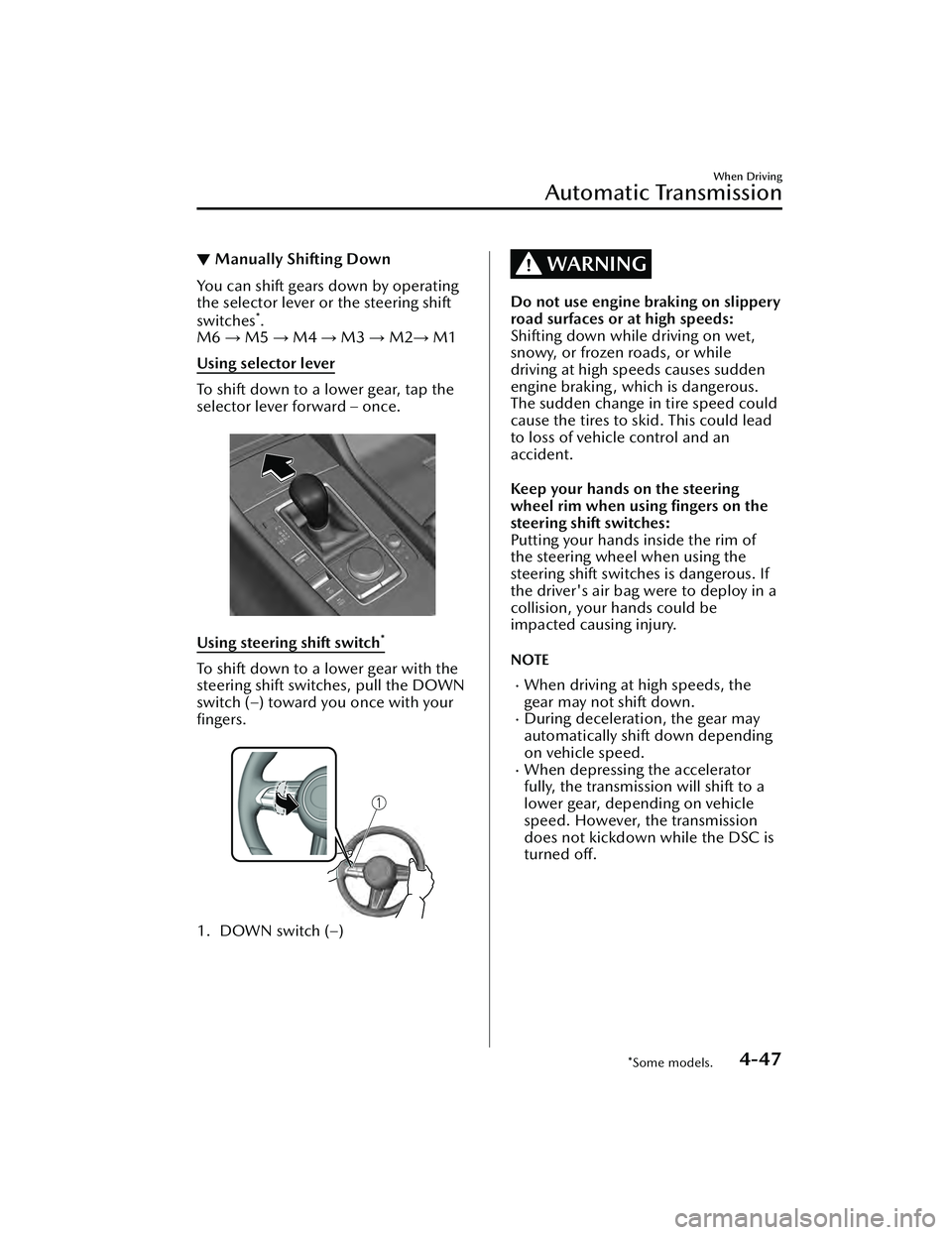

▼Manually Shifting Down
You can shift gears down by operating
the selector lever or the steering shift
switches
*.
M6 → M5 → M4 → M3 → M2 → M1
Using selector lever
To shift down to a lower gear, tap the
selector lever forward – once.

Using steering shift switch*
To shift down to a lower gear with the
steering shift switches, pull the DOWN
switch (–) toward you once with your
fingers.

1. DOWN switch (–)
WARNING
Do not use engine braking on slippery
road surfaces or at high speeds:
Shifting down while driving on wet,
snowy, or frozen roads, or while
driving at high speeds causes sudden
engine braking , which is dangerous.
The sudden change in tire speed could
cause the tires to skid. This could lead
to loss of vehicle control and an
accident.
Keep your hands on the steering
wheel rim when using fingers on the
steering shift switches:
Putting your hands inside the rim of
the steering wheel when using the
steering shift switches is dangerous. If
the driver's air bag were to deploy in a
collision, your hands could be
impacted causing injury.
NOTE
When driving at high speeds, the
gear may not shift down.
During deceleration, the gear may
automatically shift down depending
on vehicle speed.
When depressing the accelerator
fully, the transmissi on will shift to a
lower gear, depending on vehicle
speed. However, the transmission
does not kickdown while the DSC is
turned off.
When Driving
Automatic Transmission
*Some models.4-47
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

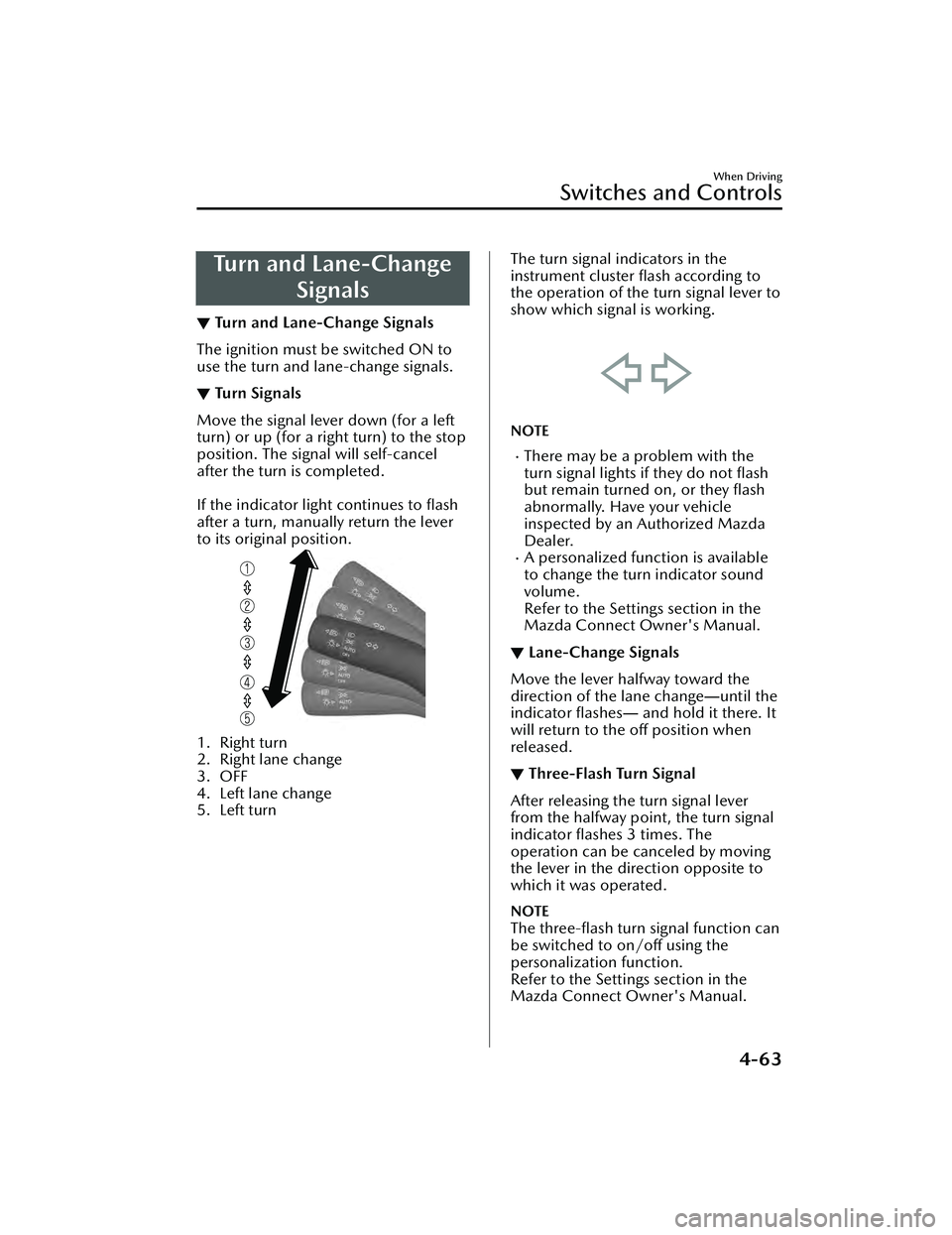

Turn and Lane-ChangeSignals
▼Turn and Lane-Change Signals
The ignition must be switched ON to
use the turn and lane-change signals.
▼Tu r n S i g n a l s
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel
after the turn is completed.

If the indicator light continues to flash
after a turn, manually return the lever
to its original position.
1. Right turn
2. Right lane change
3. OFF
4. Left lane change
5. Left turn

The turn signal indicators in the
instrument cluster flash according to
the operation of the turn signal lever to
show which signal is working.

NOTE
There may be a problem with the
turn signal lights if they do not flash
but remain turned on, or they flash
abnormally. Have your vehicle
inspected by an Authorized Mazda
Dealer.
A personalized function is available
to change the turn indicator sound
volume.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼Lane-Change Signals
Move the lever halfway toward the
direction of the lane change
―until the
indicator flashes ― and hold it there. It
will return to the off position when
released.
▼ Three-Flash Turn Signal
After releasing the turn signal lever
from the halfway point, the turn signal
indicator
flashes 3 times. The
operation can be canceled by moving
the lever in the direction opposite to
which it was operated.
NOTE
The three-flash turn signal function can
be switched to on/off using the
personalization function.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
When Driving
Switches and Controls
4-63
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10
