2023 MAZDA MAZDA radiator

SKYACTIV-G 2.5T

FULL
LOW
If it is at or near LOW, add enough
coolant to the coolant reservoir to
provide freezing and corrosion
protection and to bring the level to
FULL.
Securely tighten the coolant reservoir
tank cap after adding coolant.
CAUTION
 Radiator coolant will damage paint.
Rinse it off quickly if spilled.
 If the “FL22” mark is shown on or
near the cooling system cap, use of
FL-22 is recommended when
replacing engine coolant. Using
engine coolant other than FL-22 may
cause serious damage to the engine
and cooling system.

If the coolant reservoir is empty or new
coolant is required frequently, consult
an Authorized Mazda Dealer.
Brake/Clutch Fluid
▼ Inspecting Brake/Clutch Fluid
Level
WARNING
If the brake/clutch fluid level is low,
have the brakes inspected:
A low brake/clutch fluid level is
dangerous.
A low level could indicate brake lining
wear or a brake system leak which
could cause the brakes to fail and lead
to an accident.
The brakes and clutch draw
fluid from
the same reservoir.
Inspect the fluid level in the reservoir
regularly. It should be kept between
the MAX and MIN lines.
The level normally drops with
accumulated distance, a condition
associated with wear of brake and
clutch linings. If it is excessively low,
have the brake/clutch system
inspected by an Authorized Mazda
Dealer.
Without M Hybrid
Maintenance and Care
Owner Maintenance
6-20
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

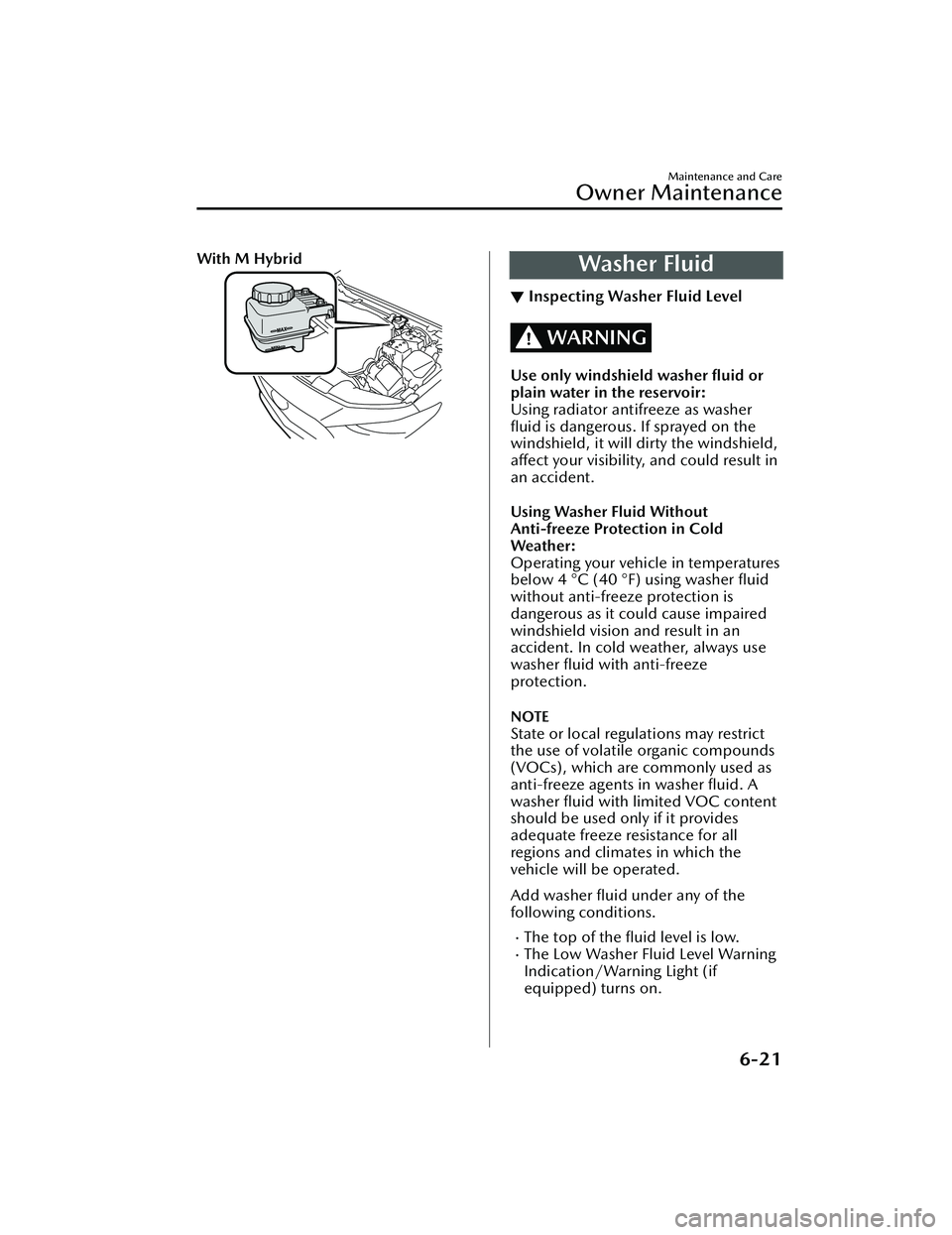

With M HybridWasher Fluid
▼Inspecting Washer Fluid Level
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
affect your visibility, and could result in
an accident.
Using Washer Fluid Without
Anti-freeze Protection in Cold
Weather:
Operating your vehicle in temperatures
below 4 °C (40 °F) using washer fluid
without anti-freeze protection is
dangerous as it could cause impaired
windshield vision and result in an
accident. In cold weather, always use
washer fluid with anti-freeze
protection.
NOTE
State or local regulations may restrict
the use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides
adequate freeze resistance for all
regions and climates in which the
vehicle will be operated.
Add washer fluid under any of the
following conditions.
The top of the fluid level is low.The Low Washer Fluid Level Warning
Indication/Warning Light (if
equipped) turns on.
Maintenance and Care
Owner Maintenance
6-21
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Overheating
▼Overheating
If the engine coolant temperature
gauge indicates overheating and the
high engine coolant temperature
warning indication is displayed, the
vehicle loses power or you hear a loud
knocking or pinging noise, the engine
is probably too hot.
WARNING
Pull over to a safe location, then
switch the ignition off and make sure
the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if
the engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not remove either
cooling system cap when the engine
and radiator are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury.
Open the hood ONLY after steam is
no longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.
If the engine coolant temperature
gauge indicates overheating and the
high engine coolant temperature
warning indication is displayed:

1. Drive safely to the side of the road and park off the right-of-way.
2. Put a vehicle with an automatic transmission in park (P), a manual
transmission in neutral.
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is escaping from the engine
compartment.

If steam is coming from the engine
compartment:
Do not go near the front of the
vehicle. Stop the engine.
Wait until the steam dissipates,
then open the hood and start the
engine.

If neither coolant nor steam is
escaping:
Open the hood and idle the engine
until it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the
engine temperature will increase.
Stop the engine and call an
Authorized Mazda Dealer.
If Trouble Arises
Overheating
7-21
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

6. Make sure the cooling fan isoperating, then turn off the engine
after the temperature has
decreased.
7. When cool, check the coolant level. If it is low, look for coolant leaks
from the radiator and hoses.

If you find a leak or other damage, or
if coolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.
SKYACTIV-G 2.0 and SKYACTIV-G
2.5
1. Cooling system cap
2. Cooling fan
3. Coolant reservoir

SKYACTIV-G 2.5T
1. Coolant reservoir
2. Cooling fan
3. Cooling system cap

If you find no problems, the engine is
cool, and no leaks are obvious:
Carefully add coolant as required
(page 6-19).
CAUTION
If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made. Consult an Authorized Mazda
Dealer.
If Trouble Arises
Overheating
7-22
