Adjusting the height on the front edge
of the seat bottom
Adjust the height on the front edge of
the seat bottom to the position where
the back of your knees contacts the
front edge of the seat bottom.
1. With your right foot set on theaccelerator pedal, adjust the height
on the front edge of the seat
bottom so that the back of your
knees lightly contacts the front edge
of the seat bottom.
2. Depress the accelerator pedal and make sure that you no longer feel
cramping in the back of your knees.
1. Manual Seat
2. Power Seat

Adjusting the steering wheel position
Adjust the steering wheel to the
position where it can be operated
easily and the gauges can be viewed
easily.
1. With your back resting against theseatback, extend both arms, place
them on the top of the steering
wheel, and pull the steering wheel
towards you to the position of your
wrists.
2. Adjust the steering wheel height so
that the gauges can be viewed
easily.
3. Raise the lever to securely lock the steering wheel.
Adjusting the head restraint position
To prevent shock to the head and
neck, adjust the head restraints to their
correct positions.
Refer to Height Adjustment on page
2-17.
Essential Safety Equipment
Seats
2-10
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

NOTE
When adjustment of the driving
position is not necessary, a sound is
not activated.
The driving position adjustment is
canceled in the following cases:
The seat adjustment switch on the
driver's seat is operated.
The angle of the outer mirrors is
adjusted.
The SET button is pressed.Programming button 1 or 2 is
pressed.
The lock button or unlock button
on the transmitter is pressed.
The vehicle starts moving.The active driving display is
adjusted.
(Manual transmission)
The parking brake is released.
(Automatic transmission)
The selector lever is shifted to a
position other than P.
Erasing programmed driving positions
Erasing the driving positions
programmed to the key
1. Switch the ignition OFF.
2. Press the SET button continuously until a sound is activated.
3. Press the lock button on the transmitter within 5 seconds after
the sound is activated.
NOTE
If you do not perform the operation
correctly, a sound indicating that the
programming has failed is activated.
▼Adjusting the Front Passenger's
Seat
1.
Seat Slide
To move a seat forward or
backward, raise the lever and slide
the seat to the desired position and
release the lever.
Make sure the lever returns to its
original position and the seat is
locked in place by attempting to
push it forward and backward.
2. Seat Recline
To change the seatback angle, lean
forward slightly while raising the
lever. Then lean back to the desired
position and release the lever.
Make sure the lever returns to its
original position and the seatback is
locked in place by attempting to
push it forward and backward.

Essential Safety Equipment
Seats
2-13
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Seat Warmer*
▼Seat Warmer
The front seats can be warmed up
while the engine is running.
While the seat warmer is operating,
the indicator light in the seat warmer
switch turns on according to the set
temperature.
Manual mode
When the seat warmer switch is
pressed, the seat warmer operates in
manual mode.
The set temperature changes as shown
in the figure each time the seat warmer
switch is pressed.
1. OFF
2. High
3. Mid
4. Low
NOTE
If the engine is turned
off while the
seat warmer is operating in manual
mode, the seat warmer does not turn
on automatically the next time the
engine is turned on. To turn the seat
warmer on, press the switch again.
Auto mode
The driver and front passenger's seat
warmer can be operated in auto mode
using the following procedure.
1. If “Occupant Comfort” has been disabled, enable it using the
following procedure.
a) Select “Settings” from the MazdaConnect home screen.
b) Select “Vehicle Settings”.
c) Enable “Occupant Comfort”.
2. Press the AUTO switch.
While in auto mode, the seat
temperature is automatically controlled
in 4 levels (High, Mid, Low, and OFF)
according to the conditions in the
cabin.
NOTE
If the front passenger’s seat belt is
unfastened, the front passenger’s
seat warmer turns off.
If the seat warmer switch is pressed
during auto mode, the seat warmer
on the side where the switch was
pressed switches to manual mode.
To return to auto mode, press the
AUTO switch.
If the engine is turned off while the
seat warmer is operating in auto
mode, the seat warmer operates in
auto mode again the next time the
engine is turned on.

Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
*Some models.2-19
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

WARNING
Be careful when using the seat
warmer:
The heat from the seat warmer may be
too hot for the following people and
could cause a low-temperature burn.
Infants, small children, elderly
people, and physically challenged
people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken
sleep-inducing medicine such as
sleeping pills or cold medicine
Do not use the seat warmer with
anything having high
moisture-retention ability such as a
blanket or cushion on the seat:
The seat may be heated excessively
and cause a low-temperature burn.
Do not use the seat warmer even
when taking a short nap in the
vehicle:
The seat may be heated excessively
and cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.
CAUTION
 Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
Heated Steering Wheel*
▼ Heated Steering Wheel
The grips on the left and right of the
steering wheel can be warmed up
when the ignition is switched ON.
While the heated steering wheel is
operating , the indicator light in the
heated steering wheel switch turns on.
1. Heated steering wheel switch
2. Heating area

Manual mode
The heated steering wheel operates for
about 30 minutes when the heated
steering wheel switch is pressed, and
then automatically turns off.
To turn the heated steering wheel off
manually, press the switch again.
Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
2-20*Some models.
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

▼Front Shoulder Belt Adjuster
The front seat belts have a front
shoulder belt adjuster. If the seat belt
contacts your neck or it slips off the
shoulder, adjust the seat belt height.
To ra i s e
To heighten the seat belt, move the
front shoulder belt adjuster upward.
To l o w e r
To lower the seat belt, hold the front
shoulder belt adjuster and lower the
seat belt with the knob of the front
shoulder belt adjuster pressed.

After adjusting , press the front
shoulder belt adjuster downward and
make sure that it is securely locked.
Seat Belt Warning
Systems
▼Seat Belt Warning Systems
If it detects that the occupant seat belt
is unfastened, the warning light or
beep alerts the occupant.
Refer to Seat Belt Warning Indication/
Warning Light (Front seat) on page
7-36.
Refer to Seat Belt Warning Light (Rear
seat) (Red) on page 7-37.
Refer to Seat Belt Warning Beep on
page 7-43.

Seat belt indicator light (rear seat)
(green)
The light turns on when the rear seat
belt is fastened while the ignition is
switched ON, and it turns off after a
certain period.
Essential Safety Equipment
Seat Belt Systems
2-26
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Seat Belt Pretensionerand Load Limiting Systems
▼Seat Belt Pretensioner and Load
Limiting Systems
For optimum protection, the front seat
belts and rear outboard seat belts* are
equipped with pretensioner and load
limiting systems. For both these
systems to work properly you must
wear the seat belt properly.

Pretensioners:
When a collision is detected, the
pretensioners deploy simultaneously
with the air bags.
For vehicles with the front passenger
occupant classification system, the
pretensioners deploy simultaneously
with the air bags when a roll-over is
also detected.
For deployment details, refer to the
SRS Air Bag Deployment Criteria (page
2-66).

The seat belt retractors remove slack
quickly as the air bags are expanding.
Any time the air bags and seat belt
pretensioners have fired they must be
replaced.
A system malfunction or operation
conditions are indicated by a warning.
Refer to Air Bag/Seat Belt Pretensioner
System Warning Indication/Warning
Light on page 7-33.
(With Front Passenger Occupant
Classification System)
In addition, the pretensioner system
for the front passenger, like the front
and side passenger air bag , is designed
to only deploy in accordance with the
total seated weight on the front
passenger seat.
For details, refer to the front passenger
seat weight sensors (page 2-70).

Load limiter:
The load limiting system releases belt
webbing in a controlled manner to
reduce belt force on the occupant's
chest. While the most severe load on a
seat belt occurs in frontal collisions,
the load limiter has an automatic
mechanical function and can activate
in any accident mode with sufficient
occupant movement.
Even if the pretensioners have not
fired, the load limiting function must
be checked by an Authorized Mazda
Dealer.
WARNING
Wear seat belts only as recommended
in this owner's manual:
Incorrect positioning of the seat belts is
dangerous. Without proper
positioning, the pretensioner and load
limiting systems cannot provide
adequate protection in an accident
and this could result in serious injury.
For more details about wearing seat
belts, refer to "Fastening the Seat Belt"
(page 2-25).
Essential Safety Equipment
Seat Belt Systems
*Some models.2-27
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

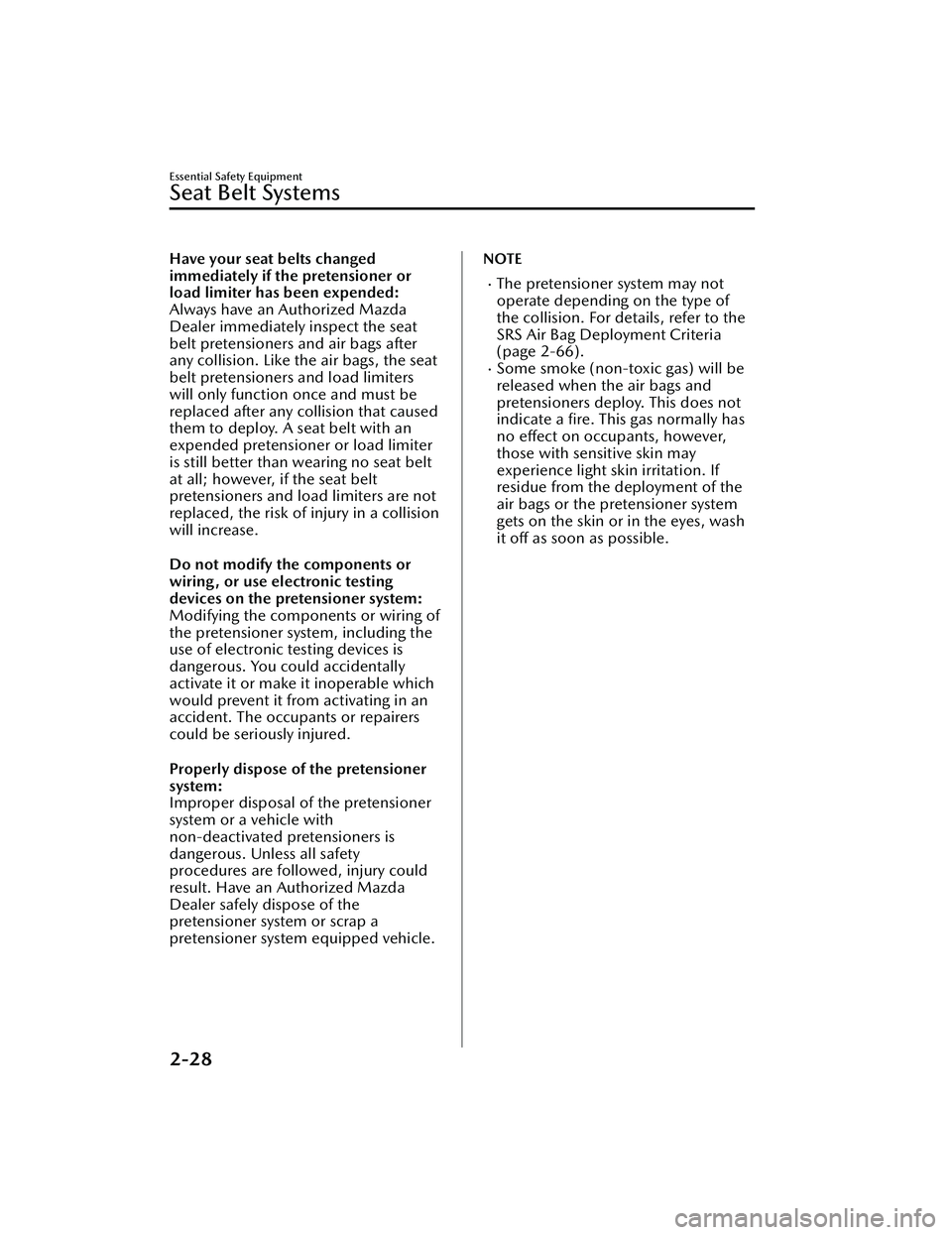

Have your seat belts changed
immediately if the pretensioner or
load limiter has been expended:
Always have an Authorized Mazda
Dealer immediately inspect the seat
belt pretensioners and air bags after
any collision. Like the air bags, the seat
belt pretensioners and load limiters
will only function once and must be
replaced after any collision that caused
them to deploy. A seat belt with an
expended pretensioner or load limiter
is still better than wearing no seat belt
at all; however, if the seat belt
pretensioners and load limiters are not
replaced, the risk of injury in a collision
will increase.
Do not modify the components or
wiring, or use electronic testing
devices on the pretensioner system:
Modifying the components or wiring of
the pretensioner system, including the
use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable which
would prevent it from activating in an
accident. The occupants or repairers
could be seriously injured.
Properly dispose of the pretensioner
system:
Improper disposal of the pretensioner
system or a vehicle with
non-deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Have an Authorized Mazda
Dealer safely dispose of the
pretensioner system or scrap a
pretensioner system equipped vehicle.NOTE
The pretensioner system may not
operate depending on the type of
the collision. For details, refer to the
SRS Air Bag Deployment Criteria
(page 2-66).
Some smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally has
no effect on occupants, however,
those with sensitive skin may
experience light skin irritation. If
residue from the deployment of the
air bags or the pretensioner system
gets on the skin or in the eyes, wash
it off as soon as possible.
Essential Safety Equipment
Seat Belt Systems
2-28
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Do not leave a seat belt extender
connected to the buckle:
Leaving a seat belt extender connected
to the buckle without using the seat
belt is dangerous. When the seat belt
extender is connected to the driver's
seat belt buckle (or front passenger's
seat belt buckle), the SRS driver's (or
front passenger's) air bag system will
determine that the driver (or front
passenger) is wearing the seat belt
even if the driver (or front passenger) is
not wearing it. This condition could
cause the driver's (or front
passenger's) air bag to not activate
correctly and result in death or serious
injury in the event of collision. Always
wear the seat belt with the seat belt
extender.
Do not use the seat belt extender
when installing a child-restraint
system on the front or rear passenger
seat:
Using a seat belt extender to fasten a
child-restraint system on any seat is
dangerous. Always follow the
child-restraint system manufacturer's
installation instructions and never use
a seat belt extender.
NOTE
When not in use, remove the seat belt
extender and store it in the vehicle. If
the seat belt extender is left
connected, the seat belt extender
might get damaged as it will not retract
with the rest of the seat belt and can
easily fall out of the door when not in
use and be damaged. In addition, the
seat belt warning light will not
illuminate and function properly.
Essential Safety Equipment
Seat Belt Systems
2-30
Mazda3_8LC2-EA-22G_Edition1_new2022-5-20 11:26:10
