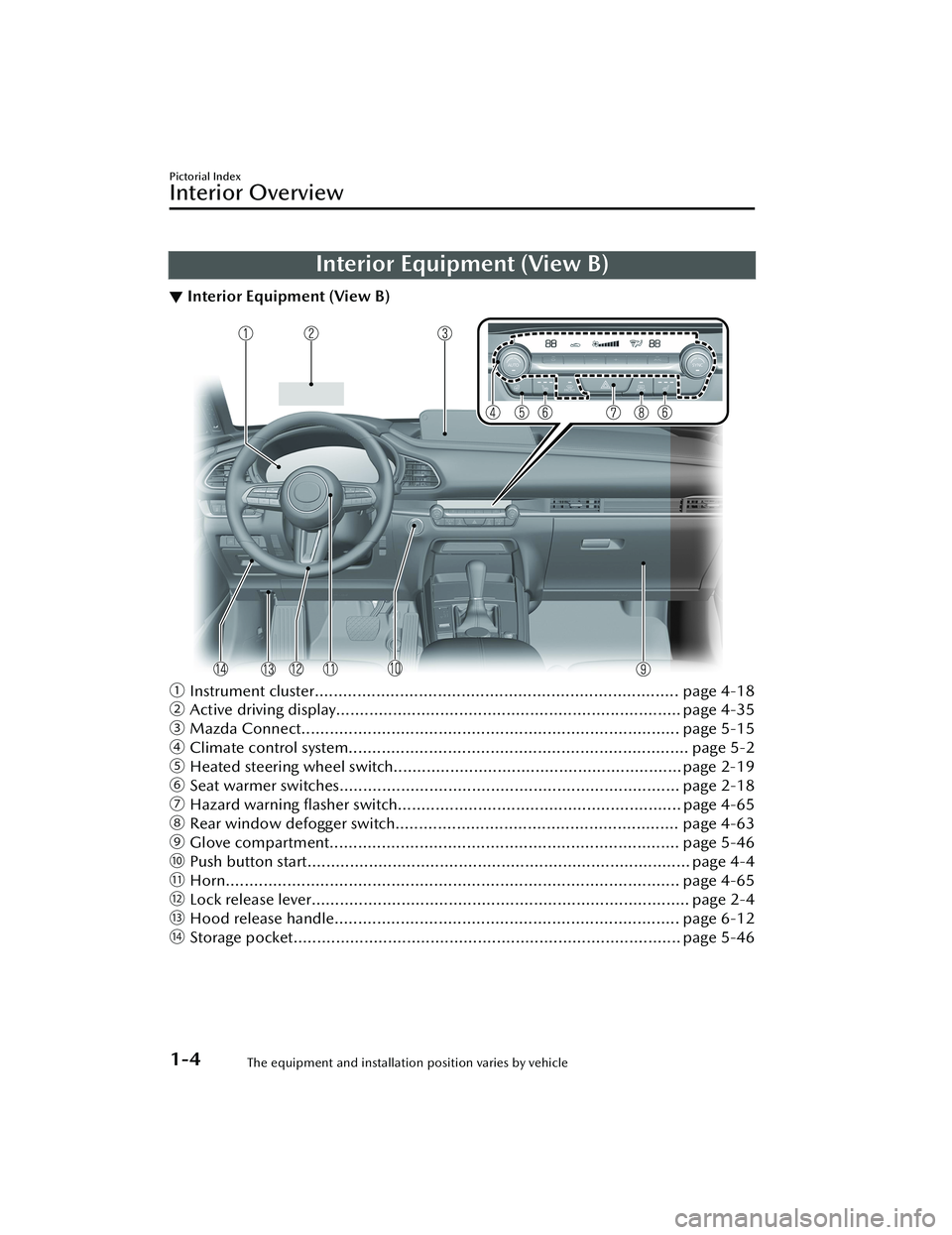

Interior Equipment (View B)
▼Interior Equipment (View B)
ƒ
Instrument cluster............................................................................. page 4-18
„ Active driving display......................................................................... page 4-35
… Mazda Connect................................................................................ page 5-15
† Climate control system........................................................................ page 5-2
‡ Heated steering wheel switch............................................................. page 2-19
ˆ Seat warmer switches........................................................................ page 2-18
‰ Hazard warning flasher switch............................................................ page 4-65
Š Rear window defogger switch............................................................ page 4-63
‹ Glove compartment.......................................................................... page 5-46
ΠPush button start................................................................................. page 4-4
Horn................................................................................................ page 4-65
Ž Lock release lever................................................................................ page 2-4
Hood release handle......................................................................... page 6-12
Storage pocket.................................................................................. page 5-46
Pictorial Index
Interior Overview
1-4The equipment and installation position varies by vehicle
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

(When the vehicle is stopped by the
AUTOHOLD function)
1. When the brake pedal is depressedwhile the vehicle is being driven
and the vehicle comes to a stop,
the i-stop function will operate and
continue to operate even if the
brake is released (except when
driving in the R or M position
second gear fixed mode).
2. The engine restarts automatically when the accelerator pedal is
depressed with the selector lever in
the D/M position (not in second
gear fixed mode).
3. If the selector lever is in the N or P position, the engine does not
restart when the brake pedal is
released. The engine restarts when
the brake pedal is depressed again
or the selector lever is shifted to the
D, M (not in second gear fixed
mode) or the R position. (For the
purposes of safety, always keep the
brake pedal depressed when
shifting the selector lever while
engine idling is stopped.)
Engine idle stopping and restarting
while driving
(When not using MRCC with Stop &
Go function/TJA)
1. Engine idling stops when the
vehicle speed is about 20 km/h (12
mph) or slower after depressing the
brake pedal while driving the
vehicle (in D position).
2. The engine restarts automatically after releasing the brake pedal with
the selector lever in the D position.
(When using MRCC with Stop & Go
function/TJA)
1. Engine idling stops when the
vehicle has decelerated to about 20
km/h (12 mph) or slower while inheadway control using the MRCC
with Stop & Go function/TJA.
2. If it is necessary to accelerate while in headway control using the MRCC
with Stop & Go function/TJA, the
engine restarts automatically.
Operation conditions
Under the following conditions, engine
idling stops and the i-stop indicator
light (green) turns on.
The engine is warmed up.The engine has been started and the
vehicle is driven for a certain period.
The engine is started with the hood
closed.
All doors, liftgate, and hood are
closed.
The driver's seat belt is fastened.The air conditioner is not operating
with the airflow mode in the
position.The temperature setting dial of the
air conditioner is in a position other
than maximum heating or maximum
cooling (A/C ON) position.
(Automatic climate control system)
The vehicle's interior temperature
and the set temperature for the air
conditioner are nearly the same.
The i-stop warning light (amber) is
not turned on/flashing.
The keyless entry & push button start
system functions are normal.
The temperature and charge
condition of the M Hybrid battery is
within normal operating range.
The Integrated Starter-Generator
(ISG) is in good condition.
(While vehicle is stopped)
The selector lever is in the D or M
position (not in second gear fixed
mode).
The automatic transmission fluid
has warmed up sufficiently.
When Driving
Start/Stop Engine
4-12
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

5Interior Features
Use of various features for ride comfort, including air-
conditioning system and audio system.
Climate Control System............. 5-2 Operating Tips....................... 5-2
Vent Operation......................5-3
Manual Type..........................5-6
Fully Automatic Type............ 5-10
Mazda Connect...................... 5-15 What is Mazda Connect ?.....5-15
Mazda Connect Basic
Operations.......................... 5-19
Connected Service (If
applicable).......................... 5-37
Interior Equipment.................. 5-39Sunvisors............................. 5-39
Interior Lights...................... 5-40
Accessory Socket................. 5-42
Cup Holder......................... 5-43
Bottle Holder.......................5-44
Assist Grips......................... 5-45
Rear Coat Hooks................. 5-45
Storage Compartments........ 5-46
5-1
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

Operating Tips
▼Operating Tips
Operate the climate control system
with the engine running.
To prevent the battery from being
discharged, do not leave the fan
control switch on for a long period of
time with the ignition switched ON
when the engine is not running.
(With i-stop)
The airflow amount may decrease
slightly while the i-stop function is
operating.
Clear all obstructions such as leaves,
snow and ice from the hood and the
air inlet in the cowl grille to improve
the system
efficiency.
Use the climate control system to
defog the windows and dehumidify
the air.
The recirculate mode should be used
when driving through tunnels or
while in a traffic jam, or when you
would like to shut off outside air for
quick cooling of the interior.
Use the outside air position for
ventilation or windshield defrosting.
If the vehicle has been parked in
direct sunlight during hot weather,
open the windows to let warm air
escape, then run the climate control
system.
Run the air conditioner about 10
minutes at least once a month to
keep internal parts lubricated.
Have the air conditioner checked
before the weather gets hot. Lack of
refrigerant may make the air
conditioner less efficient.
The refrigerant specifications are
indicated on a label attached to the
inside of the engine compartment. If
the wrong type of refrigerant is used,
it could result in a serious
malfunction of the air conditioner.
Consult a professional, government certified repairer for the inspection
or repair because a special device is
required for the air conditioner
maintenance.
For details, consult an Authorized
Mazda Dealer.
1. Label
Interior Features
Climate Control System
5-2
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

Ve n t O p e ra t i o n
▼Adjusting the Vents
Directing airflow
To adjust the direction of
airflow, move
the adjustment knob.
NOTE
When using the air conditioner
under humid ambient temperature
conditions, the system may blow fog
from the vents. This is not a sign of
trouble but a result of humid air
being suddenly cooled.
The air vents can be fully opened and
closed by operating the knob/dial.
Driver's Side Vents
Air vent open/close
1. Knob
2. Open
3. Close
NOTE
The figure indicates the air vent on the
left side of the instrument cluster. The
operation direction for the air vent on
the right side of the instrument cluster
is symmetrical with the air vent on the
left side.

Airflow direction adjustment
1. Knob

Passenger's Side Vents
Air vent open/close
1. Knob
2. Open
3. Close

Airflow direction adjustment
1. Knob

Interior Features
Climate Control System
5-3
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

Rear Vents*
Air vent open/close
1. Dial
2. Open
3. Close

Airflow direction adjustment
1. Knob
▼Selecting the Airflow Mode
Dashboard Vents
1. With rear vents

Dashboard and Floor Vents
1. With rear vents

Interior Features
Climate Control System
5-4*Some models.
CX-30_8LD3-EA-22J_Edition1_new
2022-6-7 13:06:59

Floor Vents
1. With rear vents

Defroster and Floor Vents
1. With rear vents

Defroster Vents
NOTE
The location airflow exits the air vents
and the airflow amount may change
depending on the open or close status
of the air vents.
Interior Features
Climate Control System
5-5
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

Manual Type
▼Manual Type
1. A/C switch
2. Mode selector switch
3. Air intake selector switch
4. Fan control dial
5. Rear window defogger switch
6. Windshield defroster switch
7. Temperature control dial

▼Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and
counterclockwise for cold.
MAX A/C
Fully turn the temperature control dial
counterclockwise for MAX A/C
(maximum cooling).
NOTE
When the mode is set to or with
the fan control dial in a position other
than 0 and the temperature control
dial in the MAX A/C position, the air
intake selector switches to the
recirculated air position and the A/C
turns on automatically.
If A/C is not desired, press the A/C
switch to turn it off.
Fan control dial
This dial allows variable fan speeds.
The fan has seven speeds.
Mode selector switches
The desired airflow mode can be
selected (page 5-4).
A/C switch
Press the A/C switch to turn the air
conditioner on. The indicator light on
the switch will illuminate when the fan
control dial is in any position except
OFF.

Press the switch once again to turn the
air conditioner off.
NOTE
The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).
Interior Features
Climate Control System
5-6
