2023 MAZDA CX30 display

Display*1*2*3ContentAction to be taken
Mazda Radar Cruise
Control Canceled. Drive
Safely This message is indicated when the
Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function), and the Traffic Jam
Assist (TJA) have been canceled other
than by the driver.
Have your vehicle inspected by an
Authorized Mazda Dealer.
Distance & Speed Alert
Operation Canceled
Drive Safely This message is indicated when the
Distance & Speed Alert (DSA) have
been canceled other than by the driv-
er.
Have your vehicle inspected by an
Authorized Mazda Dealer.
Cruise Control Opera-
tion Canceled. Drive
Safely This message is indicated when the
Cruise Control have been canceled
other than by the driver.
Have your vehicle inspected by an
Authorized Mazda Dealer.
Emergency Braking Acti-
vated. Depress Brake
Pedal to Hold Stop This message is indicated after the
Smart Brake Support (SBS) brakes op-
erate and when the Smart Brake Sup-
port (SBS) is canceled.
Depress the brake pedal.
Touch Key Fob to Push
Button Start Switch This message is indicated when the
key battery is weak (battery dead or
damaged key). Touch the key against push button
start to start the engine.
Refer to Engine Start Function When
Key Battery is Dead on page 4-8.
Depress Brake Pedal to
Start Vehicle This message is indicated when the
push button start is pressed without
depressing the brake pedal. When starting the engine, press the
push button start with the brake ped-
al depressed.
Check Gear Selector
Lever Position This message is indicated when the
selector lever is shifted to the P or R
position while driving.
Check the selector lever position.
Close Door and Fasten
Seat Belt This message is indicated when AU-
TOHOLD is about to operate and a
door is opened or a seat belt is unfas-
tened. When the AUTOHOLD is turned on,
close the doors and fasten seat belts.
Wiper Blades Must Be
on Windshield Before
Operating This message is indicated when the
ignition is switched ON with the wip-
er arms at the service positions.
Return the wiper arms to the initial
positions.
Windshield Wiper Range
of Motion Reduced. Re-
move Obstruction(s) This message is indicated when there
is snow or dirt accumulation on the
windshield and the wiper operation
range is narrowed.
Remove foreign matter from the
windshield.
Vehicle Not Switched
Off This message is indicated when the
driver’s door is opened without
switching the ignition OFF.
Switch the ignition OFF before leaving
the vehicle.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-36
CX-30_8LD3-EA-22J_Edition1_new
2022-6-7 13:06:59

Display*1*2*3ContentAction to be taken
Gear Selector Lever Not
in Park Displays when the push button start
is pressed while the selector lever is
in a position other than P, and the ig-
nition is switched to ACC. Shift the selector lever to the P posi-
tion and then switch the ignition OFF.
Excessive Transmission
Temperature. Drive
Slowly This message is indicated when the
internal temperature of the automatic
transmission is high.
Drive slowly to reduce load on the
automatic transmission.
Excessive Transmission
Temp. Stop Vehicle in a
Safe Location This message is indicated when the
automatic transmission
fluid temper-
ature is abnormally high. Park the vehicle in a safe place imme-
diately and contact an Authorized
Mazda Dealer.
Battery Saving Mode.
Drive Vehicle to Charge
Battery This message is indicated when the
power consumption exceeds a cer-
tain amount such as by repeatedly
opening/closing the doors or the lift-
gate when the ignition is switched
OFF.
Some of the functions are restricted
to reduce power consumption. Drive the vehicle for 5 minutes or
longer to charge the battery. The
warning message will clear just after
starting the engine.
Shift Into Park Before Ex-
iting Vehicle This message is indicated when the
driver’s door is opened with the se-
lector lever in a position other than
the P position. Close the driver’s door or shift the se-
lector lever to the P position.
*1 A pop-up is displayed when a warning occurs.*2 One screen displays four rows. If the entire message cannot be displayed on the screen, it switches to
another screen.
*3 The displayed content may differ from the actual vehicle.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-37
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

▼Electric Parking Brake (EPB)
Warning Beep
The warning buzzer is activated under
the following conditions:
The vehicle is driven with the parking
brake applied.
The Electric Parking Brake (EPB)
switch is pulled while the vehicle is
driven.
You attempt to start driving the
vehicle while the conditions for
releasing the Electric Parking Brake
(EPB) automatically have not been
met.
▼AUTOHOLD Warning Beep
Warning light flashes/message is
displayed and beep sound is activated
simultaneously for about 5 seconds
when using AUTOHOLD function or
when AUTOHOLD switch is operated.
Because a problem with AUTOHOLD
function has occurred, AUTOHOLD
function does not operate even if
AUTOHOLD switch is operated.

If the warning light flashes/message is
displayed and the beep sound is
activated simultaneously, have your
vehicle inspected at an Authorized
Mazda Dealer.
▼
Vehicle Problem Warning Beep
If any of the following problems occur,
a warning beep is activated. Check the
information regarding the warning
indication in the instrument cluster or
on the center display.
Automatic transmission problemIncrease in automatic transmission
internal temperature
M Hybrid problemBrake fluid amount decreaseEngine oil level sensor problemElectric Parking Brake (EPB) problem
Engine hydraulic pressure decreaseEngine coolant temperature increaseEngine system problem
▼ Blind Spot Monitoring (BSM)
System Warning Beep*
The Blind Spot Monitoring (BSM)
warning beep operates when the turn
signal lever is operated to the side
where the Blind Spot Monitoring
(BSM) warning light is illuminated.
▼Front Cross Traffic Alert (FCTA)
Warning Beep*
The Front Cross Traffic Alert (FCTA)
warning beep is activated if there is a
possibility of collision with a vehicle
approaching from the front on the left
and right sides of the vehicle.
▼Rear Cross
Tra ffi c Alert (RCTA)
Warning Beep*
The Rear Cross Traffic Alert (RCTA)
warning beep is activated if there is a
possibility of collision with a vehicle
approaching from the rear on the left
and right sides of the vehicle.
▼ Lane Departure Warning Sound*
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a
warning sound.
NOTE
The volume of the Lane Departure
Warning System (LDWS) warning
sound can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-42*Some models.
CX-30_8LD3-EA-22J_Edition1_new
2022-6-7 13:06:59

▼Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) System
War n in gs
*
The Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function) system warnings notify
the driver of system malfunctions and
cautions on use when required.
Check based on the beep sound.
Warning beep type Notification content
The beep sounds 1
time while the Mazda
Radar Cruise Control
with Stop & Go func-
tion (MRCC with Stop
& Go function) is op-
erating. If a malfunction occurs
in the system, make
sure that the Mazda
Radar Cruise Control
with Stop & Go func-
tion (MRCC with Stop
& Go function) has
been canceled.
The beep sounds in-
termittently while the
Mazda Radar Cruise
Control with Stop &
Go function (MRCC
with Stop & Go func-
tion) is operating. The distance between
your vehicle and the
vehicle ahead is too
close. Check the safety
of the surrounding
area and reduce vehi-
cle speed.
▼
Excessive Speed Warning*
If the vehicle speed exceeds the speed
limit sign displayed in the active driving
display/instrument cluster, the area
around the speed limit sign flashes in
amber and the warning sound is
activated at the same time. If the
vehicle speed continues to exceed the
displayed speed limit sign, the
indication stops flashing and remains
on.
▼Collision warning*
If there is a possibility of a collision
with a vehicle ahead, a warning sound
is activated at the same time as the
warning indications are displayed in
the instrument cluster or active driving
display.
▼Door-ajar Warning Beep
A warning beep is activated if the
vehicle is driven with any door or
liftgate ajar. Drive the vehicle after
closing the doors and liftgate.
▼Battery Saving Mode Warning
Sound
A warning sound is activated when the
vehicle goes into Battery Saving Mode.
Refer to Message Indicated on
Multi-information Display on page
7-35.
The warning sound will stop just after
starting the engine.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-43
CX-30_8LD3-EA-22J_Edition1_new
2022-6-7 13:06:59

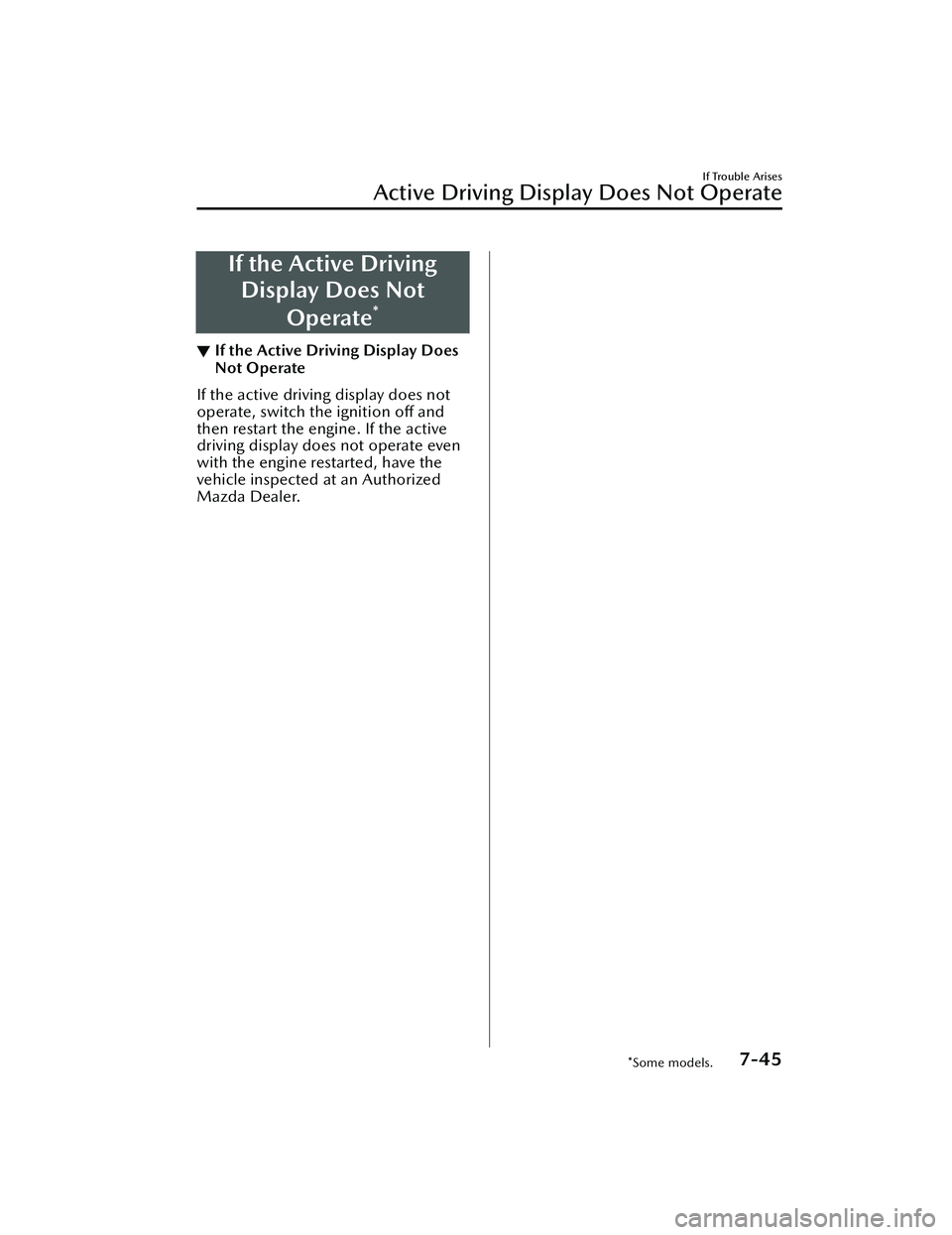

If the Active DrivingDisplay Does Not
Operate
*
▼If the Active Driving Display Does
Not Operate
If the active driving display does not
operate, switch the ignition off and
then restart the engine. If the active
driving display does not operate even
with the engine restarted, have the
vehicle inspected at an Authorized
Mazda Dealer.
If Trouble Arises
Active Driving Display Does Not Operate
*Some models.7-45
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

Index
A
Accessory Socket....................... 5-42
Active Driving Display................4-35
Adaptive Front Lighting System
(AFS)........................................ 4-98
Add-On Non-Genuine Parts and
Accessories............................... 8-17
Advanced KeyAdvanced keyless entry
system................................. 3-10
Operational range................ 3-11
Advanced Keyless Entry System... 3-10
Antilock Brake System (ABS).......4-83
Assist Grips............................... 5-45
AUTOHOLD.............................. 4-77
AUTOHOLD Warning Beep........ 7-42
Automatic Transmission Active Adaptive Shift (AAS)... 4-40
Automatic transmission
controls................................4-37
Direct mode.........................4-47
Driving tips.......................... 4-48
Manual shift mode............... 4-41
Shift-lock system...................4-38
Transmission ranges.............. 4-39
B
Battery...................................... 6-27Maintenance........................ 6-28
Replacement........................ 6-28
Specifications......................... 9-4
Battery Runs Out....................... 7-13
Jump-starting....................... 7-13
Blind Spot Monitoring (BSM)....4-104 Canceling operation of Blind Spot
Monitoring (BSM)...............4-108
Blind Spot Monitoring (BSM) Warning
Beep.........................................7-42
Body Lubrication....................... 6-21
Bottle Holder............................ 5-44
Brakes Brake assist.......................... 4-76
Brake override system........... 4-76
Electric Parking Brake (EPB)....4-72
Foot brake............................4-71
Pad wear indicator................4-75
Parking brake....................... 4-72
Warning light........................4-75
Brake Override System............... 4-76
Brake Override Warning Beep.....7-41
Brake System Warning Beep....... 7-41
Break-In Period......................... 3-50
C
Capacities...................................9-5
Cell Phones.............................. 8-18
Center Console......................... 5-47
Child Restraint Categories of child-restraint
systems................................ 2-35
Child-restraint precautions.... 2-30
Child-restraint system
installation........................... 2-35
Child-restraint system suitability
for various seat positions
table.................................... 2-37
Installing child-restraint
systems................................ 2-40
ISOFIX child-restraint systems
(Mexico).............................. 2-47
LATCH child-restraint systems
(Except Mexico)................... 2-47
Climate Control System Fully automatic type..............5-10
Manual type...........................5-6
Operating tips........................ 5-2
Vent operation....................... 5-3
Collision warning...................... 7-43
Coming Home Light.................. 4-56
10-2
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

Index
Cruise Control........................ 4-208Cruise control switch.......... 4-208
Cruise standby indication (white)/
cruise set indication (green) ..........
......................................... 4-208
Cup Holder.............................. 5-43
Customer Assistance (Canada)..... 8-6
Customer Assistance (Mexico)... 8-10
Customer Assistance (Puerto
Rico).......................................... 8-9
Customer Assistance (U.S.A.)....... 8-2
Cylinder Deactivation................ 4-17
D
Daytime Running Lights............. 4-57
Defogger.................................. 4-63 Mirror.................................. 4-64
Rear window........................ 4-63
Dimensions.................................9-6
Display..................................... 4-18
Distance & Speed Alert (DSA).. 4-115 Indication on display...........4-116
Door Locks............................... 3-12
Door-ajar Warning Beep............ 7-43
Driver Attention Alert (DAA).... 4-116
Driver Monitoring Camera....... 4-207
Driver Monitoring (DM)...........4-118
Drive Selection..........................4-89
Driving In Flooded Area............. 3-55
Driving on Uneven Road............ 3-56
Driving Position Memory........... 2-10
Driving Tips...............................3-50 Automatic transmission......... 4-48
Break-in period.................... 3-50
Driving in flooded area......... 3-55
Driving on uneven road.........3-56
Floor mat............................. 3-52
Hazardous driving.................3-51
Overloading......................... 3-56
Rocking the vehicle...............3-53
Saving fuel and protection of the
environment.........................3-50
Turbocharged vehicles (SKYACTIV-
G 2.5T)................................ 3-57
Winter driving...................... 3-53
Dynamic Stability Control
(DSC)....................................... 4-86 TCS/DSC indicator light........4-86
E
Electric Parking Brake (EPB)........ 4-72
Electric Parking Brake (EPB) Warning
Beep.........................................7-42
Emergency StartingPush-starting........................ 7-16
Starting a flooded engine...... 7-16
Emergency Towing Tiedown hooks..................... 7-20
Towing description............... 7-19
Emission Control System............ 3-31
Engine Coolant............................... 6-18
Engine compartment
overview.............................. 6-14
Exhaust gas.......................... 3-31
Hood release....................... 6-12
Oil....................................... 6-16
Starting.................................. 4-5
Essential Information................... 6-2
Event Data Recorder.................. 8-19
Excessive Speed Warning........... 7-43
Exterior Care............................. 6-43 Aluminum wheel
maintenance........................ 6-47
Bright-metal maintenance..... 6-47
Maintaining the finish........... 6-44
Plastic part maintenance....... 6-48
F
Flasher
10-3
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

Index
Hazard warning.................... 4-65
Headlights............................4-53
Flat Tire Changing a flat tire................. 7-5
Mounting the spare tire........ 7-10
Removing a flat tire................ 7-6
Floor Mat................................. 3-52
Fluids Brake................................... 6-20
Classification .......................... 9-4
Washer................................ 6-20
Foot Brake................................ 4-71
Forward Sensing Camera (FSC) ..........
.............................................. 4-197
Front Camera/Side Cameras/Rear
Camera.................................. 4-206
Front Cross Tra ffi c Alert (FCTA) ..........
.............................................. 4-120
Front Cross Tra ffi c Alert (FCTA)
Warning Beep........................... 7-42
Front Radar Sensor.................. 4-201
Front Side Radar Sensor........... 4-203
Fuel Filler lid and cap...................3-32
Requirements....................... 3-30
Tank capacity......................... 9-5
Fuses........................................ 6-35 Panel description.................. 6-38
Replacement........................ 6-35
G
Gauges..................................... 4-18
Glove Compartment..................5-46
H
Hazardous Driving.....................3-51
Hazard Warning Flasher............. 4-65
HeadlightsComing home light...............4-56
Flashing................................4-56
High-low beam.................... 4-56
Leaving home light............... 4-57
Leveling................................4-57
Head Restraint.......................... 2-16
High Beam Control System
(HBC)....................................... 4-99 High Beam Control System (HBC)
indicator light (green)......... 4-100
Hill Launch Assist (HLA)............. 4-81
HomeLink Wireless Control
System...................................... 4-66
Hood Release........................... 6-12
Horn........................................ 4-65
I
If a Warning Light Turns On or
Flashes......................................7-22
If the Active Driving Display Does Not
Operate.................................... 7-45
Ignition Not Switched Off (STOP)
Warning Beep........................... 7-39
Ignition Switch............................ 4-4
Illuminated Entry System............ 5-41
Immobilizer System................... 3-46
Inspecting Brake Fl uid Level........6-20
Inspecting Coolan t Level............ 6-18
Inspecting Engine Oil Level.........6-17
Inspecting Washer Fluid Level..... 6-20
Instrument Cluster..................... 4-18 Average fuel economy...........4-26
Compass display.................. 4-27
Current fuel economy........... 4-26
Dashboard illumination........ 4-24
Deceleration regeneration charge
display................................. 4-27
Distance-to-empty................4-25
Engine coolant temperature
gauge...................................4-22
Fuel gauge........................... 4-23
Indication/indicator lights..... 4-31
10-4
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59
