Specifications
▼Engine
Item Specification
SKYACTIV-G 2.0 SKYACTIV-G 2.5 SKYACTIV-G 2.5T
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 ×
3.59 in) 89.0 × 100.0 mm (3.50 × 3.94 in)
Displacement 1,997.6 ml (1,997.6 cc) 2,488.5 ml (2,488.5 cc)
Compression
ratio 13.0 10.5
▼
Electrical System
Classification
Specification
Battery
*112V-60Ah/20HR
Spark-plug
number SKYACTIV-G 2.0
Mazda Genuine
spark plug
*2PE5R-18-110-A or
PE5S-18-110
SKYACTIV-G 2.5 With Cylinder De-
activation
Mazda Genuine
spark plug
*2P5SP-18-110
Without Cylinder
Deactivation Mazda Genuine
spark plug
*2PE5R-18-110-A or
PE5S-18-110
SKYACTIV-G 2.5T Mazda Genuine
spark plug
*2PY8V-18-110
*1 Check the battery installed on the vehicle and us
e a battery with an equal or higher performance.
However, the performance of the battery may vary even among the same battery types, consult an
Authorized Mazda Dealer for replacement.
*2 This spark plug provides the SKYACTIV-G engine with optimum performance. Contact an Authorized Mazda Dealer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The
fine particulate
coating on the iridium alloy and platinum tips could be damaged.
▼ Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-16.
Coolant FL-22 type
Specifications
Specifications
9-4
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

LubricantClassification
Automatic transmission
fluid
*1
With Cylinder Deactiva-
tion Mazda Genuine ATF A7
Without Cylinder Deac-
tivation Mazda Genuine ATF FZ
Tra n s f e r c a s e o i l
*2Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil
*2Mazda Long Life Hypoid Gear Oil SG1
Brake fluid SAE J1703 or FMVSS116 DOT-3
*1 Periodic replacement is unnecessary.*2 Replacement is necessary when the component is submerged in water.
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your
investment.
▼ Capacities
(Approximate Quantities)
Item
Capacity
Engine oil SKYAC-
TIV-G 2.0
With oil filter replacement
4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
SKYAC-
TIV-G 2.5 With oil filter replacement
4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replacement 4.3 L (4.5 US qt, 3.8 Imp qt)
SKYAC-
TIV-G 2.5T With oil filter replacement
4.8 L (5.1 US qt, 4.2 Imp qt)
Without oil filter replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant SKYACTIV-G 2.0
6.2 L (6.6 US qt, 5.5 Imp qt)
SKYACTIV-G 2.5 6.3 L (6.7 US qt, 5.5 Imp qt)
SKYAC-
TIV-G 2.5T For engine
8.2 L (8.7 US qt, 7.2 Imp qt)
For water-cooled charge air cooler 1.6 L (1.7 US qt, 1.4 Imp qt)
Automatic
transmission
fluid SKYACTIV-G 2.0, SKYACTIV-G 2.5
7.6 L (8.0 US qt, 6.7 Imp qt)
SKYACTIV-G 2.5T 8.0 L (8.5 US qt, 7.0 Imp qt)
Transfer case oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank FWD
51.0 L (13.5 US gal, 11.2 Imp
gal)
AWD 48.0 L (12.7 US gal, 10.6 Imp
gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
Specifications
Specifications
9-5
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

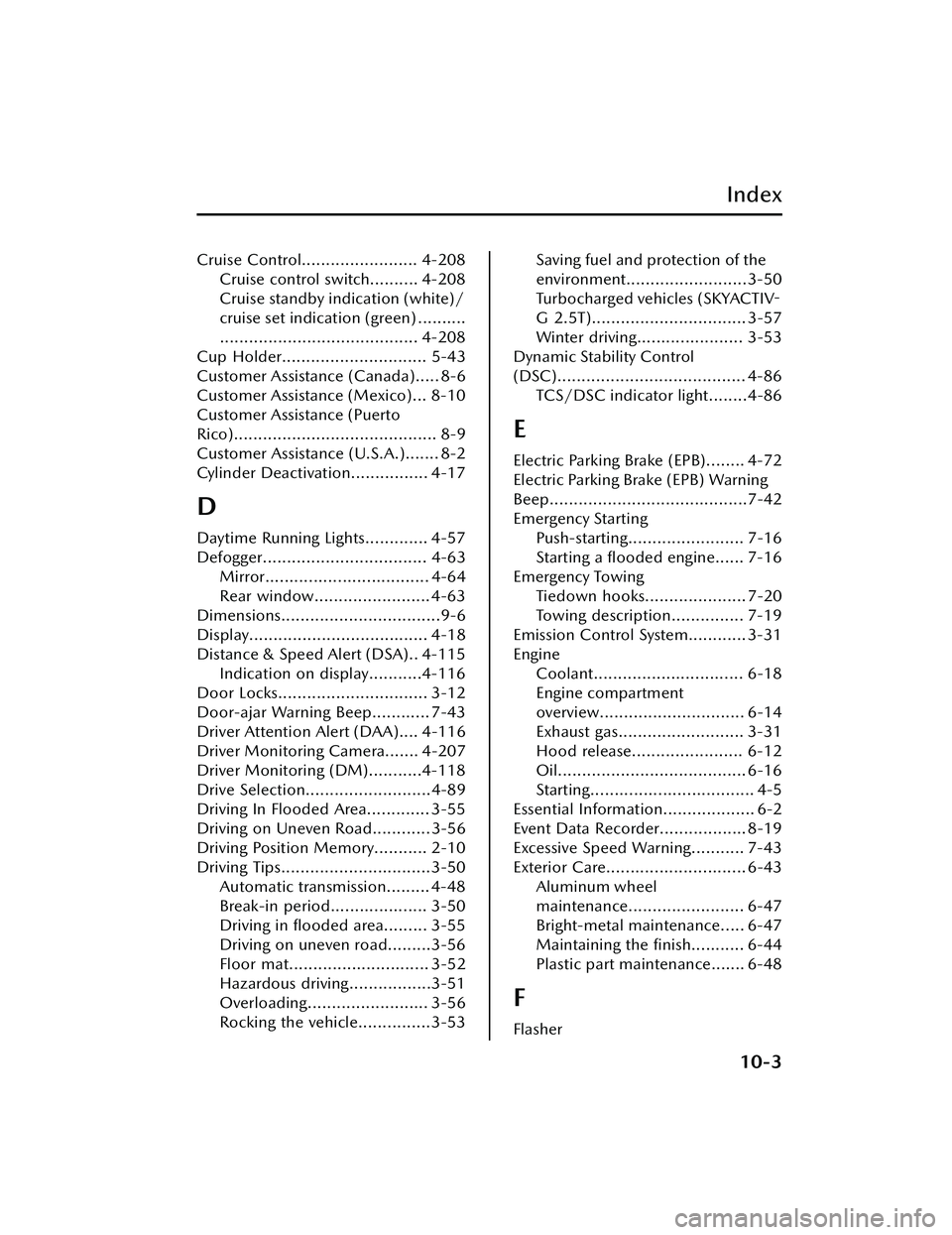

Index
Cruise Control........................ 4-208Cruise control switch.......... 4-208
Cruise standby indication (white)/
cruise set indication (green) ..........
......................................... 4-208
Cup Holder.............................. 5-43
Customer Assistance (Canada)..... 8-6
Customer Assistance (Mexico)... 8-10
Customer Assistance (Puerto
Rico).......................................... 8-9
Customer Assistance (U.S.A.)....... 8-2
Cylinder Deactivation................ 4-17
D
Daytime Running Lights............. 4-57
Defogger.................................. 4-63 Mirror.................................. 4-64
Rear window........................ 4-63
Dimensions.................................9-6
Display..................................... 4-18
Distance & Speed Alert (DSA).. 4-115 Indication on display...........4-116
Door Locks............................... 3-12
Door-ajar Warning Beep............ 7-43
Driver Attention Alert (DAA).... 4-116
Driver Monitoring Camera....... 4-207
Driver Monitoring (DM)...........4-118
Drive Selection..........................4-89
Driving In Flooded Area............. 3-55
Driving on Uneven Road............ 3-56
Driving Position Memory........... 2-10
Driving Tips...............................3-50 Automatic transmission......... 4-48
Break-in period.................... 3-50
Driving in flooded area......... 3-55
Driving on uneven road.........3-56
Floor mat............................. 3-52
Hazardous driving.................3-51
Overloading......................... 3-56
Rocking the vehicle...............3-53
Saving fuel and protection of the
environment.........................3-50
Turbocharged vehicles (SKYACTIV-
G 2.5T)................................ 3-57
Winter driving...................... 3-53
Dynamic Stability Control
(DSC)....................................... 4-86 TCS/DSC indicator light........4-86
E
Electric Parking Brake (EPB)........ 4-72
Electric Parking Brake (EPB) Warning
Beep.........................................7-42
Emergency StartingPush-starting........................ 7-16
Starting a flooded engine...... 7-16
Emergency Towing Tiedown hooks..................... 7-20
Towing description............... 7-19
Emission Control System............ 3-31
Engine Coolant............................... 6-18
Engine compartment
overview.............................. 6-14
Exhaust gas.......................... 3-31
Hood release....................... 6-12
Oil....................................... 6-16
Starting.................................. 4-5
Essential Information................... 6-2
Event Data Recorder.................. 8-19
Excessive Speed Warning........... 7-43
Exterior Care............................. 6-43 Aluminum wheel
maintenance........................ 6-47
Bright-metal maintenance..... 6-47
Maintaining the finish........... 6-44
Plastic part maintenance....... 6-48
F
Flasher
10-3
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

Index
Hazard warning.................... 4-65
Headlights............................4-53
Flat Tire Changing a flat tire................. 7-5
Mounting the spare tire........ 7-10
Removing a flat tire................ 7-6
Floor Mat................................. 3-52
Fluids Brake................................... 6-20
Classification .......................... 9-4
Washer................................ 6-20
Foot Brake................................ 4-71
Forward Sensing Camera (FSC) ..........
.............................................. 4-197
Front Camera/Side Cameras/Rear
Camera.................................. 4-206
Front Cross Tra ffi c Alert (FCTA) ..........
.............................................. 4-120
Front Cross Tra ffi c Alert (FCTA)
Warning Beep........................... 7-42
Front Radar Sensor.................. 4-201
Front Side Radar Sensor........... 4-203
Fuel Filler lid and cap...................3-32
Requirements....................... 3-30
Tank capacity......................... 9-5
Fuses........................................ 6-35 Panel description.................. 6-38
Replacement........................ 6-35
G
Gauges..................................... 4-18
Glove Compartment..................5-46
H
Hazardous Driving.....................3-51
Hazard Warning Flasher............. 4-65
HeadlightsComing home light...............4-56
Flashing................................4-56
High-low beam.................... 4-56
Leaving home light............... 4-57
Leveling................................4-57
Head Restraint.......................... 2-16
High Beam Control System
(HBC)....................................... 4-99 High Beam Control System (HBC)
indicator light (green)......... 4-100
Hill Launch Assist (HLA)............. 4-81
HomeLink Wireless Control
System...................................... 4-66
Hood Release........................... 6-12
Horn........................................ 4-65
I
If a Warning Light Turns On or
Flashes......................................7-22
If the Active Driving Display Does Not
Operate.................................... 7-45
Ignition Not Switched Off (STOP)
Warning Beep........................... 7-39
Ignition Switch............................ 4-4
Illuminated Entry System............ 5-41
Immobilizer System................... 3-46
Inspecting Brake Fl uid Level........6-20
Inspecting Coolan t Level............ 6-18
Inspecting Engine Oil Level.........6-17
Inspecting Washer Fluid Level..... 6-20
Instrument Cluster..................... 4-18 Average fuel economy...........4-26
Compass display.................. 4-27
Current fuel economy........... 4-26
Dashboard illumination........ 4-24
Deceleration regeneration charge
display................................. 4-27
Distance-to-empty................4-25
Engine coolant temperature
gauge...................................4-22
Fuel gauge........................... 4-23
Indication/indicator lights..... 4-31
10-4
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

Index
Vehicle roll prevention
function............................... 4-15
Warning light (Amber).......... 4-16
i-stop warning beep.................. 7-41
J
Jack............................................ 7-3
Jump-Starting............................ 7-13
K
Keyless Entry System.................... 3-4
Keys........................................... 3-2 Key suspend function..............3-9
Transmitter............................. 3-5
Key Left-in-luggage Compartment
Warning beep (With the advanced
keyless function)....................... 7-40
Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)...................................7-40
Key Removed from Vehicle Warning
Beep.........................................7-39
Key Suspend Function................. 3-9
L
Label Information
Chassis number...................... 9-2
Engine number....................... 9-3
Motor vehicle safety standard
label...................................... 9-2
Tire pressure label.................. 9-2
Vehicle emission control
information label.................... 9-2
Vehicle identification
number..................................9-2
Lane Departure Warning sound.. 7-42
Lane Departure Warning System
(LDWS)...................................4-101
Lane-change Signals.................. 4-58
Lane-keep Assist System (LAS) ...........
.............................................. 4-151
Leaving Home Light................... 4-57
Liftgate..................................... 3-21 Luggage compartment.......... 3-28
When liftgate cannot be
opened................................ 7-44
Liftgate Door-lock Switch Inoperable
Warning Beep........................... 7-40
Lights-on Reminder................... 7-38
Light Bulbs Replacement........................ 6-34
Specifications ......................... 9-7
Lubricant Quality......................... 9-4
Luggage Compartment.............. 5-47 Cargo sub-compartment....... 5-47
Luggage Compartment Light...... 5-40
M
Maintenance Information............................ 6-2
Scheduled (Canada)............... 6-6
Scheduled (Mexico)................6-8
Scheduled (U.S.A. and Puerto
Rico)......................................6-4
Map Lights................................ 5-40
Mazda Connect........................ 5-15 Appendix............................. 5-28
Connected Service................5-37
Mazda Connect Basic
Operations........................... 5-19
Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function)........................4-127 Close proximity warning...... 4-130
Display indication............... 4-129
Setting the system...............4-131
Stop hold control............... 4-135
10-6
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

Index
Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function) System
Warnings.................................. 7-43
Message Indicated on Multi-
information Display................... 7-35
Meters...................................... 4-18
MirrorsOutside mirrors.................... 3-35
Rearview mirror.................... 3-37
Mirror Defogger........................ 4-64
Moonroof................................. 3-42
Multi-information Display.......... 4-20
M Hybrid.................................. 4-49
O
Off-Road Traction Assist............ 4-87 Off-Road Traction Assist
indicator light....................... 4-87
Off-Road Traction
Assist switch......................... 4-88
Outside Mirrors.........................3-35
Overhead Console.................... 5-46
Overhead Lights........................ 5-40
Overheating.............................. 7-17
Overloading.............................. 3-56
Owner Maintenance Closing the hood..................6-13
Engine compartment
overview.............................. 6-14
Key battery replacement........6-29
Opening the hood................ 6-12
Owner maintenance
precautions.......................... 6-11
P
Parking Brake............................ 4-72
Parking Sensor System............. 4-231
Power Liftgate........................... 3-23
Power Liftgate Warning Beep...... 7-41
Power Steering.......................... 4-93
Power Windows........................ 3-39
R
Rearview Mirror........................ 3-37
Rear Coat Hooks....................... 5-45
Rear Cross Tra ffi c Alert (RCTA) ...........
.............................................. 4-123
Rear Cross Traffic Alert (RCTA)
Warning Beep........................... 7-42
Rear Door Child Safety Locks..... 3-20
Rear Side Radar Sensor............ 4-204
Rear View Monitor.................. 4-216 Displayable range on the
screen................................ 4-218
Rear view monitor
operation........................... 4-221
Rear view parking camera
location............................. 4-217
Switching to the rear view monitor
display............................... 4-218
Variance between actual road
conditions and displayed
image................................ 4-228
Viewing the display.............4-220
Rear Window Defogger............. 4-63
Rear Window Washer................ 4-63
Rear Window Wiper.................. 4-62
Recommended Oil.................... 6-16
Recording of Vehicle Data..........8-20
Recreational Towing.................. 3-58
Registering Your Vehicle in A Foreign
Country.................................... 8-16
Replacement Fuse..................................... 6-35
Key battery........................... 6-29
Light bulbs........................... 6-34
Tires.....................................6-32
Wheel.................................. 6-33
Wiper.................................. 6-22
10-7
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

Index
Rocking the Vehicle................... 3-53
S
Safety Defects, Reporting
(Canada).................................. 8-14
Safety Defects, Reporting
(U.S.A.).................................... 8-13
Saving Fuel and Protection of the
Environment............................. 3-50
Scheduled MaintenanceCanada.................................. 6-6
Mexico.................................. 6-8
U.S.A. and Puerto Rico........... 6-4
Seats Driver's seat........................... 2-4
Front passenger's seat........... 2-12
Front seat............................... 2-4
Head restraint...................... 2-16
Rear seat.............................. 2-13
Seat warmer......................... 2-18
Seat Belt System Automatic locking................ 2-23
Emergency locking................ 2-23
Extender.............................. 2-28
Pregnant women.................. 2-23
Seat belt precautions............ 2-21
Seat Belt Warning Beep............. 7-38
Security System Immobilizer system............... 3-46
Theft-deterrent system.......... 3-48
Selector Lever Not In P or N
Reminder Warning Beep............ 7-41
Shift Position Warning Beep....... 7-41
Smart Brake Support (SBS)....... 4-155 Stopping the Smart Brake Support
(SBS) system operation........4-162
Spare Tire................................... 7-3
Spare Tire and Tool Storage.......... 7-3
Specifications Capacities.............................. 9-5
Dimensions............................ 9-6
Electrical system..................... 9-4
Engine................................... 9-4
Light bulbs............................. 9-7
Lubricant quality..................... 9-4
Tires.......................................9-8
Weights................................. 9-6
SRS Air Bags Driver and front passenger
occupant classification
system................................. 2-66
How the SRS air bags work.... 2-60
Limitations to SRS air bag...... 2-65
Monitoring........................... 2-71
SRS air bag deployment
criteria................................. 2-63
Supplemental restraint system
components......................... 2-58
Supplemental restraint system
(SRS) precautions................. 2-52
Starting the Engine...................... 4-5
Steering Wheel Heated steering wheel.......... 2-19
Horn.................................... 4-65
Storage Compartments.............. 5-46 Center console..................... 5-47
Glove compartment..............5-46
Luggage compartment.......... 5-47
Overhead console................ 5-46
Storage pocket..................... 5-46
Storage Pocket.......................... 5-46
Sunshade.................................. 3-45
Sunvisors.................................. 5-39
T
Theft-Deterrent System.............. 3-48
Three-flash Turn Signal...............4-58
Tiedown Hook.......................... 7-20
Tires......................................... 6-31 Replacing a tire.................... 6-32
10-8
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

Index
Replacing a wheel................ 6-33
Snow tires............................ 3-54
Specifications......................... 9-8
Temporary spare tire............. 6-33
Tire chains............................3-54
Tire inflation pressure............6-31
Tire rotation......................... 6-32
Uniform tire quality grading
system (UTQGS)................... 8-21
Tire Information Location of the tire label
(placard).............................. 8-27
Steps for determining the correct
load limit............................. 8-34
Tire labeling......................... 8-23
Tire maintenance.................. 8-29
Vehicle loading.....................8-30
Tire Pressure Monitoring
System.................................... 4-212
Touch Sensor Inoperable Warning
Beep (With the advanced keyless
function)...................................7-40
To w i n g Recreational towing.............. 3-58
Trailer towing....................... 3-58
Towing Description................... 7-19
Traction Control System (TCS).... 4-84 TCS OFF Indicator Light......... 4-85
TCS OFF switch.................... 4-85
TCS/DSC indicator light........4-84
Tra ffi c Jam Assist (TJA).............. 4-137
Close proximity warning...... 4-142
Display indication............... 4-140
Setting the system...............4-143
Stop hold control............... 4-150
Traffic Sign Recognition System
(TSR)...................................... 4-109
Trouble Battery runs out.................... 7-13
Emergency starting................7-16
Flat tire.................................. 7-5Overheating......................... 7-17
Parking in an emergency......... 7-2
When liftgate cannot be
opened................................ 7-44
Turn and Lane-Change Signals.... 4-58
Turn Signals.............................. 4-58
U
Ultrasonic Sensor.................... 4-206
V
Vehicle Information Labels Chassis number...................... 9-2
Engine number....................... 9-3
Motor vehicle safety standard
label...................................... 9-2
Tire pressure label.................. 9-2
Vehicle emission control
information label.................... 9-2
Ve h i c l e identification
number..................................9-2
Vehicle Problem Warning Beep...7-42
W
Warning Sound is Activated........7-43 AUTOHOLD warning beep.... 7-42
Battery Saving Mode Warning
Sound.................................. 7-43
Blind Spot Monitoring (BSM)
warning beep....................... 7-42
Brake override warning
beep.................................... 7-41
Brake system warning beep....7-41
Collision warning..................7-43
Door-ajar warning beep........ 7-43
Electric Parking Brake (EPB)
warning beep....................... 7-42
Excessive speed warning........7-43
Front Cross Traffic Alert (FCTA)
Warning Beep...................... 7-42
10-9
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59
