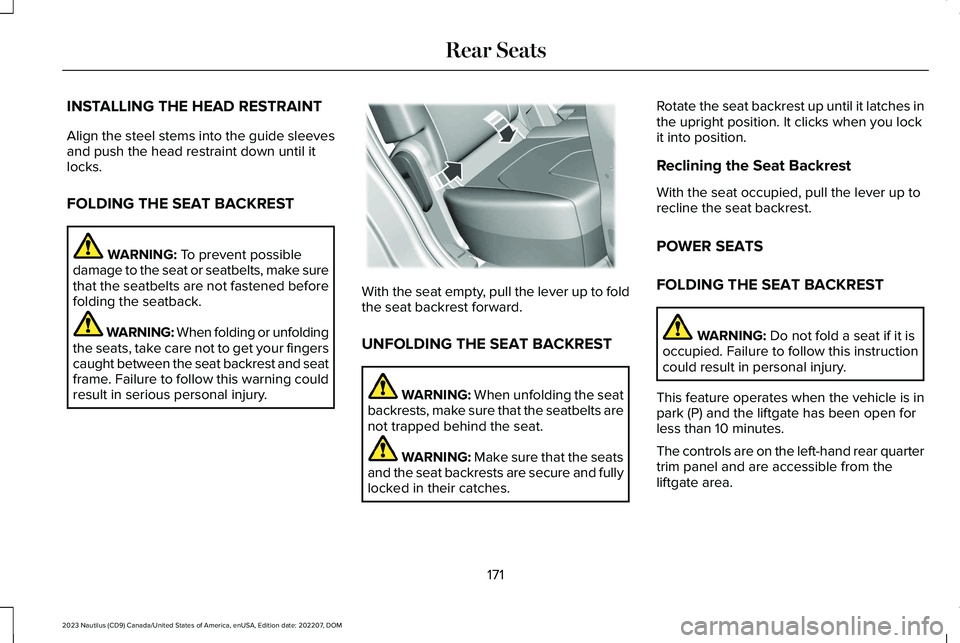

INSTALLING THE HEAD RESTRAINT
Align the steel stems into the guide sleevesand push the head restraint down until itlocks.
FOLDING THE SEAT BACKREST
WARNING: To prevent possibledamage to the seat or seatbelts, make surethat the seatbelts are not fastened beforefolding the seatback.
WARNING: When folding or unfoldingthe seats, take care not to get your fingerscaught between the seat backrest and seatframe. Failure to follow this warning couldresult in serious personal injury.
With the seat empty, pull the lever up to foldthe seat backrest forward.
UNFOLDING THE SEAT BACKREST
WARNING: When unfolding the seatbackrests, make sure that the seatbelts arenot trapped behind the seat.
WARNING: Make sure that the seatsand the seat backrests are secure and fullylocked in their catches.
Rotate the seat backrest up until it latches inthe upright position. It clicks when you lockit into position.
Reclining the Seat Backrest
With the seat occupied, pull the lever up torecline the seat backrest.
POWER SEATS
FOLDING THE SEAT BACKREST
WARNING: Do not fold a seat if it isoccupied. Failure to follow this instructioncould result in personal injury.
This feature operates when the vehicle is inpark (P) and the liftgate has been open forless than 10 minutes.
The controls are on the left-hand rear quartertrim panel and are accessible from theliftgate area.
171
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMRear SeatsE186789
360 DEGREE CAMERA
LIMITATIONS
Note:Use caution if a door is ajar. The 360degree camera could be out of position andthe image could be incorrect.
LOCATING THE 360 DEGREE
CAMERAS
Rear View Camera
The rear view camera is on the liftgate. Itprovides a video image of the area behindyour vehicle.
Front View Camera
The front view camera is in the grille. Itprovides a video image of the area in frontof your vehicle.
Side View Camera
The side view camera is on the outsidemirror. It provides a video image of the areaon the sides of your vehicle to aid you whenparking.
360 DEGREE CAMERA GUIDE
LINES
Note:Active guide lines are only availablewhen the transmission is in reverse (R).
Active guide lines.A
Centerline.B
Fixed guide line: Green zone.C
248
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOM360 Degree Camera (If Equipped)E306774
LUGGAGE COMPARTMENT
PRECAUTIONS
WARNING: Make sure that youproperly secure objects in the luggagecompartment. Failure to follow thisinstruction could result in personal injuryin the event of a sudden stop or crash.
WARNING: Do not place objects onthe luggage cover. Failure to follow thisinstruction could result in personal injuryor death in the event of a sudden stop orcrash.
WARNING: The appropriate loadingcapacity of your vehicle can be limitedeither by volume capacity (how muchspace is available) or by payload capacity(how much weight the vehicle shouldcarry). Once you have reached themaximum payload of your vehicle, do notadd more cargo, even if there is spaceavailable. Overloading or improperlyloading your vehicle can contribute to lossof vehicle control and vehicle rollover.
WARNING: Make sure that you fullyclose the liftgate to prevent exhaust fumesfrom entering your vehicle. If you areunable to fully close the liftgate, open theair vents or the windows to allow fresh airto enter your vehicle. Failure to follow thisinstruction could result in personal injuryor death.
WARNING: Do not exceed themaximum front and rear axle loads for yourvehicle.
Note: When loading long objects into yourvehicle, for example pipes, timber orfurniture, be careful not to damage theinterior trim.
INSTALLING AND REMOVING THE
LUGGAGE COMPARTMENT CARGO
NET
WARNING: This net is not designedto restrain objects during a collision orheavy braking.
Attach the net to the anchors. Repeat theattachment on both sides of the vehicle.
302
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMLuggage Compartment
Protected ComponentFuse RatingFuse Number
Not used.–71
Not used.—72
Rear heated seats.20 A73
Driver seat module.30 A74
Windshield wiper motor.25 A75
Power liftgate module.30 A76
Climate controlled seat module.30 A77
Trailer tow.40 A78
Blower motor.40 A79
Not used.—80
110 V inverter.40 A81
Not used.–82
Not used.—83
Starter motor solenoid.30 A84
Not used.—85
Anti-lock brake system pump.60 A87
334
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses
Protected ComponentsFuse RatingFuse or Relay Number
Lumbar.Wireless accessory charging.
Subwoofer amplifier.20 A4
Not used.–5
Security horn relay.10 A6
Gearshift module.10 A7
Power liftgate module.5 A8Hands free liftgate module.Embedded modem.
Keypad.5 A9Combined sensing module.
Not used.–10
Not used.–11
Climate control module.7.5 A12Enhanced central gateway module.
Instrument cluster.7.5 A13Steering column control module.
Not used.15 A14
337
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMFuses
Child Restraints................................................41Child Restraint Position Information..................41Child Restraints Recommendation...................43
Child Safety......................................................39Child Restraint Anchor Points............................40Child Restraints.......................................................41Installing Child Restraints....................................44
Child Safety Locks..........................................52Child Safety Precautions...............................39Cleaning Products.......................................365Cleaning the Exterior..................................366Cleaning Camera Lenses and Sensors........368Cleaning Chrome, Aluminium or StainlessSteel...................................................................367Cleaning Headlamps and Rear Lamps.........366Cleaning Stripes or Graphics...........................367Cleaning the Engine Compartment...............367Cleaning the Exterior Precautions.................366Cleaning the Underbody..................................368Cleaning Wheels.................................................367Cleaning Windows and Wiper Blades..........366
Cleaning the Interior....................................368Cleaning Carpets and Floor Mats..................370Cleaning Displays and Screens......................369Cleaning Fabric...................................................369Cleaning Leather................................................369Cleaning Moonroof Tracks...............................370Cleaning Plastic..................................................369
Cleaning Seatbelts.............................................370Cleaning Storage Compartments...................370Cleaning the Instrument Panel.......................368Cleaning Vinyl.....................................................370
Clearing All MyKeys.......................................87Climate Control..............................................157Auto Mode............................................................159
Climate Control Hints...................................160Closing the Liftgate......................................104Closing the Hands-Free Liftgate.....................105Closing the Liftgate From Inside YourVehicle...............................................................104Closing the Liftgate From Outside YourVehicle...............................................................104Closing the Liftgate Using the RemoteControl...............................................................105
Cold Weather Precautions..........................313Connected Navigation................................458Connected Vehicle.......................................427Connected Vehicle – Troubleshooting.........428Connecting the Vehicle to a MobileNetwork............................................................427
Connected Vehicle Data...............................25Connected Vehicle Limitations.................427Connected Vehicle Requirements...........427
Connected Vehicle –Troubleshooting.........................................428Connected Vehicle – Frequently AskedQuestions.........................................................428
Connecting a Bluetooth® Device.............452Connecting a Trailer....................................305Connecting a Trailer Precautions.............305Connecting the Vehicle to a MobileNetwork........................................................427Connecting Lincoln Way to the Modem.......427Enabling and Disabling the Modem..............427What Is the Modem............................................427
Connecting the Vehicle to a Wi-FiNetwork........................................................427Connecting Your Phone..............................446Contacting Us...................................................15Cooling System Capacity and Specification- 2.0L..............................................................417Cooling System Capacity and Specification- 2.7L...............................................................418Crash and Breakdown Information...........317Automatic Crash Shutoff...................................321Jump Starting the Vehicle.................................318Post-Crash Alert System...................................320
Crash Sensors and Airbag Indicator..........72Creating a MyKey...........................................86Creating a Personal Profile........................456Creating a Vehicle Wi-Fi Hotspot..............431
585
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex
Switching Lane Centering On and Off..........267
Lane Keeping System Indicators..............274Lane Keeping System..................................271Aid Mode..............................................................273Alert and Aid Mode............................................274Alert Mode............................................................273Lane Keeping System –Troubleshooting.............................................276
Lane Keeping System Limitations............272Lane Keeping System Precautions...........271Lane Keeping System Settings.................273Lane Keeping System –Troubleshooting.........................................276Lane Keeping System – Frequently AskedQuestions.........................................................277Lane Keeping System – InformationMessages.........................................................276
Launching or Retrieving a Boat or PersonalWatercraft....................................................309Liftgate..............................................................101Closing the Liftgate.............................................104Liftgate – Troubleshooting...............................106Opening the Liftgate...........................................101
Liftgate Obstacle Detection.......................106Liftgate Precautions.......................................101Liftgate – Troubleshooting.........................106Liftgate – Frequently Asked Questions........108Liftgate – Information Messages.....................107
Liftgate – Warning Lamps.................................106
Lincoln Personal Assistant.........................442Lincoln Personal Assistant – Frequently AskedQuestions.........................................................442Lincoln Personal Assistant Settings...............442Using Lincoln Personal Assistant...................442
Lincoln Protect..............................................467Linking or Unlinking a Personal Profile toa Device.......................................................457Linking or Unlinking a Personal Profile toa Remote Control.......................................457Live Traffic......................................................458Switching Live Traffic On and Off...................458What Is Live Traffic.............................................458
Load Carrying................................................296Roof Rack.............................................................300
Load Carrying Precautions........................296Loading Your Trailer.....................................308Locating the 360 Degree Cameras.........248Locating the Blind Spot Information SystemSensors........................................................280Locating the Brake Fluid Reservoir.........222Locating the Cross Traffic AlertSensors........................................................284Locating the Fuel Filler Funnel.................204Locating the Keyless Entry Keypad...........96Locating the Memory FunctionButtons..........................................................176
Locating the Power Outlets........................185Locating the Pre-Collision AssistSensors........................................................288Locating the Rear View Camera...............244Locating the Safety ComplianceCertification Labels...................................297Locating the Tire label................................375Locating the Tire Sealant and InflatorKit...................................................................389Locating the USB Ports................................183Locating the Wireless AccessoryCharger.........................................................188Locating Your Vehicle....................................77Locking the Rear Window Controls..........133Luggage Compartment..............................302Luggage Compartment Precautions.......302
M
Maintenance...................................................341Engine Air Filter..................................................353Engine Oil.............................................................347Exterior Bulbs.......................................................361Interior Bulbs.......................................................364
Maintenance Precautions...........................341Making and Receiving a Phone Call........448Manually Releasing the Electric ParkingBrake............................................................225
591
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex
Manually Shifting Gears...............................213Shifting Using the Paddle Shifters..................213
Manual Park Release....................................216Manual Park Release Precautions..................216Using Manual Park Release..............................216What Is Manual Park Release...........................216
Manual Seats..................................................170Adjusting the Head Restraint...........................170Folding the Seat Backrest..................................171Head Restraint Components............................170Installing the Head Restraint..............................171Removing the Head Restraint..........................170Unfolding the Seat Backrest..............................171
Massage Seats...............................................167Adjusting the Massage Seat Settings............167Massage Seat Limitations.................................167
Memory Function...........................................176Memory Function Precautions...................176Mislock..............................................................92Mislock Limitations...............................................92Switching Mislock On and Off...........................92What Is Mislock.....................................................92
Mobile Communications Equipment........541Mobile Device Data........................................25Moonroof Bounce-Back...............................138Overriding Moonroof Bounce-Back...............138What Is Moonroof Bounce-Back......................138
Moonroof.........................................................137Moonroof Bounce-Back.....................................138
Motorcraft Parts - 2.0L.................................410Motorcraft Parts - 2.7L...................................411Muting the Audio..........................................434MyKey – Troubleshooting............................89MyKey™..............................................................85Principle of Operation.........................................85
N
Navigation Map Updates...........................458Navigation......................................................458Adjusting the Map..............................................458Live Traffic............................................................458Route Guidance..................................................460Setting a Destination.........................................459Waypoints.............................................................459
Normal Scheduled Maintenance..............474
O
Opening and Closing the Hood................341Opening and Closing the Moonroof.........137Opening and Closing the Sunshade........137Opening and Closing the Windows...........131Opening the Liftgate.....................................101Opening the Hands-Free Liftgate...................102
Opening the Liftgate From Inside YourVehicle................................................................101Opening the Liftgate From Outside YourVehicle................................................................101Opening the Liftgate Using the RemoteControl...............................................................102
Operating the Doors From Inside YourVehicle.............................................................91Opening the Doors From Inside YourVehicle.................................................................91Unlocking and Locking the Doors Using theCentral Locking..................................................91
Operating the Doors From Outside YourVehicle............................................................90Individually Unlocking and Locking the DoorsUsing the Key Blade........................................90Unlocking and Locking the Doors Using theKey Blade...........................................................90Unlocking and Locking the Doors Using theRemote Control................................................90
Ordering a Canadian French Owner'sManual..........................................................485OTASee: Software Update Settings.......................461See: Vehicle Software Updates.......................461
Overriding the Set Speed..........................264Over the airSee: Software Update Settings.......................461
592
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex
