2023 LINCOLN NAUTILUS washer fluid

Materials
SpecificationName
WSS-M17B21-AR-1234yf Refrigerant(U.S.)R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)YN-33-A(U.S.)HS7Z-19B519-BA(Canada)
WSS-M2C300-A2Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)Motorcraft® R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yfMotorcraft®(Canada)YN-35(U.S. & Canada)
WASHER FLUID SPECIFICATION
Capacities
QuantityVariant
Fill as required.All.
423
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMCapacities and Specifications

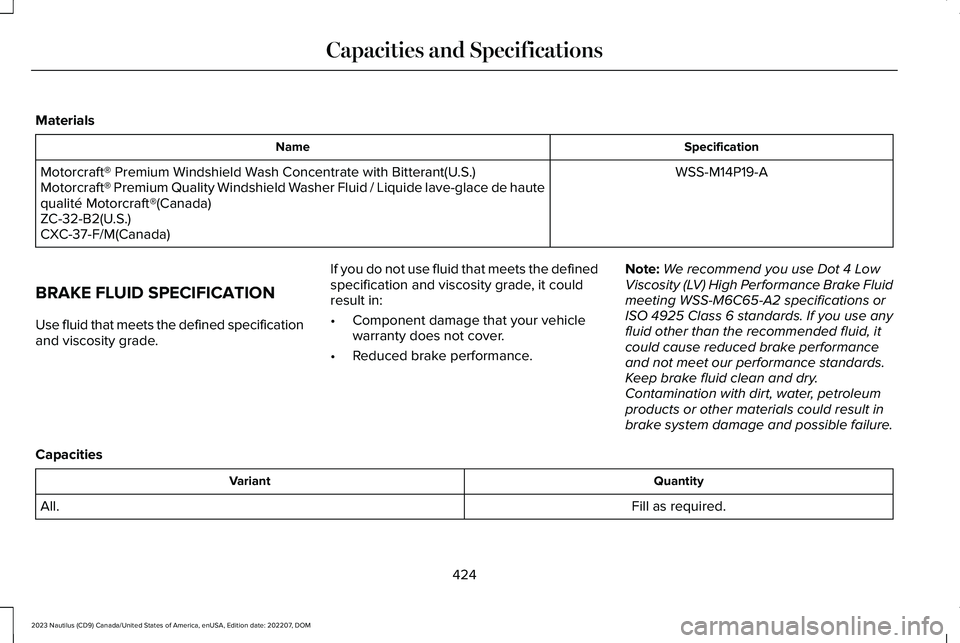

Materials
SpecificationName
WSS-M14P19-AMotorcraft® Premium Windshield Wash Concentrate with Bitterant(U.S.)Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de hautequalité Motorcraft®(Canada)ZC-32-B2(U.S.)CXC-37-F/M(Canada)
BRAKE FLUID SPECIFICATION
Use fluid that meets the defined specificationand viscosity grade.
If you do not use fluid that meets the definedspecification and viscosity grade, it couldresult in:
•Component damage that your vehiclewarranty does not cover.
•Reduced brake performance.
Note:We recommend you use Dot 4 LowViscosity (LV) High Performance Brake Fluidmeeting WSS-M6C65-A2 specifications orISO 4925 Class 6 standards. If you use anyfluid other than the recommended fluid, itcould cause reduced brake performanceand not meet our performance standards.Keep brake fluid clean and dry.Contamination with dirt, water, petroleumproducts or other materials could result inbrake system damage and possible failure.
Capacities
QuantityVariant
Fill as required.All.
424
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMCapacities and Specifications

Check Every Month
The air filter restriction gauge.1
The engine oil level.
Function of all interior and the exterior lights.
The tires including the spare for wear and proper pressure.
The windshield washer fluid level.
The fuel and water separator. Drain if necessary or if indicated by the instrument cluster display.1
The holes and slots in the tail pipe to make sure they are functional and clear of debris.1
1 Diesel vehicles only.
Check Every Six Months
The battery connections. Clean if necessary.
The body and door drain holes for obstructions. Clean if necessary.
The cooling system fluid level and the coolant system strength.
The door weatherstrips for wear. Lubricate if necessary.
The hinges, latches and outside locks for proper operation. Lubricate if necessary.
472
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMScheduled Maintenance

Multi-Point Inspection
Suspension components for leaks or damageExhaust system
Steering and linkageExterior lamps operation
Tires including the spare for wear and proper pressure2Fluid levels1; fill if necessary
Windshield for cracks, chips or pitsFor oil and fluid leaks
Washer spray and wiper operationHalfshaft dust boots
1 Brake, coolant recovery reservoir, automatic transmission and window washer.2If your vehicle has a temporary mobility kit, check the tire sealant expiration Use By date on the canister. Replace as needed.
Be sure to ask your dealership serviceadvisor or technician about the multi-pointvehicle inspection. It is a comprehensive wayto perform a thorough inspection of yourvehicle. Your checklist gives you immediatefeedback on the overall condition of yourvehicle.
NORMAL SCHEDULED
MAINTENANCE
Oil Change Reminder
Your vehicle comes with an oil changereminder that determines when you shouldchange the engine oil based on how you useyour vehicle.
Your vehicle lets you know when an oilchange is due by displaying a message inthe information display.
The following table provides examples ofvehicle use and its impact on oil changeintervals. It is a guideline only. Actual oilchange intervals depend on several factorsand generally decrease with severity of use.
474
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMScheduled Maintenance

V
Vehicle Care..................................................365Cleaning the Exterior.........................................366Cleaning the Interior..........................................368
Vehicle Identification Number..................426Locating the Vehicle IdentificationNumber.............................................................426Vehicle Identification NumberOverview..........................................................426
Vehicle Identification...................................426Vehicle Identification Number........................426
Vehicle Interior................................................33Vehicle Software Updates..........................461Vehicle System Reset..................................464Vehicle Wi-Fi Hotspot –Troubleshooting.........................................432Vehicle Wi-Fi Hotspot – Frequently AskedQuestions.........................................................432
Vehicle Wi-Fi Hotspot...................................431Vehicle Wi-Fi Hotspot –Troubleshooting.............................................432
Ventilated Seats............................................168Switching the Ventilated Seats On andOff.......................................................................168
VentilationSee: Climate Control...........................................157
Venting the Moonroof..................................138
Viewing the Tire Pressures.......................398Visual Search...................................................27Voice Interaction...........................................442Lincoln Personal Assistant...............................442
W
Warranty Information...................................573Washer Fluid Specification........................423Washers............................................................118Adding Washer Fluid...........................................119Switching the Courtesy Wipe On andOff........................................................................118Using the Rear Window Washer.......................118Using the Windshield Washer...........................118Washer Fluid Specification................................119Washer Precautions.............................................118
WashersSee: Wipers and Washers..................................115
Waxing............................................................368Waypoints.......................................................459Adding a Waypoint............................................459Editing Waypoints...............................................459
What Are the Instrument ClusterIndicators......................................................144What Are the Instrument Cluster WarningLamps............................................................142What Is 911 Assist............................................74
What Is a Connected Vehicle....................427What Is Active Park Assist...........................251What is Alexa Built-In...................................444What Is Auto-Start-Stop..............................200What Is Blind Spot InformationSystem..........................................................279What Is Cross Traffic Alert..........................283What Is Cruise Control................................256What Is Drive Mode Control......................270What Is Driver Alert......................................294What Is Hill Start Assist...............................229What Is Keyless Entry....................................94What Is Lincoln Protect...............................467What Is Phone as a Key..................................81What Is Pre-Collision Assist.......................286What Is Remote Start....................................154What Is the 360 Degree Camera.............247What Is the Cabin Air Filter.........................162What Is the Catalytic Converter................210What Is the Electric Parking Brake..........225What Is the Gross Axle WeightRating............................................................297What Is the Gross Combined WeightRating............................................................297What Is the Gross Vehicle WeightRating............................................................297What Is the Keyless Entry Keypad..............96What Is the Lane Keeping System............271
599
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex
