2023 KIA STINGER climate control

INFOTAINMENT SYSTEM
Audio System Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Bluetooth® Wireless Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Kia Connect Activation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Kia Connect Assistance* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Kia Access App Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Kia Access App Features Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Kia Connect with Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
CENTER PANEL
Multimedia USB Ports, Power Outlets & USB Charger Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Digital Clock - Infotainment System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Wireless Smartphone Charging System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Idle, Stop and Go (ISG) System* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Launch Control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Automatic Climate Control System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Automatic Transmission (Shift by Cable* / Shift by Wire*)
and Manual Shift Mode (Shift by Cable only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Paddle Shifters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Auto Hold* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Electric Parking Brake (EPB)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
SEATING
Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Power Adjustable Driver ’s Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Front Seat Headrest Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Driver Position Memory System* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
OTHER KEY FEATURES
HomeLink® with Auto-Dimming Rearview Mirror* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Sunroof Operation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

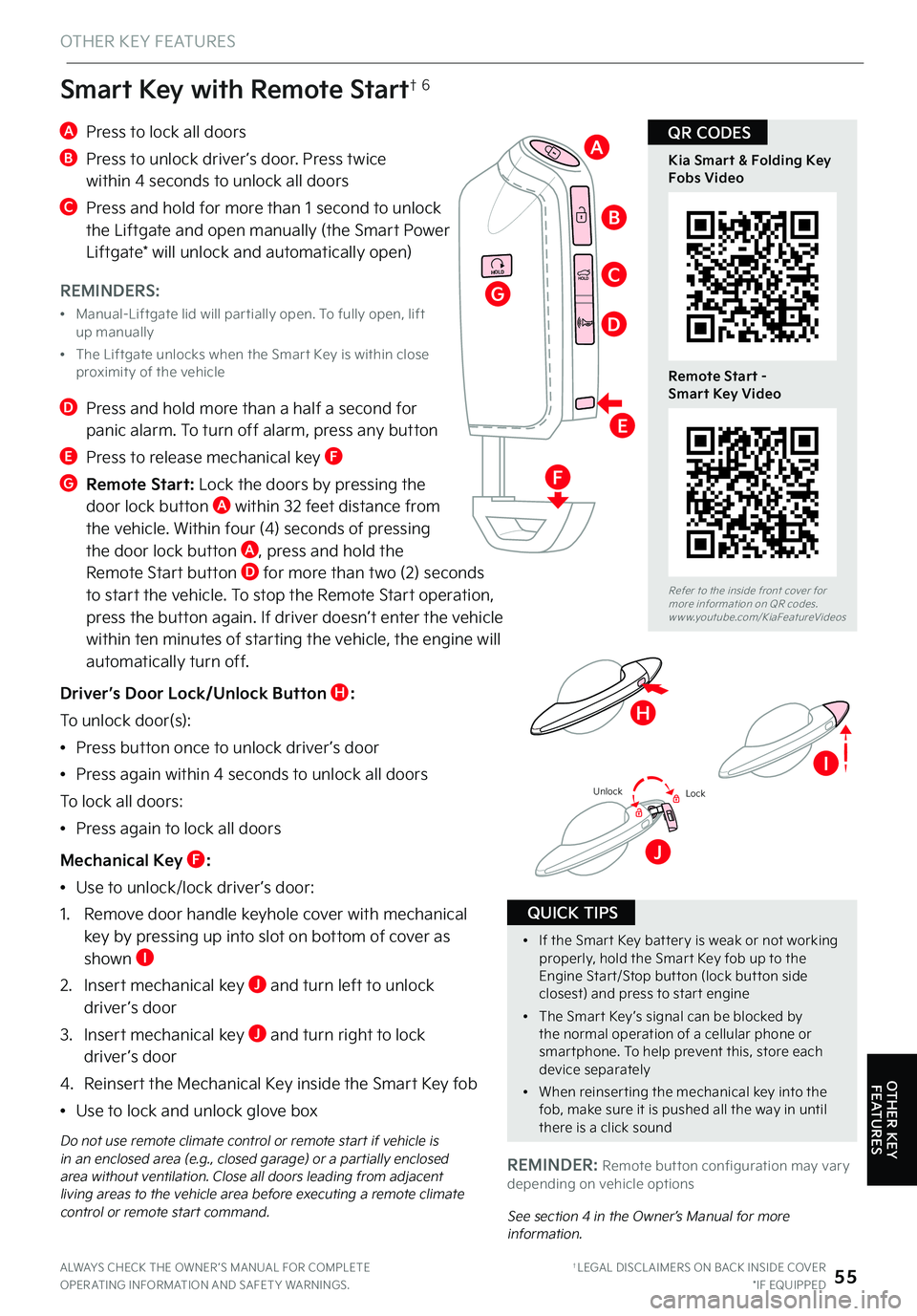

Smart Key with Remote Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Smart Power Liftgate* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Hood Release Lever and Latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Fuel Filler Door Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Fuel Cap/Malfunction Indicator (Check Engine Light) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
SAFETY FEATURES
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Child-Protector Rear Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Occupant Detection System (ODS) / Passenger Airbag Off Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
NORMAL MAINTENANCE SCHEDULE - TURBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64-67
LEGAL DISCLAIMERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Inside Back Cover
TABLE OF CONTENTS
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED3

INSTRUMENT CLUSTER
For more information on Fuel Economy, snap the QR Code above to view a video or refer to section 4 in the Owner’s Manual .
Fuel Economy / Tips for Economical Driving
Several factors contribute to your vehicle’s fuel economy, such as maintenance of your vehicle, driving style, environmental conditions, vehicle weight and vehicle aerodynamics . Below are some tips on how to help improve fuel economy:
•Use the climate control system less often . Use the Driver Only* setting as much as possible
•Keep your vehicle in good condition with regular maintenance
•Don’t let the engine idle longer than necessary
•Drive at a moderate speed, accelerating smoothly
•Keep tires inflated to the recommended pressure
•Travel lightly, without carrying unnecessary weight in your vehicle
•Avoid placing large or heavy items on roof racks
•Avoid hilly, winding or poorly maintained roads
INSTRUMENT CLUSTER
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Tips for Economical Driving Video
QR CODE
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . †LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED7

Tire Pressure Monitoring System (TPMS)† 20
The TPMS indicator functions as both Low Tire Pressure Light and TPMS Malfunction Indicator .
The TPMS indicator is designed to illuminate if it detects one or more tires is significantly underinflated, if a spare tire has been installed that does not have a TPMS device, or when the outside temperature drops considerably .
The LCD screen in the instrument cluster will display the Low Tire Pressure indicator A showing which tire(s) are underinflated .
•Inflate tire(s) to specifications using an accurate digital tire pressure gauge . See front driver ’s door jamb for PSI specification
•When there is a problem with the TPMS, the TPMS Malfunction Indicator will blink for approximately one minute then illuminate . See dealer for service
24
36 36
36
Image is for illustrative purposes only and may not reflect actual feature or operation . See section 6 in the Owner’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Tire Pressure Monitoring Video
QR CODE
A
REMINDERS:
•
Check the recommended tire pressure label located on the left side of driver ’s door jamb, visible when the door is open
•
Consult your dealer for ser vice if the Low Tire Pressure Light remains illuminated after inflating your tire(s)
•
Personal electronic devices (such as laptops, wireless chargers, remote star t systems, etc .) may inter fere with the TPMS system, which may cause the Malfunction Warning Indicator (Check Engine Light) to illuminate
•Even with TPMS, tire pressure should be checked manually at least once a month . Only adjust tire pressure on “cold tires” that have been sit ting for 3 hours or more, and tires that are not hot in temperature from direct sunlight or heat
•
For proper maintenance, safet y and optimal fuel economy, maintain recommended tire inflation pressure and stay within the load limits and weight distribution recommended for your vehicle
•A significant drop in temperature can cause tire inflation pressures to drop, which may activate the TMPS light . Manually confirm tire pressures after significant changes in temperature or altitude
QUICK TIPS

VEHICLE SETTINGS
To enter the Vehicle Settings mode in the Infotainment System, press the SETUP key on the Infotainment System or the SETUP icon onscreen . Then press VEHICLE , which will take you to Vehicle Settings . Use the
touchscreen to navigate through the menus .
Vehicle Settings:
Vehicle Settings* - Infotainment System (Available on certain models)
VEHICLE SETTINGS
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Vehicle & User Settings Video
Ambient, Mood & Theme Lighting Video
QR CODE
*IF EQUIPPED10STINGER FEATURES & FUNCTIONS GUIDE
Some settings in certain models may be available through User Settings in the Instrument Cluster LCD . Refer to the Car Infotainment System Quick Reference Guide .
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury or death . The driver’s primary responsibility is in the safe and legal operation of a vehicle . Handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law, should never be used during operation of the vehicle .
Driver Assistance• SCC Reaction• Driving Convenience• Speed Limit Assist• Warning Timing• Warning Volume• Driver Attention Warning• Forward Safety• Lane Safety• Blind-spot Safety• Parking Safety
Drive Mode• Drive Mode Change Alert*
Climate*• Recirculate Air*• Automatic Ventilation*• Defog/Defrost Options*• Climate Features*
Lights*• Ambient Light*• One Touch Turn Signal*• Headlight Display* • High Beam Assist*
Door*• Auto Lock*• Auto Unlock*• Walk-Away Lock*• Two-Press Unlock*• Smart Liftgate*
Cluster*• Service Interval*• Energy Consumption Reset*• Content Selection*• Cluster Voice Guidance Volume* • Welcome Sound*• Select Theme*
Convenience*• Rear Occupant Alert*• Welcome Mirror Light*• Wireless Charging System*• Vehicle Auto Shut-Off*• Active Sound Design*
Head-up Display*• Display Control• Content Selection
Seat*• Seat Position Change Alert*• Seating Easy Access
Custom*• Sport Mode Seat Support*• Coasting*

DRIVER’S PANEL
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED29
DRIVER’S PANEL
Reverse Parking Aid Function*
When the gear shift lever is moved into R (Reverse) and the vehicle is moving backwards, the outside rearview mirrors will rotate downward to aid in reverse parking .
To turn Reverse Parking Aid Function ON, press the L (Left) A or R (Right) B outside rearview mirror button (LED lit) .
To turn OFF, press button(s) again .
The outside rearview mirrors will automatically return to their original positions when:
•The Engine Start/Stop button is in the OFF position
•The gear shift lever is moved out of R (Reverse)
•
The outside rearview mirror switches are OFF (LED not lit)
REMINDER: When the but tons are not pressed, the Reverse Parking Aid Function will not operate and the outside rear view mirrors will not rotate downward .
See section 4 in the Owner’s Manual for more information .
(Mirror shown is for illustrative purposes only)
Heated Outside Mirrors
Mirror heaters automatically turn ON/OFF at the same time the Rear Window Defroster is turned ON/OFF . Rear Window Defroster button* is located on climate control system panel .
See section 4 in the Owner’s Manual for more information .
Auto Door Lock/Unlock
Auto Door Lock/Unlock will engage when gear shift is moved into or out of the P (Park) position . Refer to the User Settings on how to turn Auto Door Lock/Unlock ON/OFF .
See section 4 in the Owner’s Manual for more information .
A
B

INFOTAINMENT SYSTEM
Kia Access†1 App Download
Go to an app marketplace to download the Kia Access App . Once you download the app, make sure you register your vehicle and start an account (refer to Kia
Connect link Activation page) . Get to know your new Kia and the available convenient features on the app .
Download the Kia Access App by clicking this dynamic QR code . Some phone’s operating systems may need to be updated to scan dynamic QR codes .
Kia Access App Features Guide. Click this dynamic QR code to access the guide . Some phone’s operating systems may need to be updated to scan dynamic QR codes .
2020 SOULMILEAGE722 mi.
355 miEst. RangeDOOR LOCKS REMOTE STARTFind My Car
Kia Access†1 App Features Guide
The Kia Access App Features Guide helps you
utilize the app to its full potential by detailing how to set up and use each feature and adjust various settings . Below are some of the topics included:
•Remote Commands
•Set Climate
•Schedule Service
Do not use remote climate control or remote start if vehicle is in an enclosed area (e .g ., closed garage) or a partially enclosed area without ventilation . Close all doors leading from adjacent living areas to the vehicle area before executing a remote climate control or remote start command .
Kia App Screen for illustrative purposes only . Actual App screen and functionality may vary .
Kia Connect may be unavailable for model year 2022 and later vehicles sold or purchased in Massachusetts . See Kia Connect Terms of Service at owners .kia .com for more information .
For further Kia Connect operations, refer to the Car Infotainment System Quick Reference Guide .
QR CODES
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . †LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED41
INFOTAINMENT
SYSTEM
•The smar tphone and vehicle need to be connected to a cellular net work with a good wireless signal strength in order to use Kia Connect . If these conditions are not met, remote command may not execute or may take a long time . It will also affect voice commands such as navigation POI or address search
•To use Remote Star t or Remote Star t with Climate Control feature, all doors, hood and trunk/liftgate must be closed and locked
•When Remote Star t is activated, if the driver does not enter the vehicle within 10 minutes, the Remote Star t will turn the engine off
•When using Remote Star t with Climate Control, turn on for at least a few minutes before get ting into the vehicle, allowing the vehicle interior to reach your desired temperature
•The quickest way to obtain accurate vehicle status through the app is by pressing the refresh but ton on the app or refreshing the web page when using the customer web por tal
•In order to preser ve the vehicle bat ter y, Kia Connect will not turn on seven days after the last ignition was on . You will need to restar t the vehicle with a key fob in order to use Kia Connect again
•To keep your map and soft ware up to date, free of charge, visit the of ficial Kia update webpage at ht tps://update .kia .com/US/EN/Main . Note, visiting a dealer for soft ware update may include an additional charge .
QUICK TIPS

CENTER PANEL
AUTOSYNCOFFCLIMATE
A/C
REAR
FRONT
Face-Level Floor-Level
Bi-Level Floor/ Defrost-Level
Auto Defogging System
Auto defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield . The system will automatically change to defrost mode when needed .
Auto Defogging is set ON by default . To cancel Auto Defogging, press the Front Defrost button for three seconds (with the ignition ON; the ADS OFF icon will illuminate) . To turn Auto Defogging on again, press the Front Defrost button for three seconds .
Defrost Outside / Defog Inside Windshield
1 . Set Fan Speed to highest position
2 . Set Temperature to highest position
3 . Press the front defrost button B
See section 4 in the Owner’s Manual for more information .
Automatic Climate Control System
Front Climate Control
A AUTO (Automatic) Climate Control
button / Driver ’s Temperature Control Knob
B Front Windshield Defrost button
C Rear Window Defrost button
D Air Conditioning button
E Recirculated Air button
F Fresh Air button
G System OFF button
H Fan Speed Control buttons
I Mode Select button
J Climate Control display on/off
K SYNC (Synchronize All Zones) Temperature Control button / Passenger’s Temperature Control Knob
Climate Control Auto Function
Press AUTO A to select full auto operation . In AUTO mode the driver and front passenger have full control of their own temperature zones . The mode, fan speed, air intake and air conditioning will activate and adjust accordingly to achieve the temperature settings for each zone .
To set temperatures:
•Tu r n A to set the driver ’s zone temperature
•Tu r n K to set the front passenger ’s zone temperature
Dual-Zone Climate Control
Pressing the SYNC button K synchronizes both climate control zones (driver and passenger) to the driver ’s temperature control .
Air Flow Modes
To select air flow modes, press the Mode Select button I :
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Automatic Climate Control Operation Video
Auto Defogging System (ADS) Video
QR CODES
*IF EQUIPPED46STINGER FEATURES & FUNCTIONS GUIDE
AK
B
G
C
H
D
I
EF
J
REMINDERS:
•
Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y
•
When in AUTO mode, Air Flow Mode and Fan Speed do not display on the Climate Control Display
•
Warm or cold outside air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit)
•
Continuous use of the A /C and heater may increase Energy Consumption, especially excessive use of the heater
CENTER PANEL

P
R
N
D
AUTO
HOLD
DRIVE MODE
OFFOFF
P
P
Front Seats
Seat Warmers:
•Press button A up once for high setting (3 LEDs lit)
•Press button twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
Ventilated Seats:
•Press button B down once for high setting (3 LEDs lit)
•Press twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
Seat Warmers† 15 / Ventilated Seats*
See section 4 in the Owner’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Seat Warmers and Ventilated Seats Video
QR CODE
†LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED50STINGER FEATURES & FUNCTIONS GUIDE
•
With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature
•
When the Climate Control System’s temperature is turned up to high heat, the Seat Warmers turn on automatically
QUICK TIPSREMINDER: Use extreme caution when using the seat warmers to avoid burns . See section 4 in the Owner ’s Manual for more information .
A
A
A
B
B
B
S E AT I N G
SEATING

HOLD
LockUnlock
Smart Key with Remote Start†6
A Press to lock all doors
B Press to unlock driver ’s door . Press twice within 4 seconds to unlock all doors
C Press and hold for more than 1 second to unlock the Liftgate and open manually (the Smart Power Liftgate* will unlock and automatically open)
REMINDERS:
•
Manual-Liftgate lid will par tially open . To fully open, lift up manually
•
The Liftgate unlocks when the Smar t Key is within close proximit y of the vehicle
D Press and hold more than a half a second for panic alarm . To turn off alarm, press any button
E Press to release mechanical key F
G Remote Start: Lock the doors by pressing the door lock button A within 32 feet distance from the vehicle . Within four (4) seconds of pressing the door lock button A , press and hold the Remote Start button D for more than two (2) seconds to start the vehicle . To stop the Remote Start operation, press the button again . If driver doesn’t enter the vehicle within ten minutes of starting the vehicle, the engine will automatically turn off .
Driver’s Door Lock/Unlock Button H :
To unlock door(s):
•Press button once to unlock driver ’s door
•Press again within 4 seconds to unlock all doors
To lock all doors:
•Press again to lock all doors
Mechanical Key F :
•Use to unlock/lock driver ’s door:
1 .
Remove door handle keyhole cover with mechanical key by pressing up into slot on bottom of cover as shown I
2 .
Insert mechanical key J and turn left to unlock driver ’s door
3 .
Insert mechanical key J and turn right to lock driver ’s door
4 .
Reinsert the Mechanical Key inside the Smart Key fob
•Use to lock and unlock glove box
OTHER KEY

FEATURES
OTHER KEY FEATURES
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Kia Smart & Folding Key Fobs Video
Remote Start - Smart Key Video
QR CODES
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . †LEGAL DISCL AIMERS ON BACK INSIDE COVER*IF EQUIPPED55
•
If the Smar t Key bat ter y is weak or not working properly, hold the Smar t Key fob up to the Engine Star t/Stop but ton (lock but ton side closest) and press to star t engine
•
The Smar t Key ’s signal can be blocked by the normal operation of a cellular phone or smar tphone . To help prevent this, store each device separately
•
When reinser ting the mechanical key into the fob, make sure it is pushed all the way in until there is a click sound
QUICK TIPS
A
B
C
D
E
F
H
I
J
G
REMINDER: Remote but ton configuration may var y depending on vehicle options
See section 4 in the Owner’s Manual for more information .
Do not use remote climate control or remote start if vehicle is in an enclosed area (e .g ., closed garage) or a partially enclosed area without ventilation . Close all doors leading from adjacent living areas to the vehicle area before executing a remote climate control or remote start command .
