2023 KIA SPORTAGE HYBRID key

21†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)

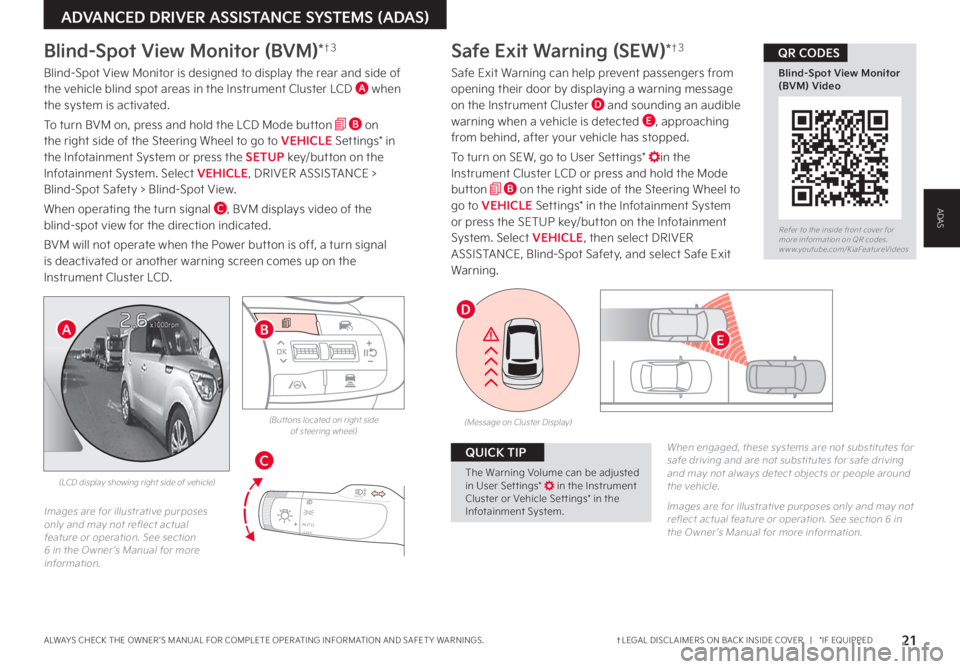

Blind-Spot View Monitor (BVM)*†3
Blind-Spot View Monitor is designed to display the rear and side of the vehicle blind spot areas in the Instrument Cluster LCD A when the system is activated
To turn BVM on, press and hold the LCD Mode button B on the right side of the Steering Wheel to go to VEHICLE Settings* in the Infotainment System or press the SETUP key/button on the Infotainment System Select VEHICLE, DRIVER ASSISTANCE > Blind-Spot Safety > Blind-Spot View
When operating the turn signal C, BVM displays video of the blind-spot view for the direction indicated
BVM will not operate when the Power button is off, a turn signal
is deactivated or another warning screen comes up on the Instrument Cluster LCD
When engaged, these systems are not substitutes for safe driving and are not substitutes for safe driving and may not always detect objects or people around the vehicle
Images are for illustrative purposes only and may not reflect actual feature or operation See section 6 in the Owner ’s Manual for more information
Images are for illustrative purposes only and may not reflect actual feature or operation See section 6 in the Owner ’s Manual for more information
(LCD display showing right side of vehicle)
Safe Exit Warning (SEW)*†3
Safe Exit Warning can help prevent passengers from opening their door by displaying a warning message on the Instrument Cluster D and sounding an audible warning when a vehicle is detected E, approaching from behind, after your vehicle has stopped
To turn on SEW, go to User Settings* in the Instrument Cluster LCD or press and hold the Mode button B on the right side of the Steering Wheel to go to VEHICLE Settings* in the Infotainment System or press the SETUP key/button on the Infotainment System Select VEHICLE, then select DRIVER
ASSISTANCE, Blind-Spot Safety, and select Safe Exit Warning
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
QR CODES
Blind-Spot View Monitor (BVM) Video
P0 KMHAttention Level
0 20 406096%Lv １66°F
High
Last Break
0:00
OFFAUTO
AUTO
OFFAUTO
AUTO
(But tons located on right side of steering wheel)
OK
MODE
MODE
OK OK
OK
OK
OK
OK
OK
OK OK
OK
OK
B
C
EA
(Message on Cluster Display)
D
The Warning Volume can be adjusted in User Set tings* in the Instrument Cluster or Vehicle Set tings* in the Infotainment System
QUICK TIP
ADAS

22†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSPORTAGE HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
OK
MODE
MODE
OKOK
OKOK
OK
OK
OK
OK OK
OK
OK
D
C
REMINDER: LFA is not a substitute for safe and proper driving Always drive safely and use caution
Lane Following Assist (LFA) is designed to help the vehicle stay centered in its lane A by monitoring the detected lane markings ahead, vehicles on the road, and potentially providing steering inputs The instrument cluster indicator will initially illuminate gray when turned ON It will remain gray when the system does not detect the lane markers When the system detects the lane markers and can assist the steering, the LFA icon will illuminate green B Press the LFA button C to turn LFA on or off
Hands-off Warning - If the driver takes their hands off the Steering Wheel for several seconds, a warning message will appear on the Instrument Cluster, and an audible warning will sound If hands on the Steering Wheel is not detected, LFA will cancel
LFA will operate only when these conditions are met:
•LFA recognizes both sides of the lane markers the vehicle is traveling in
•
The vehicle is traveling slower than 110 mph
LFA User Settings*:
•To enable LFA , go to User Settings* in the Instrument Cluster LCD or press and hold the LCD Mode button D on the right side of the Steering Wheel, or press the SETUP key/button on the Infotainment System Select the VEHICLE button to enter the Vehicle Settings* Select DRIVER ASSISTANCE then L ANE SAFET Y
(But tons located on steering wheel)
Images are for illustrative purposes only and may not reflect actual feature or operation
LFA is supplemental Do not solely rely on this system and always pay at tention to the road and its conditions
Actual Vehicle Set tings steps may var y by model See section 6 in the Owner ’s Manual for more detailed information, limitations and conditions
When engaged, LFA is not a substitute for safe and proper driving Always drive safely and use caution LFA may not always aler t the driver when the vehicle is approaching another vehicle
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Lane Following Assist (LFA) Video
QR CODE
The Warning Volume can be adjusted in User Set tings* in the Instrument Cluster or Vehicle Set tings* in the Infotainment System
QUICK TIP
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
0 KMH
202 m96%L
v １
2 72m
CHG
PWR
-BOF
'PMMPXJOH
"TTJTU
-'"
†3
A
B
ADAS

23†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Forward Collision-Avoidance Assist (FCA) Video
QR CODE
The driver assist systems Warning Volume can be adjusted in User Set tings* in the Instrument Cluster or Vehicle Set tings* in the Infotainment System
QUICK TIP
FCA is designed to detect and monitor a vehicle ahead or detect a pedestrian in the roadway through front view camera recognition and front radar signals to warn the driver that a collision is imminent, and if necessary, temporarily apply emergency braking Initially, FCA provides Forward Collision Warning when it detects a potential collision with a vehicle, pedestrian, or cyclist, emitting an audible warning and visual alert on the instrument cluster A
If the system detects that the collision risk has increased, Forward Collision-Avoidance Assist automatically applies the brakes to reduce your speed B, potentially helping to reduce the effects of a possible collision
With the turn signal on, if it detects a potential collision, Junction Turning C may help to avoid the collision with an oncoming vehicle in an adjacent lane when turning left by applying emergency braking
FCA User Settings:
•FCA is ON by default in most Kia models FCA can be turned ON/ OFF by going to the User Settings* or Vehicle Settings in the Infotainment System
•To enable FCA , go to User Settings* in the Instrument Cluster LCD or press and hold the button C on the right side of the Steering Wheel, or press the SETUP key/button on the Infotainment System Select the VEHICLE button to enter the Vehicle Settings* Select DRIVER ASSISTANCE then FORWARD SAFET Y Then select one of the following modes:
– Active Assist: Vehicle will provide a warning (audible & visual) and may apply the brakes if needed
– Warning Only: Vehicle will provide a warning only (audible & visual)
– Off: System is off, no warnings or braking provided
•To adjust the FCA initial warning activation time, go to User Settings or Vehicle Settings*, Driver Assistance, Warning Timing then select Standard or Late, depending on your Kia model:
–
Standard: Use in a normal driving environment If FCA operates too sensitively, set the warning timing to Late
– L a t e : The warning timing will be slower
FCA/FCW will become active when the:
•Ignition is on or the Power button* is ON
•Vehicle is traveling faster than 3 mph
•Electronic Stability Control (ESC) is ON
Forward Collision-Avoidance Assist (FCA)*†3
Forward Collision-Avoidance Assist (FCA) is not a substitute for safe driving and may not detect all objects in front of the vehicle Always drive safely and use caution Actual User Set tings steps may var y by model Refer to section 6 in the Owner ’s Manual for more information
(Junction Turning)
0mph
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １READY66°F
2 72m
CHG
PWR
Collision Warning
0mph
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １READY66°F
2 72m
CHG
PWR
Emergency Braking
0mph
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １READY66°F
2 72m
CHG
PWR
Collision Warning
0mph
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １READY66°F
2 72m
CHG
PWR
Emergency Braking
A
B
C
REMINDERS:
•
FCA will be activated by default when the ignition is cycled ON, even when previous set ting was OFF
•
If FCA is operating and the ESC (Electronic Stabilit y Control) is turned off, FCA is automatically turned off
•
When FCA is off, the FCA warning indicator is on in the Instrument Cluster
•Once the risk factors are not detected, these functions will deactivate, then the driver must steer the vehicle
(But tons located on steering wheel)
OK
MODE
MODE
OK
OK
OK
OK
OK
OK
OK
OK OK
OK
OK
D
For illustrative purposes only Your actual display, but tons and/or features may var y
ADAS

24†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSPORTAGE HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Highway Driving Assist (HDA) Video
QR CODE
REMINDER: When vehicle power is cycled, the system returns to its previous state, on or off
Highway Driving Assist (HDA)*†3
Highway Driving Assist (HDA) is designed to adjust the speed of the vehicle when driving on limited/controlled access highways/freeways
When HDA is activated and the conditions are met, the Instrument Cluster indicator A will illuminate green If proper conditions are not met, HDA will be in standby mode and the HDA indicator light B will illuminate gray When in operation, and if both lanes are recognized, the Instrument Cluster will show the lanes illuminated white and the HDA indicator A illuminated green
HDA will operate only when these conditions are met:
•
When driving on limited/controlled access highways/freeways
•When Smart Cruise Control and Lane Following Assist are operating
HDA User Settings:
To enable HDA , go to User Settings* in the Instrument Cluster LCD or press and hold the LCD Mode button C on the right side of the Steering Wheel to go to VEHICLE Settings* You can also press the SETUP key/button on the Infotainment System, VEHICLE, DRIVER ASSISTANCE, DRIVER CONVENIENCE, then HIGHWAY DRIVING ASSIST
When engaged, Highway Driving Assist is not a substitute for safe driving, may not detect all objects around the vehicle, and only functions on cer tain federal highways Always drive safely and use caution
See section 6 in the Owner ’s Manual for more detailed information, limitations and conditions
Images are for illustrative purposes only and may not reflect actual feature or operation
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
60 MPHHDA
HDA
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
60 MPHHDA
HDA
(But tons located on steering wheel)
OK
MODE
MODE
OK OK
OK
OK
OKOK
OK
OK OK
OK
OK
B
A
CThe DRIVER ASSISTANCE systems Warning Volume can be adjusted in User Set tings* in the Instrument Cluster or Vehicle Set tings* in the Infotainment System
QUICK TIP
ADAS

29†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Leading Vehicle Departure Alert (LVDA) Video
QR CODE
Leading Vehicle Departure Alert is a feature part of Driver Attention Warning (DAW), and is designed to inform the driver when the vehicle in front starts moving or departs from a stop When Driver Attention Warning (DAW) is on, your vehicle is stopped and detects that the leading vehicle is driving away, DAW sounds an alert to let you know you can start driving If no action is taken after the vehicle in front drives away, then a message A will appear on the Instrument Cluster LCD
User Settings:
•To enable LDVA , go to User Settings* in the Instrument Cluster LCD or press and hold the LCD Mode button B on the right side of the Steering Wheel to go to Vehicle Settings* You can also press the SETUP key/button on the Infotainment System, VEHICLE, DRIVER ASSISTANCE, DRIVER ATTENTION WARNING and then LEADING VEHICLE DEPARTURE ALERT
•To adjust the DAW initial warning activation time, go to User Settings* in the
Instruments Cluster LCD or Vehicle Settings*, DRIVER ASSISTANCE, Warning Timing
then select Standard or Late, depending on your Kia model:
– Standard: Use in a normal driving environment If FCA operates too sensitively, set the
warning timing to Late
– Late: The warning timing will be slower
Leading Vehicle Depar ture Aler t is not a substitute for safe and proper driving Always drive safely and use caution
Images are for illustrative purposes only and may not reflect actual feature or operation
Refer to section 6 in the Owner ’s Manual for more information
Leading Vehicle Departure Alert (LVDA)†3
REMINDERS:
•When the vehicle power is cycled, the system returns to its previous state, on or off
•
Always check the front of the vehicle and road conditions before depar ture
(But tons located on steering wheel)
0 KMH
202 m
272m
CHG
PWR
Leading vehicle
is driving away
OK
MODE
MODE
OK OK
OK
OK
OK
OK
OK
OK OK
OK
OK
B
A
ADAS

30†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSPORTAGE HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Remote Smart Parking Assist (RSPA) Video
Intelligent Speed LimitAssist (ISLA) Video
QR CODE
Remotely moving for ward or backwardHOLDHOLD
Remote Smart Parking Assist (RSPA) uses the vehicle sensors to help park and exit parking spaces remotely from outside the vehicle by automatically searching for parking spaces and then controlling the steering wheel, transmission, and vehicle speed to park the vehicle
To park with Remote Parking (from outside the vehicle), using the Smart Key:
•While in the vehicle, with the vehicle stopped in front of the parking space, vehicle aligned, and the transmission in Park, press and hold the Parking/ View button A
•Select REMOTE on the infotainment system screen When the message UNDER REMOTE CONTROL appears, exit the
vehicle with the Smart Key on hand Ensure all doors are closed
•The emergency lights will blink to when the system is ready to be activated
•Press and hold either the Forward B or Backward C button on the Smart Key, depending on how you want to park, and the vehicle will move in the direction of whichever button you press
Remote Smart Parking Assist (RSPA)*†3
B
C
Refer to section 6 in the Owner ’s Manual for more information
ADAS
AUTO
HOLDEV
HEV
DRIVE MODE
(But ton located below gear shift knob)
Intelligent Speed Limit Assist (ISLA)*†4
Intelligent Speed Limit Assist is designed to use the information from the posted speed limit and the navigation system to inform the driver of the speed limit
When ISL A is on and active, the system will display an alert on the Instrument Cluster LCD of the detected speed limit If the vehicle’s current speed exceeds the detected speed limit, a warning will sound and the vehicle’s current speed will blink on the LCD
ISLA User Settings:
•To enable ISL A on, press the SETUP key/button on the Infotainment System Select the VEHICLE button to enter the Vehicle Settings Select DRIVER ASSISTANCE, SPEED LIMIT, and one of the three modes:
- Speed Limit Assist: Informs the driver of the posted speed limit, displays a message to change the speed to help the driver stay within the posted speed limit
- Speed Limit Warning: Informs the driver of the posted speed limit D and warns the driver when the vehicle is traveling faster than the posted speed limit
- Off: ISL A is disabled
See section 6 in the Owner ’s Manual for more detailed information, limitations and conditions
You can set a speed limit offset to the posted speed limit by going to Vehicle Set tings, Driver Assistance, Speed Limit, then Speed Limit Offset Set the offset to “0” if you want the vehicle to travel at the posted speed limit when ISL A is on
QUICK TIP
REMINDERS:
•
Vehicle must be parked and in a safe location to change the speed set tings
•
Additional information may be displayed if additional road sign information is detected
A
EF
75°F１ 2 .１0 １0 20 30324mi2400miAUTO
HOLD
MPH
CHARGE
ECO
POWER
L H
D

D

31†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Rear View Monitor is a supplemental system that displays the view behind the vehicle through the infotainment system screen while the vehicle is in Reverse
To turn RVM on/off, press the Parking/ View button A on the center console
RVM User Settings:
• Camera Settings - Go to User Settings* in the Instrument Cluster LCD or press and hold the LCD Mode button B on the right side of the Steering Wheel to go to Vehicle Settings* in the Infotainment System or press the SETUP key/button on the Infotainment System Select VEHICLE, DRIVER ASSISTANCE, PARKING SAFET Y, then CAMER A SETTINGS
The Rear View Monitor activates when the:
• POWER button is in the ON/READY position
• Gear shifter is in the R (Reverse) position
Rear View Monitor (RVM)†3
REMINDERS:
•
The images shown are for illustration purposes only and may not reflect actual operation
•
While camera is active, only the Infotainment System can be operated on the Steering Wheel and Infotainment System All other features are disabled
•
Rear View Monitor may not display ever y object behind the vehicle
When engaged, RVM is not a substitute for proper and safe backing-up procedures Rear View Monitor may not display ever y object behind the vehicle Always drive safely and use caution when backing up
Refer to section 6 in the Owner ’s Manual for more information
Images are for illustrative purposes only and may not reflect actual feature or operation
AUTO
HOLDEV
HEV
DRIVE MODE
(But ton located below gear shift knob)
AOK
MODE
MODE
OK OK
OK
OK
OK
OK
OK
OK OK
OK
OK
(But tons located on steering wheel)
B
ADAS
(Infotainment system display)

33†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
OK
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK OK
OK
OK
B
Reverse Parking Collision-Avoidance Assist (PCA)*†3
Reverse Parking Collision-Avoidance Assist (PCA) is designed to detect certain objects/pedestrians behind the vehicle and issues an audible warning and/or applies emergency braking to help reduce the possibility of a collision when the vehicle is in reverse When Reverse Parking Collision- Avoidance Assist activates, lines appear behind the vehicle image A in the instrument cluster LCD
PCA User Settings:
To enable PCA , go to User Settings* in the Instrument Cluster LCD or press and hold the LCD Mode button B on the right side of the Steering Wheel or press the SETUP key/button to go to Vehicle Settings* in the Infotainment System Select VEHICLE, DRIVER ASSISTANCE, PARKING SAFET Y
Select from one of the three modes:
•Rear Active Assist - PCA will warn the driver with an audible alert and may apply temporary braking
•Rear Warning Only - PCA will warn the driver with an audible alert
•Off - PCA is disabled
To turn PCA on/off, press the Parking Safety button C
To adjust the warning volume, in the Vehicle Settings*, press the SETUP key/button on the Infotainment System, VEHICLE, DRIVER ASSISTANCE then WARNING VOLUME Select high, medium, low
To set the warning timing, in the Vehicle Settings*, press the SETUP key/button on the Infotainment System, VEHICLE, DRIVER ASSISTANCE then WARNING TIMING:
•Standard: Use in a normal driving environment If FCA operates too sensitively, set the warning timing to Late
•Late: The warning timing will be slower
(Message on Cluster Display)
Images are for illustrative purposes only and may not reflect actual feature or operation
Refer to section 6 in the Owner ’s Manual for more information (But tons located on steering wheel)
REMINDER: Adjusting the Warning Timing and Warning Volume may adjust timing and volume levels for other driving assist systems
A
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Reverse Parking Collision-Avoidance Assist (PCA) Video
QR CODE
ADAS
(But ton located below gear shift knob)
AUTO
HOLDEV
HEV
DRIVE MODE
C
