2023 KIA SELTOS climate control

2*IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
TABLE OF CONTENTS
VIDEOS & QR CODES Inside Cover
INSTRUMENT CLUSTERInstrument Cluster Overview 03Indicators & Warning Lights 04Tire Pressure Monitoring System (TPMS) 05Fuel Economy / Tips for Economical Driving 05Drive Mode Integrated Control System 06
VEHICLE SETTINGSLCD Instrument Cluster Modes 07Trip Modes / Trip Computer 07Instant Fuel Economy 07Service Interval Mode* 08Ambient Light and Sound Mood Lamp* 08User Settings – Instrument Cluster 09Vehicle Settings* – Infotainment System 09Vehicle Auto-Shut Off* 10
ADVANCED DRIVER ASSISTANCE
SYSTEMS (ADAS)Forward Collision-Avoidance Assist (FCA) 11Lane Keeping Assist (LK A) 12Blind-Spot Collision-Avoidance Assist (BCA)* 13 Safe Exit Warning (SEW)* 14Driver Attention Warning (DAW) 14Leading Vehicle Departure Alert (LVDA)* 15Smart Cruise Control (SCC)* 16Cruise Control (CC) 17Lane Following Assist (LFA) 18Highway Driving Assist (HDA)* 19Rear View Monitor (RVM) 20Rear Cross-Traffic Collision Avoidance Assist (RCCA)* 21
DRIVER’S PANELInstrument Cluster Control* 22Electronic Stability Control (ESC) 22Hill-Start Assist Control (HAC) 22
DRIVER’S PANEL (CONTINUED)Engine Start/Stop Button* 23Power Windows, Window Lock & Central Door Lock 24Rear Door Locks – Double Pull to Open 24Auto Door Lock/Unlock 24Power Outside Mirrors 25Heated Outside Mirrors* 25Manual Folding Mirrors* 25
STEERING WHEEL CONTROLSTilt/Telescoping Steering Wheel 25Headlights & High Beams 26Daytime Running Lights (DRL)* 26High Beam Assist 26Turn Signals & Fog Lights* 26Windshield Wipers & Washers 27Rear Wiper & Washer* 27
INFOTAINMENT SYSTEMSBluetooth® Wireless Technology 28 Audio Controls 30 Android Auto™ / Apple CarPlay® Setup 31Standard Audio System* 32Kia Connect Activation* 33Kia Connect Assistance* 33Kia Access App Download 34Kia Access App Features Guide 34Kia Connect with Navigation* 35
CENTER PANELDigital Clock (Infotainment System) 36Multimedia USB Port, Power Outlets & USB Charger Port 36Wireless Smartphone Charging System* 37Automatic Climate Control* 38Manual Climate Control* 39Idle, Stop & Go (ISG) System 40Automatic Gear Shift / Sportmatic® Shifting 41
CENTER PANEL (CONTINUED)Dual Clutch Transmission (DCT)* 41Electronic Parking Brake (EPB)* / Auto Hold* 42Downhill Brake Control 43All Wheel Drive (AWD) System* 43Seat Warmers* 44
SEATINGPower Adjustable Driver ’s Seat* 456-Way Manual Adjustable Driver ’s Seat* 45Folding Rear Seats 46Rear Occupant Alert (ROA) with Door Monitoring 46Front Seat Headrest Adjustment 47Unfastening Center Seat Belt 47
OTHER KEY FEATURESSmart Key* 48Remote Keyless Entry (Folding Key)* 49Fuel Cap / Malfunction Indicator 50Fuel Filler Door Release 50Hood Release Lever and Latch 50Map/Room Lamps 51Sunroof Operation* 52Sunvisor 52Manual Liftgate / Liftgate Release Button 53
SAFETY FEATURESSeat Belts 54Occupant Detection System (ODS) / Passenger Airbag Off Indicator 54Child-Protector Rear Door Lock 54
TURBO MAINTENANCE CHART 56
LEGAL DISCLAIMERS Inside Back Cover
NON-TURBO MAINTENANCE
CHART Back Cover
MY23 Seltos FFG Inside March 2022.indd 2MY23 Seltos FFG Inside March 2022.indd 24/15/22 3:39 AM4/15/22 3:39 AM

INSTRUMENT CLUSTER
5†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
INSTRUMENTCLUSTER
The TPMS indicator functions as both Low Tire Pressure Light and TPMS Malfunction Indicator
The indicator will illuminate if it detects one or more tires is significantly underinflated, the vehicle has a spare tire installed without TPMS or the outside temperature becomes significantly lower
Inflate tire(s) to specifications using an accurate digital tire pressure gauge to turn off Low Tire Pressure Indicator See front driver ’s door jamb for PSI specification The Low Tire Pressure Position Indicator A is displayed on the LCD screen in the Instrument Cluster when the tire(s) is underinflated
When there is a problem with the TPMS, the TPMS Malfunction
Indicator will blink for approximately one minute and then illuminate See dealer for service
Tire Pressure Monitoring System (TPMS)†2 2
REMINDERS:
•
Check the recommended tire pressure label located on the left side of driver's door jamb, visible when the door is opened
•
Consult your dealer for ser vice if Low Tire Pressure Light remains illuminated after inflating your tire(s)
•
Personal electronic devices (such as laptops, wireless chargers, remote star t systems, etc ) may inter fere with the TPMS system, which may cause the Malfunction Warning Indicator (Check Engine Light) to illuminate
Fuel Economy / Tips for Economical Driving
There are several factors that contribute to your vehicle’s fuel economy, such as maintenance of your vehicle, driving style, environmental conditions, vehicle weight and vehicle aerodynamics Below are some tips on how to help improve fuel economy:
Refer to section 4 in the Owner ’s Manual for more information or snap the QR Code above to view a video
The above images are for illustration purposes only and may not reflect actual display
•Use the climate control system less often Use the Driver Only* setting as much as possible
•Keep your vehicle in good condition with regular maintenance
•Don’t let the engine idle longer than necessary
•Drive at a moderate speed, accelerating smoothly and at a moderate rate
•Keep tires inflated to the recommended pressure
•Travel lightly, without carrying unnecessary weight in your vehicles
•Avoid placing large or heavy items on roof racks
•Avoid hilly, winding or poorly maintained roads
24
32 32
32
psi
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Tire Pressure Monitoring System Video
Tips for Economical Driving Video
QR CODE
•Even with TPMS, tire pressure should be checked manually at least once a month Only adjust tire pressure on “cold tires” that have been sit ting for 3 hours or more, and tires that are not hot in temperature from direct sunlight or heat
•For proper maintenance and optimal fuel economy, maintain recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle
•A significant drop in temperature can cause tire inflation pressures to drop, which may activate the TMPS light Manually confirm tire pressures after significant changes in temperature or altitude
QUICK TIPS
A
Refer to section 6 in the Owner ’s Manual for more information
MY23 Seltos FFG Inside March 2022.indd 5MY23 Seltos FFG Inside March 2022.indd 54/15/22 3:39 AM4/15/22 3:39 AM

VEHICLE SETTINGS
9 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
VEHICLESETTINGS
User Settings Modes:
Driving Assistance*• Driving Assist• Warning Timing• Warning Volume*• Driver At tention Warning (DAW)*• For ward Safet y• Lane Safet y*• Blind-Spot Safet y• Parking Safet y
Door/Liftgate• Automatically Lock• Automatically Unlock
Lights• One-Touch Turn Signal• Headlight Delay• High Beam Assist
Convenience• Welcome Mirror• Wireless Charging System• Wiper/Lights Display• Auto Rear Wiper (in R)• Gear Position Pop-up• Ice Road Warning
Service Interval• Enable Ser vice Inter val• Adjust Inter val• Reset
Other Features• Fuel Economy Auto Reset• Speedometer Unit• Fuel Economy Unit• Temperature Unit• Torque Unit• Tire Pressure Unit
Reset• All menus in the User Set tings mode are reset back to factor y set tings, except language and service interval
Language*• Choose the language
User Settings* - Instrument Cluster
To enter the User Settings in the Instrument Cluster LCD,
ensure that the vehicle is at a stand still, shift lever is in
Park, and have the Engine Start/Stop button or Key in the
ON position Then press the Mode button A and select
User Settings by pressing the Move/Reset (OK) button B up/down Select the item by pressing the OK button B
RES
SET
CNCL+
–
CRUISE
OK
RESSET
CNCL+
–
CRUISE
OKRESSET
CNCL+
–
CRUISE
OK
RESSET+
–
CRUISECRUISE CRUISE
OK
RES
SET+
–
CRUISE
OKRESSET+
–
CRUISE MODE
OK
RES
SET+
–OKRESSET+
–OK
MODE
(Type A; Controls located on right side of Steering Wheel)
Vehicle Settings* - Infotainment System
(Vehicles with navigation system)
To enter the Vehicle Settings mode in the audio head unit screen, press the SETUP key on the audio head unit or the SETUP icon on the Infotainment System screen Then press the VEHICLE icon, which will take you to the Vehicle Settings screen Use the touchscreen to navigate through the menus
Driver Assistance: Driving Assist, Warning Time, Warning Volume, Driver Attention Warning, Forward Safety, Blind-Spot Safety, Parking Safety
Climate: Recirculate Air, Automatic Ventilation, Defog/ Defrost Options
Lights: One Touch Turn Signal, Headlight Display, High Beam Assist
Door: Auto Lock, Auto Unlock, Two-Press Unlock
Cluster: Energy Consumption Reset, Content Selection, Cluster Voice Guidance Volume, Welcome Sound
Convenience: Rear Occupant Alert, Wireless Charging System, Auto Rear Wiper (in R)
Reset: Reset Vehicle Settings to Factory DefaultsRefer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Vehicle & User Settings Video
Ambient, Theme, Mood Lighting Video
QR CODE
REMINDER: Some set tings appear in User Set tings in the Instrument Cluster Check section 4 in the Owner ’s Manual or the Car Infotainment System Quick Star t Guide for more information REMINDER: Some set tings appear in Vehicle Set tings* in the infotainment system Check your Car Infotainment System Quick Star t Guide for more information or section 4 in the Owner ’s Manual
B
A
MY23 Seltos FFG Inside March 2022.indd 9MY23 Seltos FFG Inside March 2022.indd 94/15/22 3:39 AM4/15/22 3:39 AM

ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
REMINDERS:
•
The setup of DAW will be maintained, as selected, when the ignition is cycled
•
When activated, DAW does not display “Consider taking a break ” message when the total trip driving time is less than 10 minutes
•
DAW will enter a standby mode if the camera does not detect the lanes and/or the driving speed remains under 40 mph
Safe Exit Warning (SEW)*†5
Safe Exit Warning (SEW) can help prevent passengers from opening their door by displaying a warning message on the Instrument Cluster and sounding an audible warning when a vehicle is detected, approaching from behind, and after your vehicle has stopped
To turn on SEW, go to User Settings* in the Instrument Cluster or the Vehicle Settings* in the infotainment system, select Driver Assistance, then Blind-Spot Safety, and select Safe Exit Warning
Images are for illustrative purposes only and may not reflect actual feature or operation
See section 5 in the Owner ’s Manual for more information
Vehicle Settings
Driver
Assistance
Blind-Spot
>Climate
Lights
Door
Menu
REMINDER: SEW may not detect all objects and the occupants should always be mindful of their surroundings (But tons located on right side of steering wheel)
RES
SET
CNCL+
–
CRUISE
OK
RESSET
CNCL+
–
CRUISE
OKRESSET
CNCL+
–
CRUISE
OK
RESSET+
–
CRUISECRUISE CRUISE
OK
RES
SET+
–
CRUISE
OKRESSET+
–
CRUISE MODE
OK
RES
SET+
–OKRESSET+
–OK
MODE
C
D
ADAS
14†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
The DAW system is designed to alert the driver if it detects inattentive driving practices and, in certain situations, can give a warning signal to take a break from driving
If DAW is activated, DAW information will appear on the Instrument Cluster LCD Display when you select the Driving Assist mode A message, “Consider taking a
break,” A appears on the LCD and a warning sounds to suggest the driver take a
break when the driver ’s attention level becomes low B
DAW Settings:
•DAW can be turned on/off by going to the User Settings* in the Instrument
Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust set tings when the vehicle is at a standstill, gear shift is in Park and the
ignition is on or the Engine Start/Stop button* in the on position
•To access User Settings* in the Instrument Cluster - Press the Mode button C on the Steering Wheel
to toggle to User Settings Press the OK D up/down to toggle to Driver Assistance, then Driver Attention
Warning and select Inattentive Driving
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP
button Press VEHICLE to enter Vehicle Settings Select Driver Assistance, then Driver Attention Warning and
select Inattentive Driving
•DAW Warning Timing – When in the Driver Assistance menu, select Warning Timing and one of the following:
- Normal: Driver Attention Warning warns the driver of his/her inattentive driving practices
- Late: Driver Attention Warning warns the driver of his/her inattentive driving practices later than Normal mode
Driver Attention Warning (DAW)*†6
Driver Attention War n
System Off
Level Time ——:—— Attention Level
LOW
HIGH
Level Time 00:27
Attention Level
LOWHIGH
Level Time 05:27
Consider taking a break
22.4 °C4025km
Driver Attention Warn.
System Off
Last Break ——:——Attention Level
LOW HIGH
Last Break 00:27
Attention Level
LOWHIGH
Level Time 05:27
Consider taking a break
22.4
°C4025km
When engaged, Driver At tention Warning is not a substitute for safe driving and may not detect all instances of inat tentive driving practices Failure to pay at tention to travel conditions and vehicle operation could result in loss of vehicle control Always drive safely and use caution Refer to section 5 in the Owner ’s Manual for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Driver Attention Warning (DAW) Video
QR CODE
BA
MY23 Seltos FFG Inside March 2022.indd 14MY23 Seltos FFG Inside March 2022.indd 144/15/22 3:39 AM4/15/22 3:39 AM

25†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
DRIVER’S PANEL
Do not adjust the steering wheel while driving as this may cause you to lose control of the vehicle
See section 4 in the Owner ’s Manual for more information
Tilt/Telescoping Steering Wheel†2 1
To adjust the Steering Wheel, press the lock-release lever C down and adjust to the desired angle D and then the distance E
When finished, pull the lock-release lever C up to lock Steering Wheel in place
Power Outside Mirrors
A Press the L or R buttons to select the mirror to adjust
B Press button arrows left/right or up/down to adjust mirror position
Manual Folding Mirrors*
To fold the mirrors in manually, pull the mirror towards the window
Refer to section 4 in the Owner ’s Manual for more information
Images are for illustrative purposes only and may not reflect actual feature or operation
STEERING WHEEL CONTROLS
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Tilt/Telescoping/Heated Steering Wheel Video
QR CODE
If needed, pull the mirror firmly until it folds
QUICK TIP
It may be helpful to pull/push bot tom of Steering Wheel towards/away from you to adjust desired distance prior to adjusting the angle
QUICK TIP
A
B
C
D
E
Heated Outside Mirrors*
Mirror heaters automatically turn ON/OFF at the same time the Rear Window Defroster is turned ON/OFF The Rear Window Defroster button* is located on climate control system panel
Refer to section 4 in the Owner ’s Manual for more information
Refer to section 4 in the Owner ’s Manual for more information
DRIVER’S PANEL
STEERING WHEEL CONTROLS
MY23 Seltos FFG Inside March 2022.indd 25MY23 Seltos FFG Inside March 2022.indd 254/15/22 3:39 AM4/15/22 3:39 AM

Kia Access App Download
Go to an app marketplace to download the new Kia Access App Once you download, make sure you register your vehicle and start an account (refer to Kia Connect Activation page) Get to know your new Kia and the available convenient features on the app
The Kia Access App Features Guide is a guide helping you utilize the app to its full potential by detailing each feature and how to adjust various settings Below are some of the topics included:
•Remote Commands
•Set Climate
•Schedule Climate
•Schedule Service
•Dealer Settings
•Manage Vehicles and Profiles
Kia Access App Features Guide
2020 SOULMILEAGE722 mi.
355 miEst. RangeDOOR LOCKSREMOTE STARTFind My Car
Kia Access App Screen for illustrative purposes only Actual App screen and functionalit y may var y
For fur ther Kia Connect operations, refer to the Car Infotainment System Quick Reference Guide
Kia Connect is currently unavailable for model year 2022 and later vehicles sold or purchased in Massachuset ts See Kia Connect Terms of Ser vice at owners kia com for more information
Do not use remote climate control or remote star t if vehicle is in an enclosed area (e g , closed garage) or a par tially enclosed area without ventilation Close all doors leading from adjacent living areas to the vehicle area before executing a remote climate control or remote star t command
Kia Access App Features Guide. Click this dynamic QR code to access the guide Some phone’s operating systems may need to be updated to scan dynamic QR codes
Download the Kia Access App by clicking this dynamic QR code Some phone’s operating systems may need to be updated to scan dynamic QR codes
QR CODES
•The smar tphone and vehicle need to be connected to a cellular net work with a good wireless signal strength in order to use Kia Connect If these conditions are not met, voice commands may fail or take a long time to execute
•
To use Remote Star t or Remote Star t with Climate Control feature, all doors, hood and trunk/liftgate must be closed and locked
•
Activate Remote Star t or Remote Star t with Climate Control feature at least 10 minutes before get ting into the vehicle, which will allow vehicle interior to reach a desired temperature If the driver does not enter the vehicle within the 10 minutes, the Remote Star t will turn off the engine
•
The quickest way to obtain accurate vehicle status through the app is by pressing the refresh but ton on the app or refreshing the web page when using the customer web por tal
•In order to preser ve the vehicle bat ter y, Kia Connect will not turn on seven days after the last ignition was on You will need to restar t the vehicle with a key fob in order to use Kia Connect again
QUICK TIPS
INFOTAINMENT SYSTEMS
INFOTAINMENT

SYSTEMS
34 *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
MY23 Seltos FFG Inside March 2022.indd 34MY23 Seltos FFG Inside March 2022.indd 344/15/22 3:39 AM4/15/22 3:39 AM

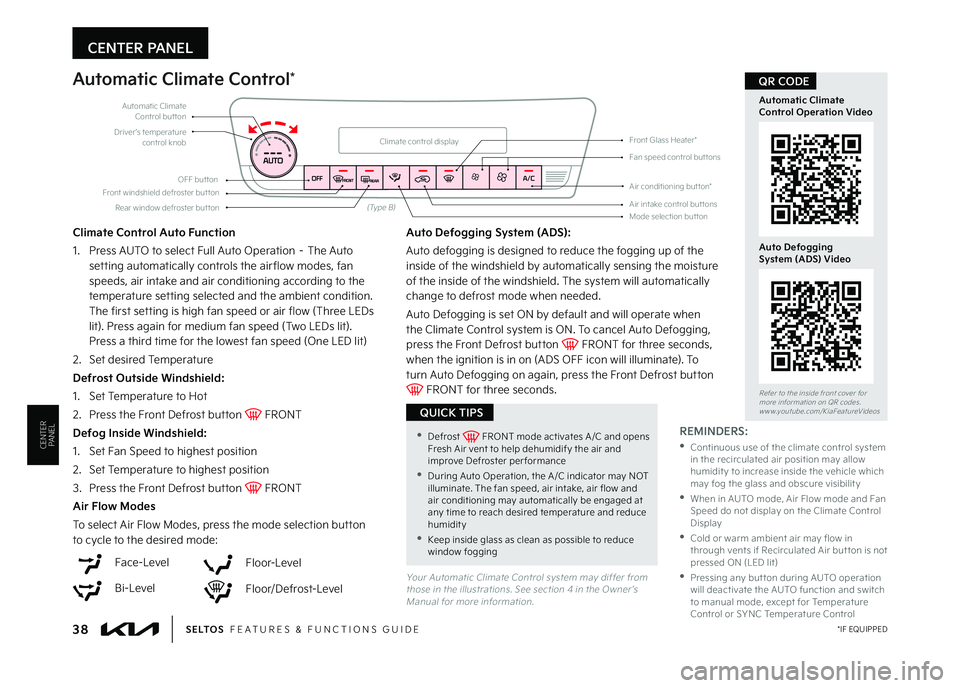

CENTER PANEL
38 *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
CENTERPANEL
Driver’s temperature control knob
Automatic Climate Control but ton
Front windshield defroster but ton
Mode selection but ton
Air conditioning but ton*
Rear window defroster but tonAir intake control but tons
Climate control display
Fan speed control but tons
OFF but ton
Your Automatic Climate Control system may differ from those in the illustrations See section 4 in the Owner ’s Manual for more information
(Type B)
Automatic Climate Control*
Climate Control Auto Function
1 Press AUTO to select Full Auto Operation – The Auto setting automatically controls the air flow modes, fan speeds, air intake and air conditioning according to the temperature setting selected and the ambient condition
The first setting is high fan speed or air flow (Three LEDs lit) Press again for medium fan speed (Two LEDs lit) Press a third time for the lowest fan speed (One LED lit)
2 Set desired Temperature
Defrost Outside Windshield:
1
Set Temperature to Hot
2
Press the Front Defrost button FRONT
Defog Inside Windshield:
1 Set Fan Speed to highest position
2
Set Temperature to highest position
3
Press the Front Defrost button FRONT
Air Flow Modes
To select Air Flow Modes, press the mode selection button to cycle to the desired mode:
Auto Defogging System (ADS):
Auto defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield The system will automatically change to defrost mode when needed
Auto Defogging is set ON by default and will operate when the Climate Control system is ON To cancel Auto Defogging, press the Front Defrost button FRONT for three seconds, when the ignition is in on (ADS OFF icon will illuminate) To turn Auto Defogging on again, press the Front Defrost button FRONT for three seconds
Face-Level
Bi-Level
Floor-Level
Floor/Defrost-Level
Front Glass Heater*
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Automatic ClimateControl Operation Video
Auto DefoggingSystem (ADS) Video
QR CODE
•Defrost FRONT mode activates A /C and opens Fresh Air vent to help dehumidify the air and improve Defroster per formance
•During Auto Operation, the A /C indicator may NOT illuminate The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidity
•Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
REMINDERS:
•
Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y
•
When in AUTO mode, Air Flow mode and Fan Speed do not display on the Climate Control Display
•
Cold or warm ambient air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit)
•
Pressing any but ton during AUTO operation will deactivate the AUTO function and switch to manual mode, except for Temperature Control or SYNC Temperature Control
MY23 Seltos FFG Inside March 2022.indd 38MY23 Seltos FFG Inside March 2022.indd 384/15/22 3:40 AM4/15/22 3:40 AM

CENTER PANEL
39 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
CENTERPANEL
Your Manual Climate Control system may differ from those in the illustrations See section 4 in the Owner ’s Manual for more information
01
2
3
4
Fan speed control knob
Air conditioning ON/OFF but ton*Rear window defroster but ton
Temperature control knobAir flow mode knob
Manual Climate Control*
Defrost Outside Windshield:
1 Set Fan Speed to the highest position
2
Set Temperature to Hot
3
Press the Front Defrost button
Defog Inside Windshield:
1 Set Fan Speed to desired position
2
Set Temperature to desired position
3
Press the Front Defrost button
Air Flow Modes
To select Air Flow modes, press the Mode selection buttons:
Face-Level
Bi-Level
Floor-Level
Floor/Defrost-Level
Defrost-Level
•Set the mode to the desired position To defrost mode activates A /C and opens Fresh Air vent to help dehumidify the air and improve Defroster per formance
•MA X A /C mode automatically engages Recirculated Air
•Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
REMINDERS:
•
Warm air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit)
•
Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y
MY23 Seltos FFG Inside March 2022.indd 39MY23 Seltos FFG Inside March 2022.indd 394/15/22 3:40 AM4/15/22 3:40 AM
