2023 KIA CARNIVAL towing

TABLE OF CONTENTS
VIDEOS & QR CODES .........Inside Cover
INSTRUMENT CLUSTER
Instrument Cluster Overview ................03Indicators & Warning Lights .................04Tire Pressure Monitoring System (TPMS) .....05Fuel Economy / Tips for Economical Driving ...05Drive Mode Integrated Control System .......06ECO Mode (Active ECO) .....................06
VEHICLE SETTINGS
Instrument Cluster LCD Modes ..............07Trip Modes / Trip Computer .................07User Settings* - Instrument Cluster ...........08Vehicle Settings* - Infotainment System. . . . . . . 09Service Interval Mode ....................... 10Vehicle Auto Shut-Off* ...................... 10
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
Forward Collision-Avoidance Assist (FCA) .... 11Lane Keeping Assist (LK A) ................... 12Blind-spot Collision-Avoidance Assist (BCA) ... 13Blind-spot View Monitor (BVM) ............... 14Safe Exit Assist (SEA) ........................ 14Lane Following Assist (LFA) .................. 15Driver Attention Warning (DAW) .............. 16Leading Vehicle Departure Alert (LVDA)* ...... 17Smart Cruise Control (SCC)* ................. 18Navigation-based Smart Cruise Control (NSCC)* . 19Cruise Control (CC)* ......................... 19Intelligent Speed Limit Assist (ISL A)* .......... 20Highway Driving Assist (HDA)* ............... 21Rear View Monitor (RVM) .................... 22Surround View Monitor (SVM)* ............... 22Rear Cross-traffic Collision-Avoidance Assist (RCCA) ................................... 23Forward*/Reverse Parking Distance Warning (PDW) .................................... 24
DRIVER’S PANEL
Instrument Cluster Control .................. 25Electronic Stability Control (ESC) ............. 25Hill-start Assist Control (HAC) ................ 25Power Windows, Window Lock & Central Door Lock ....................... 26Power Folding Outside Mirrors* .............. 26Heated Outside Mirrors ..................... 26Automatic Door Lock/Unlock ................ 26Manual Folding Mirrors* ..................... 26Reverse Parking Aid Function* ............... 27Engine Start/Stop Button .................... 27
STEERING WHEEL CONTROLS
Tilt/Telescoping Steering Wheel .............. 28Headlights & High Beams .................... 28High Beam Assist (HBA) ..................... 28Turn Signals & Fog Lights* ................... 29Windshield Wipers & Washers ................ 29Lifting Wipers (Wiper Service Mode) .......... 29Rear Wiper & Washer ........................ 29
INFOTAINMENT SYSTEM
Bluetooth® Wireless Technology .............. 30Audio Controls .............................. 31Android Auto™ / Apple CarPlay® Setup ........ 32Standard Audio System - Value* .............. 33Kia Connect Activation* / Kia Connect Assistance* 34 Kia Access App Download ................... 35Kia Access App Features Guide .............. 35Kia Connect with Navigation* ................ 36
CENTER PANEL
Digital Clock - Infotainment System .......... 37USB Charger Ports, Multimedia USB Port, Power Outlets & AC Inverter ............... 37Automatic Climate Control* .................. 38Manual Climate Control* ..................... 40Wireless Smartphone Charging System* ...... 41Electronic Parking Brake (EPB) / Auto Hold ... 42
CENTER PANEL (CONTINUED)
Automatic Gear Shift / Sportmatic® Shifting* . . 43Heated Steering Wheel* ..................... 44Seat Warmers / Ventilated Seats* ............. 44
SEATING
Front Seat Headrest Adjustment ............. 45Driver Position Memory System* ............. 45Power Adjustable Driver ’s Seat* ..............46Manual Adjustable Driver ’s Seat* .............46 2nd-Row VIP Seats with Relaxation Mode* .... 47Unfastening Center Seat Belt ................ 47 2nd-Row Removable Seats* .................. 48 2nd-Row Tumble (Center) Seat* .............. 49 3rd-Row Seat - Access, Folding and Stowing* . . 50
OTHER KEY FEATURES
Rear Occupant Alert (ROA) with Ultrasonic Sensors .................... 51Smart Key with Remote Start ................ 52Lock/Unlock All Doors ....................... 52Power Liftgate* ............................. 53Smart Liftgate with Auto Open & Close* ....... 54Power Sliding Doors ......................... 55Smart Sliding Door with Auto Open* .......... 55Passenger View* / Passenger Talk* ........... 55Map / Room Lamps / Sunvisor ................ 56Sunroof Operation .......................... 57Hood Release Lever and Latch ............... 58Fuel Filler Door Release ...................... 58Fuel Cap/Malfunction Indicator .............. 58HomeLink® w/Auto-Dimming Rearview Mirror* 59
SAFETY FEATURES
Seat Belts .................................. 60Occupant Detection System (ODS) / Passenger Airbag Off Indicator ............60Child-Protector Rear Door Lock ..............60
LEGAL DISCLAIMERS ....Inside Back Cover
MAINTENANCE SCHEDULE . .Back Cover
*IF EQUIPPED2CARNIVAL FEATURES & FUNCTIONS GUIDE

Kia Connect Activation*†1
(Systems equipped with Kia Connect only):
Follow these steps to activate your UVO link system:
1. Enter the activation screen on your vehicle’s head unit:
a. Press SETUP key
b. Press Kia Connect icon
c. Press Activate Kia Connect
2. Read and agree to Terms of Service and Privacy Policy and press SUBMIT
3. Enter number or email address to receive a verification code, then press SUBMIT
4. Follow these steps to receive your verification code using your phone text message or email:
a. Check your phone text message or email for verification code
b. Open the link in your text message or email. A page will open requesting that you create your account
N o t e : If you already have a Kia Owners Portal account using the email or phone number as your login ID, you will need to provide your password prior to receiving the verification code
c. Enter your first name, last name, email, phone number, and account password, and click CREATE ACCOUNT. A page will open displaying your verification code
d. Enter the code in the head unit and press ACTIVATE
e. Go back to the page with your verification code and press “I have entered my PIN.” A link will be provided to download the Kia Access app from your app store. After installing the app, log in and enjoy
REMINDER: This vehicle is not equipped with over-the-air system updates.
Kia Connect Assistance*
Virtual Assistant A — Press to connect to a virtual assistant to hear information about the Kia Connect features
Kia Connect B (non-navigation systems) — Press to activate phone projection with Android Auto™ or Apple CarPlay® (smartphone must be connected via wireless or USB cable — see previous page for availability and setup)
Kia Connect Voice Local Search B (systems with navigation) — Press to connect to the search function to find points of interest or other locations, like “cafe”
Roadside Assist C — Press to connect to a Roadside Assistant where you can request vehicle towing services
(But tons on rear view mirror*. Kia Connect but ton may be located on the overhead console area)
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED34CARNIVAL FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Kia Access app Video
Kia Connect Activation Video
Kia Connect Assistance Video
QR CODE
BCA
INFOTAINMENT SYSTEM
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death. The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle.
For fur ther Kia Connect operations, refer to the Car Infotainment System Quick Reference Guide.
Kia Connect is currently unavailable for model year 2022 and later vehicles sold or purchased in Massachuset ts. See UVO Terms of Ser vice at owners.kia.com for more information.
INFOTAINMENTSYSTEM

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED50CARNIVAL FEATURES & FUNCTIONS GUIDE
SEATING
Folding and Stowing 3rd-Row Seats
The rear seats can be folded and stowed in the luggage compartment for additional cargo space.
1. Fully lower headrests by pressing the lock release button B recessed in the seatback
2. Pull release handle D in the middle of seatback
3. The seat will fold down backwards towards the stow space. Push the seat down E to stow
Raising the 3rd-Row Seat
1. Pull up on the release handle D to move the seat back to original position
2. Press seat down to ensure it is locked into place (click)
3. Pull on the strap F to raise the seatback
REMINDERS:
•
The seat straps on the front and back of the 3rd-Row Seat are for folding only
•
Do not stow the seat while the seatback is folded down as this may cause damage to the mechanism
C
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Carnival 2nd and 3rd Row Seats Video
QR CODE
Illustrations are for demonstration purposes only. Actual features on vehicle may var y.
Refer to section 3 in the Owner ’s Manual for more information.
Folding 3rd-Row Seat
1. Fully lower headrest by pressing the lock release button B recessed in the seatback (raise headrest to access lock release button)
2. Pull seat folding strap located in the front of the seatback C

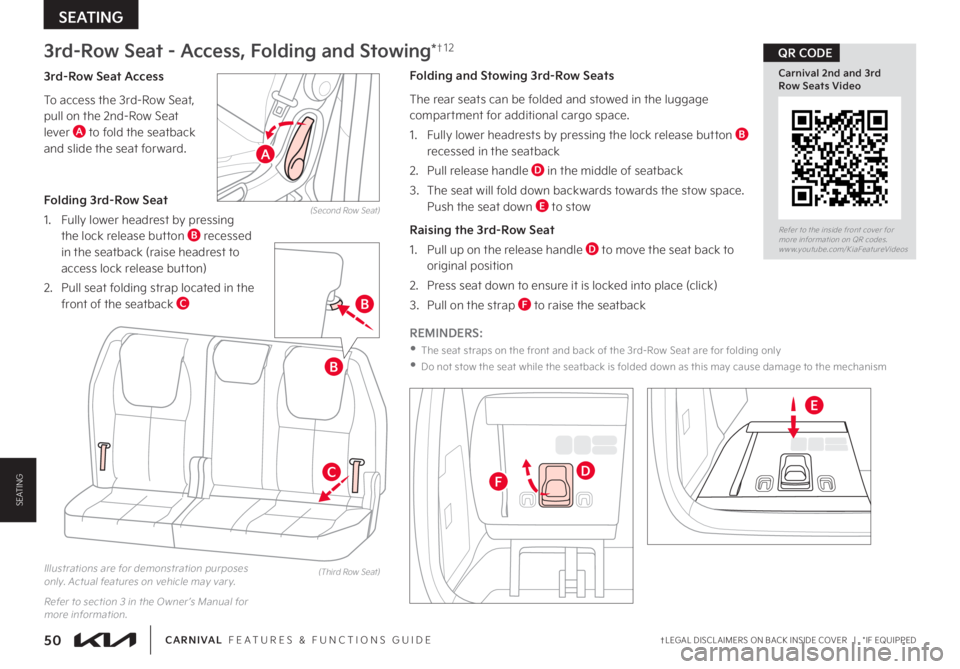

3rd-Row Seat - Access, Folding and Stowing*†1 2
3rd-Row Seat Access
To access the 3rd-Row Seat, pull on the 2nd-Row Seat lever A to fold the seatback and slide the seat forward.
E
DF
A
(Second Row Seat)
(Third Row Seat)
B
B
SEATING
