2023 KIA CARNIVAL center console

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 27
LRLRLRLR
(But ton/switch panel located on Driver's Door )
(But ton located above center console)
ENGINESTART
STOP
Reverse Parking Aid Function*
Reverse Parking Aid Function will rotate the side-view mirrors downward to help visibility when backing up. The button A needs to be depressed for the Reverse Parking Aid Function to operate.
When the gear shift lever is moved into R (Reverse) and while the vehicle is moving backwards, the outside rearview mirrors B will rotate downward to aid in reverse parking.
To turn OFF the function, press the button again.
The outside rearview mirrors will automatically return to their original positions when:
•The Engine Start/Stop Button is in the OFF position
•The gear shift lever is moved to any position except R (Reverse)
•
Outside rearview mirror switches are not depressed
Engine Start/Stop Button†6
To start the engine:
•Press the brake pedal
•
Press the ENGINE START/STOP button
while the gear shift is in P (Park)
To turn the engine OFF, press the ENGINE START/STOP button.
To use the ENGINE START/STOP button, you must have the Smart Key fob inside the vehicle.
REMINDER: When the but ton A is not depressed, the Reverse Parking Aid Function will not operate and the outside rear view mirrors will not rotate downward
Refer to section 4 in the Owner ’s Manual for more information.
To use electrical accessories:
ACC position
•When in the OFF position and without depressing the brake pedal, press the ENGINE START/STOP but ton once (amber light)
ON position
•When already in the ACC position (orange light) and without depressing the brake pedal, press the ENGINE START/STOP but ton again (reddish orange light)

When in the OFF position and without depressing the brake pedal, press the ENGINE START/STOP but ton t wice (reddish orange light)
Keeping the vehicle in ACC or the ON position for extended periods of time without turning the engine on may discharge the vehicle’s battery
QUICK TIPS
REMINDERS:
•
In an emergency situation while the vehicle is in motion, you are able to turn the engine off and to the ACC position by pressing the ENGINE START/STOP button for more than 2 seconds or 3 times successively within 3 seconds
•
If Smar t Key fob bat ter y is dead, with the lock but ton facing the ENGINE START/STOP but ton, hold the fob up against the ENGINE START/STOP but ton and press to star t the engine while pressing the brake pedal
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Start/Stop Button Video
QR CODE
Refer to section 4 in the Owner ’s Manual for more information.
AB
DRIVER’S PANEL
DRIVER’SPANEL

*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 33
REMINDERS:
•
Driving while distracted is dangerous and should be avoided. Drivers should remain at tentive to driving and always exercise caution when using the audio system controls while driving. To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park
•
Prolonged use of the audio head unit in ACC mode may drain the vehicle’s battery
Standard Audio System - Value* — F M /A M/Media (USB, Bluetooth® Audio)
Sound Settings: To adjust the sound settings:
1. Press the SETUP key on the Infotainment System or the onscreen MENU button, when in MEDIA mode. Select the onscreen SOUND button, or SOUND SETTINGS
2.
Select the menu item (Position, Volume, Tone, Priority, Advanced, Default, FM Radio Noise Cancel*)
3.
Use the onscreen buttons to adjust settings. Press the return button to save settings
Presets: Press the STAR button next to or below the Radio Station display. This saves the current station as a preset.
Custom Key H: To program the Custom Key, press and hold the Custom key, then select one of the available features you would like the Custom key to open.
Software updates - To keep your software up to date, Kia provided over-the-air updates, free of charge. You can also snap the QR code to watch the video, or visit the official Kia update webpage at https://update.kia.com. Note, visiting a dealer for software update may include an additional charge.
For more information, refer to the Car Infotainment System Quick Reference Guide. For other audio system information, refer to pages 30-36.
(Audio controls above center console)
(System display)
Press to display SETUP/Set tings mode System reset
Press to Power ON/OFF. Rotate to adjust Volume
Press to select FM/AM/modes
Press to enter MEDIA mode
Rotate to change Radio Station/Media tracks/files. Press to select
POWERPUSHVOL
RADIO
MEDIA
SETUPSEEK
ENTER
TUNE
FILE
TRACK
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Standard Audio System – Value Video
Standard Audio System Updates Video
QR CODE
•Volume level bet ween different audio modes:
-
When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc.), the audio system saves the previous volume level you were listening to. For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
-When using Bluetooth® Audio, the overall volume is dependent on your device’s volume. If the volume is turned down low on your device it will remain low even if the system volume is turned up
•This system suppor ts Android Auto™ (USB & wireless connection) and Apple CarPlay® (wireless connection only)
•
Navigation may be available when connected to Android Auto™ or Apple CarPlay® suppor ted smar tphones
•Voice Recognition function is available when connected to Android Auto™ and Apply CarPlay®
•
At any time, you can interrupt Command Feedback by pressing the TALK but ton; when using the voice command feature, wait for the system to BEEP before speaking the command
•
A warning screen may appear periodically to remind users that the system should be operated when the engine is running to prevent bat ter y discharge
QUICK TIPS
A programmable key to provide quick access to one of several available system features
Your vehicle’s audio system may differ from that in the illustrationPress briefly to do the following:• FM/AM mode: Play the previous/next frequency• MEDIA mode: Change the track, file or title (except for AUX)Press and hold to do the following (over 0.8 seconds):• FM/AM mode: Move quickly through all of the frequencies. When released, the system seeks the next available frequency• MEDIA mode: Rewinds or fast for wards the track or file (except for AUX and Bluetooth® Audio)
INFOTAINMENT SYSTEM
INFOTAINMENTSYSTEM

USB
USBC
*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 37
USB Charger Ports, Multimedia USB
Port, Power Outlets, & AC Inverter
USB Charger Ports* B are located in the center panel and in the back of the seats B and center console.
Multimedia USB Port C: Use the Aux port to connect audio devices and the Multimedia USB port to connect USB audio devices and smartphones.
AC Inverter*: 115V/100 watt power inverters are located in the back of the center console and in the luggage zone* (See page 8 for ON/OFF button information).
REMINDERS:
•
Using the power outlets (accessor y plugs) and AC Inver ter for prolonged periods of time with the ENGINE START/STOP but ton in the ACC position (Engine OFF) may cause the bat ter y to discharge
•
Use only the charging cables that your device manufacturer supplied. Third par t y cables may cause damage to your device
•
The USB data por t (Multimedia USB por t) is located next to the Power Outlets. The USB Charger por ts do not suppor t data transfer
Refer to section 4 in the Owner ’s Manual for more information.
Digital Clock - Infotainment System
Infotainment System:
Press the SETUP key A then press GENER AL, then DATE/TIME button to display the Time and Date setting screen. Then use the onscreen buttons to adjust time and date.
(Located in the center console in front of gear shift)
For more information, refer to the Car Infotainment System Quick Reference Guide.
USB
POWERPUSHVOL
MAPENGINESTARTSTOPN AV RADIO MEDIASETUP
SEEK
TRACK
ENTER
TUNE
FILE
•
Press the RETURN but ton on the navigation screen to ensure changes are saved
•When needed, Daylight Savings must be enabled in the Set tings screen
•
To access manual date and time set ting, turn GPS time OFF in the Clock Set tings (Kia Connect with Navigation System*)
QUICK TIPS
The power outlets are inactive when the Engine Star t/Stop* but ton is OFF.
QUICK TIP
A
BB
B
CENTER PANEL
CENTERPANEL
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Automatic Climate Control Operation Video
QR CODE

ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 41
Wireless Smartphone Charging System*†2 1
Charge a Qi Certified smartphone wirelessly by placing it on the charging pad A at the front of the console, near the Multimedia USB ports and the charging indicator, while the ignition is on.
1. Enable Wireless Smartphone Charging System in the User Settings* in the Instrument Cluster LCD or the Vehicle Settings* in the infotainment system, select Convenience then Wireless Charging System
2. Place a compatible smartphone on the center of the charging pad B
3. The indicator light A may change to amber once the wireless charging begins
4. Once charging is complete, the amber light may change to green
USB
USB
Requires QI-enabled device or QI-enabled case
Refer to section 4 in the Owner ’s Manual for more information.
CENTER PANEL
A
B
•The smar tphone must be a Qi cer tified compatible phone with QI function available. Some smar tphone models are not QI cer tified, which may affect the availabilit y, speed or per formance of the wireless charging
•Wireless charging must be enabled in user set tings
•
If wireless charging does not work, move the smar tphone around the pad until the charging indicator turns amber. Avoid placing other metal items in the bin while charging as to not impede the charging area
•
For wireless charging to occur, all doors (excluding rear hatch) must be closed & the Smar t Key Fob must be detected inside the vehicle
QUICK TIPSRefer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Wireless Charging Video
QR CODE
REMINDERS:
•
Avoid placing other metal items in the bin while charging as to not impede the charging area
•
This vehicle is equipped with wireless charging technology which allows for a device to be charged using inductive charging; however, device compatibilit y varies. See your Owner ’s Manual for more detailed information and the back page for legal disclaimers
•
Inductive charging systems are less ef ficient than conventional charging through cable. As a result, higher device operating temperatures may be experienced during use
•
Charging Per formance – Device position on the wireless charging system can affect charging per formance. Other factors that may affect the charging rate includes foreign objects, such as coins or pens, and phone case thickness
•If the driver door is opened, charging will be disabled
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED
CENTERPANEL

*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 55
OTHER KEY FEATURES
HOLD
HOLDHOLD
HOLD
HOLDHOLD
HOLD
HOLDHOLD
HOLD
HOLD
HOLDHOLD
HOLD
HOLDHOLD
HOLD(But tons located on panel to the left of steering wheel)
HOLD
HOLDPOWER
DOOR OFFHOLD
HOLDHOLDPOWER
DOOR OFFHOLD
#VU UPOT
MPDBUFE
PO
DFOUFS
QJMMBST

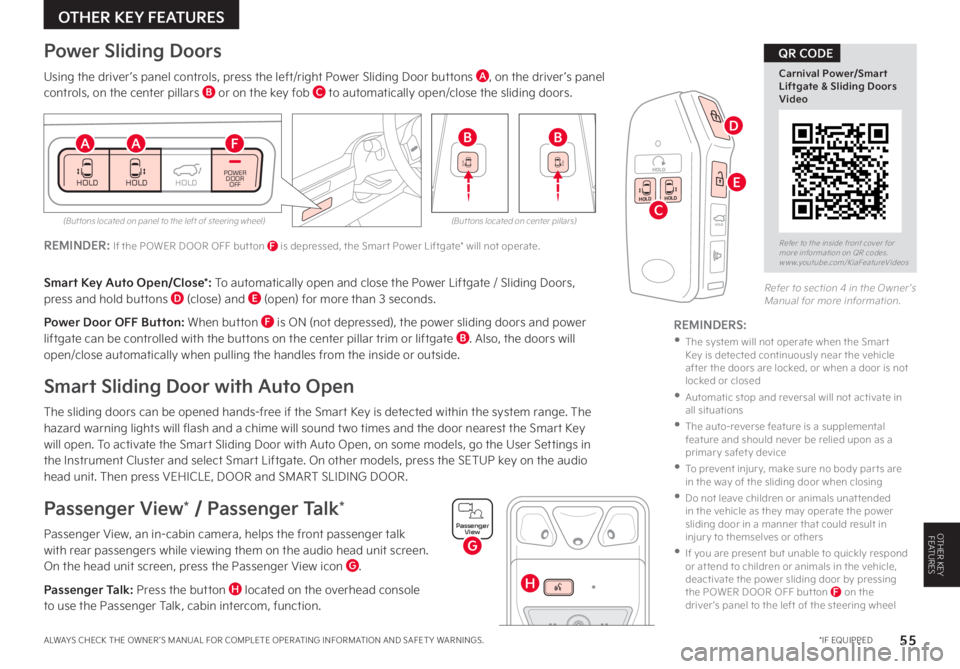

Power Sliding Doors
Using the driver ’s panel controls, press the left/right Power Sliding Door buttons A, on the driver ’s panel controls, on the center pillars B or on the key fob C to automatically open/close the sliding doors.
REMINDER: If the POWER DOOR OFF but ton F is depressed, the Smar t Power Liftgate* will not operate.
Smart Key Auto Open/Close*: To automatically open and close the Power Liftgate / Sliding Doors, press and hold buttons D (close) and E (open) for more than 3 seconds.
Power Door OFF Button: When button F is ON (not depressed), the power sliding doors and power liftgate can be controlled with the buttons on the center pillar trim or liftgate B. Also, the doors will open/close automatically when pulling the handles from the inside or outside.
Smart Sliding Door with Auto Open
The sliding doors can be opened hands-free if the Smart Key is detected within the system range. The hazard warning lights will flash and a chime will sound two times and the door nearest the Smart Key will open. To activate the Smart Sliding Door with Auto Open, on some models, go the User Settings in
the Instrument Cluster and select Smart Liftgate. On other models, press the SETUP key on the audio head unit. Then press VEHICLE, DOOR and SMART SLIDING DOOR.
Passenger View* / Passenger Talk*
Passenger View, an in-cabin camera, helps the front passenger talk with rear passengers while viewing them on the audio head unit screen. On the head unit screen, press the Passenger View icon G.
Passenger Talk: Press the button H located on the overhead console to use the Passenger Talk, cabin intercom, function.
REMINDERS:
• The system will not operate when the Smar t Key is detected continuously near the vehicle after the doors are locked, or when a door is not locked or closed
•
Automatic stop and reversal will not activate in all situations
•
The auto-reverse feature is a supplemental feature and should never be relied upon as a primar y safet y device
•
To prevent injur y, make sure no body par ts are in the way of the sliding door when closing
•
Do not leave children or animals unat tended in the vehicle as they may operate the power sliding door in a manner that could result in injur y to themselves or others
•
If you are present but unable to quickly respond or at tend to children or animals in the vehicle, deactivate the power sliding door by pressing the POWER DOOR OFF but ton F on the driver ’s panel to the left of the steering wheel
Passenger
View
PassengerView
AAFBB
C
D
E
H
G
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Carnival Power/Smart Liftgate & Sliding Doors Video
QR CODE
Refer to section 4 in the Owner ’s Manual for more information.
OTHER KEY FEATURES
