Leading Vehicle Departure Alert (LVDA)*†3
Leading Vehicle Departure Alert is designed to inform the driver when the vehicle in front starts moving or departs from a stop. When LVDA is on, your vehicle is stopped, and it detects that the leading vehicle is driving away, LVDA sounds an alert to let you know you can start driving. If no action is taken after the vehicle in front drives away, then a message A will appear on the Instrument Cluster LCD.
LVDA Settings:
•LVDA can be turned on/off by going to the User Settings* in the Instrument Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* in the on position
•To access User settings* in the Instrument Cluster - Press the Mode button B on the Steering
Wheel to toggle to User Settings . Press the OK C up/down to toggle to Driver Assistance, then Driver Attention Warning and select Leading Vehicle Departure Alert
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button. Press VEHICLE to enter Vehicle Settings. Select Driver Assistance, then Driver Attention Warning and select Leading Vehicle Departure Alert
•LVDA Warning Timing - When in Driver Assistance menu, select Warning Timing and select one of the following:
- Normal: This setting allows for a nominal amount of distance between the vehicles before the initial warning occurs
- Late: Reduces the amount of distance between the vehicles before the initial warning occurs
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button) Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Leading Vehicle Departure Alert (LVDA) Video
QR CODE
Leading vehicle
is driving away
A
B
C
When engaged, LVDA is not a substitute for safe and proper driving. Always drive safely and use caution.
Images are for illustrative purposes only and may not reflect actual feature or operation.
Refer to section 5 in the Owner ’s Manual for more information
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
ADAS

Smart Cruise Control (SCC)*†3
Smart Cruise Control is designed to maintain a predetermined distance from vehicles detected ahead by automatically adjusting the driving speed as needed. When traffic is detected, the vehicle will automatically slow to maintain a set distance from traffic without depressing the accelerator or brake pedal.
With SCC on and activated, and the vehicle distance set, when SCC detects a vehicle slowing or stopping, it can bring the vehicle to a complete stop. When the vehicle ahead starts to move forward, the SCC system re-engages. If the vehicle ahead stops for more than three seconds, press the accelerator pedal or press the +/- or buttons on the Steering Wheel to start moving the vehicle.
Smart Cruise Control will adjust acceleration based on the drive mode selected in the Drive Mode Integrated Control system.
To set/adjust the set speed:
•Push the Driving Assist button* A to turn SCC on and set the current speed (One-Touch Set). The SCC indicator will illuminate on the instrument cluster. SCC may decrease the speed to maintain the distance with the vehicle in front
•Press the +/- button B up/down to increase/decrease the set speed
To set the vehicle distance: Press the Vehicle Distance button C on the steering wheel. The image on the LCD screen D will change when scrolling through the settings. Each time the button is pressed, the vehicle distance changes.
To pause/resume SCC operation: Depress the brake pedal or press the Pause/Resume button B. The SCC indicator on the instrument cluster will change.
To turn SCC off: Press the Driving Assist button A. The SCC indicator on the instrument cluster will turn OFF.
REMINDERS:
•
SCC will not activate until the brake pedal has been depressed at least once after the ignition is ON or engine star ting
•
When following a vehicle, SCC will automatically adjust your vehicle speed based on the vehicle detected in front
•
SCC is also canceled when the driver ’s door is opened, gear shift is changed out of D (Drive), EPB is activated and various other conditions. See the Owner ’s Manual for other conditions
•
If SCC is left on, it can be activated inadver tently. Keep SCC off when not in use to avoid set ting a speed that the driver is not aware of
•It is the responsibilit y of the driver to always check the speed and distance to the vehicle ahead
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Smart Cruise Control with Overtaking Acceleration Assist Video
QR CODE
If your vehicle speed is bet ween 0-20 mph when you press the Driving Assist but ton to turn SCC on, the set speed will be set to 20 mph.
QUICK TIP
The distance set tings are approximations and may var y depending on the vehicle speed at the time. See Owner ’s Manual for more information.
172ft130ft
82ft
106ft
(Type B Steering Wheel shown; but tons located on right side of Steering Wheel)
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button)Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
GA
C
E
FB
When engaged, SCC is a supplemental function and is not a substitute for safe driving. It is the responsibilit y of the driver to always check the speed and distance to the vehicle ahead. See section 5 in the Owner ’s Manual for more information.
Images are for illustrative purposes only and may not reflect actual feature or operation.
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED18CARNIVAL FEATURES & FUNCTIONS GUIDE
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPHCRUISED
DAUTO
D
ADAS

0 KMH020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPHCRUISED
DAUTO
Navigation-based Smart Cruise Control (NSCC)*†3
Navigation-based Smart Cruise Control can automatically adjust the vehicle speed when it detects a curved road ahead and when it receives road information from the navigation system.
To turn on NSCC, go to User Settings in the instrument cluster or the Vehicle Settings* in the infotainment system, by selecting Driving Convenience,* Highway Auto Speed Change. When SCC is on and operating, the vehicle is driving on limited/controlled access highways, and NSCC is turned on, NSCC is enabled and the AUTO icon A will illuminate white on the instrument cluster.
When NSCC detects a curve ahead, activates, and reduces the vehicle speed, the AUTO icon A will turn green. When the vehicle passes the curved road, the vehicle may return to its previously set SCC speed.
Highway Set Speed Auto Change: If the speed is set to the current speed limit on the highway during NSCC operation, the set speed is changed automatically whenever the speed limit changes.
REMINDER: NSCC is only available on controlled access roads and highways.
(Display on LCD screen)
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Navigation-based Smart Cruise Control (NSCC) Video
QR CODE
A
Cruise Control (CC)†3
B
Driving Assist button: Press to turn the Cruise Control On/Off. The indicator will illuminate on the instrument cluster and the set speed will automatically activate at the vehicle’s current speed
C + button: Press up to increase Set speed
- button: Press down to set or decrease Set Speed

Pause/Resume button: Press to pause Cruise Control. Press again to resume Cruise Control
Your vehicle’s steering wheel but tons may differ from those in the illustrations.
Refer to section 5 in the Owner ’s Manual for more information.
•Cruise Control is designed to function at above 20 mph
•Cruise Control will not activate until the brake pedal has been depressed at least once after ignition ON or engine star t
QUICK TIPS
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button) Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
$
#
See section 5 in the Owner ’s Manual for more information. For more set ting information, refer to the Car Infotainment System Quick Reference Guide.
NSCC is a supplemental system and is not a substitute for safe driving. It is the responsibilit y of the driver to always check the speed and distance to the vehicle ahead.
REMINDER: In standard Cruise Control, the driver needs to manually assess the distance from other vehicles as the system will not automatically apply brakes.
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 19
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
ADAS

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED20CARNIVAL FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
Intelligent & Manual Speed Limit Assist Video
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button)Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
60mphLIMIT
60mphLIMIT

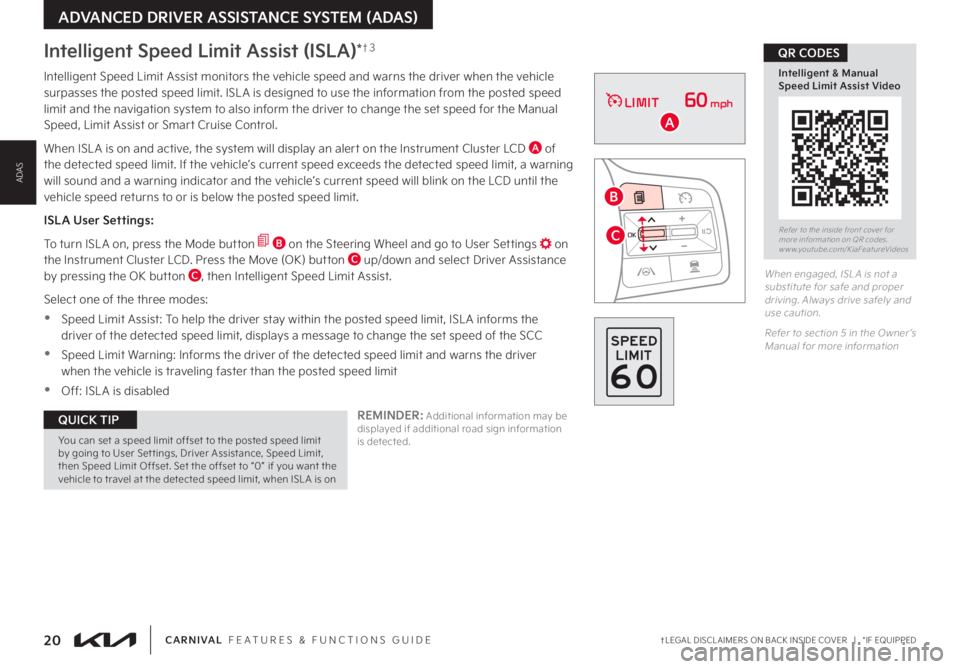

Intelligent Speed Limit Assist (ISLA)*†3

Intelligent Speed Limit Assist monitors the vehicle speed and warns the driver when the vehicle surpasses the posted speed limit. ISL A is designed to use the information from the posted speed limit and the navigation system to also inform the driver to change the set speed for the Manual Speed, Limit Assist or Smart Cruise Control.
When ISL A is on and active, the system will display an alert on the Instrument Cluster LCD A of the detected speed limit. If the vehicle’s current speed exceeds the detected speed limit, a warning will sound and a warning indicator and the vehicle’s current speed will blink on the LCD until the vehicle speed returns to or is below the posted speed limit.
ISLA User Settings:
To turn ISL A on, press the Mode button B on the Steering Wheel and go to User Settings on the Instrument Cluster LCD. Press the Move (OK) button C up/down and select Driver Assistance by pressing the OK button C, then Intelligent Speed Limit Assist.
Select one of the three modes:
•Speed Limit Assist: To help the driver stay within the posted speed limit, ISL A informs the driver of the detected speed limit, displays a message to change the set speed of the SCC
•Speed Limit Warning: Informs the driver of the detected speed limit and warns the driver when the vehicle is traveling faster than the posted speed limit
•Off: ISL A is disabled
REMINDER: Additional information may be displayed if additional road sign information is detected.
When engaged, ISL A is not a substitute for safe and proper driving. Always drive safely and use caution.
Refer to section 5 in the Owner ’s Manual for more information

You can set a speed limit offset to the posted speed limit by going to User Set tings, Driver Assistance, Speed Limit, then Speed Limit Offset. Set the offset to “0” if you want the vehicle to travel at the detected speed limit, when ISL A is on
QUICK TIP
A
B
C
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
ADAS

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 21
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Highway Driving Assist (HDA) Video
QR CODEHighway Driving Assist (HDA)*†3
Highway Driving Assist (HDA) is designed to adjust the speed of the vehicle when driving on limited/controlled access highways.
When HDA is activated and the conditions are met, the Instrument Cluster indicator A will illuminate green. If the conditions are not met, HDA will be in standby mode and the indicator light A will illuminate white. When in operation, and if both lanes are recognized, the Instrument Cluster will show the lanes illuminated white and the HDA indicator illuminated green A.
Hands-off Warning - If the driver takes their hands off the Steering Wheel for several seconds, a warning message will appear on the Instrument Cluster, and an audible warning will sound. If hands on the Steering Wheel is not detected, HDA will cancel.
HDA settings:
•HDA can be turned on/off by going to the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* in the on position
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button. Press VEHICLE to enter Vehicle Settings. Select Driver Assistance, then Driver Convenience. Select Highway Driving Assist to activate
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
REMINDERS:
•
Limited access roads information may var y. See owner ’s manual for more information
•When the ignition is cycled, the system returns to its previous state, on or off
•
If the driver changes the speed while in automatic speed set ting mode, it deactivates and enters a manual mode
When engaged, Highway Driving Assist is not a substitute for safe driving, may not detect all objects around the vehicle, and only functions on cer tain federal highways. Always drive safely and use caution. Refer to section 5 in the Owner ’s Manual for more detailed information, limitations and conditions.
Images are for illustrative purposes only and may not reflect actual feature or operation.
0 KMH020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPHCRUISED
AUTOA
ADAS

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 23
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button)Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
Rear Cross-traffic Collision-Avoidance Assist (RCCA)†3
Rear Cross-traffic Collision-Avoidance Assist is designed to detect vehicles approaching from the left and right side while your vehicle is reversing, and warning the driver that a collision is imminent with a warning message and an audible warning. Also, to help prevent collision braking assist is applied.
When the rear-corner radar sensors detect approaching vehicles from the rear left or rear right side of the vehicle A, RCCA will sound a warning, the warning indicators on the outside rearview mirror will illuminate and a message will appear on the Instrument Cluster LCD B and the audio head unit.* If RCCA detects that the collision risk has increased, RCCA automatically applies the brakes to reduce your speed, potentially helping to minimize the effects of a possible collision.
RCCA is designed to operate under the following conditions:
•When the gear shift is in Reverse
•When the vehicle is moving slower than 5 mph
RCCA Settings:
•RCCA can be turned on/off by going to the User Settings* in the Instrument Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is ON or the Engine Start/Stop button* in the ON position
•To access User settings* in the Instrument Cluster - Press the Mode button C on the Steering Wheel to toggle to User Settings . Press the OK button D up/down to toggle to Driver Assistance, then Parking Safety. Select Rear Cross Traffic Safety and press the OK button D
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button. Press VEHICLE to enter Vehicle Settings. Select Driver Assistance, then Parking Safety and select Rear Cross Traffic Safety
•Warning Timing – When in the Driver Assistance menu, select Warning Timing and one of the following:
- Normal: Maximizes the amount of distance between the vehicles before the initial warning occurs
- Later: Reduces the amount of distance between the vehicles before the initial warning occurs
REMINDERS:
•
When vehicle power is cycled, RCCA will remain in the previous state
•
When a vehicle is approaching within the sensing range, and traveling faster than 3 mph, the RCCA system will show a warning
W h e n engaged, RCCA is a supplemental system. Do not solely rely on this system and always pay at tention to the road and its conditions
Refer to section 5 in the Owner ’s Manual for more information.
116mi
R5643mi80 °F
(But tons located on right side of steering wheel)
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Rear Cross-traffic Collision-Avoidance Assist (RCCA) Video
QR CODE
A
B
C
D
Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings on the audio head unit. Go to Driver Assistance, then Warning Volume.
QUICK TIP
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
ADAS

ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 25
Electronic Stability Control (ESC)†5
The ESC system is designed to help stabilize the vehicle during certain cornering maneuvers. It is a good idea to keep the ESC turned on for daily driving whenever possible.
Press the ESC OFF button B to turn Traction Control OFF/ON. Press again to turn on.
To turn OFF both the Traction Control and Stability Control, press and hold for more than 3 seconds. Press again to turn ON.
Hill-start Assist Control (HAC)†5
HAC helps prevent the vehicle from rolling backwards when accelerating from a stop while on a steep incline. HAC automatically activates whether the ESC is OFF or ON but does NOT activate when the ESC has malfunctioned.
HOLD
HOLDPOWER
DOOR OFFHOLD
#VU UPO
QBOFM
MPDBUFE
MFGU
PG
4UFFSJOH
8IFFM

Instrument Cluster Control
With parking lights/headlights ON, press button A (+) or (-) to adjust the brightness of the instrument panel illumination.
REMINDER: The Instrument Cluster Control does not adjust brightness on the audio head unit screens. Use the display set tings in the Setup menu to adjust the brightness on the screen.
HOLD
HOLDPOWER
DOOR OFFHOLD
DRIVER’S PANEL
AB
•HAC provides a t wo second delay before the vehicle may star t rolling backwards
•When HAC is active (e.g., during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator — this is normal HAC operation
QUICK TIPS
REMINDERS:
•
HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position
•
HAC does not replace the need to apply brakes while the vehicle is stopped on an incline
•
In the event of HAC system malfunction, see an authorized Kia dealer for ser vice
Refer to section 5 in the Owner ’s Manual for more information.
REMINDERS:
•
ESC is active by default at vehicle star tup. When ignition is cycled, ESC will turn ON again
•
The ESC Indicator Light in the instrument cluster will be lit momentarily whenever the ESC is active
Refer to section 4 in the Owner ’s Manual for more information.
Refer to section 5 in the Owner ’s Manual for more information.
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED
DRIVER’SPANEL

*IF EQUIPPED26CARNIVAL FEATURES & FUNCTIONS GUIDE
DRIVER’S PANEL
Power Windows, Window Lock & Central Door Lock
A Pull/Press to operate Front Windows Auto Up/Down*
B Press to Unlock/Lock All Doors
C Press to disable Rear Passenger Windows and Rear Sunroof* passenger controls
REMINDER: When C is pressed, window controls for the Rear Passenger Windows are disabled.
Power Folding Outside Mirrors*
Press the L or R buttons D to select the mirror to adjust.
Press button arrows E left/right or up/down to adjust mirror position.
Toggle button F left/right to unfold/fold the outside rearview mirrors.
Toggle button F to center to automatically fold/unfold mirrors when:
•The Smart Key Lock/Unlock buttons are pressed
•The door outside handle button is pressed
Heated Outside Mirrors
Mirror heaters automatically turn ON/OFF at the same time the Rear Window Defroster is turned ON/OFF. The Rear Window Defroster button* is located on the climate control system panel.
Refer to section 4 in the Owner ’s Manual for more information.
Automatic Door
Lock/Unlock
When the gear shift is moved into or out of P (Park), all doors will Lock/Unlock. Refer to the User Settings on how to turn Auto Door Lock/Unlock ON/OFF.
Refer to section 4 in the Owner ’s Manual for more information.
Manual Folding Mirrors*
To fold the mirrors in manually, pull the mirror towards the window.
LRLRLRLR
#VU UPOTXJUDI
QBOFM
MPDBUFE
PO
%SJWFS sT
%PPS


#VU UPO
DPO7THVSBUJPO
NBZ
WBS Z
EFQFOEJOH
PO
WFIJDMF
NPEFM
3FGFS
UP
TFDUJPO

JO
UIF
0XOFS sT
.BOVBM
GPS
NPSF
JOGPSNBUJPO
A
B
C
D
E
F
•Auto Door Lock/Unlock* will engage when the gear shift is moved into or out of the P (Park) position
•To turn Auto Door Lock/Unlock* OFF, go to User Set tings* in the LCD Instrument Cluster modes
QUICK TIPS
•The mirrors will automatically unfold when the Smar t Key is within close proximit y to the vehicle
•To automatically fold mirrors when exiting vehicle, press the LOCK but ton once on the Smar t Key
QUICK TIPS
Press but ton again to stop Auto Up/Down function
QUICK TIP
If needed, pull the mirror firmly until it folds.
QUICK TIP
Refer to section 4 in the Owner ’s Manual for more information.
REMINDER: To lock position of mirrors, toggle switch to the neutral (center) position.
Refer to section 4 in the Owner ’s Manual for more information.
