2023 INFINITI QX60 ESP

• Do not apply strong light to the sensor ofHead Up Display. Doing so may cause a
malfunction.
The Emergency call (SOS) button is used in
combination with an INFINITI InTouch™ Ser-
vices subscription to call for assistance in
case of an emergency.
Pressing the button will (with a paid subscrip-
tion) reach a response specialist that will
provide assistance based on the situation
described by the vehicle’s occupant. For ad-
ditional information, or to enroll your vehicle,
refer to www.InfinitiUSA.com/intouch, or
call 855–444–7244. The Rear Door Alert system functions under
certain conditions to indicate there may be an
object or passenger in the rear seat(s). Check
the seat(s) before exiting the vehicle.
The Rear Door Alert system is initially dis-
abled. The driver can enable the system using
the vehicle information display. For additional
information, see “Vehicle information
display- 7 inch (18 cm) Type A” (P. 2-22) or
“Vehicle information display- 12.3 inch
(31cm) Type B” (P. 2-44).
When the system is enabled:
• The system is activated when a rear door is
opened and closed within 10 minutes of
the vehicle being driven. When the vehicle is
started and the system is activated, a visual
message appears in the vehicle information
display. For additional information, see
“Rear Door Alert is activated” (P. 2-38) or
“Rear Door Alert is activated” (P. 2-61).
• If a rear door is opened and closed but the vehicle is not driven within approximately
10 minutes, the system will not be acti-
vated. A rear door must be opened and
closed and the car driven within 10 minutes
for the system to activate.
LIC4883
EMERGENCY CALL (SOS) BUTTON REAR DOOR ALERT
2-92Instruments and controls

WIRELESS CHARGER
INDICATOR
The indicator(1)will illuminate in orange
when the charging process is started.
When the charging has completed, the indi-
cator illuminates in green.
If a malfunction occurs or the charging pro-
cess has stopped, the indicator will blink in
orange for 8 seconds then turn off.
WIRELESS CHARGER
OPERATION
To use the wireless charger, it is necessary to
seat the smartphone well within the charging
pad. To maximize charging performance, en-
sure the smartphone is fully seated on the
center of the charging pad over the "Qi" logo
OA. Because the location of the power re-
ceiver may vary depending on the smart-
phone, you will need to try and find the area
that suits your smartphone.
Because some smartphone cases or accesso-
ries may adversely affect charging, remove
them before wireless charging. Turn off the
vibration function of the smartphone before
wireless charging.
NOTE:
• Only a Qi compatible smartphone can be
used.
• The smartphone may be warmed during
charging process and the charging may
stop by the protection function of the
wireless charger. This is not a malfunction.
If this occurs, restart charging after the
smartphone cooled down. The indicator
will blink in orange then turn off.
• The wireless charging process may be
stopped by the status of the smartphone
(battery temperature, etc.).
• If a radio noise interference occurs during
charging process, put the smartphone
onto the center (“Qi” logo) position of the
wireless charger.
• The wireless charging process will stop
during process of searching the Intelligent
Key.
• The wireless charging process will not be
started when a USB (Universal Serial Bus)
cable is connected to the smartphone. The
indicator may illuminate in orange or blink
if the smartphone is put on the wireless
charger with a USB cable connected. How-
ever, charging is not performed. •
Depending on the type of the smartphone,
the indicator may remain illuminated in or-
ange even when the charging process has
been completed.
FCC ID: BEJWC500MNM
IC: 2703H-WC500MNM
This device complies with part 15 of the FCC
Rules and RSS-Gen of IC Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful inter-
ference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
RF Radiation Exposure Statement: This
equipment complies with FCC RF Radiation
exposure limits set forth for an uncontrolled
environment.
This device and its antenna must not be co-
located or operating in conjunction with any
other antenna or transmitter.
2-98Instruments and controls

WARNING
• Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.
• Use suitable ropes and hooks to secure
cargo.
• Never allow anyone to ride in the lug-
gage area. It is extremely dangerous to
ride in a cargo area inside of a vehicle. In a
collision, people riding in these areas are
more likely to be seriously injured or
killed.
• Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts.
• The child restraint top tether strap may
be damaged by contact with items in the
cargo area. Secure any items in the cargo
area. Your child could be seriously injured
or killed in a collision if the top tether
strap is damaged.
• Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
ROOF RACK (if so equipped)
WARNING
• Always install the crossbars onto the
roof side rails before loading cargo of
any kind. Loading cargo directly onto the
roof side rails or the vehicle’s roof may
cause vehicle damage.
• Roof rack cross bars should be evenly
distributed.
• Do not exceed maximum roof rack cross-
bars load capacity and always distribute
the load uniformly. •
Heavy loading of the crossbars has the
potential to affect the vehicle stability
and handling during sudden or unusual
handling maneuvers.
• Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision, un-
secured cargo could cause personal
injury.
• Drive extra carefully when the vehicle is
loaded at or near the cargo carrying ca-
pacity, especially if the significant por-
tion of that load is carried on the
crossbars.CAUTION
• Use care when placing or removing items
from the roof rack. If you cannot com-
fortably lift the items onto the roof rack
from the ground, use a ladder or a stool.
Do not apply any load directly to the roof side
rails
OA. CrossbarsOBmust be installed be-
fore applying load/cargo/luggage to the
roof of the vehicle.
INFINITI accessory crossbars may be avail-
able through an INFINITI retailer. It is recom-
mended that you visit an INFINITI retailer for
additional information.
LIC4202
Instruments and controls2-107

To open a window, push the switch to the
detent and continue to hold down until the
desired window position is reached. To close
a window, pull the switch to the detent and
continue to hold up until the desired window
position is reached.
Locking rear passengers' windows
When the window lock button is pushed (the
indicator illuminates), the rear passengers’
windows cannot be operated with the rear
passengers’ power window switch. The rear
passengers’ windows can only be operated
with the main switch (driver side switches).
To cancel the passenger’s window lock, push
the window lock button again.
Front passenger's power window
switch
The passenger's window switch operates
only the corresponding passenger's window.
To open the window partially, push the
switch down
O1lightly until the desired win-
dow position is reached. To close the window
partially, pull the switch up
O2until the de-
sired window position is reached.
Rear power window switch
The rear power window switches open or
close only the corresponding windows. To
open the window, push the switch and hold it
down
O1. To close the window, pull the
switch up
O2.
LIC4915LIC4729
Instruments and controls2-109

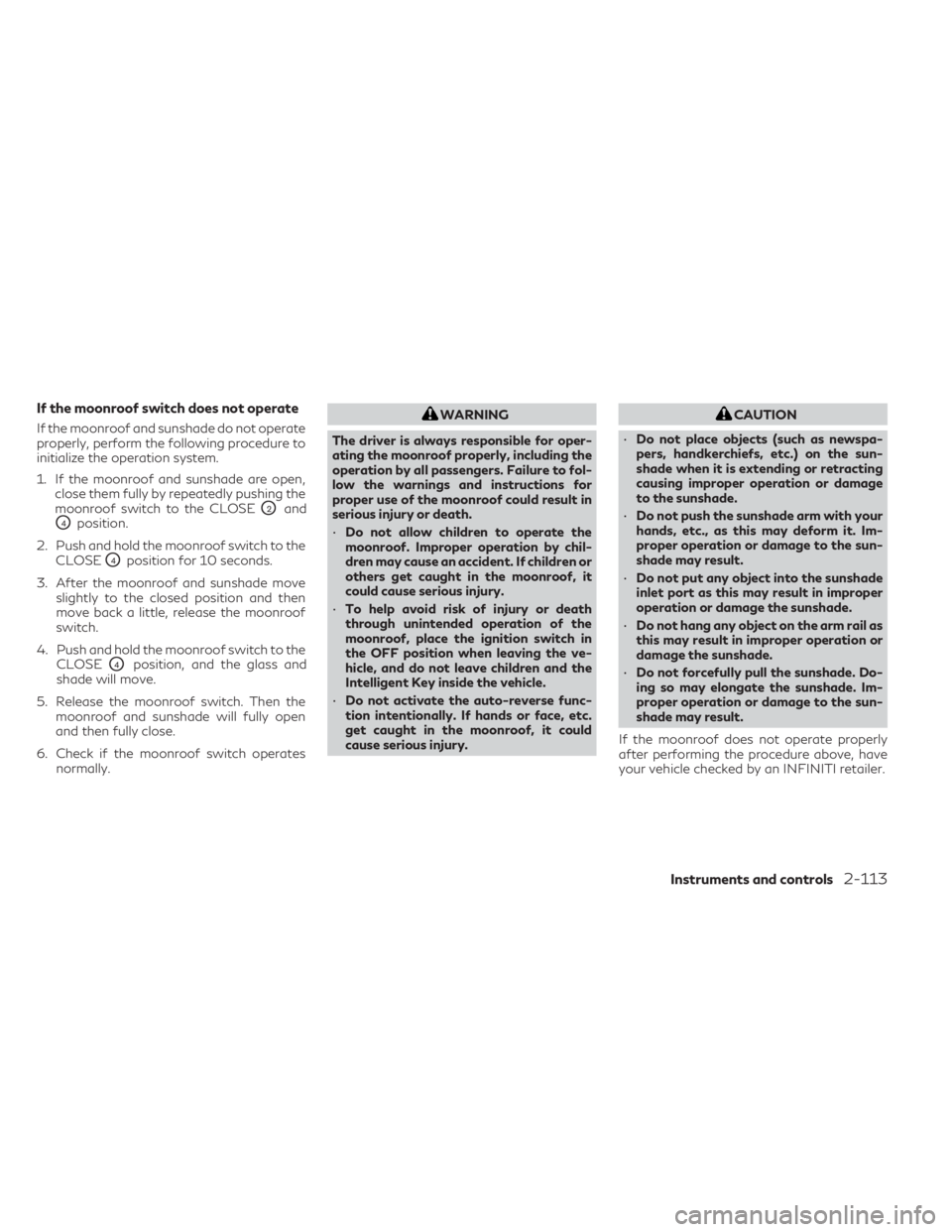

If the moonroof switch does not operate
If the moonroof and sunshade do not operate
properly, perform the following procedure to
initialize the operation system.
1. If the moonroof and sunshade are open,close them fully by repeatedly pushing the
moonroof switch to the CLOSE
O2and
O4position.
2. Push and hold the moonroof switch to the CLOSE
O4position for 10 seconds.
3. After the moonroof and sunshade move slightly to the closed position and then
move back a little, release the moonroof
switch.
4. Push and hold the moonroof switch to the CLOSE
O4position, and the glass and
shade will move.
5. Release the moonroof switch. Then the moonroof and sunshade will fully open
and then fully close.
6. Check if the moonroof switch operates normally.
WARNING
The driver is always responsible for oper-
ating the moonroof properly, including the
operation by all passengers. Failure to fol-
low the warnings and instructions for
proper use of the moonroof could result in
serious injury or death.
• Do not allow children to operate the
moonroof. Improper operation by chil-
dren may cause an accident. If children or
others get caught in the moonroof, it
could cause serious injury.
• To help avoid risk of injury or death
through unintended operation of the
moonroof, place the ignition switch in
the OFF position when leaving the ve-
hicle, and do not leave children and the
Intelligent Key inside the vehicle.
• Do not activate the auto-reverse func-
tion intentionally. If hands or face, etc.
get caught in the moonroof, it could
cause serious injury.CAUTION
• Do not place objects (such as newspa-
pers, handkerchiefs, etc.) on the sun-
shade when it is extending or retracting
causing improper operation or damage
to the sunshade.
• Do not push the sunshade arm with your
hands, etc., as this may deform it. Im-
proper operation or damage to the sun-
shade may result.
• Do not put any object into the sunshade
inlet port as this may result in improper
operation or damage the sunshade.
• Do not hang any object on the arm rail as
this may result in improper operation or
damage the sunshade.
• Do not forcefully pull the sunshade. Do-
ing so may elongate the sunshade. Im-
proper operation or damage to the sun-
shade may result.
If the moonroof does not operate properly
after performing the procedure above, have
your vehicle checked by an INFINITI retailer.
Instruments and controls2-113

To clear all programming
1. Press and hold the two outer HomeLink®buttons until the indicator light begins to
flash in green and “CLEARED” is displayed
on the mirror, in approximately 10 sec-
onds. Do not hold for longer than 20
seconds.
2. Release both buttons.
HomeLink® is now in the programming mode
and can be programmed at any time begin-
ning with “Programming HomeLink®” - Step
1.
REPROGRAMMING A SINGLE
HOMELINK® BUTTON
To reprogram a HomeLink® button, com-
plete the following:
1. Press and hold the desired HomeLink® button. DO NOT release the button.
2. The indicator light will illuminate in green, and after 20 seconds it will begin to flash
in orange and “TRAINING” is displayed on
the mirror.
3. Release the HomeLink® button and pro- ceed with “ Programming HomeLink®” —
Step 3. For questions or comments, contact
HomeLink® at: www.homelink.com/infiniti
or 1–800–355–3515.
The HomeLink® button has now been repro-
grammed. The new device can be activated
by pressing the HomeLink® button that was
just programmed. This procedure will not af-
fect any other programmed HomeLink®
buttons.
If a new device is not programmed to the
HomeLink® button, it will revert to the previ-
ously stored programming.
IF YOUR VEHICLE IS STOLEN
If your vehicle is stolen, you should change
the codes of any non-rolling code device that
has been programmed into HomeLink®.
Consult the Owner's Manual of each device
or call the manufacturer or dealer of those
devices for additional information.
When your vehicle is recovered, you will
need to reprogram the HomeLink® Univer-
sal Transceiver with your new transmitter
information.
FCC Notice:
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-
vice must accept any interference received,
including interference that may cause unde-
sired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
For Canada:
This device contains licence-exempt
transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Develop-
ment Canada’s licence-exempt RSS(s). Op-
eration is subject to the following two con-
ditions: (1) This device may not cause
interference. (2) This device must accept any
interference, including interference that
may cause undesired operation of the
device.
2-122Instruments and controls

key number. As many as four INFINITI Ve-
hicle Immobilizer System keys can be used
with one vehicle. You should bring all
INFINITI Vehicle Immobilizer System keys
that you have to the INFINITI retailer for
registration. This is because the registration
process will erase the memory of all key
codes previously registered into the INFINITI
Vehicle Immobilizer System. After the regis-
tration process, these components will only
recognize keys coded into the INFINITI Ve-
hicle Immobilizer System during registration.
Any virtual key accessories (if so equipped)
will also have to be reregistered. Any key that
is not given to the retailer at the time of
registration will no longer be able to start
your vehicle.
CAUTION
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with water or salt
water. This could affect system function. When the doors are locked using one of the
following methods, the doors cannot be
opened using the inside or outside door
handles. The doors must be unlocked to open
the doors.
WARNING
• Always have the doors locked while driv-
ing. Along with the use of seat belts, this
provides greater safety in the event of an
accident by helping to prevent persons
from being thrown from the vehicle. This
also helps keep children and others from
unintentionally opening the doors, and
will help keep out intruders.
• Before opening any door, always look for
and avoid oncoming traffic.
• To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your ve-
hicle. Additionally, the temperature in-
side a closed vehicle on a warm day can
quickly become high enough to cause a
significant risk of injury or death to
people and pets.
LOCKING WITH KEY
To lock the door using the mechanical key,
turn the key toward the rear of the vehicle
O2.
This will only lock the corresponding door and
will not activate the security system. To arm
the security system, press the
button
on the Intelligent Key.
To unlock the corresponding door using the
mechanical key, turn the key toward the front
of the vehicle
O1. This will only unlock the
corresponding door and will not disarm the
security system.
LPD3272
Driver's side
DOORS
3-4Pre-driving checks and adjustments

Lockout protection
When the power door lock switch is moved to
the lock position and any door is open, all
doors will lock. With the Intelligent Key left in
the vehicle and any door open, all doors will
unlock automatically and chime will sound
after the door is closed.
These functions help prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCKS
• All doors lock automatically when the ve-hicle speed reaches 15 mph (24 km/h).
• All doors unlock automatically when the transmission is placed in the P (Park) posi-
tion or when the ignition switch is placed in
the OFF position, depending on the option
selected in the “Vehicle Settings” menu.
NOTE:The Auto Door Unlock function can be
changed using “Vehicle Settings” of the ve-
hicle information display. For additional in-
formation, see “Vehicle information display
7 inch (18 cm) Type A” (P. 2-22) or “Vehicle
information display 12.3 inch (21 cm) Type
B” (P. 2-44).
CHILD SAFETY REAR DOOR
LOCK
Child safety locks help prevent the rear doors
from being opened accidentally, especially
when small children are in the vehicle.
The child safety lock levers are located on the
edge of the rear doors.
When the lever is in the LOCK position, the
door can be opened only from the outside.
WARNING
• Radio waves could adversely affect elec-
tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.
• The Intelligent Key transmits radio
waves when the buttons are pressed.
The FAA advises the radio waves may
affect aircraft navigation and communi-
cation systems. Do not operate the Intel-
ligent Key while on an airplane. Make
sure the buttons are not operated unin-
tentionally when the unit is stored for a
flight.
The Intelligent Key system can operate all the
door locks using the remote control function
or touching the lock sensor on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or
conditions may affect the Intelligent Key sys-
tem operation.
Be sure to read the following before using the
Intelligent Key system.
LPD3254
INFINITI INTELLIGENT KEY SYSTEM
3-6Pre-driving checks and adjustments
