2023 INFINITI QX55 display

Even if the Active Trace Control is set to OFF,
some functions will remain on to assist the
driver (for example: avoidance scenes).
ACTIVE ENGINE BRAKE
The Active Engine Brake function adds subtle
deceleration by controlling Continuously
Variable Transmission (CVT) gear ratio, de-
pending on the cornering condition calcu-
lated from the driver's steering input and plu-
ral sensors. This benefit is for easier
traceability and less workload of adjusting
speed with braking at corners.
The Active Engine Brake also adds subtle
deceleration with gear ratio control accord-
ing to driver’s brake pedal operation.
When the PERSONAL mode is selected, the
Active Engine Brake can be set to ON (en-
abled) or OFF (disabled). For additional infor-
mation, see “INFINITI Drive Mode Selector”
(P. 5-29).
When the lower display is used to turn off the
VDC system, the Active Engine Brake system
is also turned off.When the Active Engine Brake is operated at
corners and the “Chassis Control” mode is
selected in the vehicle information display,
the Active Engine Brake graphics are shown
in the vehicle information display. For addi-
tional information, see “Vehicle information
display” (P. 2-19).
If the chassis control warning message ap-
pears in the vehicle information display, it
may indicate that the Active Engine Brake is
not functioning properly. Have the system
checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.
WARNING
The Active Engine Brake may not be effec-
tive depending on the driving condition. Al-
ways drive carefully and attentively.
When the Active Engine Brake is operating,
the needle of the tachometer will rise up and
you may hear an engine noise. This is normal
and indicates that the Active Engine Brake is
operating properly.
You may also feel deceleration when the Ac-
tive Engine Brake is operating. However, this
is not a malfunction.
LSD4774
Starting and driving5-145

ACTIVE RIDE CONTROL
This system senses upper body motion
(based on wheel speed information) and con-
trols four wheel brake pressure. This will en-
hance ride comfort in effort to restrain un-
comfortable upper body movement when
passing over undulated road surfaces.
When the lower display is used to turn off the
VDC system, the Active Ride Control is also
turned off.
When the Active Ride Control is operated
and the “Chassis Control” mode is selected in
the vehicle information display, the Active
Ride Control graphics are shown in the ve-
hicle information display. For additional in-
formation, see “Vehicle information display”
(P. 2-19).If the chassis control warning message ap-
pears in the vehicle information display, it
may indicate that the Active Ride Control is
not functioning properly. Have the system
checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.
When the Active Ride Control is operating,
you may hear noise and sense slight decel-
eration. This is normal and indicates that the
Active Ride Control is operating properly.
WARNING
• Never rely solely on the hill start assist
system to prevent the vehicle from mov-
ing backward on a hill. Always drive
carefully and attentively. Depress the
brake pedal when the vehicle is stopped
on a steep hill. Be especially careful when
stopped on a hill on frozen or muddy
roads. Failure to prevent the vehicle
from rolling backwards may result in a
loss of control of the vehicle and possible
serious injury or death.
• The hill start assist system is not de-
signed to hold the vehicle at a standstill
on a hill. Depress the brake pedal when
the vehicle is stopped on a steep hill. Fail-
ure to do so may cause the vehicle to roll
backwards and may result in a collision or
serious personal injury.
• The hill start assist system may not pre-
vent the vehicle from rolling backwards
on a hill under all load or road conditions.
Always be prepared to depress the brake
pedal to prevent the vehicle from rolling
backwards. Failure to do so may result in
a collision or serious personal injury.
LSD3922
HILL START ASSIST SYSTEM
5-146Starting and driving

When the vehicle is stopped on a hill, the hill
start assist system automatically keeps the
brakes applied to help prevent the vehicle
from rolling backward in the time it takes the
driver to release the brake pedal and apply
the accelerator.
The hill start assist system will operate auto-
matically under the following conditions:
• The transmission is shifted to a forward orreverse gear.
• The vehicle is stopped completely on a hill by applying the brake. The maximum hold-
ing time is 2 seconds. After 2 seconds the
vehicle will begin to roll back and the hill
start assist system will stop operating
completely.
The hill start assist system will not operate
when the shift lever is placed in the N (Neu-
tral), the Park button is pressed to place the
vehicle in the P (Park) position or on a flat and
level road.
The Hill Start Assist function status can be
checked in the “Chassis Control” mode in the
vehicle information display. For additional in-
formation, see “Vehicle information display”
(P. 2-19). The sonar system sounds a tone to inform the
driver of obstacles near the bumper.
When the sonar system is turned on, the
sonar view will automatically appear in the
touch screen display when the camera is
activated.
WARNING
• The sonar system is a convenience but it
is not a substitute for proper parking.
• The driver is always responsible for
safety during parking and other maneu-
vers. Always look around and check that
it is safe to do so before parking.
LSD4775LSD2993
FRONT AND REAR SONAR SYSTEM
(if so equipped)
Starting and driving5-147

•Read and understand the limitations of
the sonar system as contained in this
section. The colors of the sonar indicator
indicates different distances to the
object.
• Inclement weather or ultrasonic sources
such as an automatic car wash, a truck’s
compressed-air brakes or a pneumatic
drill may affect the function of the sys-
tem; this may include reduced perfor-
mance or a false activation.
• The sonar system is designed as an aid to
the driver in detecting large stationary
objects to help avoid damaging the
vehicle.
• The sonar system is not designed to pre-
vent contact with small or moving ob-
ject. Always move slowly. The system
will not detect small objects below the
bumper, and may not detect objects
close to the bumper or on the ground.
• The sonar system may not detect the fol-
lowing objects: fluffy objects such as
snow, cloth, cotton, glass-wool, etc.;
thin objects such as rope, wire and chain,
etc.; or wedge-shaped objects.CAUTION
• Excessive noise (such as audio system
volume or an open vehicle window) will
interfere with the tone and it may not be
heard.
• The front and rear sonar detect the dis-
tance between the vehicle and the ob-
stacle by detecting the sound wave re-
flected from the surface of an obstacle.
When there is a sound such as horn, or an
ultrasonic source (such as sonar of other
vehicles) around the vehicle, the sonar
may not detect objects properly.
• Keep the sonar sensors (located on the
bumper fascia) free from snow, ice and
large accumulations of dirt. Do not clean
the sonar with sharp objects. If the sen-
sors are covered, the accuracy of the so-
nar function will be diminished.
SYSTEM OPERATION
The system informs with a visual and audible
signal of front obstacles when the shift lever
is in the D (Drive) position and both front and
rear obstacles when the shift lever is in the R
(Reverse) position. Sonar Operation Table
FR Sensor RR Sensor
Range Sound Display Sound Display Px † x†
Roooo
Nx † x † Do o x †
o – Display/Beep when detect
† – Display on camera view
x – No Display and Beep
The system is deactivated at speeds above 6
mph (10 km/h). It is reactivated at lower
speeds.
The intermittent tone will stop after 3 sec-
onds when an obstacle is detected by only
the corner sensor and the distance does not
change. The tone will stop when the obstacle
get away from the vehicle.
When the object is detected, the indicator
(green) appears and blinks and the tone
sounds intermittently. When the vehicle
moves closer to the object, the color of the
indicator turns yellow and the rate of the
blinking increases. When the vehicle is very
close to the object, the indicator stops blink-
ing and turns red, and the tone sounds
continuously.
5-148Starting and driving

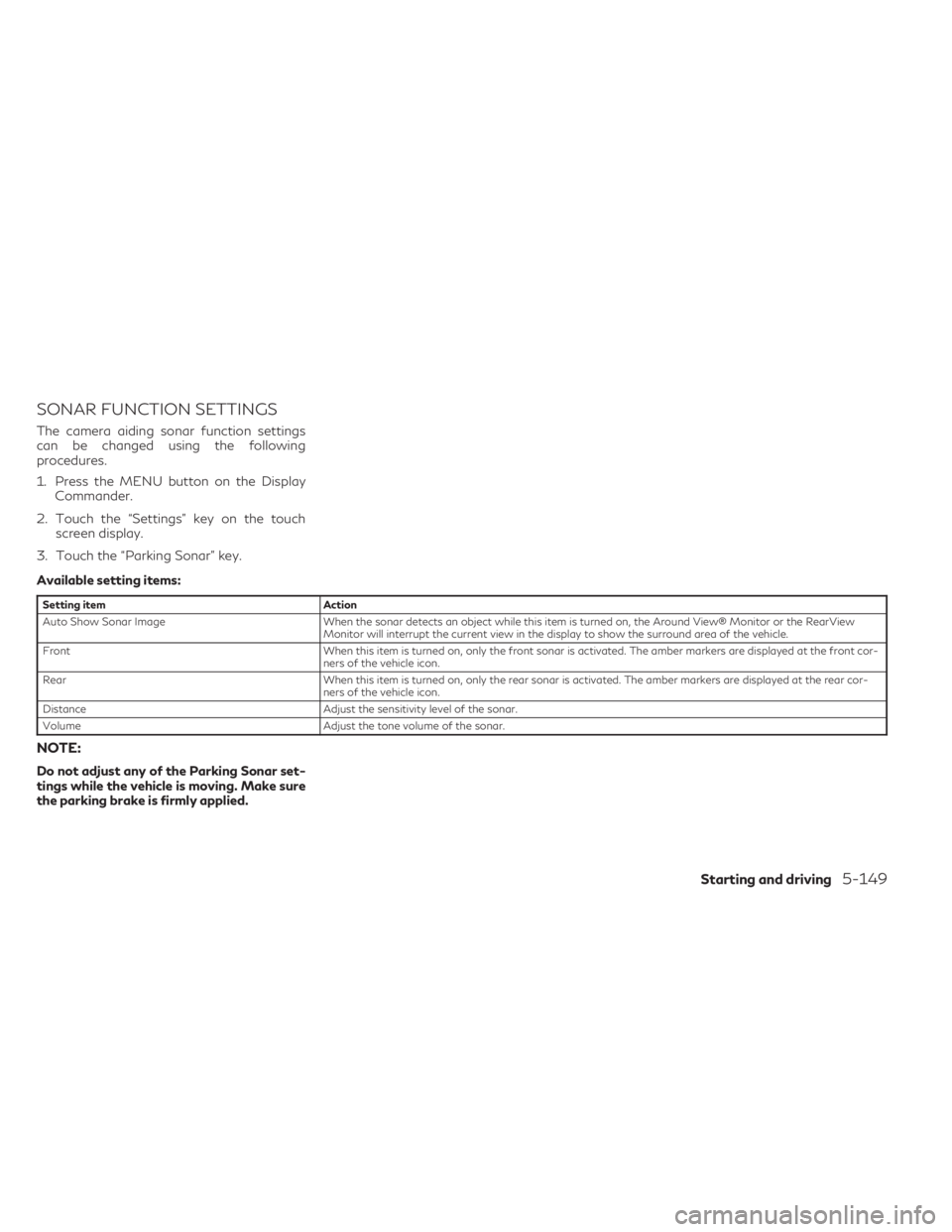

SONAR FUNCTION SETTINGS
The camera aiding sonar function settings
can be changed using the following
procedures.
1. Press the MENU button on the DisplayCommander.
2. Touch the “Settings” key on the touch screen display.
3. Touch the “Parking Sonar” key.
Available setting items:
Setting item Action
Auto Show Sonar Image When the sonar detects an object while this item is turned on, the Around View® Monitor or the RearView
Monitor will interrupt the current view in the display to show the surround area of the vehicle.
Front When this item is turned on, only the front sonar is activated. The amber markers are displayed at the front cor-
ners of the vehicle icon.
Rear When this item is turned on, only the rear sonar is activated. The amber markers are displayed at the rear cor-
ners of the vehicle icon.
Distance Adjust the sensitivity level of the sonar.
Volume Adjust the tone volume of the sonar.
NOTE:
Do not adjust any of the Parking Sonar set-
tings while the vehicle is moving. Make sure
the parking brake is firmly applied.
Starting and driving5-149

TURNING ON AND OFF THE
SONAR FUNCTION
When the “P” keyOAis touched, the indicator
light
OBon the key will turn off and the sonar
will turn off temporarily.
The Moving Object Detection (MOD) (if so
equipped), the Rear Automatic Braking
(RAB), and the Blind Spot Intervention (BSI)
(if so equipped) systems will also be turned
off at the same time. See “Moving Object
Detection (MOD)” (P. 4-27), “Rear Automatic
Braking (RAB)” (P. 5-104) and “Blind Spot
Intervention (BSI)” (P. 5-53). When the “P” key
OAis touched again, the
indicator light
OBwill turn on and the sonar
will turn back on.
In the cases below, the sonar will be turned
back on automatically:
• When the shift lever is in the R (Reverse) position.
• When the CAMERA button is pressed and a screen other than the camera view is
shown on the display.
• When vehicle speed decreases below ap- proximately 5 mph (8 km/h).
• When the ignition switch is placed in the OFF position and turned back to the ON
position again.
To prevent the sonar system from activating
altogether, use the sonar system settings
menu. See “Sonar function settings”
(P. 5-149).
When both Sonar and the MOD system are
deactivated from the settings menu, the "P"
key
OAwill disappear from the display. (See
“Sonar function settings” (P. 5-149) and
“Moving Object Detection (MOD)” (P. 4-27).) When the corner of the vehicle moves closer
to an object, the corner sonar indicator
OAappears. When the center of the vehicle
moves close to an object, the center sonar (if
so equipped) indicator
OBappears.
LSD4241LSD2136
5-150Starting and driving

To shut off the engine in an emergency situ-
ation while driving, perform the following
procedure:
– Rapidly push the push-button ignitionswitch three consecutive times in less than
1.5 seconds, or
– Push and hold the push-button ignition switch for more than 2 seconds.TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This vehicle is equipped with Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires. When the low tire pres-
sure warning light is lit, and the “Tire Pressure
Low - Add Air” or “Flat Tire-Visit dealer” (if so
equipped) warning appears in the vehicle in-
formation display, one or more of your tires is
significantly under-inflated. The system also
displays pressure of all tires (except the spare
tire) on the vehicle information display screen
by sending a signal from a sensor that is
installed in each wheel. If the vehicle is being
driven with low tire pressure, the TPMS will
activate and warn you of it by the low tire
pressure warning light. This system will acti-
vate only when the vehicle is driven at speeds
above 16 mph (25 km/h). For additional in-
formation, see “Warning lights, indicator
lights and audible reminders” (P. 2-9) and
“Tire Pressure Monitoring System (TPMS)”
(P. 8-27).
WARNING
• Radio waves could adversely affect elec-
tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use. •
If the low tire pressure warning light illu-
minates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage could
occur and may lead to an accident and
could result in serious personal injury.
Check the tire pressure for all four tires.
Adjust the tire pressure to the recom-
mended COLD tire pressure shown on
the Tire and Loading Information label to
turn the low tire pressure warning light
OFF. If the light still illuminates while
driving after adjusting the tire pressure,
a tire may be flat or the TPMS may be
malfunctioning. If you have a flat tire,
replace it with a replacement tire as soon
as possible. If no tires are flat and all tires
are properly inflated, have the vehicle
checked. It is recommended that you
visit an INFINITI retailer for this service.
EMERGENCY ENGINE SHUT OFF FLAT TIRE
In case of emergency6-3

•When using a wheel without TPMS such
as the spare tire, the TPMS will not func-
tion and the low tire pressure warning
light will flash for approximately 1 min-
ute. The light will remain on after 1 min-
ute. Have your tires replaced and/or
TPMS system reset as soon as possible.
It is recommended that you visit an
INFINITI retailer for these services.
• Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
• Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.
RUN-FLAT TIRES
This vehicle is equipped with run-flat tires.
Run-flat tires can be used temporarily if they
are punctured. When the “Flat Tire — Visit
dealer” warning appears in the vehicle infor-
mation display, one or more of your tires is
punctured. For additional information, see
“Run-flat tires” (P. 8-36).
For additional information, refer to the tire
safety information in the Warranty Informa-
tion Booklet.
WARNING
• Although you can continue driving with a
punctured run-flat tire, remember that
vehicle handling stability is reduced,
which could lead to an accident and per-
sonal injury. Also, driving a long distance
at high speeds may damage the tires.
• Do not drive at speeds above 50 mph (80
km/h) and do not drive more than ap-
proximately 93 miles (150 km) with a
punctured run-flat tire. The actual dis-
tance the vehicle can be driven on a flat
tire depends on outside temperature, ve-
hicle load, road conditions and other
factors.
• Drive safely at reduced speeds. Avoid
hard cornering or braking, which may
cause you to lose control of the vehicle.
• If you detect any unusual sounds or vi-
brations while driving with a punctured
run-flat tire, pull off the road to a safe
location and stop the vehicle as soon as
possible. The tire may be seriously dam-
aged and need to be replaced.CAUTION
• Never install tire chains on a punctured
run-flat tire, as this could damage your
vehicle.
• Avoid diving over any projection or pot-
hole, as the clearance between the ve-
hicle and the ground is smaller than
normal.
• Do not enter an automated car wash
with a punctured run-flat tire.
• Have the punctured tire inspected by an
INFINITI retailer or other authorized re-
pair shop. Replace the tire as soon as
possible if the tire is seriously damaged.
6-4In case of emergency
