2023 INFINITI QX55 display

•Cold engine idle speed is high, so use
caution when shifting into a forward or
reverse gear before the engine has
warmed up.
• Do not downshift abruptly on slippery
roads. This may cause a loss of control.
• Never shift to either the P (Park) or R
(Reverse) position while the vehicle is
moving forward and P (Park) or D (Drive)
position while the vehicle is reversing.
This could cause an accident or damage
the transmission.
CAUTION
• To avoid possible damage to your ve-
hicle, when stopping the vehicle on an
uphill grade, do not hold the vehicle by
depressing the accelerator pedal. The
foot brake should be used for this
purpose.
• Except in an emergency, do not shift to
the N (Neutral) position while driving.
Coasting with the transmission in the N
(Neutral) position may cause serious
damage to the transmission.
• Do not hang items on the shift lever. This
may cause an accident due to a sudden
start.
Shifting
Press the shift lever button to shift
Shift without pressing the shift lever
button
After starting the engine, fully depress the
brake pedal, press the shift lever button and
shift the shift position from the P (Park) po-
sition to any of the desired shift positions.
Confirm that the vehicle is in the desired shift position by checking the shift indicator lo-
cated near the shift lever or the vehicle infor-
mation display.
WARNING
Apply the electronic parking brake if the
shift lever is in any position while the en-
gine is not running. Failure to do so could
cause the vehicle to move unexpectedly or
roll away and result in serious personal in-
jury or property damage.
CAUTION
• Use the P (Park), R (Reverse) or D (Drive)
position only when the vehicle is com-
pletely stopped.
• After switching to the desired shift posi-
tion, release your hand from shift lever to
let it return to the home position.
• Do not operate the shift lever while the
accelerator pedal is depressed. This may
cause a sudden start which could result in
an accident.
• The following operations are not allowed
because excessive force would be ap-
plied to the transmission and this may
result in damage to the vehicle:LSD4196
Starting and driving5-19

Neutral hold mode function (if so
equipped)
This function enables you to get out of the
vehicle when it is in the N (Neutral) position,
while the engine is running. While this func-
tion is activated, the vehicle can be moved by
pushing with hand (when car washing). When
using this function, release the electronic
parking brake.
WARNING
• Use this function on a level surface only.
Failure to do so may cause the vehicle to
move accidentally and could result in a
collision or serious personal injury.
• Do not use this function for a purpose
other than car washing.
• Do not turn the engine off after neutral
hold mode function is activated, other-
wise the N (Neutral) position will not be
kept and the vehicle will automatically
be placed in the P (Park) position.
• If this function is not activated regard-
less of proper operation, transmission
may malfunction. It is recommended that
you visit an INFINITI retailer for this
service. To activate the Neutral hold mode, perform
the following operations:
1. Push the ignition switch to start the
engine.
2. Release the electronic parking brake.
3. Depress and hold the brake pedal.
4. Push the P (Park) button.
5. Slide the shift lever to the N (Neutral) position, and hold it for 0.5 second until
“N” appears in the vehicle information
display.
6. Slide the shift lever to the N (Neutral) position again, and hold it for 0.5 seconds,
until a message “Neutral Hold Mode has
been activated” appears in the vehicle in-
formation display. For additional informa-
tion, see “Neutral Hold Mode activated”
(P. 2-27).
7. The ignition switch has to be kept in the ON position. Otherwise Neutral hold
mode is canceled and the P (Park) position
is engaged automatically.
To exit the Neutral hold mode, place the shift
lever in any position other than the N (Neu-
tral) position.
NOTE:
• It is necessary to perform the steps 4
through 6 within approximately 5 seconds
to prevent incorrect operation.
• When the shifter is changed to the N (Neu-
tral) position, approximately 5 seconds
later, a message will appear in the vehicle
information display. For additional infor-
mation, see “Neutral Hold Mode guidance”
(P. 2-27).
• If the Neutral hold mode is unavailable, a
message will appear in the vehicle infor-
mation display. For additional informa-
tion, see “Neutral Hold Mode was not ac-
tivated” (P. 2-27). To activate the Neutral
hold mode, wait for a while without shift-
ing operation and then perform the opera-
tions again.
Starting and driving5-21

Manual shift mode
The transmission enters the manual shift
mode by moving the shift lever again to the D
(Drive) position when the vehicle is in the D
range.
You can select the manual shift range by
pulling the left side or right side paddle shifter
OAandOB. To cancel the manual shift mode,
move the shift lever to the D (Drive) position
again. The transmission returns to the auto-
matic drive mode.
When the shift lever is shifted from D (Drive)
to the manual shift mode with the vehicle stopped or while driving, the transmission
enters the manual shift mode. Shift ranges
can be selected manually. Shift ranges can
also be selected using the paddle shifters on
the steering wheel. When you pull the paddle
shifter while in the D (Drive) position, the
transmission will shift to the upper or lower
range temporarily. If the paddle shifters are
not used for about 5–10 seconds, the trans-
mission will automatically return to the D
(Drive) position. If you want to return to the D
(Drive) position manually, pull and hold either
paddle shifter for about 1.5 seconds.In the manual shift mode, the shift range is
displayed on the position indicator in the me-
ter. When moving the shift lever to the
manual shift mode, the position indicator dis-
plays 1 (1st) up to 8 (8th) depending on ve-
hicle speed.
Shift ranges up or down one by one as
follows:
1⇔
2⇔ 3⇔ 4⇔ 5⇔ 6⇔ 7⇔ 8
8 (8th)
Use this position for all normal forward driv-
ing at highway speeds.
7 (7th), 6 (6th) and 5 (5th)
Use this position when driving up long slopes,
or for engine braking when driving down long
slopes.
4 (4th), 3 (3rd) and 2 (2nd)
Use these positions for hill climbing or engine
braking on downhill grades.
1 (1st)
Use this position when climbing steep hills
slowly or when driving slowly, or for maxi-
mum engine braking on steep downhill
grades.
LSD4197
Manual shift gate
LSD2914
Paddle shifters
5-22Starting and driving

• While the electronic parking brake is ap-plied or released, an operating sound is
heard from the lower side of the rear seat.
This is normal and does not indicate a
malfunction.
•
When the electronic parking brake is fre-
quently applied and released in a short pe-
riod of time, the parking brake may not op-
erate in order to prevent the parking brake
system from overheating. If this occurs, op-
erate the electronic parking brake switch
again after waiting approximately 1 minute.
• If the electronic parking brake must be ap- plied while driving in an emergency, pull up
and hold the parking brake switch. When
you release the parking brake switch, the
parking brake will be released.
•
While pulling up the electronic parking brake
switch during driving, the parking brake is ap-
plied and a chime sounds. The electronic park-
ing brake indicator light (red) in the meter and
in the parking brake switch illuminates. This
does not indicate a malfunction. The elec-
tronic parking brake indicator light (red) in
the meter and in the parking brake switch
turns off when the parking brake is released.
• When pulling the electronic parking brake switch up with the ignition switch in the
OFF or AUTO ACC position, the parking
brake switch indicator light will continue
to illuminate for a short period of time. The automatic brake hold function maintains
the braking force without the driver having to
depress the brake pedal when the vehicle is
stopped at a traffic light or intersection. As
soon as the driver depresses the accelerator
pedal again, the automatic brake hold func-
tion is deactivated and the braking force is
released. The operating status of the auto-
matic brake hold can be displayed.
To use the automatic brake hold function, the
following conditions need to be met:
• The driver’s seat belt is fastened.
• The electronic parking brake is released.
• The vehicle is not in the P (Park) position.
• The vehicle is not parked on a steep hill.
WARNING
• The automatic brake hold function is not
designed to hold the vehicle on a steep
hill or slippery road. Never use the auto-
matic brake hold when the vehicle is
stopped on a steep hill or slippery road.
Failure to do so may cause the vehicle to
move.
• The automatic brake hold warning may
appear to request that the driver retake
control by depressing the brake pedal. •
When the automatic brake hold function
is activated but fails to maintain the ve-
hicle at a standstill, depress the brake
pedal to stop the vehicle. If the vehicle
unexpectedly moves due to outside con-
ditions, the chime may sound and auto-
matic brake hold warning may
illuminate.
• Be sure to deactivate the automatic
brake hold function when using a car
wash or towing your vehicle.
• Make sure to place the shift position in
the P (Park) position and apply the park-
ing brake when parking your vehicle, en-
tering or exiting the vehicle, or loading
luggage. Failure to do so could cause the
vehicle to move or roll away unexpect-
edly and result in serious personal injury
or property damage.
AUTOMATIC BRAKE HOLD
5-26Starting and driving

WARNING
• If any of the following conditions occur,
the automatic brake hold function may
not function. Have the system checked
promptly. It is recommended that you
visit an INFINITI retailer for this service.
Failure to operate the vehicle in accor-
dance with these conditions could cause
the vehicle to move or roll away unex-
pectedly and result in serious personal
injury or property damage.
– A warning message appears.
– The indicator light on the automatic
brake hold switch does not illuminate
when the switch is pushed.
• The automatic brake hold function will
not be activated if the Slip indicator
light, electronic parking brake warning
light or master warning light illuminate
and the chassis control system fault
message appears in the vehicle informa-
tion display.
• To maintain the braking force to keep
the vehicle to a standstill, a noise may be
heard. This is not a malfunction.
HOW TO ACTIVATE/
DEACTIVATE THE AUTOMATIC
BRAKE HOLD FUNCTION
For additional information on activating and
deactivating the automatic brake hold func-
tion, refer to the instructions outlined in this
section.
How to activate the automatic
brake hold function
1. With the ignition switch in the ON posi- tion, push the automatic brake hold switch
O1. The indicator light on the automatic
brake hold switch
O2illuminates. 2. When the automatic brake hold function
goes into standby, the automatic brake
hold indicator light (white) illuminates.
To use the automatic brake hold function, the
following conditions need to be met:
• The driver’s seat belt is fastened.
• The electronic parking brake is released.
• The vehicle is not in the P (Park) position.
• The vehicle is not parked on a steep hill.
NOTE:
The automatic brake hold function retains
the last state even if the engine is restarted.
How to deactivate the automatic
brake hold function
While the automatic brake hold function is
activated, push the automatic brake hold
switch to turn off the automatic brake hold
indicator light and deactivate the automatic
brake hold function. To deactivate the auto-
matic brake hold function while the brake
force has been maintained by the automatic
brake hold function, depress the brake pedal
and push the automatic brake hold switch.
LSD2916
Starting and driving5-27

Automatic brake hold function
display
The automatic brake hold function status is
shown by color in the “Chassis Control” mode
in the vehicle information display. For addi-
tional information, see “Vehicle information
display” (P. 2-19).
Also depending on the driving situations,
some warnings or indicators may be dis-
played in the vehicle information display. For
additional information, see “Vehicle informa-
tion display warnings and indicators”
(P. 2-25)Multiple driving modes can be selected by
using the INFINITI Drive Mode Selector
switch: STANDARD, SPORT, ECO and
PERSONAL.
When the INFINITI Drive Mode Selector se-
lects a mode, the mode may not switch
quickly. This is not a malfunction.
NOTE:
• The mode list will be turned off in approxi-
mately 5 seconds after the mode is
selected.
• Select the STANDARD mode for normal driving. If the driving mode cannot be switched using
the INFINITI Drive Mode Selector when the
ignition switch is in the ON position, have the
system checked by an INFINITI retailer.
STANDARD MODE
STANDARD mode is recommended for nor-
mal driving. Push the INFINITI Drive Mode
Selector switch until “STANDARD” appears
in the vehicle information display. STAN-
DARD mode will also be displayed in the
upper display.
This mode will be selected first each time the
engine is started.
SPORT MODE
The SPORT mode adjusts the engine and
transmission to enhance performance. Push
the INFINITI Drive Mode Selector switch to
the SPORT position. “SPORT” appears in the
vehicle information display. SPORT mode will
also be displayed in the upper display.
NOTE:
In the SPORT mode, fuel economy may be
reduced.
LSD3922LSD2917
INFINITI Drive Mode Selector switch
INFINITI DRIVE MODE SELECTOR
Starting and driving5-29

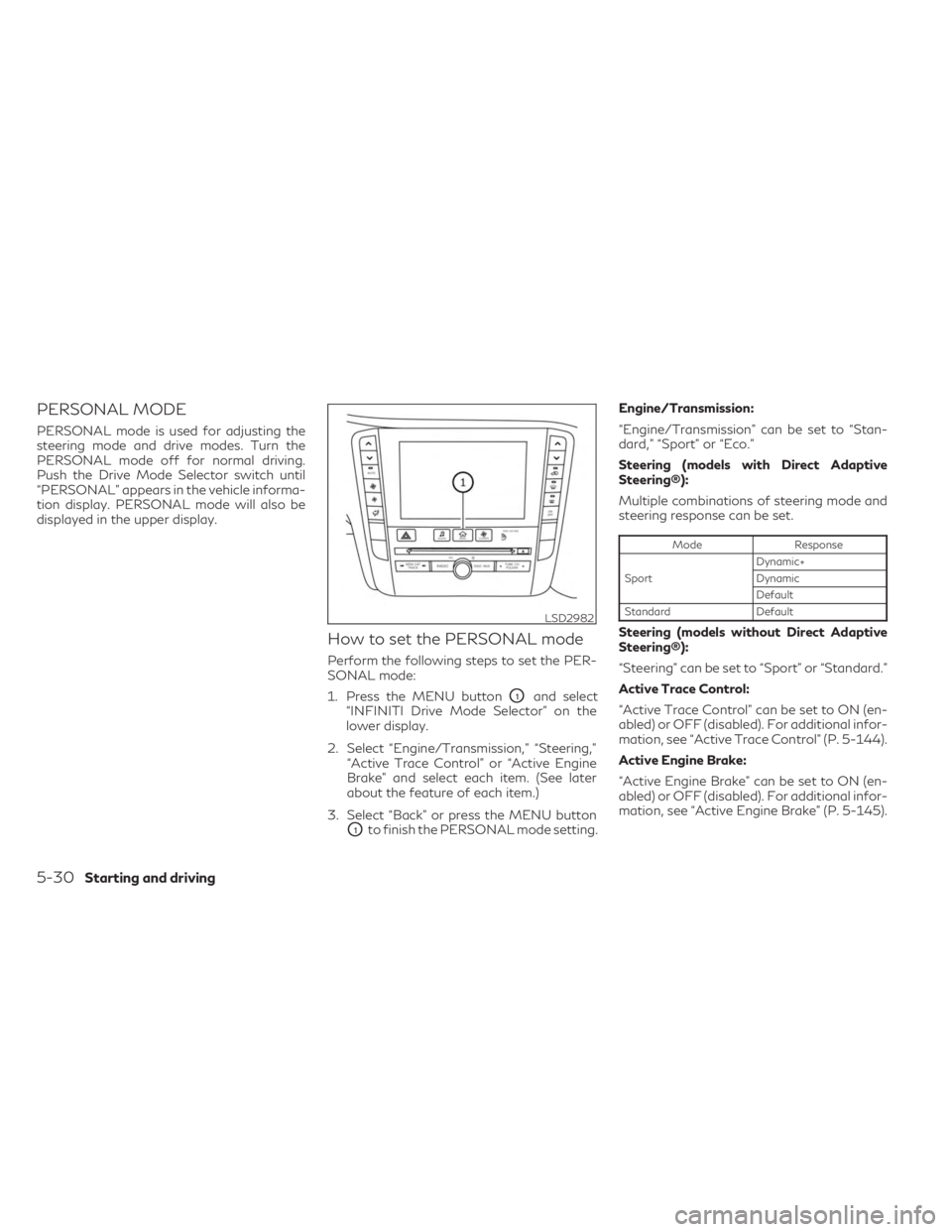

PERSONAL MODE
PERSONAL mode is used for adjusting the
steering mode and drive modes. Turn the
PERSONAL mode off for normal driving.
Push the Drive Mode Selector switch until
“PERSONAL” appears in the vehicle informa-
tion display. PERSONAL mode will also be
displayed in the upper display.
How to set the PERSONAL mode
Perform the following steps to set the PER-
SONAL mode:
1. Press the MENU button
O1and select
“INFINITI Drive Mode Selector” on the
lower display.
2. Select “Engine/Transmission,” “Steering,” “Active Trace Control” or “Active Engine
Brake” and select each item. (See later
about the feature of each item.)
3. Select “Back” or press the MENU button
O1to finish the PERSONAL mode setting. Engine/Transmission:
“Engine/Transmission” can be set to “Stan-
dard,” “Sport” or “Eco.”
Steering (models with Direct Adaptive
Steering®):
Multiple combinations of steering mode and
steering response can be set.
Mode
Response
Sport Dynamic+
Dynamic
Default
Standard Default
Steering (models without Direct Adaptive
Steering®):
“Steering” can be set to “Sport” or “Standard.”
Active Trace Control:
“Active Trace Control” can be set to ON (en-
abled) or OFF (disabled). For additional infor-
mation, see “Active Trace Control” (P. 5-144).
Active Engine Brake:
“Active Engine Brake” can be set to ON (en-
abled) or OFF (disabled). For additional infor-
mation, see “Active Engine Brake” (P. 5-145).LSD2982
5-30Starting and driving

Reset Drive Mode Settings to Default:
Touch to restore all the PERSONAL mode
settings to default. For additional informa-
tion, refer to the separate INFINITI InTouch™
Owner’s Manual.
ECO MODE
The ECO mode adjusts the engine and trans-
mission to enhance fuel economy.
NOTE:
Selecting this drive mode will not necessarily
improve fuel economy as many driving fac-
tors influence its effectiveness.
Operation
Push the Drive Mode Selector switch to the
ECO position. “ECO” appears in the vehicle
information display and the ECO drive indi-
cator light illuminates on the instrument
panel. ECO mode will also be displayed in the
upper display.
When the accelerator pedal is depressed
within the range of economy drive, the ECO
drive indicator light illuminates in green.
When the accelerator pedal is depressed
above the range of economy drive, the ECO
drive indicator light turns off.The ECO drive indicator light will not illumi-
nate in the following cases:
• When the shift lever is in the R (Reverse)
position.
• When the vehicle speed is below 3 mph (4.8 km/h) or over 90 mph (144 km/h).
• When the Intelligent Cruise Control system (if so equipped) is operated.
The TSR system provides the driver with in-
formation about the most recently detected
speed limit. The system captures the road
sign information with the multi-sensing front
camera unit
O1located on the windshield in
front of the inside rearview mirror and dis-
plays the detected signs in the vehicle infor-
mation display. For vehicles equipped with a
navigation system, the speed limit displayed
is based on a combination of navigation sys-
tem data and live camera recognition. TSR
information is always displayed at the top of
the vehicle information display, and option-
ally in the main central area of the display
screen.
LSD4091
TRAFFIC SIGN RECOGNITION (TSR)
(if so equipped)
Starting and driving5-31
