2023 INFINITI QX50 display

While the LDP system is operating, you may
hear a sound of brake operation. This is nor-
mal and indicates that the LDP system is
operating properly.
SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
The warning and assist functions of the LDP
system are not designed to work under the
following conditions:
• When you operate the lane change signaland change the traveling lanes in the direc-
tion of the signal. (The LDP system will be
deactivated for approximately 2 seconds
after the lane change signal is turned off.)
• When the vehicle speed lowers to less than approximately 37 mph (60 km/h).
After the above conditions have finished and
the necessary operating conditions are satis-
fied, the warning and assist functions will
resume.
Condition B:
The assist function of the LDP system is not
designed to work under the following condi-
tions (warning is still functional):
• When the brake pedal is depressed. • When the steering wheel is turned as far as
necessary for the vehicle to change lanes.
• When the vehicle is accelerated during LDP system operation.
• When the Intelligent Cruise Control (ICC) approach warning occurs.
• When the hazard warning flashers are operated.
• When driving on a curve at high speed.
After the above conditions have finished and
the necessary operating conditions are satis-
fied, the LDP system application of the
brakes will resume.
Condition C:
If the following messages appear in the ve-
hicle information display the LDP system will
be turned off automatically:
• “Not Available Poor Road Conditions”: When the VDC system (except Traction
Control System [TCS] function) or ABS
operates.
• “Currently not available”: When the VDC system is turned off.
Action to take:
When the above conditions no longer exist,
turn off the LDP system. Push the ProPILOT
Assist switch on the steering wheel again to
turn the LDP system back on. Temporary disabled status at high
temperature:
If the vehicle is parked in direct sunlight under
high temperature conditions (over approxi-
mately 104°F [40°C]) and then the LDP sys-
tem is turned on, the LDP system may be
deactivated automatically and the following
message will appear on the vehicle informa-
tion display: “Not available: High Camera
Temp.” When the interior temperature is re-
duced, the system will resume operating
automatically.
SYSTEM MALFUNCTION
If the LDP system malfunctions, it will cancel
automatically. The LDP indicator (orange)
will illuminate in the display. If the LDP indi-
cator (orange) illuminates in the display, pull
off the road to a safe location and stop the
vehicle. Turn the engine off and restart the
engine. If the LDP indicator (orange) contin-
ues to illuminate, have the LDP system
checked. It is recommended that you visit an
INFINITI retailer for this service.
5-44Starting and driving

HOW TO ENABLE/DISABLE THE
BSW SYSTEM
Perform the following steps to enable or dis-
able the BSW system.
1. Press the MENU button below the lowerdisplay screen.
2. Select “Driver Assistance.”
3. Select “Blind Spot Assist.”
4. Select “ON” to turn the “Blind Spot Warning” system on or off.
NOTE:
• When enabling/disabling the system, thesystem will retain current settings even if
the engine is restarted.
• The RCTA system is integrated into the BSW system. There is not a separate se-
lection in the lower display for the RCTA
system. When the BSW is disabled, the
RCTA system is also disabled.
LSD4820
5-48Starting and driving

Entering from the side
Illustration 5:The side indicator light illumi-
nates if a vehicle enters the detection zone
from either side. Illustration 6:
If the driver activates the turn
signal while another vehicle is in the detection
zone, then the system chimes (twice) and the
side indicator light flashes.
NOTE:
• If the driver activates the turn signal be- fore a vehicle enters the detection zone,
the side indicator light will flash but no
chime will sound when the other vehicle is
detected. • The radar sensors may not detect a vehicle
which is traveling at about the same speed
as your vehicle when it enters the detec-
tion zone.
SYSTEM TEMPORARILY
UNAVAILABLE
When radar blockage is detected, the system
will be deactivated automatically. The “Un-
available: Side Radar Obstruction” warning
message will appear in the vehicle informa-
tion display.
The system is not available until the condi-
tions no longer exist.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog. The blocked condition
may also be caused by objects such as ice,
frost or dirt obstructing the radar sensors.
NOTE:
If the BSW system stops working, the RCTA
system will also stop working.
Action to take:
When the above conditions no longer exist,
the system will resume automatically.
LSD2305
Illustration 5 – Entering from the side
LSD2308
Illustration 6 – Entering from the side
5-52Starting and driving

Malfunction
If the BSW system malfunctions, it will turn
off automatically. The system malfunction
warning message will appear in the vehicle
information display.
NOTE:
If the BSW system stops working, the RCTA
system will also stop working.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The two radar sensorsO1for the BSW sys-
tem are located near the rear bumper. Always
keep the area near the radar sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a
collision.
Radio frequency statement
For USA
FCC ID: OAYSRR3B
This device complies with Part 15 of the FCC
Rules.
Operation is subject to the following two
conditions:
(1) this device may not cause harmful inter-
ference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
LSD2920
Starting and driving5-53

The BSI system operates above approxi-
mately 37 mph (60 km/h).
If the radar sensors detect a vehicle in the
detection zone, the side indicator light (1)
illuminates.
If the turn signal is then activated, the system
chimes (twice) and the side indicator light
flashes. The side indicator light continues to
flash until the detected vehicle leaves the
detection zone.
If the BSI system is on and your vehicle ap-
proaches a lane marker while another vehicle
is in the detection zone, the system chimes
(three times) and the side indicator light
flashes. The BSI system activates to help re-
turn the vehicle back to the center of the
driving lane. The BSI system operates regard-
less of turn signal usage.NOTE:
• BSI warning and system application willonly be activated if the side indicator light
is already illuminated when your vehicle
approaches a lane marker. If another ve-
hicle comes into the detection zone after
your vehicle has crossed a lane marker, no
BSI warning or system application will be
activated. For additional information, see
“BSI driving situations” (P. 5-59 ).
• The BSI system is typically activated ear- lier than the Lane Departure Prevention
(LDP) system when your vehicle is ap-
proaching a lane marker.
The BSI system turns on when the ProPILOT
Assist switch on the steering wheel is pushed
when the “Blind Spot Intervention” is enabled
in the “Driver Assistance” menu in the lower
display. The BSI ON indicator on the instru-
ment panel illuminates when the BSI system
is turned on.
The BSI system provides a chime and turns on
or flashes the side indicator light even if the
BSW system is off.
5-56Starting and driving

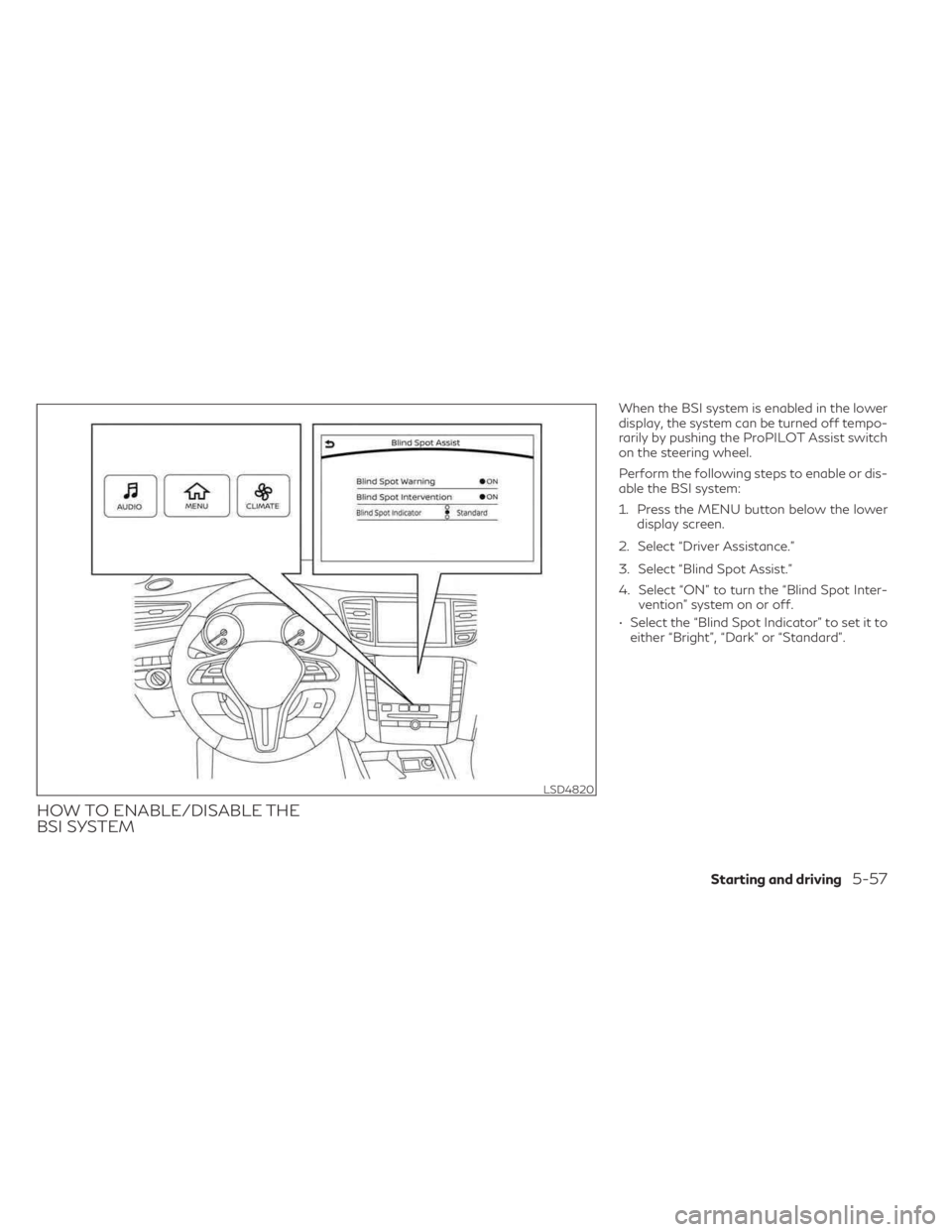

HOW TO ENABLE/DISABLE THE
BSI SYSTEM
When the BSI system is enabled in the lower
display, the system can be turned off tempo-
rarily by pushing the ProPILOT Assist switch
on the steering wheel.
Perform the following steps to enable or dis-
able the BSI system:
1. Press the MENU button below the lowerdisplay screen.
2. Select “Driver Assistance.”
3. Select “Blind Spot Assist.”
4. Select “ON” to turn the “Blind Spot Inter- vention” system on or off.
• Select the “Blind Spot Indicator” to set it to either “Bright”, “Dark” or “Standard”.
LSD4820
Starting and driving5-57

– When the ICC, PFCW or FEB with Pe-destrian Detection warnings sound.
– When the hazard warning flashers are operated.
– When driving on a curve at a high speed.
SYSTEM TEMPORARILY
UNAVAILABLE
When any of the following messages appear
on the vehicle information display, a chime
will sound and the BSI system will be turned
off automatically.
• “Not Available Poor Road Conditions”: When the VDC system (except traction
control system function) or ABS operates.
• “Currently Not Available”: When the VDC system is turned off.
• “Not Available: High Camera Temp”: When the camera detects that the interior
temperature is high (over approximately
104°F [40°C]).
• “Unavailable: Side Radar Obstruction”: When side radar blockage is detected.
Turn off the BSI system and turn it on again
when the above conditions no longer exist.
SYSTEM MALFUNCTION
When the BSI system malfunctions, it will be
turned off automatically, a chime will sound
and the warning message will appear in the
vehicle information display.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the warning
light (orange) continues to illuminate, have
the system checked. It is recommended that
you visit an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The lane camera unitO1for the BSI system is
located above the inside mirror. The two ra-
dar sensors
O2for the BSI system are located
near the rear bumper. To keep the proper
operation of the BSI system and prevent a
system malfunction, be sure to observe the
following:
• Always keep the windshield and the area near the radar sensors clean.
LSD2924
5-64Starting and driving

HOW TO ENABLE/DISABLE THE
RCTA SYSTEM
Perform the following steps to enable or dis-
able the RCTA system.
1. Press the MENU button below the lowerdisplay screen.
2. Select “Driver Assistance.”
3. Select “Blind Spot Assist.”
4. Select “ON” to turn the “Blind Spot Warning” system on or off.
NOTE:
• The RCTA system is integrated into theBSW system. There is not a separate
selection in the vehicle information dis-
play for the RCTA system. When the BSW
is disabled, the RCTA system is also
disabled.
• When enabling/disabling the system, the system setting will be retained even if the
engine is restarted.
LSD4820
