04
4-19
Icy Road Warning Light (if equipped)
OQX059122L
This warning light is to warn the driver
that the road may be icy.
When the temperature on the outside
temperature gauge is approximately
below 40°F (4°C), the Icy Road Warning
Light and Outside Temperature Gauge
blinks 10 times, and then illuminates.
Also, the warning chime sounds 3 times.
Information
If the icy road warning light appears while
driving, you should drive more attentively
and safely and refrain from speeding,
rapid acceleration, sudden braking or
sharp turning, etc.
Low Pressure
OQX049018L
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more information, refer to "Tire
Pressure Monitoring System (TPMS)" in
chapter 7.
Turn FUSE SWITCH on
OQX049033N
This warning message is displayed if
the fuse switch located on the fuse box
under the steering wheel is OFF.
The fuse switch is turned OFF to
minimize battery draw when the vehicle
is in storage or in transportation where
the vehicle will not be operated for some
time.
Under normal conditions, the fuse switch
should be set to the ON position.
For more information, refer to "Fuses"
in chapter 8.

8-3
08

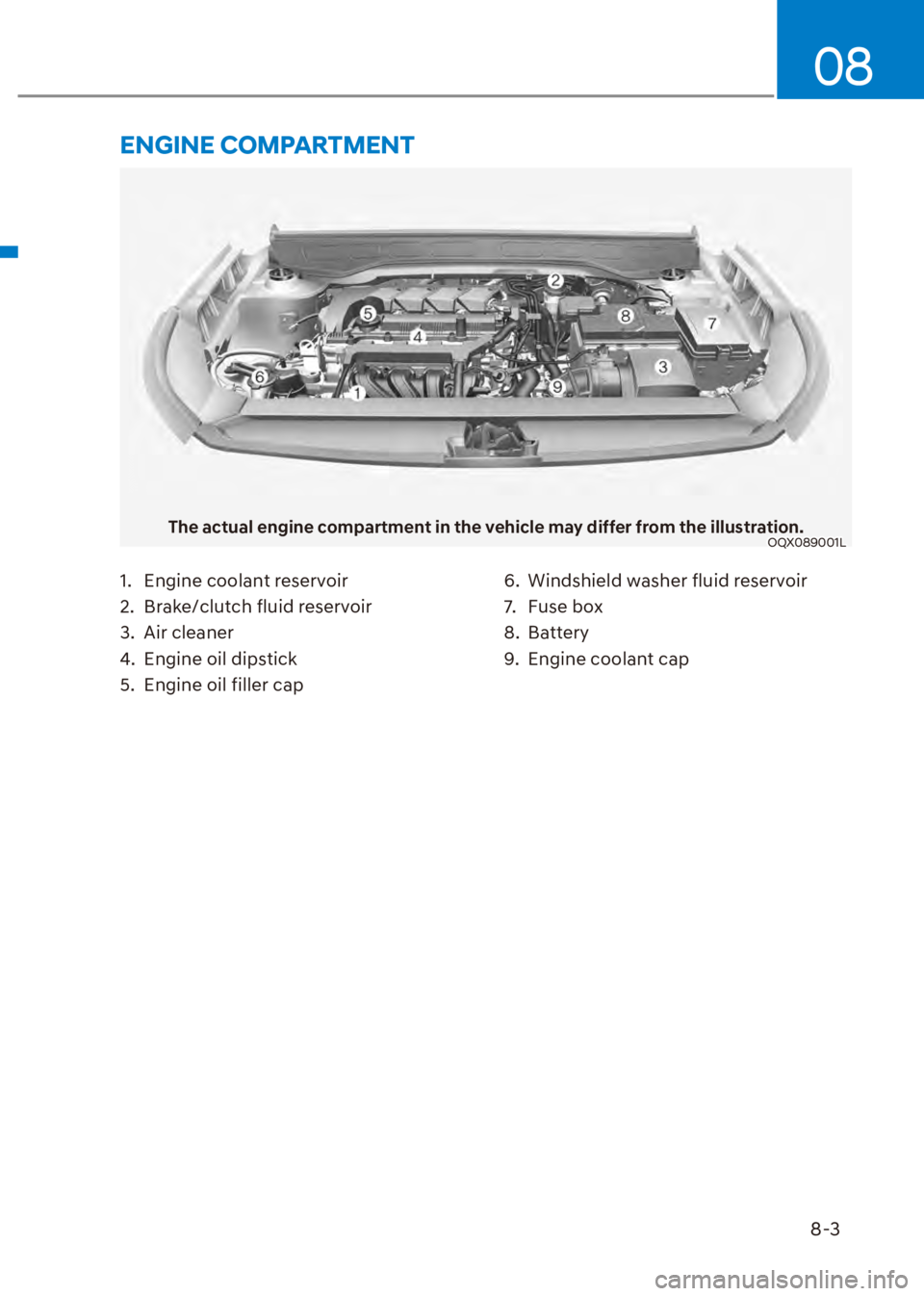

1. Engine coolant reservoir
2. Brake/clutch fluid reservoir
3. Air cleaner
4. Engine oil dipstick
5. Engine oil filler cap6. Windshield washer fluid reservoir
7. Fuse box
8. Battery
9. Engine coolant cap
The actual engine compartment in the vehicle may differ from the illustration.OQX089001L
ENGINE COMPARTMENT

Maintenance8-42

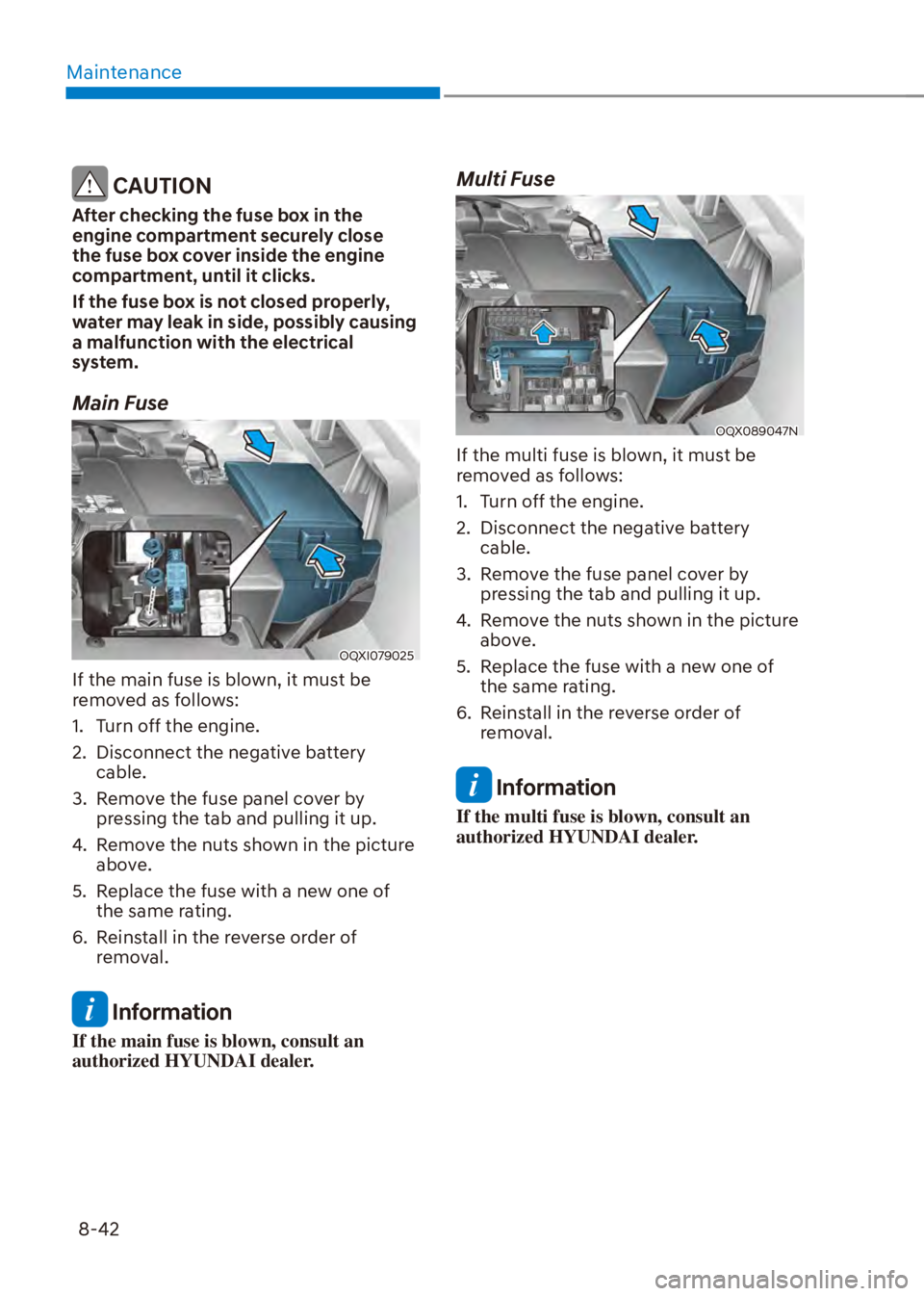

CAUTION
After checking the fuse box in the
engine compartment securely close
the fuse box cover inside the engine
compartment, until it clicks.
If the fuse box is not closed properly,
water may leak in side, possibly causing
a malfunction with the electrical
system.
Main Fuse
OQXI079025
If the main fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
Information
If the main fuse is blown, consult an
authorized HYUNDAI dealer.
Multi Fuse
OQX089047N
If the multi fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
Information
If the multi fuse is blown, consult an
authorized HYUNDAI dealer.

08
8-43
Fuse/Relay Panel Description
Instrument Panel Fuse Panel
OQX089024L
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
OQX089053N

08
8-47
Engine Compartment Fuse Panel
OQXI079024
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OQX089054N

Maintenance8-48
Engine compartment fuse panel
Fuse Name (A) Circuit Protected
MULTI FUSE AL

T 125A
Alternator, Multi Fuse - MDPS 1, Fuse - Rear Heated,
Blower, ABS 1, ABS 2
MDPS 1 80A MDPS Unit
FUSE REAR
HEATED 40A ICU Junction Block (Rear Heated Relay)
ABS 1 40A Multipurpose Check Connector, ESC Module
ABS 2 40A ESC Module
BLOWER 40A Blower Relay WIPER 10A Wiper FRT LO Realy, IBUECU2 15A ECM/PCM
ECU4 15A ECM/PCM ECU5 15A ECM/PCM
IGN COIL 20A Ignition Coil #1~#4
INJECTOR 15A ECM/PCM, Injector #1~#4, Fuel Pump Relay
PTC HEATER 50A PTC Heater Relay
B+3 50A ICU Junction Block (Fuse - DOOR LOCK, S/HEATER,
SAFETY P/WINDOW, SUNROOF, Power Window Relay)
IG2 40A Start Relay, PDM Relay Box (IG2 Relay), Ignition Switch

08
8-49
Engine compartment fuse panel
Fuse Name (A)Circuit Protected
FUSE COOLING
FA
N
40A Cooling Fan 1/2 Relay
B+4 40A ICU Junction Block (Fuse - MODULE 6, BRAKE
SWITCH, T/SIGNAL LAMP, DRL, IBU 1, Leak Current
Autocut Device)
ECU1 30A Main Relay, Fuse - ECU 4, ECU 5
A/C 1 10A A/C Relay
FUEL PUMP 20A Fuel Pump Relay HORN 15A Horn RelayB+2 30A ICU Junction Block (IPS (5CH) E-SWITCH, IPS (2CH))
IG1 30A [With Smart Key] PDM Relay Box (IG1 Relay)
[W/O Smart Key] Ignition Switch
POWER
OUTLET 1 40A ICU Junction Block (Power Outlet Relay)
B+1 30A ICU Junction Block (IPS (5CH) E-SWITCH, IPS (1CH))
