2023 HYUNDAI VENUE brake sensor

07
7-9
CAUTION
It is recommended that you do not use a
puncture-repairing agent not approved
by HYUNDAI dealer to repair and/or
inflate a low pressure tire. Tire sealant
not approved by HYUNDAI dealer may
damage the tire pressure sensor.
The spare tire does not come with a
tire pressure monitoring sensor. When
the low pressure tire or the flat tire is
replaced with the spare tire, the TPMS
Malfunction Indicator will illuminate after
blinking for one minute if the vehicle
is driven at speed above 15.5 MPH (25
km/h) for approximately 20 minutes.
Once the original tire equipped with
a tire pressure monitoring sensor is
reinflated to the recommended pressure
and reinstalled on the vehicle, the TPMS
Malfunction Indicator will go off within a
few minutes of driving.
If the indicators do not disappear after a
few minutes, please visit an authorized
HYUNDAI dealer.
Each wheel is equipped with a tire
pressure sensor mounted inside the tire
behind the valve stem (except for the
spare tire). You must use TPMS specific
wheels. It is recommended that you
always have your tires serviced by an
authorized HYUNDAI dealer.
You may not be able to identify a tire
with low pressure by simply looking at it.
Always use a good quality tire pressure
gauge to measure the tire’s inflation
pressure. Please note that a tire that is
hot (from being driven) will have a higher
pressure measurement than a tire that is
cold.
A cold tire means the vehicle has been
sitting for 3 hours and driven for less
than 1 mile (1.6 km) in that 3 hour period.
Allow the tire to cool before measuring
the inflation pressure. Always be sure
the tire is cold before inflating to the
recommended pressure.
WARNING

[The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors such as nails or road
debris.

[ If you feel any vehicle instability,
immediately take your foot off
the accelerator, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.
WARNING
Tampering with, modifying, or disabling
the Tire Pressure Monitoring System
(TPMS) components may interfere
with the system’s ability to warn the
driver of low tire pressure conditions
and/or TPMS malfunctions. Tampering
with, modifying, or disabling the Tire
Pressure Monitoring System (TPMS)
components may void the warranty for
that portion of the vehicle.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.

Emergency Situations7-14
Each wheel is equipped with a tire
pressure sensor mounted inside the tire
behind the valve stem (except for the
spare tire). You must use TPMS specific
wheels. It is recommended that you
always have your tires serviced by an
authorized HYUNDAI dealer.
You may not be able to identify a tire
with low pressure by simply looking at it.
Always use a good quality tire pressure
gauge to measure the tire’s inflation
pressure. Please note that a tire that is
hot (from being driven) will have a higher
pressure measurement than a tire that is
cold.
A cold tire means the vehicle has been
sitting for 3 hours and driven for less
than 1 mile (1.6 km) in that 3 hour period.
Allow the tire to cool before measuring
the inflation pressure. Always be sure
the tire is cold before inflating to the
recommended pressure.
WARNING

[ The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors such as nails or road
debris.

[ If you feel any vehicle instability,
immediately take your foot off
the accelerator, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.
WARNING
Tampering with, modifying, or disabling
the Tire Pressure Monitoring System
(TPMS) components may interfere
with the system’s ability to warn the
driver of low tire pressure conditions
and/or TPMS malfunctions. Tampering
with, modifying, or disabling the Tire
Pressure Monitoring System (TPMS)
components may void the warranty for
that portion of the vehicle.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.

Emergency Situations7-22
WARNING
If your vehicle is equipped with a
rollover sensor, place the ignition
switch in the LOCK/OFF or ACC position
when the vehicle is being towed.
The side impact and curtain air bag
may deploy if the sensor detects the
situation as a rollover.
When towing your vehicle in an
emergency without wheel dollies:
1. Place the ignition switch in the ACC position.
2. Place the shift lever in N (Neutral).
3. Release the parking brake.
CAUTION
Failure to place the shift lever in N
(Neutral) when being towed with the
front wheels on the ground can cause
internal damage to the transmission.
Removable Towing Hook
OQX079003L
1. Open the liftgate, and remove the towing hook from the tool case.
2. Remove the hole cover pressing the lower part of the cover on the front or
rear bumper.
3. Install the towing hook by turning it clockwise into the hole until it is fully
secured.
4. Remove the towing hook and install the cover after use.

08
8-59
Exterior Care
Exterior General Caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning and
caution statements that appear on the
label.
High-pressure Washing

[When using high-pressure washers,
make sure to maintain sufficient
distance from the vehicle. Insufficient
clearance or excessive pressure can
lead to component damage or water
penetration.

[ Do not spray the camera, sensors or
its surrounding area directly with a
high pressure washer. Shock applied
from high pressure water may cause
the device to not operate normally.

[ Do not bring the nozzle tip close to
boots (rubber or plastic covers) or
connectors as they may be damaged
if they come into contact with high
pressure water.

[ Do not use any high-pressure nozzles,
which induce either one-direct water
stream or water swirling.
Protecting Your Vehicle’s Finish
Washing
To help protect your vehicle’s finish from
rus

t and deterioration, wash it thoroughly
and frequently at least once a month
with lukewarm or cold water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges
of the doors and rocker panels are kept
clear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, should be used.
After washing, rinse the vehicle
thoroughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
WARNING
After washing the vehicle, test the
brakes while driving slowly to see
if they have been affected by water
before getting on the road. If braking
performance is impaired, dry the
brakes by applying them lightly while
maintaining a slow forward speed.
NOTICE

[ Do not use strong soap, chemical
detergents or hot water, and do not
wash the vehicle in direct sunlight
or when the body of the vehicle is
warm.

[ Be careful when washing the side
windows of your vehicle.
Especially, with high-pressure water,
water may leak through the windows
and wet the interior.

[ To prevent damage to the plastic
parts, do not clean with chemical
solvents or strong detergents.
APPEARANCE CARE

I
I-3
Blind-Spot Collision Warning (BCW) ................................................................. 6-31Detecting Sensor ........................................................................\
..................... 6-34
Limitations of the System ........................................................................\
....... 6-36
System Description ........................................................................\
................. 6-31
System Setting ........................................................................\
......................... 6-32
Warning and System Control ........................................................................\
.. 6-33
Brake/Clutch Fluid ........................................................................\
...................... 8-19 Checking the Brake/Clutch Fluid Level .......................................................... 8-19
Brake System ........................................................................\
............................... 6-20 Anti-lock Brake System (ABS) ....................................................................... 6-22
Disc Brakes Wear Indicator ........................................................................\
..... 6-20
Electronic Stability Control (ESC).................................................................. 6-24
Good Braking Practices..................................................\
................................. 6-27
Hill-Start Assist Control (HAC) ...................................................................... 6-27
Parking Brake ........................................................................\
.......................... 6-21
Power Brakes ........................................................................\
.......................... 6-20
Rear Drum Brakes ........................................................................\
................... 6-20
Vehicle Stability Management (VSM) ............................................................ 6-26
Bulb Wattage ........................................................................\
.................................. 2-8
C
California Perchlorate Notice ........................................................................\
...... 8-68
Child Restraint System (CRS) ........................................................................\
..... 3-23 Children Always in the Rear ........................................................................\
... 3-23
Installing a Child Restraint System (CRS)...................................................... 3-25
Selecting a Child Restraint System (CRS) ...................................................... 3-24
Climate Control Air Filter ........................................................................\
............ 8-22 Filter Inspection ........................................................................\
...................... 8-22
Consumer Information ........................................................................\
................. 8-69
Cruise Control ........................................................................\
.............................. 6-82 Cruise Control Operation ........................................................................\
........ 6-82
D
DECLARATION OF CONFORMITY ................................................................ 6-39 The Radio Frequency Components (Rear Corner Radar) Complies:..........\
.... 6-39
Dimensions .............................................................\
............................................... 2-7

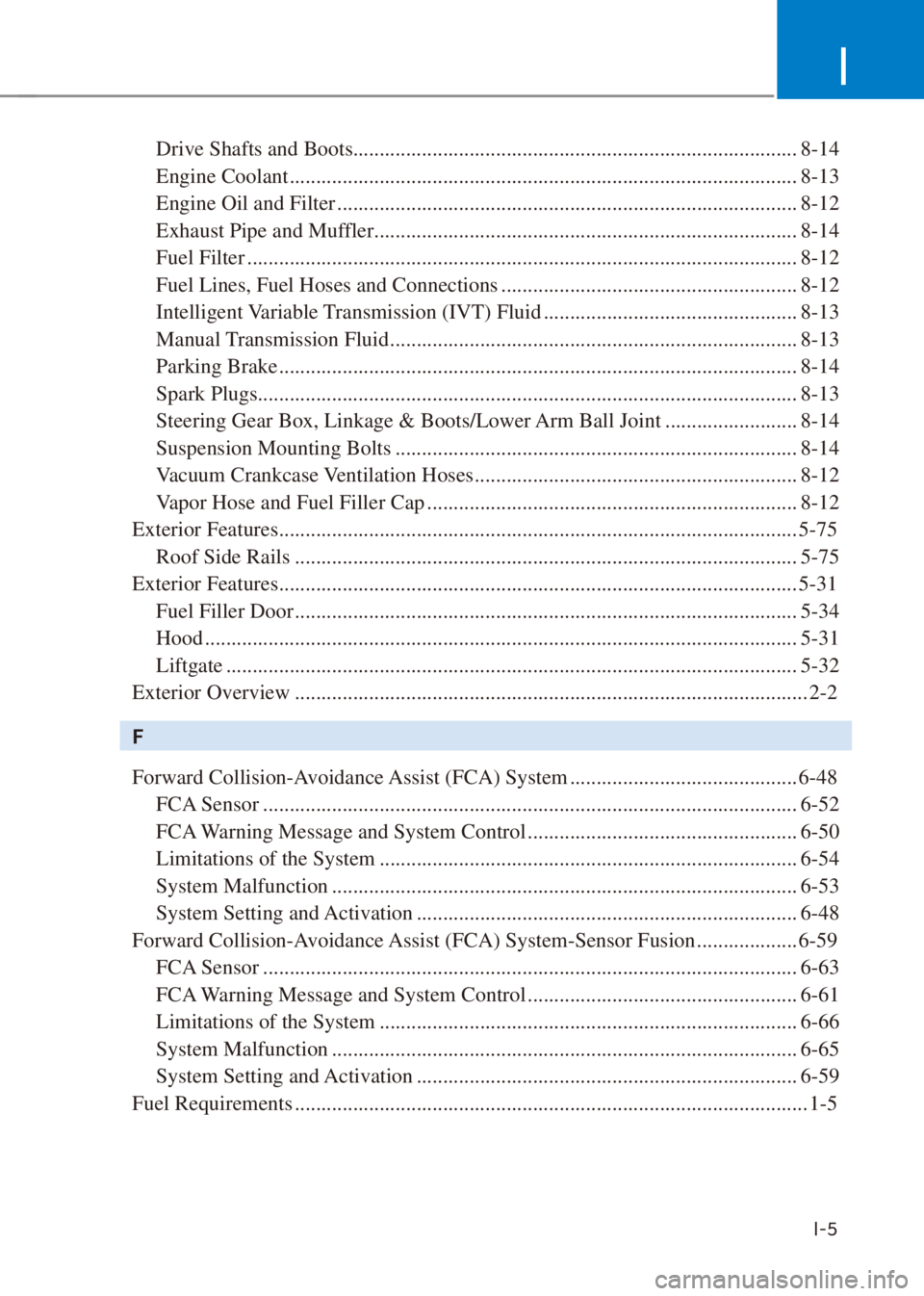

I
I-5
Drive Shafts and Boots........................................................................\
............ 8-14
Engine Coolant ........................................................................\
........................ 8-13
Engine Oil and Filter ........................................................................\
............... 8-12
Exhaust Pipe and Muffler ........................................................................\
........ 8-14
Fuel Filter ........................................................................\
................................ 8-12
Fuel Lines, Fuel Hoses and Connections ........................................................ 8-12
Intelligent Variable Transmission (IVT) Fluid ................................................ 8-13
Manual Transmission Fluid ........................................................................\
..... 8-13
Parking Brake ........................................................................\
.......................... 8-14
Spark Plugs........................................................................\
.............................. 8-13
Steering Gear Box, Linkage & Boots/Lower Arm Ball Joint ......................... 8-14
Suspension Mounting Bolts ........................................................................\
.... 8-14
Vacuum Crankcase Ventilation Hoses ............................................................. 8-12
Vapor Hose and Fuel Filler Cap ...................................................................... 8-12
Exterior Features ........................................................................\
.......................... 5-75 Roof Side Rails ........................................................................\
....................... 5-75
Exterior Features ........................................................................\
.......................... 5-31
Fuel Filler Door ........................................................................\
....................... 5-34
Hood ...................................................................\
............................................. 5-31
Liftgate ...............................................................\
............................................. 5-32
Exterior Overview ........................................................................\
......................... 2-2
F
Forward Collision-Avoidance Assist (FCA) System ........................................... 6-48 FCA Sensor ........................................................................\
............................. 6-52
FCA Warning Message and System Control ................................................... 6-50
Limitations of the System ........................................................................\
....... 6-54
System Malfunction ........................................................................\
................ 6-53
System Setting and Activation ........................................................................\
6-48
Forward Collision-Avoidance Assist (FCA) System-Sensor Fusion ................... 6-59 FCA Sensor ........................................................................\
............................. 6-63
FCA Warning Message and System Control ................................................... 6-61
Limitations of the System ........................................................................\
....... 6-66
System Malfunction ........................................................................\
................ 6-65
System Setting and Activation ........................................................................\
6-59
Fuel Requirements ........................................................................\
......................... 1-5
