Convenient Features
5-116

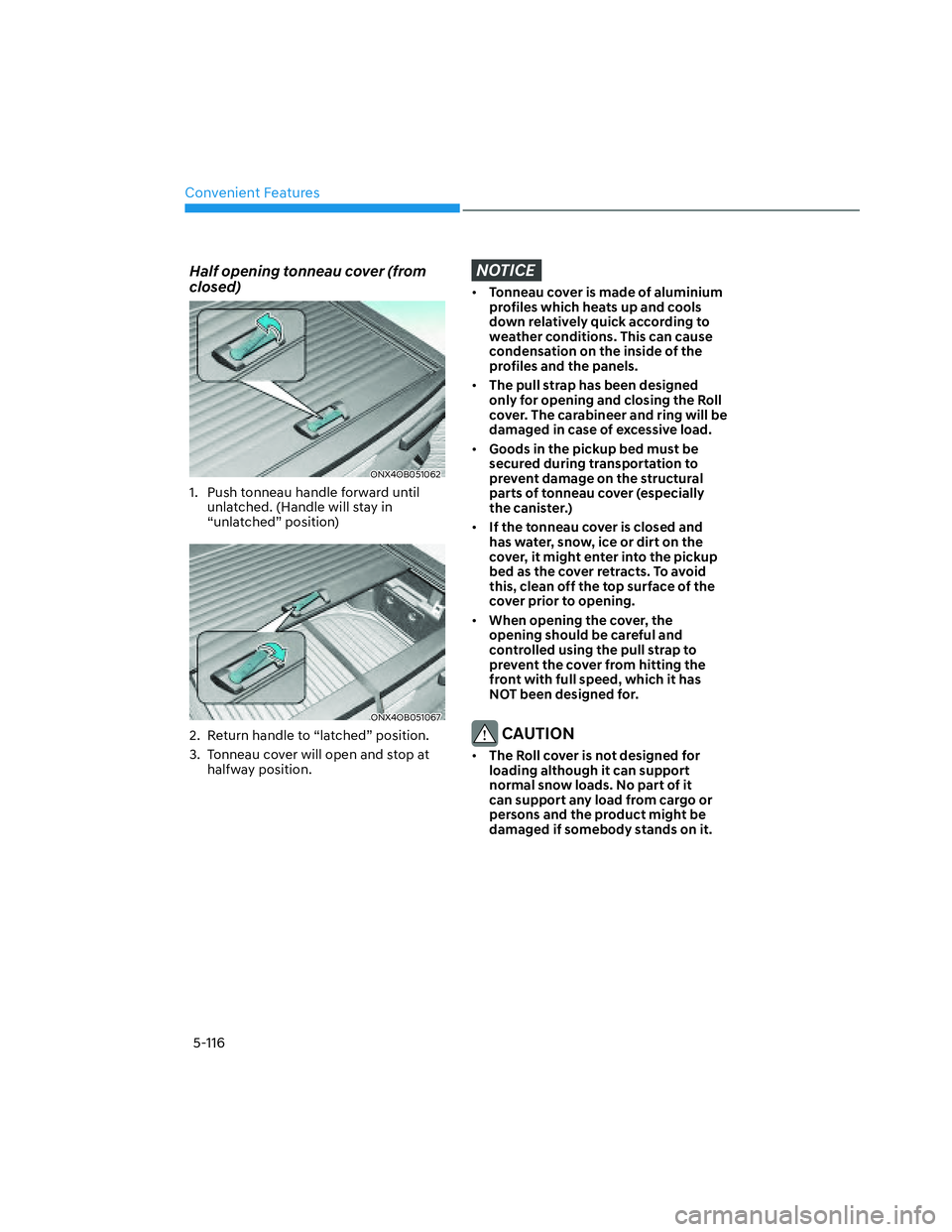

Half opening tonneau cover (from
closed)
ONX4OB051062ONX4OB051062
1. Push tonneau handle forward until
unlatched. (Handle will stay in
“unlatched” position)
ONX4OB051067ONX4OB051067
2. Return handle to “latched” position.
3. Tonneau cover will open and stop at
halfway position.
NOTICE
• Tonneau cover is made of aluminium
profiles which heats up and cools
down relatively quick according to
weather conditions. This can cause
condensation on the inside of the
profiles and the panels.
• The pull strap has been designed
only for opening and closing the Roll
cover. The carabineer and ring will be
damaged in case of excessive load.
• Goods in the pickup bed must be
secured during transportation to
prevent damage on the structural
parts of tonneau cover (especially
the canister.)
• If the tonneau cover is closed and
has water, snow, ice or dirt on the
cover, it might enter into the pickup
bed as the cover retracts. To avoid
this, clean off the top surface of the
cover prior to opening.
• When opening the cover, the
opening should be careful and
controlled using the pull strap to
prevent the cover from hitting the
front with full speed, which it has
NOT been designed for.
CAUTION
• The Roll cover is not designed for
loading although it can support
normal snow loads. No part of it
can support any load from cargo or
persons and the product might be
damaged if somebody stands on it.

Convenient Features
5-118

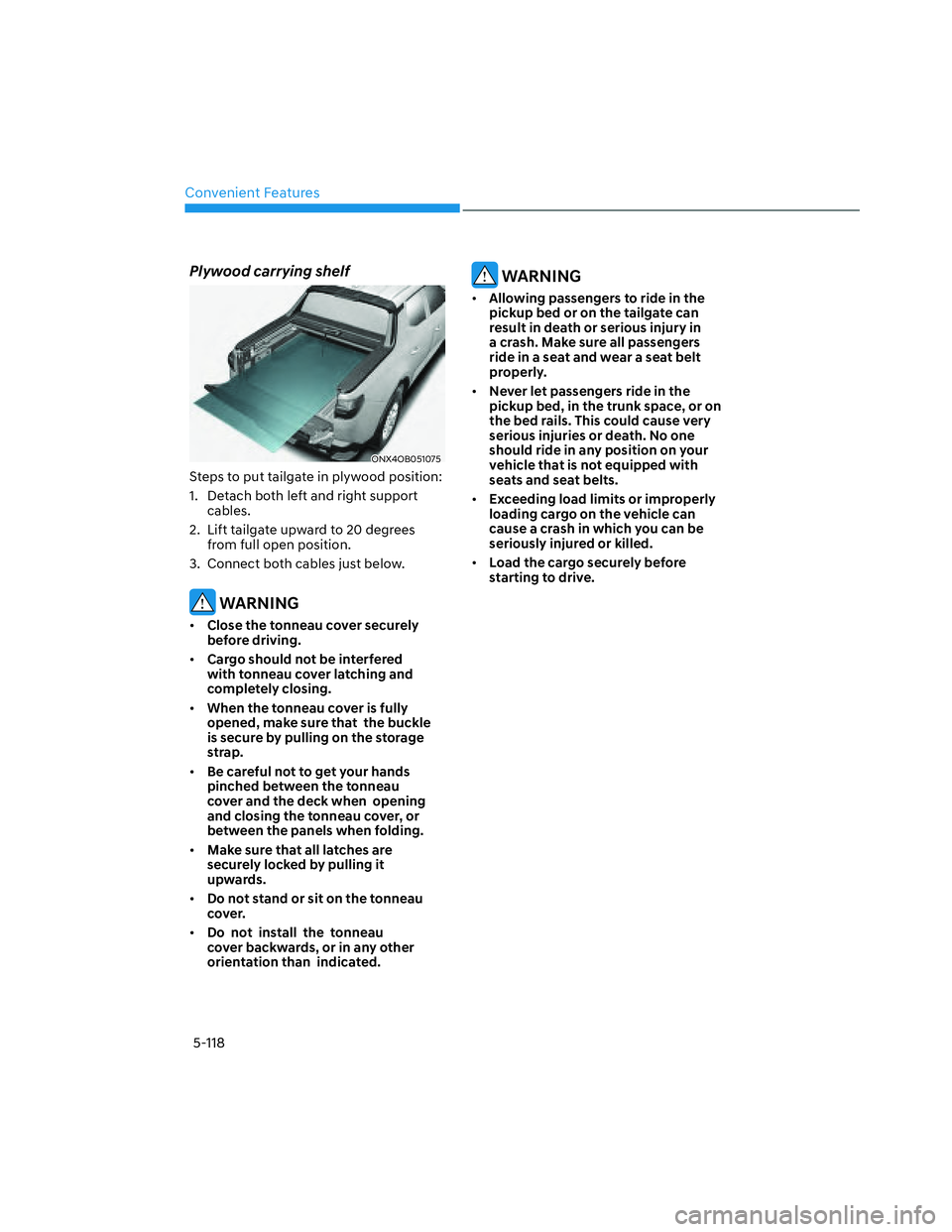

Plywood carrying shelf
ONX4OB051075ONX4OB051075
Steps to put tailgate in plywood position:
1. Detach both left and right support
cables.
2. Lift tailgate upward to 20 degrees
from full open position.
3. Connect both cables just below.
WARNING
• Close the tonneau cover securely
before driving.
• Cargo should not be interfered
with tonneau cover latching and
completely closing.
• When the tonneau cover is fully
opened, make sure that the buckle
is secure by pulling on the storage
strap.
• Be careful not to get your hands
pinched between the tonneau
cover and the deck when opening
and closing the tonneau cover, or
between the panels when folding.
• Make sure that all latches are
securely locked by pulling it
upwards.
• Do not stand or sit on the tonneau
cover.
• Do not install the tonneau
cover backwards, or in any other
orientation than indicated.
WARNING
• Allowing passengers to ride in the
pickup bed or on the tailgate can
result in death or serious injury in
a crash. Make sure all passengers
ride in a seat and wear a seat belt
properly.
• Never let passengers ride in the
pickup bed, in the trunk space, or on
the bed rails. This could cause very
serious injuries or death. No one
should ride in any position on your
vehicle that is not equipped with
seats and seat belts.
• Exceeding load limits or improperly
loading cargo on the vehicle can
cause a crash in which you can be
seriously injured or killed.
• Load the cargo securely before
starting to drive.

Convenient Features
5-122
Tie Down
Tie Down Locations
ONX4OB051026ONX4OB051026
[A] Fixed Tie Down
[B] D-Ring
You can secure cargo to the vehicle using
hooks, ropes and straps with heavy duty
tie downs from various location on the
pickup bed.
• Fixed Tie Down also acts as a Cleat for
looping rope.
• D-Ring can be rotated about the bolt
and the bracket.
• D-Ring and Fixed Tie Down can be
hooked through their openings.
Information
• Put cargo evenly on the pickup bed.
Place the heaviest items on the bottom
and as far forward as possible of the
rear axle. Tie down and secure all items
that could be thrown out of the vehicle
during a crash or sudden stop.
• If you stack items higher than the bed
sides, tailgate, or back window, secure
them with a net or cover. This will
reduce the risk of items being thrown
out of the pickup bed during a crash or
sudden stop.
CAUTION
• Load the cargo securely before
starting to drive.
WARNING
• Do not exceed 440 lbs. (200 kgf) load
on a tie down.
WARNING
• Allowing passengers to ride in the
pickup bed or on the tailgate can
result in death or serious injury in
a crash. Make sure all passengers
ride in a seat and wear a seat belt
properly
• Never let passengers ride in the
pickup bed, in the trunk space, or on
the bed rails. This could cause very
serious injuries or death. No one
should ride in any position on your
vehicle that is not equipped with
seats and seat belts.
• Exceeding load limits or improperly
loading cargo on the vehicle can
cause a crash in which could result in
serious injury or death.
• Load the cargo carefully before
starting to drive.

05
5-123

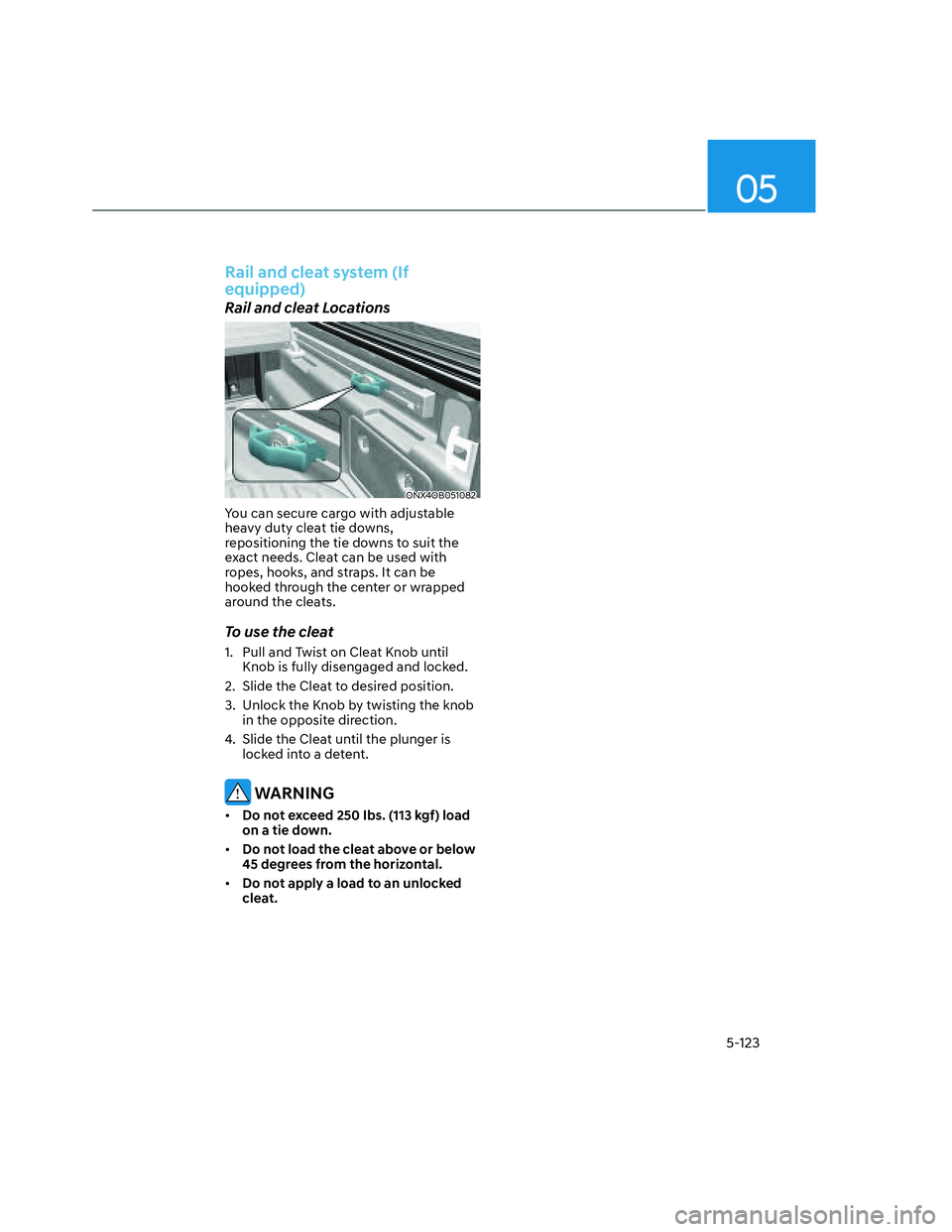

Rail and cleat system (If
equipped)
Rail and cleat Locations
ONX4OB051082ONX4OB051082
You can secure cargo with adjustable
heavy duty cleat tie downs,
repositioning the tie downs to suit the
exact needs. Cleat can be used with
ropes, hooks, and straps. It can be
hooked through the center or wrapped
around the cleats.
To use the cleat
1. Pull and Twist on Cleat Knob until
Knob is fully disengaged and locked.
2. Slide the Cleat to desired position.
3. Unlock the Knob by twisting the knob
in the opposite direction.
4. Slide the Cleat until the plunger is
locked into a detent.
WARNING
• Do not exceed 250 Ibs. (113 kgf) load
on a tie down.
• Do not load the cleat above or below
45 degrees from the horizontal.
• Do not apply a load to an unlocked
cleat.

Convenient Features
5-124
INTERIOR FEATURES
Cup Holder
„„FrontFront
ONX4OB051027ONX4OB051027
Cups or small beverages cups may be
placed in the cup holders.
WARNING
• Avoid abrupt starting and braking
when the cup holder is in use to
prevent spilling your drink. If hot
liquid spills, you could be burned.
Such a burn to the driver could cause
loss of vehicle control resulting in an
accident.
• Do not place uncovered or unsecured
cups, bottles, cans, etc., in the cup
holder containing hot liquid while
the vehicle is in motion. Injuries may
result in the event of a sudden stop
or collision.
• Only use soft cups in the cup holders.
Hard objects can injure you in an
accident.
WARNING
Keep cans or bottles out of direct sun
light and do not put them in a hot
vehicle. It may explode.
NOTICE
• Keep your drinks sealed while
driving to prevent spilling your drink.
If liquid spills, it may get into the
vehicle’s electrical/electronic system
and damage electrical/electronic
parts.
• When cleaning spilled liquids, do not
use hot air to blow out or dry the cup
holder. This may damage the interior.

05
5-125
Sunvisor
OTM048089OTM048089
To use the sunvisor, pull it downward.
To use the sunvisor to block the sun
from the side window, pull it downward,
release it from the bracket (1) and swing
it to the side (2) towards the window.
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or backward
(4) as needed (if equipped). Use the
ticket holder (5) to hold tickets.
Close the vanity mirror cover securely
and return the sunvisor to its original
position after use.
WARNING
For your safety, do not block your view
when using the sunvisor.
NOTICE
The tab (5) adjacent to the vanity mirror
on the sunvisor can be used for toll
road tickets or self parking tickets. Use
caution when inserting tickets into the
ticket holder to avoid damage. Refrain
from putting several tickets in the ticket
holder as this could also damage the
retaining tab.
Power Outlet
„„FrontFront
ONX4E050166ONX4E050166
The power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems. The devices should
draw less than 180 watts with the engine
running.
WARNING
Avoid electrical shocks. Do not place
your fingers or foreign objects (pin, etc.)
into a power outlet or touch the power
outlet with a wet hand.

Convenient Features
5-130

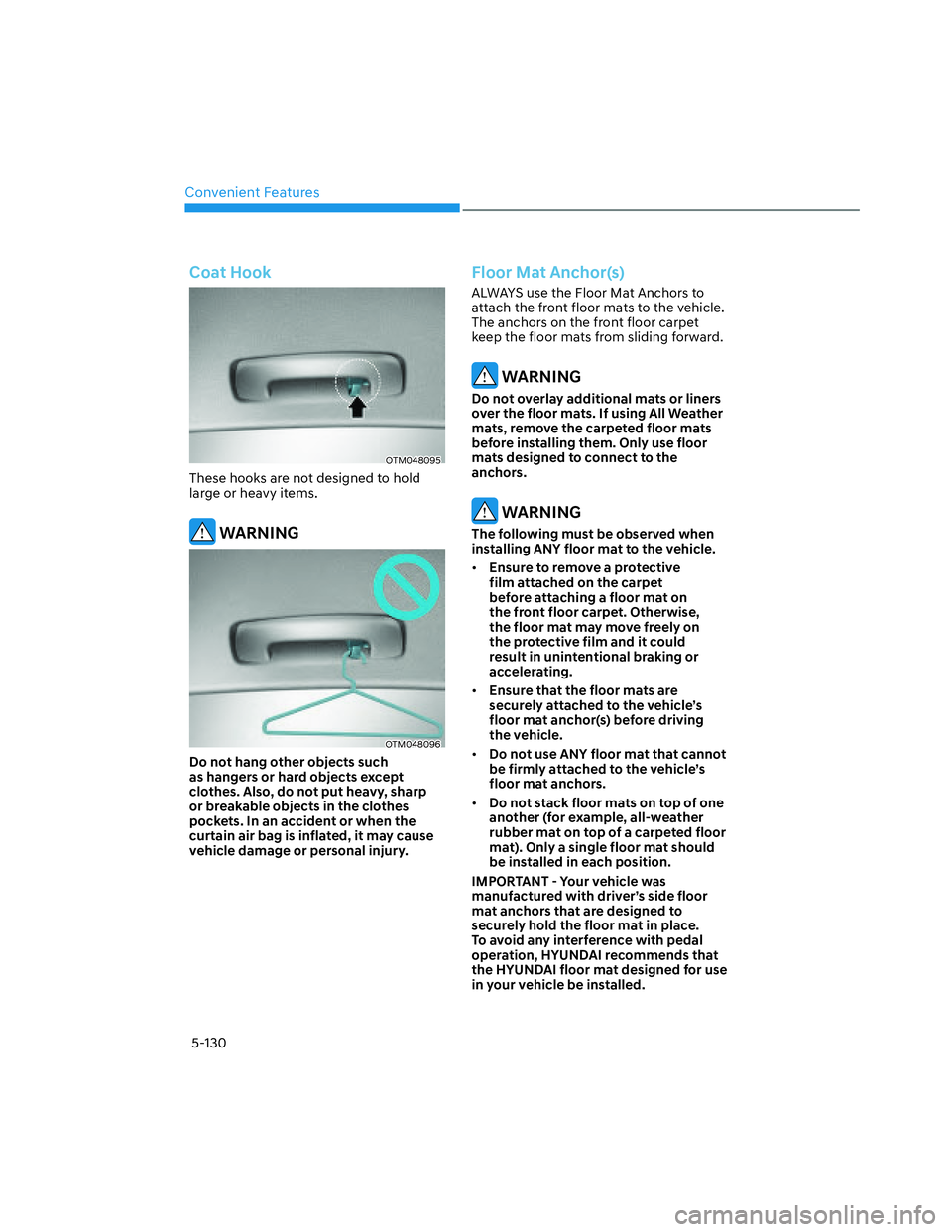

Coat Hook
OTM048095OTM048095
These hooks are not designed to hold
large or heavy items.
WARNING
OTM048096OTM048096
Do not hang other objects such
as hangers or hard objects except
clothes. Also, do not put heavy, sharp
or breakable objects in the clothes
pockets. In an accident or when the
curtain air bag is inflated, it may cause
vehicle damage or personal injury.
Floor Mat Anchor(s)
ALWAYS use the Floor Mat Anchors to
attach the front floor mats to the vehicle.
The anchors on the front floor carpet
keep the floor mats from sliding forward.
WARNING
Do not overlay additional mats or liners
over the floor mats. If using All Weather
mats, remove the carpeted floor mats
before installing them. Only use floor
mats designed to connect to the
anchors.
WARNING
The following must be observed when
installing ANY floor mat to the vehicle.
• Ensure to remove a protective
film attached on the carpet
before attaching a floor mat on
the front floor carpet. Otherwise,
the floor mat may move freely on
the protective film and it could
result in unintentional braking or
accelerating.
• Ensure that the floor mats are
securely attached to the vehicle’s
floor mat anchor(s) before driving
the vehicle.
• Do not use ANY floor mat that cannot
be firmly attached to the vehicle’s
floor mat anchors.
• Do not stack floor mats on top of one
another (for example, all-weather
rubber mat on top of a carpeted floor
mat). Only a single floor mat should
be installed in each position.
IMPORTANT - Your vehicle was
manufactured with driver’s side floor
mat anchors that are designed to
securely hold the floor mat in place.
To avoid any interference with pedal
operation, HYUNDAI recommends that
the HYUNDAI floor mat designed for use
in your vehicle be installed.

05
5-131
EXTERIOR FEATURES
Roof Rack (if equipped)
ONX4OB051028ONX4OB051028
Your vehicle may come equipped with
roof rack rails. If your vehicle is equipped
with roof rack rails, you may be able to
add roof rack crossbars as an accessory
(not shown).
NOTICE
If the vehicle is equipped with a
sunroof, be sure not to position cargo
onto the roof side rails in such a way
that it could interfere with sunroof
operation.
NOTICE
• When carrying cargo on the roof side
rails, take the necessary precautions
to make sure the cargo does not
damage the roof of the vehicle.
• When carrying large objects on the
roof side rails, make sure they do
not exceed the overall roof length or
width.
WARNING
• The following specification is the
maximum weight that can be loaded
onto the roof side rails. Distribute the
load as evenly as possible onto the
roof side rails and secure the load
firmly.
Loading cargo or luggage in excess
of the specified weight limit on the
roof side rails may damage your
vehicle.
ROOF SIDE
RAILS220 lbs. (100 kg)
EVENLY DISTRIBUTED
• The vehicle center of gravity will be
higher when items are loaded onto
the roof side rails. Avoid sudden
starts, braking, sharp turns, abrupt
maneuvers or high speeds that may
result in loss of vehicle control or
rollover resulting in an accident.
• Always drive slowly and turn corners
carefully when carrying items on the
roof side rails. Severe wind updrafts,
caused by passing vehicles or natural
causes, can cause sudden upward
pressure on items loaded on the
roof side rails. This is especially true
when carrying large, flat items such
as wood panels or mattresses. This
could cause the items to fall off the
roof side rails and cause damage to
your vehicle or others around you.
• To prevent damage or loss of cargo
while driving, check frequently
before or while driving to make sure
the items on the roof side rails are
securely fastened.
