2023 HYUNDAI PALISADE maintenance

Maintenance9-54
Fuse Name Fuse
Rating Protected Component
FUSE PT
C HEATER 2 30A PTC Heater Relay
PTC HEATER 3 30A PTC Heater Relay TRAILER 5 30A Trailer Lamp
FUEL PUMP 20A Fuel Pump Relay AWD 20A AWD ECM
HEATED NOZZLE 10A Heated Nozzle Unit B/ALARM HORN 15A Burglar Alarm Horn Relay
ACC 3 15A 2ND USB Charger
TCU 1 15A TCM
TRAILER 2 15A Trailer Lamp
TRAILER 3 15A Trailer Lamp ECU 6 15A ECM
AMS 10A Battery Sensor
A/C 2 10A Front A/C Control Module (Auto)
HEATED
MIRROR 10ADriver/Passenger Power Side view Mirror,
Front A/C Control Module
BLOWER (RR 2) 10A Rear A/C Control Module
E-SHIFTER 2 10A Electronic Transmission
WIPER (FRT) 2 10A IBU, ECM - 10A Not Used
PCB ACC 1
40A PCB Block (ACC1 Relay)
ACC 2 40A PCB Block (ACC2 Relay) ECU 5 30A ECM (Main Relay)
DCU 4 40A Doosing Control Unit (DCU Relay)
IG1 40A PCB Block (IG1 Relay)
WIPER 1 (FRT) 30A PCB Block (Wiper Main Relay) HORN 15A PCB Block (Horn Relay)
A/C 1 10A PCB Block (A/CON Relay)
ACC 4 10A USB Charger_luggage_LH/RH

Maintenance9-56
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlight assembly to get to the
bulb(s).
Removing/installing the headlight
assembly can result in damage to the
vehicle.
WARNING

[ Prior to working on a light, depress
the foot brake, shift to P (Park), apply
the parking brake, place the ignition
switch to the OFF position and take
the key with you when leaving the
vehicle to avoid sudden movement
of the vehicle and to prevent possible
electric shock.

[ Be aware the bulbs may be hot and
may burn your fingers.
NOTICE
Be sure to replace the burned-out bulb
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electrical wiring system.
NOTICE
To prevent damage, do not clean the
headlight lens with chemical solvents
or strong detergents.
Information - Headlight
desiccant (if equipped)
This vehicle is equipped with desiccant to
reduce fogging inside the headlight due
to moisture. The desiccant is consumable
and its performance may change based on
the used period or environment. If fogging
inside the headlight due to moisture
continues for a long time, consult an
authorized HYUNDAI dealer.
Information
The headlight and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp
inside and outside and, it does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlight
on. The removable level may differ
depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have your vehicle
inspected by an authorized HYUNDAI
dealer.
LIGHT BULBS

Maintenance9-58

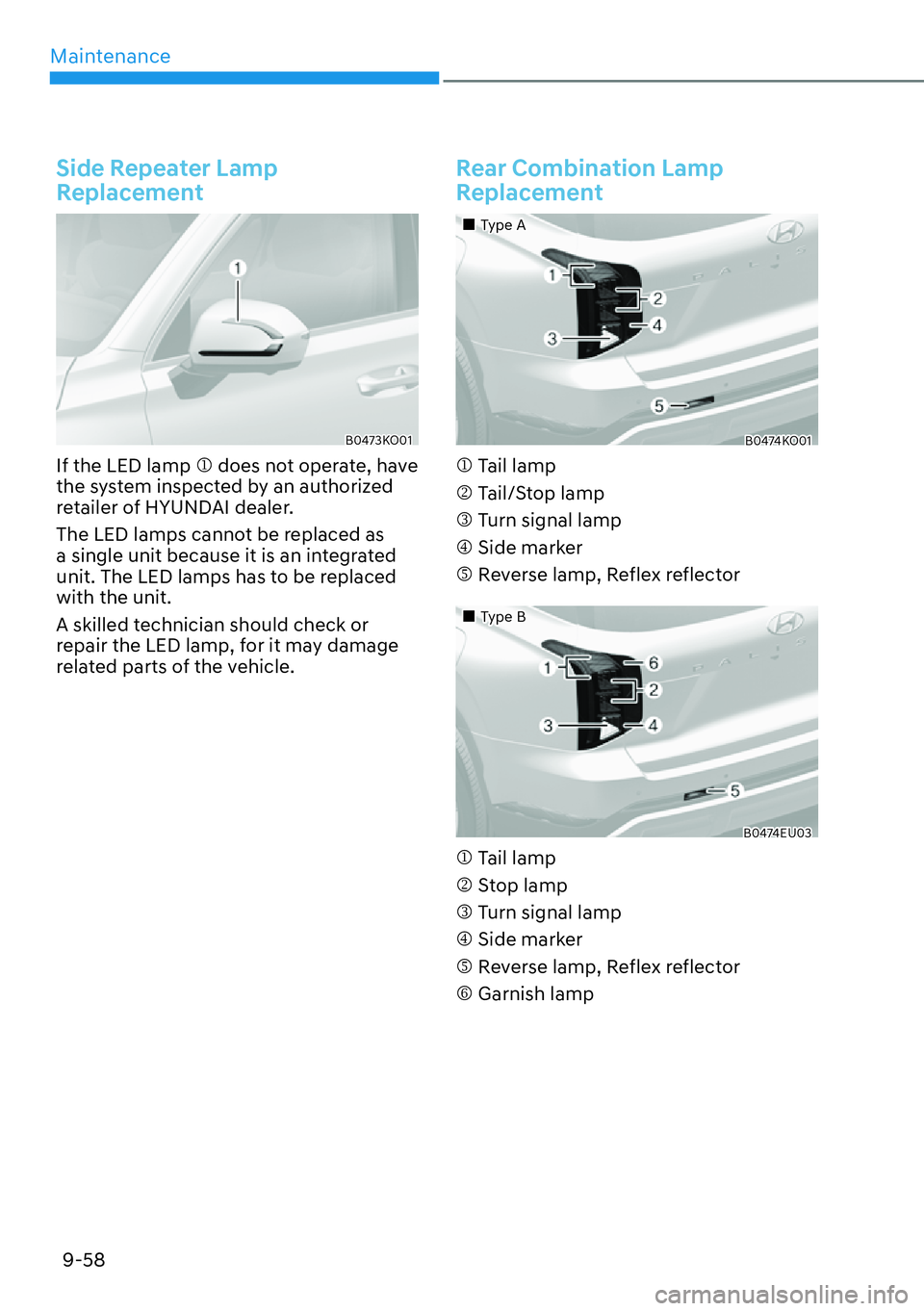

Side Repeater Lamp
Replacement
B0473KO01
If the LED lamp M does not operate, have
the system inspected by an authorized
retailer of HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Rear Combination Lamp
Replacement
„Type A
B0474KO01
M Tail lamp
N Tail/Stop lamp
O Turn signal lamp
P Side marker
Q Reverse lamp, Reflex reflector
„Type B
B0474EU03
M Tail lamp
N Stop lamp
O Turn signal lamp
P Side marker
Q Reverse lamp, Reflex reflector
R Garnish lamp

Maintenance9-60

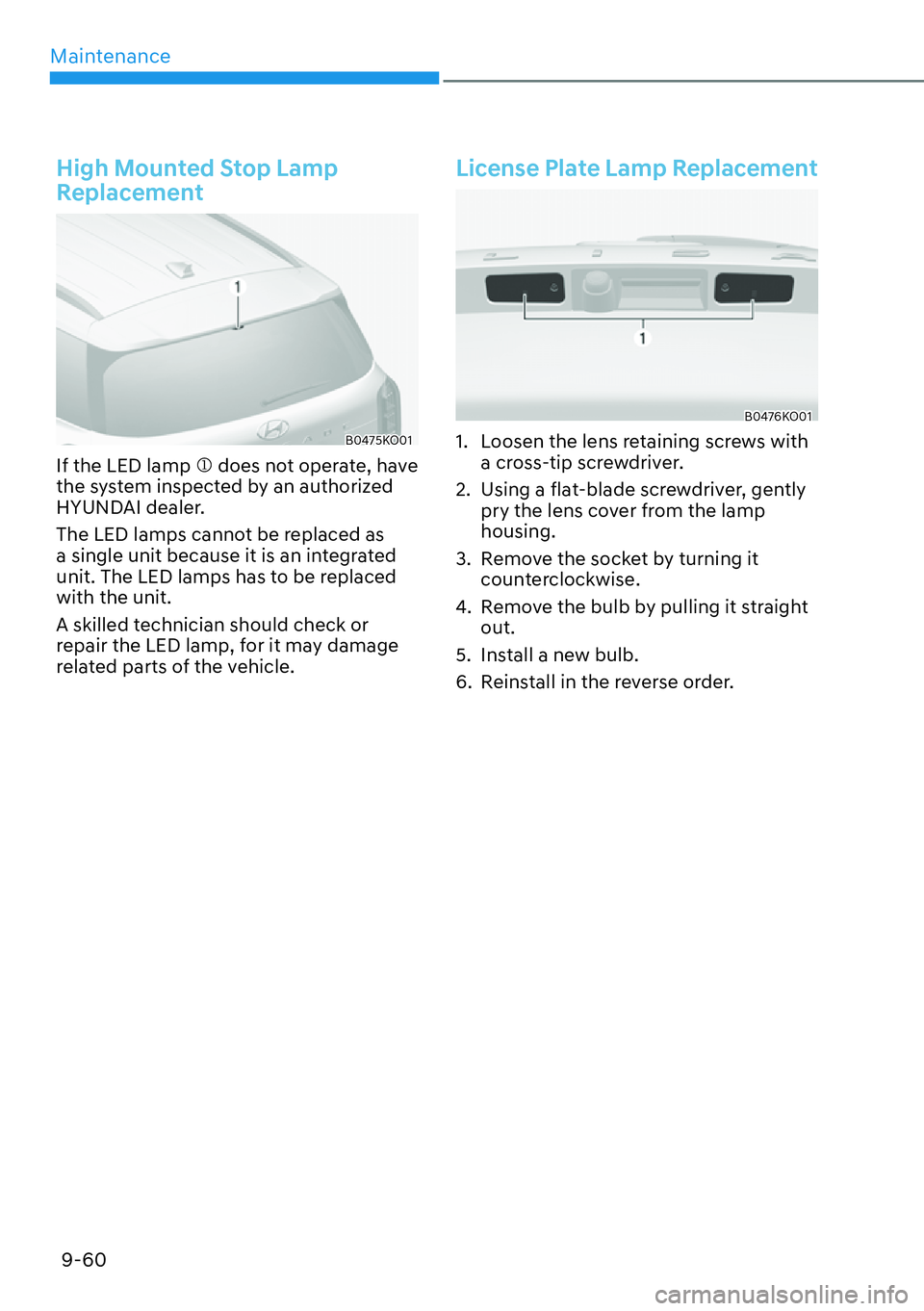

High Mounted Stop Lamp
Replacement
B0475KO01
If the LED lamp M does not operate, have
the system inspected by an authorized
HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
License Plate Lamp Replacement
B0476KO01
1. Loosen the lens retaining screws with a cross-tip screwdriver.
2. Using a flat-blade screwdriver, gently pry the lens cover from the lamp
housing.
3. Remove the socket by turning it counterclockwise.
4. Remove the bulb by pulling it straight out.
5. Install a new bulb.
6. Reinstall in the reverse order.

Maintenance9-62
Map lamp, room lamp, luggage
compartment lamp and glove box
lamp (LED type)
B1301EU01
B0477KO02
B0477KO03
A: Map lamp, B: Room lamp,
C: Luggage compartment lamp
If the LED lamp does not operate, have
the system checked by an authorized
HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

09
9-63
Exterior CareNOTICE
If you park your vehicle near a stainless
steel sign or glass facade building, the
vehicle’s exterior plastic parts such
as a bumper, spoiler, garnish, lamp or
side view mirror might be damaged
due to sunlight reflected from the
sign or building. To prevent damage of
the exterior plastic parts, you should
avoid parking in areas where light may
be reflected or use a car cover. (The
exterior plastic parts applied to your
vehicle may vary.)
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning and
caution statements that appear on the
label.
Finish maintenance
Washing
To help protect your vehicle’s finish from
rus
t and deterioration, wash it thoroughly
and frequently at least once a month
with lukewarm or cold water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges
of the doors and rocker panels are kept
clear and clean. Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, should be used.
After washing, rinse the vehicle
thoroughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
High-pressure washing

[ When using high-pr
essure washers,
make sure to maintain sufficient
distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.

[ Do not spray the camera, sensors or
its surrounding area directly with a
high pressure washer. Shock applied
from high pressure water may cause
the device to not operate normally.

[ Do not bring the nozzle tip close to
boots (rubber or plastic covers) or
connectors as they may be damaged
if they come into contact with high
pressure water.
WARNING
After washing the vehicle, test the
brakes while driving slowly to see
if they have been affected by water
before getting on the road. If braking
performance is impaired, dry the
brakes by applying them lightly while
maintaining a slow forward speed.
APPEARANCE CARE

Maintenance9-64
NOTICE

[ Do not use strong soap, chemical
detergents or hot water, and do not
wash the vehicle in direct sunlight
or when the body of the vehicle is
warm.

[ Be careful when washing the side
windows of your vehicle.

[ Especially, with high-pressure water,
water may leak through the windows
and wet the interior.

[ To prevent damage to the plastic
parts, do not clean with chemical
solvents or strong detergents.
NOTICE
B0479KO01

[Water washing in the engine
compartment including high
pressure water washing may cause
the failure of electrical circuits
located in the engine compartment.

[ Never allow water or other liquids
to come in contact with electrical/
electronic components inside the
vehicle as this may damage them.
NOTICE
Matte paint finish vehicle (if equipped)
Automatic car wash which uses rotating
brushes should not be used as this can
damage the surface of your vehicle. A
steam cleaner which washes the vehicle
surface at high temperature may result
the oil to adhere and leave stains that is
difficult to remove.
Use a soft cloth (for example, microfiber
towel or sponge) when washing your
vehicle and dry with a microfiber towel.
When you hand wash your vehicle, you
should not use a cleaner that finishes
with wax. If the vehicle surface is too
dirty (sand, dirt, dust, contaminant,
etc.), clean the surface with water
before washing the car.
Waxing
A good coat of wax is a barrier between
y

our paint and contaminate. Keeping
a good coat of wax on your vehicle will
help protect it.
Wax the vehicle when water will no
longer bead on the paint.
Always wash and dry the vehicle before
waxing. Use a good quality liquid or
paste wax, and follow the manufacturer’s
instructions. Wax all metal trim to protect
it and to maintain its luster.
Removing oil, tar, and similar materials
with a spot remover will usually strip the
wax from the finish. Be sure to re-wax
these areas even if the rest of the vehicle
does not yet need waxing.

09
9-65

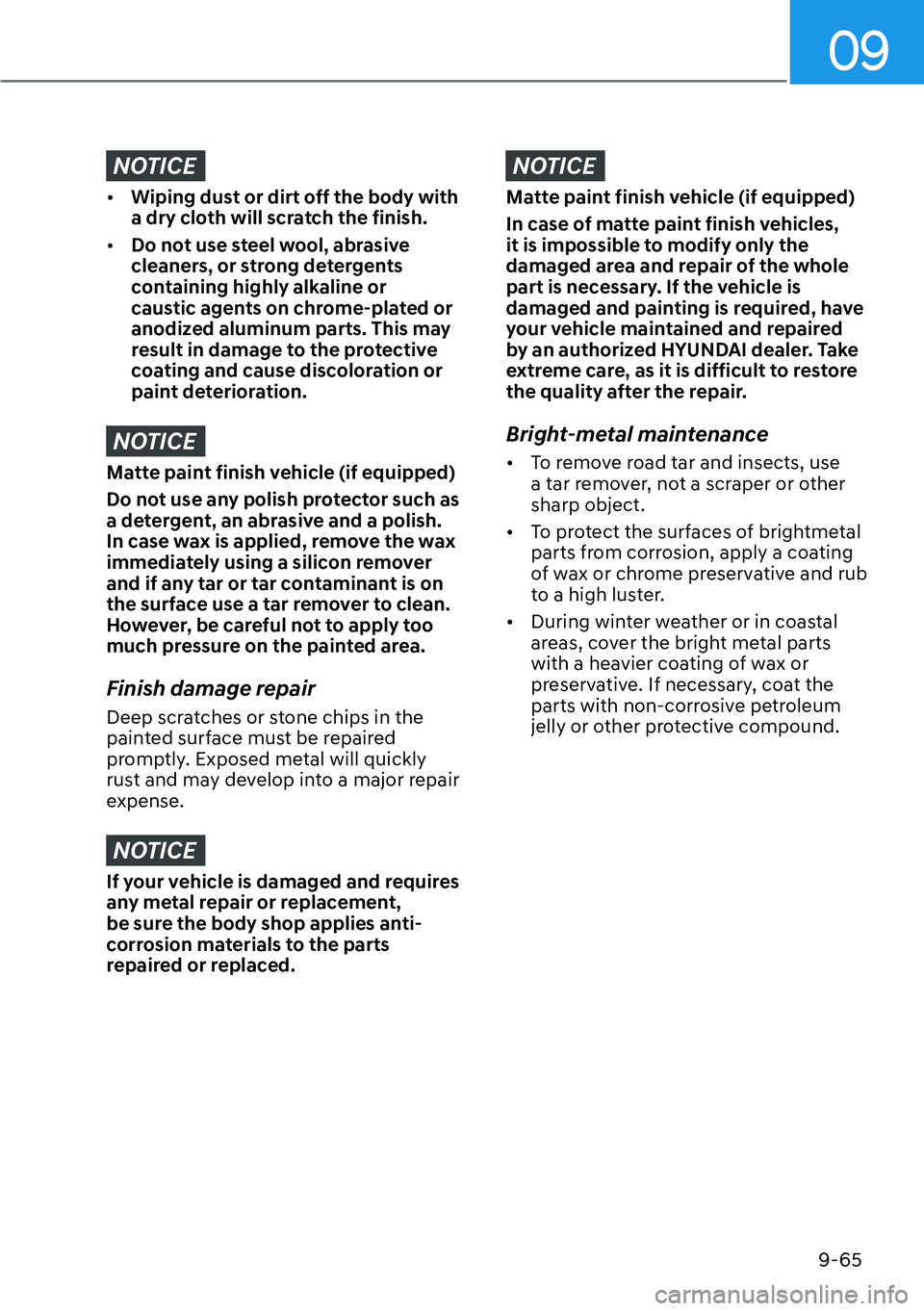

NOTICE

[Wiping dust or dirt off the body with
a dry cloth will scratch the finish.

[ Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or
caustic agents on chrome-plated or
anodized aluminum parts. This may
result in damage to the protective
coating and cause discoloration or
paint deterioration.
NOTICE
Matte paint finish vehicle (if equipped)
Do not use any polish protector such as
a detergent, an abrasive and a polish.
In case wax is applied, remove the wax
immediately using a silicon remover
and if any tar or tar contaminant is on
the surface use a tar remover to clean.
However, be careful not to apply too
much pressure on the painted area.
Finish damage repair
Deep scratches or stone chips in the
painted surface must be repaired
promptly. Exposed metal will quickly
rust and may develop into a major repair
expense.
NOTICE
If your vehicle is damaged and requires
any metal repair or replacement,
be sure the body shop applies anti-
corrosion materials to the parts
repaired or replaced.
NOTICE
Matte paint finish vehicle (if equipped)
In case of matte paint finish vehicles,
it is impossible to modify only the
damaged area and repair of the whole
part is necessary. If the vehicle is
damaged and painting is required, have
your vehicle maintained and repaired
by an authorized HYUNDAI dealer. Take
extreme care, as it is difficult to restore
the quality after the repair.
Bright-metal maintenance

[To remove road tar and insects, use
a tar remover, not a scraper or other
sharp object.

[ To protect the surfaces of brightmetal
parts from corrosion, apply a coating
of wax or chrome preservative and rub
to a high luster.

[ During winter weather or in coastal
areas, cover the bright metal parts
with a heavier coating of wax or
preservative. If necessary, coat the
parts with non-corrosive petroleum
jelly or other protective compound.
