2023 HYUNDAI PALISADE headlights

06
6-63
Driving in the Rain
Rain and wet roads can make driving
dangerous. Here are a few things to
consider when driving in the rain or on
slick pavement:

[Slow down and allow extra following
distance. A heavy rainfall makes
it harder to see and increases the
distance needed to stop your vehicle.

[ Turn OFF your Cruise Control. (if
equipped)

[ Replace your windshield wiper blades
when they show signs of streaking or
missing areas on the windshield.

[ Be sure your tires have enough tread.
If your tires do not have enough tread,
making a quick stop on wet pavement
can cause a skid and possibly lead to
an accident. See “Tire Tread” section
in chapter 9.

[ Turn on your headlights to make it
easier for others to see you.

[ Driving too fast through large puddles
can affect your brakes. If you must go
through puddles, try to drive through
them slowly.

[ If you believe your brakes may be wet,
apply them lightly while driving until
normal braking operation returns.
Hydroplaning
If the road is wet enough and you are
going fast enough, your vehicle may
have little or no contact with the road
surface and actually ride on the water.
The best advice is SLOW DOWN when
the road is wet.
The risk of hydroplaning increases as the
depth of tire tread decreases, refer to
“Tire Tread” section in chapter 9.
Driving in Flooded Areas
Avoid driving through flooded areas
unless you are sure the water is no
higher than the bottom of the wheel hub.
Drive through any water slowly. Allow
adequate stopping distance because
brake performance may be reduced.
After driving through water, dry the
brakes by gently applying them several
times while the vehicle is moving slowly.
Highway Driving
Tires
Adjust the tire inflation, as specified.
Under-inflation may overheat or damage
the tires.
Do not install worn-out or damaged tires,
which may reduce traction or fail the
braking operation.
Information
Never over-inflate your tires above the
maximum inflation pressure, as specified
on your tires.
Fuel, engine coolant and engine oil
Driving at higher speeds on the highway
consumes more fuel and is less efficient
than driving at a slower, more moderate
speed. Maintain a moderate speed in
order to conserve fuel when driving on
the highway.
Be sure to check both the engine coolant
level and the engine oil before driving.
Drive belt
A loose or damaged drive belt may
overheat the engine.

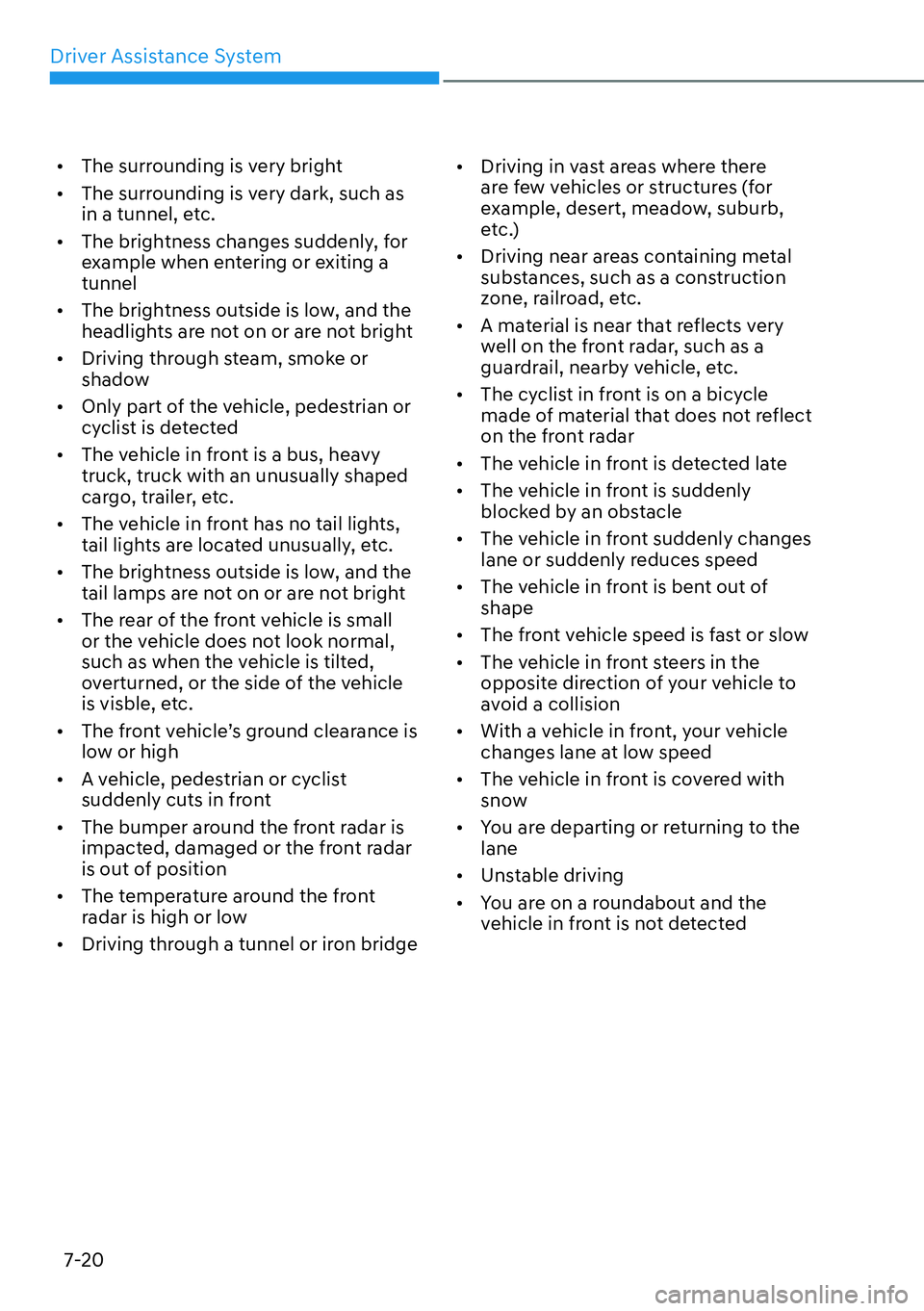

Driver Assistance System7-20

[ The surrounding is very bright

[ The surrounding is very dark, such as
in a tunnel, etc.

[ The brightness changes suddenly, for
example when entering or exiting a
tunnel

[ The brightness outside is low, and the
headlights are not on or are not bright

[ Driving through steam, smoke or
shadow

[ Only part of the vehicle, pedestrian or
cyclist is detected

[ The vehicle in front is a bus, heavy
truck, truck with an unusually shaped
cargo, trailer, etc.

[ The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[ The brightness outside is low, and the
tail lamps are not on or are not bright

[ The rear of the front vehicle is small
or the vehicle does not look normal,
such as when the vehicle is tilted,
overturned, or the side of the vehicle
is visble, etc.

[ The front vehicle’s ground clearance is
low or high

[ A vehicle, pedestrian or cyclist
suddenly cuts in front

[ The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[ The temperature around the front
radar is high or low

[ Driving through a tunnel or iron bridge
[
Driving in vast areas where there
are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)

[ Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.

[ A material is near that reflects very
well on the front radar, such as a
guardrail, nearby vehicle, etc.

[ The cyclist in front is on a bicycle
made of material that does not reflect
on the front radar

[ The vehicle in front is detected late

[ The vehicle in front is suddenly
blocked by an obstacle

[ The vehicle in front suddenly changes
lane or suddenly reduces speed

[ The vehicle in front is bent out of
shape

[ The front vehicle speed is fast or slow

[ The vehicle in front steers in the
opposite direction of your vehicle to
avoid a collision

[ With a vehicle in front, your vehicle
changes lane at low speed

[ The vehicle in front is covered with
snow

[ You are departing or returning to the
lane

[ Unstable driving

[ You are on a roundabout and the
vehicle in front is not detected

07
7-59

[The minimum speed limit sign is on
the road

[ The brightness changes suddenly, for
example when entering or exiting a
tunnel or passing under a bridge

[ Headlights are not used or the
brightness of the headlights are weak
at night or in the tunnel

[ Road signs are difficult to recognize
due to the reflection of sunlight, street
lights, or oncoming vehicles

[ The navigation information or GPS
information contain errors.

[ The driver does not follow the guide
of the navigation.

[ The driver is driving on a new road
that is not in the navigation system
yet.

[ The field of view of the front view
camera is obstructed by sun glare

[ Driving on a road that is sharply
curved or continuously curved

[ Driving through speed bumps, or
driving up and down or left to right on
steep inclines

[ The vehicle is shaking heavily

[ Driving on a newly opened road

[ The navigation software is being
updated while driving

[ The navigation is restarted while
driving WARNING

[Intelligent Speed Limit Assist is a
supplemental function that helps the
driver to comply with the speed limit
on the road, and may not display the
correct speed limit or control the
driving speed properly.

[ Always set the vehicle speed to the
speed limit in your area.

[ Intelligent Speed Limit Assist may
not operate for 15 seconds after the
vehicle is started, or the front camera
is initialized.
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in this chapter.

Driver Assistance System7-80
Smart Cruise Control disabled
B0349EU02
When the front radar cover or sensor
is covered with snow, rain, or foreign
material, it can reduce the detecting
performance and temporarily limit or
disable Smart Cruise Control.
If this occurs the ‘Smart Cruise Control
disabled. Radar blocked’ warning
message will appear for a certain period
of time on the cluster.
Smart Cruise Control will operate properly
when snow, rain or foreign material is
removed.
WARNING
Even though the warning message does
not appear on the cluster, Smart Cruise
Control may not properly operate.
CAUTION
Smart Cruise Control may not properly
operate in an area (for example, open
terrain), where there is nothing to
detect after turning ON the engine.
Limitations of Smart Cruise Control
Smart Cruise Control may not operate
properly, or it may operate unexpectedly
under the following circumstances:

[ The detecting sensor or the
surroundings are contaminated or
damaged

[ Washer fluid is continuously sprayed,
or the wiper is on

[ The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass

[ Moisture is not removed or frozen on
the windshield

[ The field of view of the front view
camera is obstructed by sun glare

[ Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road

[ The temperature around the front
view camera is high or low

[ An object is placed on the dashboard

[ The surrounding is very bright

[ The surrounding is very dark, such as
in a tunnel, etc.

[ The brightness changes suddenly, for
example when entering or exiting a
tunnel

[ The brightness outside is low, and the
headlights are not on or are not bright

[ Driving in heavy rain or snow, or thick
fog

[ Driving through steam, smoke or
shadow

Maintenance9-46
Instrument Panel Fuse
Replacement
B0467KO01
1. Turn the vehicle off.
2. Turn all other switches off.
3. Open the fuse panel cover.
4. Refer to the label on the inside of the fuse panel cover to locate the
suspected fuse location.
B0467KO02
5. Pull the suspected fuse straight out. Use the removal tool M provided in
the engine compartment fuses panel
cover.
6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in
the instrument panel fuse panels (or in
the engine compartment fuse panel).
7. Push in a new fuse of the same rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
In an emergency, if you do not have
a spare fuse, use a fuse of the same
rating from a circuit you may not need
for operating the vehicle, such as the
cigarette lighter fuse.
If the headlights or other electrical
components do not work and the fuses
are undamaged, check the fuse panel
in the engine compartment. If a fuse is
blown, it must be replaced with the same
rating.
