2023 HYUNDAI I20 check engine

6-29
06
OBC3070109TU
7UDQVPLVVLRQKLJKWHPSHUDWXUH

[Under certain conditions, such as
repeated stop-and-go launches on
steep grades, sudden take off or
acceleration, or other harsh driving
conditions, the transmission clutch
temperatures will increase excessively.
Finally the clutch in transmission could
be overheated.

[When the clutch is overheated, the
safe protection mode engages and the
gear position

[indicator on the cluster blinks with
a chime. At this time, ‘Transmission
temp is high! Stop safely’ warning
message will appear on the LCD
display and driving may not be
smooth.

[If this occurs, pull over to a safe
location, stop the vehicle with the
engine running, apply the brakes and
shift the vehicle to P (Park), and allow
the transmission to cool.

[If you ignore this warning, the driving
condition may become worse. You
may experience abrupt shifts, frequent
shifts, or jerkiness. To return to the
normal driving condition, stop the
vehicle and apply the foot brake or
shift into P (Park). Then allow the
transmission to cool for a few minutes
with engine on, before driving off.

[When possible, drive the vehicle
smoothly.
OBC3070107TU/OBC3070108TU
7UDQVPLVVLRQRYHUKHDWHG

[If the vehicle continues to be driven
and the clutch temperatures reach
the maximum temperature limit,
the ‘Trans Hot! Park with engine on’
warning will be displayed. When this
occurs the clutch is disabled until the
clutch cools to normal temperatures.

[The warning will display a time to wait
for the transmission to cool.

[If this occurs, pull over to a safe
location, stop the vehicle with the
engine running, apply the brakes and
shift the vehicle to P (Park), and allow
the transmission to cool.

[When the message ‘Trans cooled.
Resume driving’, appears you can
continue to drive your vehicle.

[When possible, drive the vehicle
smoothly.
If any of the warning messages in the
LCD display continue to blink, for your
safety, we recommend that you contact
a HYUNDAI authorised repairer and have
the system checked.

6-34
Driving your vehicle
Good driving practices

[Never move the shift lever from P
(Park) or N (Neutral) to any other
position with the accelerator pedal
depressed.

[Never move the shift lever into P
(Park) when the vehicle is in motion.
Be sure the vehicle is completely
stopped before you attempt to shift
into R (Reverse) or D (Drive).

[Do not move the shift lever to N
(Neutral) when driving. Doing so may
result in an accident because of a loss
of engine braking and the transmission
could be damaged.

[Driving uphill or downhill, always shift
to D (Drive) when driving forward or to
R (Reverse) when driving backwards,
and check the gear position indicated
on the cluster before driving. If you
drive in the opposite direction of the
selected gear, the engine will turn
off and a serious accident might be
occurred due to the degraded brake
performance.

[Do not drive with your foot resting
on the brake pedal. Even light, but
consistent pedal pressure can result
in the brakes overheating, brake wear
and possibly even brake failure.

[When driving in manual shift mode,
slow down before shifting to a lower
gear. Otherwise, the lower gear may
not be engaged if the engine rpms are
outside of the allowable range.

[Always apply the parking brake when
leaving the vehicle. Do not depend on
placing the transmission in P (Park) to
keep the vehicle from moving.

[Exercise extreme caution when driving
on a slippery surface. Be especially
careful when braking, accelerating or
shifting gears. On a slippery surface,
an abrupt change in vehicle speed can
cause the drive wheels to lose traction
and may cause loss of vehicle control
resulting in an accident.
[Optimum vehicle performance
and fuel economy is obtained by
smoothly depressing and releasing the
accelerator.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:

[ALWAYS wear your seat belt. In a
collision, an unbelted occupant
is significantly more likely to be
seriously injured or killed than a
properly belted occupant.

[Avoid high speeds when cornering or
turning.

[Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.

[The risk of rollover is greatly
increased if you lose control of your
vehicle at highway speeds.

[Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.

[In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the travel lanes.

[HYUNDAI recommends you follow all
posted speed limits.
i Information- Kickdown
Mechanism (if equipped)
8VHWKHNLFNGRZQPHFKDQLVPIRU
PD[LPXPDFFHOHUDWLRQ'HSUHVVWKH
DFFHOHUDWRUSHGDOEH\RQGWKHSUHVVXUH
SRLQW7KHDXWRPDWLFWUDQVPLVVLRQZLOO
VKLIWWRDORZHUJHDUGHSHQGLQJRQWKH
HQJLQHVSHHG

6-37
06
Parking brake warning light
Check the Parking Brake
Warning Light by placing the
ignition switch to the ON
position (do not start the
engine).
This light will illuminate when the
parking brake is applied with the ignition
switch in the START or ON position.
Before driving, be sure the parking brake
is released and the Brake Warning Light
is OFF.
If the Parking Brake Warning Light
remains on after the parking brake is
released whilst the engine is running,
there may be a malfunction in the
brake system. Immediate attention is
necessary.
If at all possible, cease driving the
vehicle immediately. If that is not
possible, use extreme caution whilst
operating the vehicle and only continue
to drive the vehicle until you can reach a
safe location.
Anti-lock Brake System (ABS)
WARNING
An Anti-Lock Braking System (ABS) or
an Electronic Stability Control (ESC)
system will not prevent accidents
due to improper or dangerous driving
manoeuvres. Even though vehicle
control is improved during emergency
braking, always maintain a safe
distance between you and objects
ahead of you. Vehicle speeds should
always be reduced during extreme
road conditions. The braking distance
for vehicles equipped with ABS or ESC
may be longer than for those without
these systems in the following road
conditions.
Drive your vehicle at reduced speeds
during the following conditions:

[Rough, gravel or snow-covered
roads.

[On roads where the road surface is
pitted or has different surface height.

[Tyre chains are installed on your
vehicle.
The safety features of an ABS or ESC
equipped vehicle should not be tested
by high speed driving or cornering. This
could endanger the safety of yourself
or others.
ABS is an electronic braking system that
helps prevent a braking skid. ABS allows
the driver to steer and brake at the same
time.

6-39
06
Electronic Stability Control
(ESC)
OBC3N061006AU
The Electronic Stability Control (ESC)
system helps to stabilize the vehicle
during cornering manoeuvres.
ESC checks where you are steering and
where the vehicle is actually going.
ESC applies braking pressure to any one
of the vehicle’s brakes and intervenes in
the engine management system to assist
the driver with keeping the vehicle on
the intended path. It is not a substitute
for safe driving practices. Always adjust
your speed and driving to the road
conditions.
WARNING
Never drive too fast for the road
conditions or too quickly when
cornering. The ESC system will not
prevent accidents.
Excessive speed in turns, abrupt
manoeuvres, and hydroplaning on wet
surfaces can result in severe accidents.
ESC operation
(6&21FRQGLWLRQ
When the ignition switch is in the
ON position, the ESC and the ESC
OFF indicator lights illuminate for
approximately three seconds. After both
lights go off, the ESC is enabled.
:KHQRSHUDWLQJ
When the ESC is in
operation, the ESC indicator
light blinks:

[ :KHQ\RXDSSO\\RXUEUDNHVXQGHU
conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in
the brake pedal. This is normal and it
means your ESC is active.

[ :KHQWKH(6&DFWLYDWHVWKHHQJLQH
may not respond to the accelerator as
it does under routine conditions.

[ ,IWKH&UXLVH&RQWUROZDVLQXVHZKHQ
the ESC activates, the Cruise Control
automatically disengages. The Cruise
Control can be reengaged when the
road conditions allow. See “Cruise
Control System” later in this chapter
7 (if equipped).

[ :KHQPRYLQJRXWRIWKHPXGRU
driving on a slippery road, the engine
RPM (revolutions per minute) may
not increase even if you press the
accelerator pedal deeply. This is to
maintain the stability and traction of
the vehicle and does not indicate a
problem.

6-40
Driving your vehicle
(6&2))FRQGLWLRQ
To cancel ESC operation :

[6WDWH
Press the ESC OFF button briefly. The
ESC OFF indicator light and/or message
‘Traction Control disabled’ will illuminate
and a warning chime sounds. In this
state, the traction control function of
ESC (engine management) is disabled,
but the brake control function of ESC
(braking management) still operates.

[6WDWH
Press and hold the ESC OFF button
continuously for more than 3 seconds.
The ESC OFF indicator light and/or
message ‘Traction control and ESC
disabled’ illuminates and a warning
chime sounds. In this state, both the
traction control function of ESC (engine
management) and the brake control
function of ESC (braking management)
are disabled.
If the ignition switch is placed in the
LOCK/OFF position when ESC is off, ESC
remains off. Upon restarting the vehicle,
the ESC will automatically turn on again.
Indicator lights
„ ESC indicator light (blinks)
„ ESC OFF indicator light (comes on)
OTD059013
OTD059012
When the ignition switch is in the
ON position, the ESC indicator light
illuminates, then goes off if the ESC
system is operating normally.
The ESC indicator light blinks whenever
the ESC is operating.
If the ESC indicator light stays on, your
vehicle may have a malfunction with
the ESC system. When this warning
light illuminates we recommend that
the vehicle be checked by a HYUNDAI
authorised repairer as soon as possible.
The ESC OFF indicator light comes on
when the ESC is turned off with the
button.
WARNING
When the ESC is blinking, this indicates
the ESC is active:
Drive slowly and NEVER attempt to
accelerate. NEVER turn the ESC off
whilst the ESC indicator light is blinking
or you may lose control of the vehicle
resulting in an accident.
NOTICE
Driving with wheels and tyres with
different sizes may cause the ESC
system to malfunction. Before
replacing tyres, make sure all four tyres
and wheels are the same size. Never
drive the vehicle with different sized
wheels and tyres installed.

6-60
Driving your vehicle
Hydroplaning
If the road is wet enough and you are
going fast enough, your vehicle may
have little or no contact with the road
surface and actually ride on the water.
The best advice is SLOW DOWN when
the road is wet.
The risk of hydroplaning increases as
the depth of tyre tread decreases, refer
to “Tyre replacement” in chapter 9.
Driving in flooded areas
Avoid driving through flooded areas
unless you are sure the water is no
higher than the bottom of the wheel
hub. Drive through any water slowly.
Allow adequate stopping distance
because brake performance may be
reduced.
After driving through water, dry the
brakes by gently applying them several
times whilst the vehicle is moving
slowly.
Highway driving
Tyres
Adjust the tyre inflation, as specified.
Under-inflation may overheat or damage
the tyres.
Do not install worn-out or damaged
tyres, which may reduce traction or fail
the braking operation.
i Information
1HYHURYHULQIODWH\RXUW\UHVDERYHWKH
PD[LPXPLQIODWLRQSUHVVXUHDVVSHFLILHG
RQ\RXUW\UHV
Fuel, engine coolant and engine oil
Driving at higher speeds on the highway
consumes more fuel and is less efficient
than driving at a slower, more moderate
speed. Maintain a moderate speed in
order to conserve fuel when driving on
the highway.
Be sure to check both the engine
coolant level and the engine oil before
driving.
Drive belt
A loose or damaged drive belt may
overheat the engine.

6-61
06
The severe weather conditions of winter
quickly wear out tyres and cause other
problems. To minimise winter driving
problems, you should take the following
suggestions:
Snow or icy conditions
You need to keep sufficient distance
between your vehicle and the vehicle in
front of you.
Apply the brakes gently. Speeding, rapid
acceleration, sudden brake applications,
and sharp turns are potentially
very hazardous practices. During
deceleration, use engine braking to the
fullest extent. Sudden brake applications
on snowy or icy roads may cause the
vehicle to skid.
To drive your vehicle in deep snow, it
may be necessary to use snow tyres or
to install tyre chains on your tyres.
Always carry emergency equipment.
Some of the items you may want to
carry include tyre chains, tow straps or
chains, a flashlight, emergency flares,
sand, a shovel, jumper cables, a window
scraper, gloves, ground cloth, coveralls,
a blanket, etc.
Snow tyres
WARNING
Snow tyres should be equivalent
in size and type to the vehicle’s
standard tyres. Otherwise, the safety
and handling of your vehicle may be
adversely affected.
If you mount snow tyres on your vehicle,
make sure to use radial tyres of the same
size and load range as the original tyres.
Mount snow tyres on all four wheels
to balance your vehicle’s handling in
all weather conditions. The traction
provided by snow tyres on dry roads
may not be as high as your vehicle’s
original equipment tyres. Check with
the tyre dealer for maximum speed
recommendations.
i Information
'RQRWLQVWDOOVWXGGHGW\UHVZLWKRXWILUVW
FKHFNLQJORFDODQGPXQLFLSDOUHJXODWLRQV
IRUSRVVLEOHUHVWULFWLRQVDJDLQVWWKHLUXVH
WINTER DRIVING

6-63
06

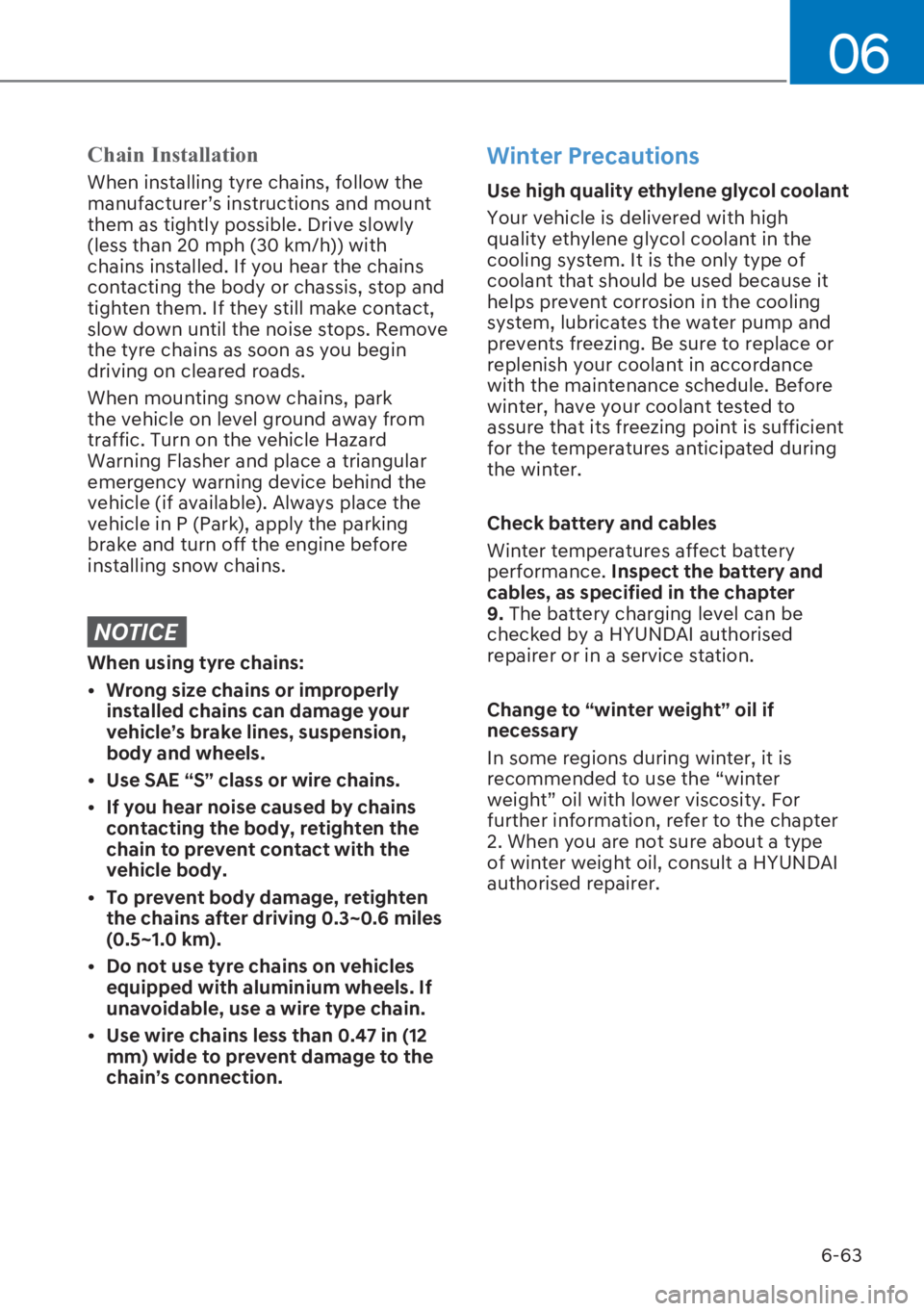

&KDLQ,QVWDOODWLRQ
When installing tyre chains, follow the
manufacturer’s instructions and mount
them as tightly possible. Drive slowly
(less than 20 mph (30 km/h)) with
chains installed. If you hear the chains
contacting the body or chassis, stop and
tighten them. If they still make contact,
slow down until the noise stops. Remove
the tyre chains as soon as you begin
driving on cleared roads.
When mounting snow chains, park
the vehicle on level ground away from
traffic. Turn on the vehicle Hazard
Warning Flasher and place a triangular
emergency warning device behind the
vehicle (if available). Always place the
vehicle in P (Park), apply the parking
brake and turn off the engine before
installing snow chains.
NOTICE
When using tyre chains:

[Wrong size chains or improperly
installed chains can damage your
vehicle’s brake lines, suspension,
body and wheels.

[Use SAE “S” class or wire chains.

[If you hear noise caused by chains
contacting the body, retighten the
chain to prevent contact with the
vehicle body.

[To prevent body damage, retighten
the chains after driving 0.3~0.6 miles
(0.5~1.0 km).

[Do not use tyre chains on vehicles
equipped with aluminium wheels. If
unavoidable, use a wire type chain.

[Use wire chains less than 0.47 in (12
mm) wide to prevent damage to the
chain’s connection.
Winter Precautions
Use high quality ethylene glycol coolant
Your vehicle is delivered with high
quality ethylene glycol coolant in the
cooling system. It is the only type of
coolant that should be used because it
helps prevent corrosion in the cooling
system, lubricates the water pump and
prevents freezing. Be sure to replace or
replenish your coolant in accordance
with the maintenance schedule. Before
winter, have your coolant tested to
assure that its freezing point is sufficient
for the temperatures anticipated during
the winter.
Check battery and cables
Winter temperatures affect battery
performance. Inspect the battery and
cables, as specified in the chapter
9. The battery charging level can be
checked by a HYUNDAI authorised
repairer or in a service station.
Change to “winter weight” oil if
necessary
In some regions during winter, it is
recommended to use the “winter
weight” oil with lower viscosity. For
further information, refer to the chapter
2. When you are not sure about a type
of winter weight oil, consult a HYUNDAI
authorised repairer.
