5. Convenient features
5

5-46
Convenient features

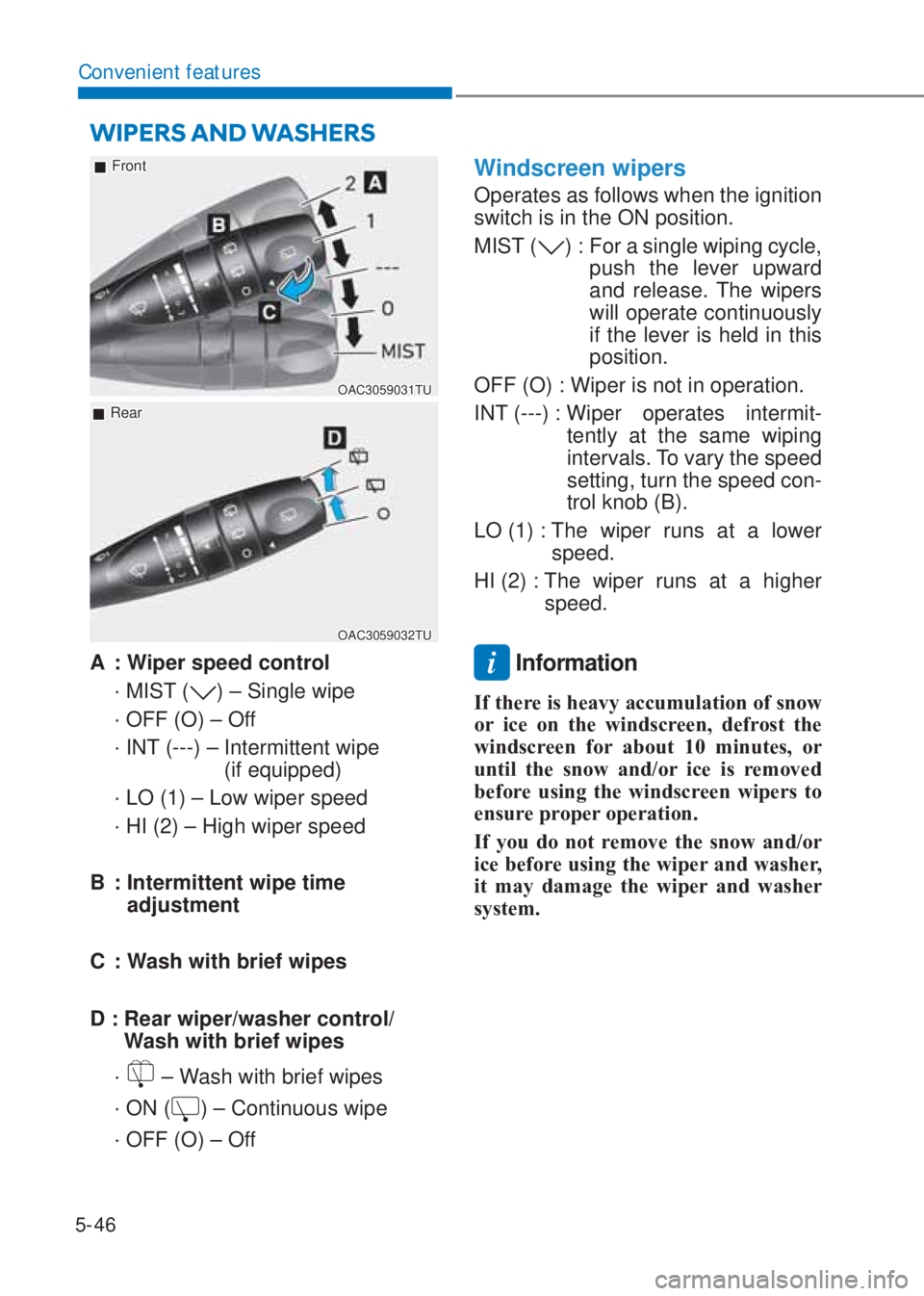

OAC3059031TU
„Front
„Rear
OAC3059032TU
A : Wiper speed control
· MIST (
) – Single wipe
· OFF (O) – Off
· INT (---) – Intermittent wipe
(if equipped)
· LO (1) – Low wiper speed
· HI (2) – High wiper speed
B : Intermittent wipe time
adjustment
C : Wash with brief wipes
D : Rear wiper/washer control/
Wash with brief wipes
·
– Wash with brief wipes
· ON (
) – Continuous wipe
· OFF (O) – Off
Windscreen wipers
Operates as follows when the ignition
switch is in the ON position.
MIST (
) : For a single wiping cycle,
push the lever upward
and release. The wipers
will operate continuously
if the lever is held in this
position.
OFF (O) : Wiper is not in operation.
INT (---) : Wiper operates intermit-
tently at the same wiping
intervals. To vary the speed
setting, turn the speed con-
trol knob (B).
LO (1) : The wiper runs at a lower
speed.
HI (2) : The wiper runs at a higher
speed.
i Information
If there is heavy accumulation of snow
or ice on the windscreen, defrost the
windscreen for about 10 minutes, or
until the snow and/or ice is removed
before using the windscreen wipers to
ensure proper operation.
If you do not remove the snow and/or
ice before using the wiper and washer,
it may damage the wiper and washer
system.
WIPERS AND WASHERS

5-47
05
Windscreen washers
OAC3059034TU
In the OFF (O) position, pull the lever
gently toward you to spray washer
fluid on the windscreen and to run the
wipers 1-3 cycles. The spray and
wiper operation will continue until you
release the lever. If the washer does
not work, you may need to add wash-
er fluid to the washer fluid reservoir.
WARNING
When the outside temperature is
below freezing, ALWAYS warm the
windscreen using the defroster to
prevent the washer fluid from
freezing on the windscreen and
obscuring your vision which could
result in an accident and serious
injury or death.
CAUTION
