2023 HYUNDAI I10 warning light

6-76
Whilst driving
2$&78

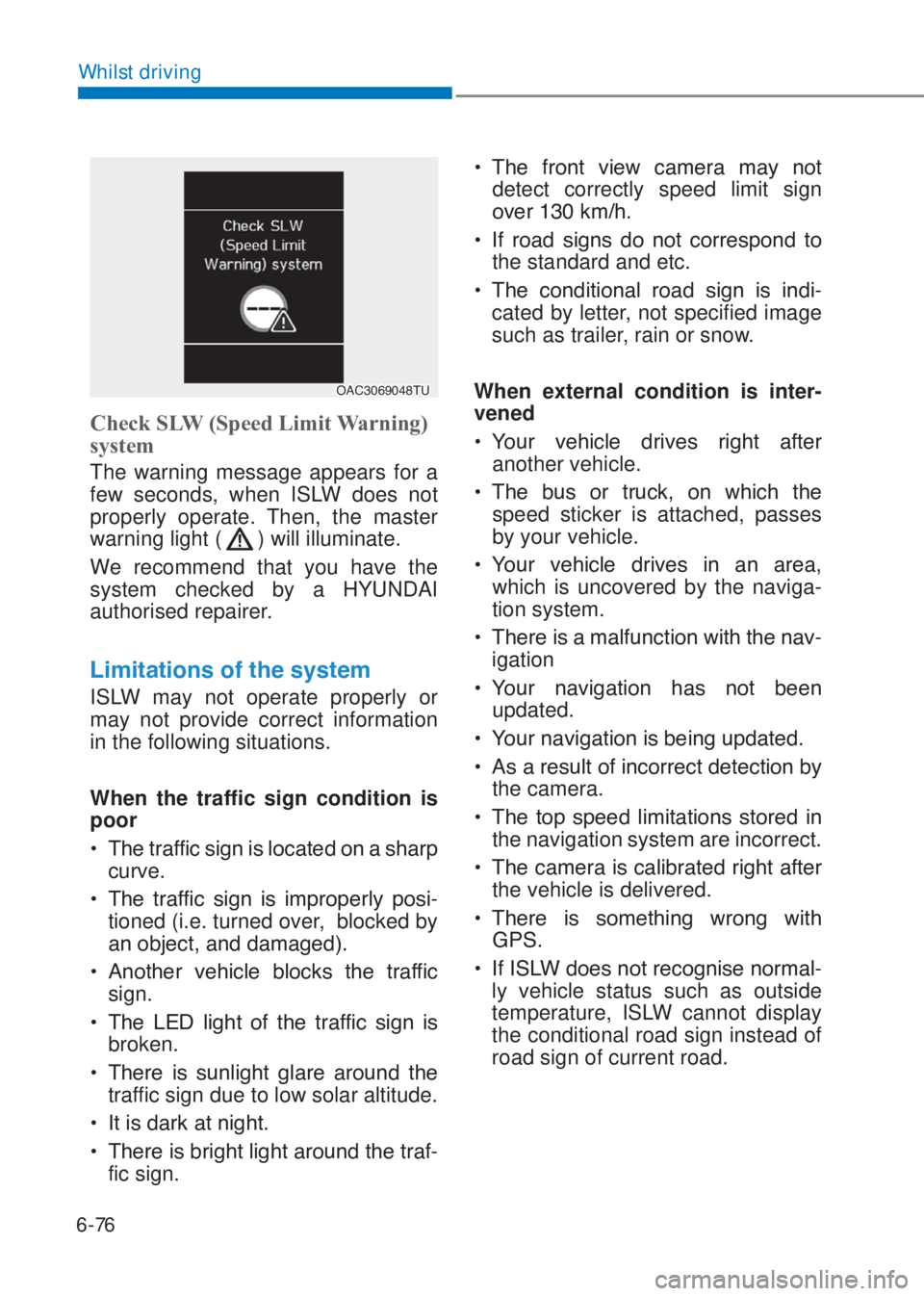

Check SLW (Speed Limit Warning)
system
The warning message appears for a
few seconds, when ISLW does not
properly operate. Then, the master
warning light (
) will illuminate.
We recommend that you have the
system checked by a HYUNDAI
authorised repairer.
/LPLWDWLRQVRIWKHV\VWHP
ISLW may not operate properly or
may not provide correct information
in the following situations.
When the traffic sign condition is
poor

6-91
06
The severe weather conditions of
winter quickly wear out tyres and
cause other problems. To minimise
winter driving problems, you should
WDNHWKHIROORZLQJVXJJHVWLRQV
Snow or icy conditions
You need to keep sufficient distance
between your vehicle and the vehicle
in front of you.
Apply the brakes gently. Speeding,
rapid acceleration, sudden brake
applications, and sharp turns are
potentially very hazardous practices.
During deceleration, use engine brak-
ing to the fullest extent. Sudden brake
applications on snowy or icy roads
may cause the vehicle to skid.
To drive your vehicle in deep snow, it
may be necessary to use snow tyres
or to install tyre chains on your tyres.
Always carry emergency equipment.
Some of the items you may want to
carry include tyre chains, tow straps
or chains, a flashlight, emergency
IODUHVVDQGDVKRYHOMXPSHUFDEOHV
a window scraper, gloves, ground
cloth, coveralls, a blanket, etc.
Snow tyres
WARNING
Snow tyres should be equivalent
in size and type to the vehicle’s
standard tyres. Otherwise, the
safety and handling of your vehi-
cle may be adversely affected.
If you mount snow tyres on your vehi-
cle, make sure to use radial tyres of
the same size and load range as the
RULJLQDOW\UHV0RXQWVQRZW\UHVRQDOO
four wheels to balance your vehicle’s
handling in all weather conditions.
The traction provided by snow tyres
on dry roads may not be as high as
your vehicle’s original equipment
tyres. Check with the tyre dealer for
maximum speed recommendations.
i Information
'o not install studded tyres without
first checking local and municipal reg-
ulations for possible restrictions
against their use.
WINTER DRIVING

7-3
07
OAC3079001TU
The hazard warning flasher serves as
a warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.
It should be used whenever emer-
gency repairs are being made or
when the vehicle is stopped near the
edge of a roadway.
To turn the hazard warning flasher on
or off, press the hazard warning flash-
er button with the ignition switch in
any position. The button is located in
the centre fascia panel. All turn signal
lights will flash simultaneously.
‡The hazard warning flasher oper-
ates whether your vehicle is run-
ning or not.
‡The turn signals do not work when
the hazard flasher is on
HAZARD WARNING FLASHER IN CASE OF AN EMERGENCY
WHILST DRIVING
,IWKHHQJLQHVWDOOVZKLOVW
GULYLQJ
‡Reduce your speed gradually,
keeping a straight line. Move cau-
tiously off the road to a safe place.
‡Turn on your hazard warning flash-
er.
‡Try to start the engine again. If your
vehicle will not start, we recom-
mend that you contact a HYUNDAI
authorised repairer.
,IWKHHQJLQHVWDOOVDWDFURVV-
URDGRUFURVVLQJ
If the engine stalls at a crossroads or
crossing, if safe to do so, move the
shift lever to the N (Neutral) position
and then push the vehicle to a safe
location.

7-39
07

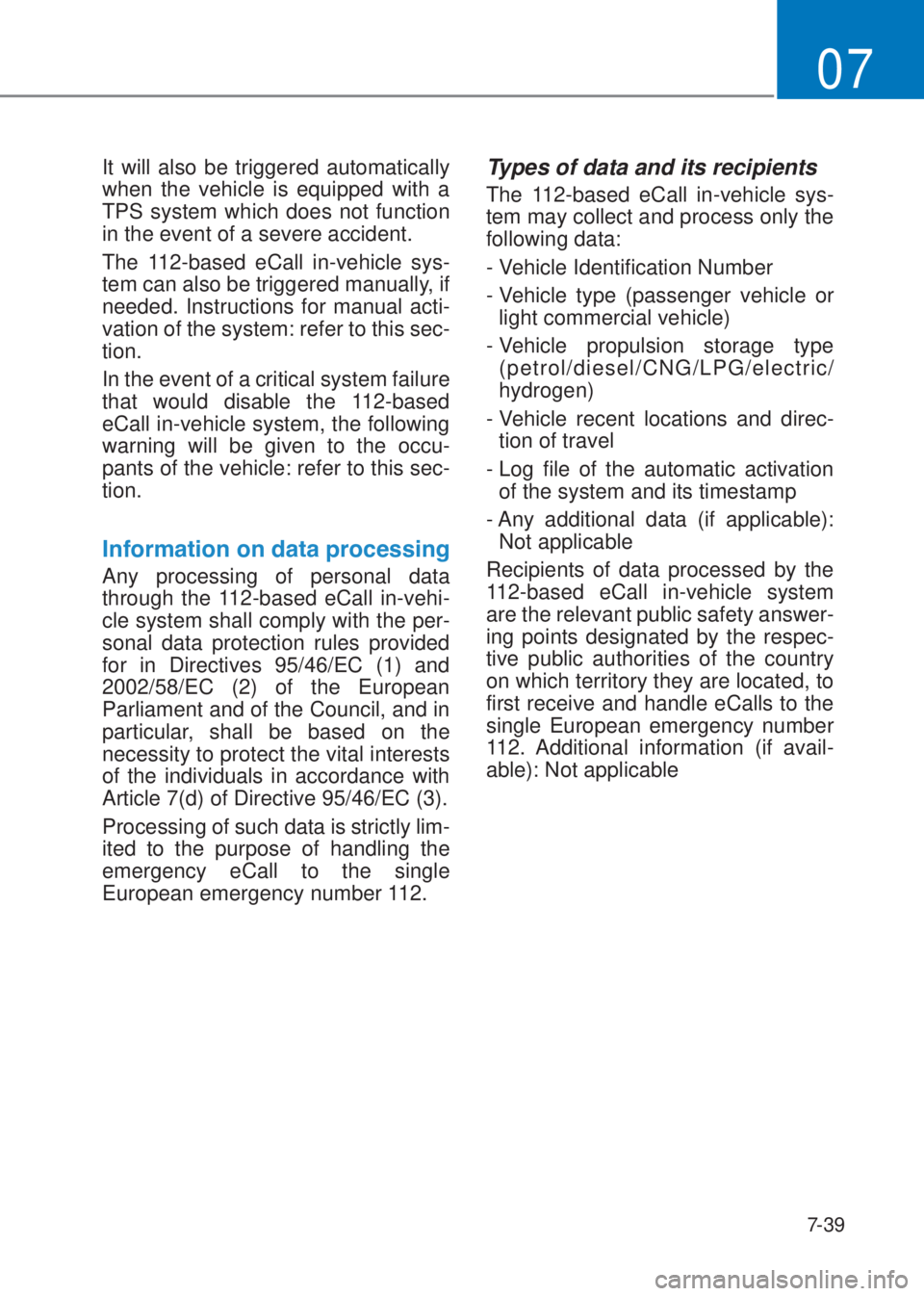

It will also be triggered automatically
when the vehicle is equipped with a
TPS system which does not function
in the event of a severe accident.
The 112-based eCall in-vehicle sys-
tem can also be triggered manually, if
needed. Instructions for manual acti-
vation of the system: refer to this sec-
tion.
In the event of a critical system failure
that would disable the 112-based
eCall in-vehicle system, the following
warning will be given to the occu-
pants of the vehicle: refer to this sec-
tion.
,QIRUPDWLRQRQGDWDSURFHVVLQJ
Any processing of personal data
through the 112-based eCall in-vehi-
cle system shall comply with the per-
sonal data protection rules provided
for in Directives 95/46/EC (1) and
2002/58/EC (2) of the European
Parliament and of the Council, and in
particular, shall be based on the
necessity to protect the vital interests
of the individuals in accordance with
Article 7(d) of Directive 95/46/EC (3).
Processing of such data is strictly lim-
ited to the purpose of handling the
emergency eCall to the single
European emergency number 112.
Types of data and its recipients
The 112-based eCall in-vehicle sys-
tem may collect and process only the
following data:
- Vehicle Identification Number
- Vehicle type (passenger vehicle or
light commercial vehicle)
- Vehicle propulsion storage type
(petrol/diesel/CNG/LPG/electric/
hydrogen)
- Vehicle recent locations and direc-
tion of travel
- Log file of the automatic activation
of the system and its timestamp
- Any additional data (if applicable):
Not applicable
Recipients of data processed by the
112-based eCall in-vehicle system
are the relevant public safety answer-
ing points designated by the respec-
tive public authorities of the country
on which territory they are located, to
first receive and handle eCalls to the
single European emergency number
112. Additional information (if avail-
able): Not applicable

8-50
Maintenance
&RQVXOW D +<81'$, DXWKRULVHG UH-
SDLUHU WR UHSODFH PRVW YHKLFOH OLJKW
EXOEV ,W LV GLIILFXOW WR UHSODFH YHKLFOH
OLJKWEXOEVEHFDXVHRWKHUSDUWVRIWKH
YHKLFOH PXVW EH UHPRYHG EHIRUH \RX
FDQJHWWRWKHEXOE7KLVLVHVSHFLDOO\
WUXH IRU UHPRYLQJ WKH KHDGOLJKW DV-
VHPEO\WRJHWWRWKHEXOEV
5HPRYLQJLQVWDOOLQJWKHKHDGOLJKWDV-
VHPEO\ FDQ UHVXOW LQ GDPDJH WR WKH
vehicle.
WARNING
Prior to replacing a light, depress
the foot brake, move the shift lever
into the N (Neutral, for Automated
manual transmission vehicle) or
neutral (for manual transmission
vehicle), apply the parking brake,
place the ignition switch in the
LOCK/OFF position, and take the
key with you when leaving the ve-
hicle to avoid sudden movement
of the vehicle and to prevent pos-
sible electric shock.
Be aware the bulbs may be hot and
may burn your fingers.
NOTICE
Be sure to replace the burned-out
bulb with one of the same wattage
rating. Otherwise, it may cause
damage to the fuse or electric wir-
ing system.
i Information
The headlight and tail lamp lenses
could appear frosty if the vehicle is
washed after driving or the vehicle is
driven at night in wet weather. This
condition is caused by temperature dif-
ference between the lamp inside and
outside and, it does not indicate a
problem with your vehicle. When
moisture condenses in the lamp, it will
be removed after driving with the
headlight on. The removable level may
differ depending on lamp size, lamp
position and environmental condition.
However, if moisture is not removed,
we recommend that your vehicle is in-
spected by a HYUNDAI authorised re-
pairer.
i Information (For Europe)
Traffic Change
The low beam light distribution is
asymmetric. If you go abroad to a
country with opposite traffic direction,
this asymmetric part will dazzle on-
coming car driver. To prevent dazzle,
ECE regulation demand several tech-
nical solutions (ex. automatic change
system, adhesive sheet, down aiming).
These headlights are designed not to
dazzle opposite drivers. So, you need
not change your headlights in a coun-
try with opposite traffic direction.
LIGHT BULBS

I-7
I
If you have a flat tyre (with tyre mobility kit) ..................................................... 7-25
Introduction ...................................................................................................... 7-25
Notes on the safe use of the tyre Mobility Kit ................................................. 7-26
Components of the Tyre Mobility Kit .............................................................. 7-27
Using the Tyre Mobility Kit ............................................................................. 7-28
Distributing the sealant ..................................................................................... 7-30
Checking the tyre inflation pressure ................................................................. 7-30
Ignition switch ....................................................................................................... 6-7
Key ignition switch ........................................................................................... 6-7
Engine Start/Stop button ................................................................................. 6-10
Important safety precautions.................................................................................. 3-2
Always wear your seat belt ................................................................................ 3-2
Restrain all children ........................................................................................... 3-2
Air bag hazards ................................................................................................... 3-2
Driver distraction ................................................................................................ 3-2
Control your speed ............................................................................................. 3-3
Keep your vehicle in safe condition ................................................................... 3-3
In case of an emergency whilst driving ................................................................. 7-3
If the engine stalls whilst driving ....................................................................... 7-3
If the engine stalls at a crossroad or crossing ..................................................... 7-3
If you have a flat tyre whilst driving .................................................................. 7-4
Infotainment system............................................................................................. 5-90
USB port ........................................................................................................... 5-90
Antenna ............................................................................................................ 5-90
Steering wheel audio control ............................................................................ 5-91
Audio / Video / Navigation system .................................................................. 5-92
Bluetooth
® Wireless Technology hands-free ................................................... 5-93
How vehicle radio works .................................................................................. 5-93
Infotainment System specifications ................................................................... 5-125
Instrument cluster .................................................................................................. 4-2
Instrument cluster control ................................................................................... 4-3
Gauges and meters ............................................................................................. 4-3
Transmission shift indicator ............................................................................... 4-7
Warning and indicator lights .............................................................................. 4-8
LCD display messages ..................................................................................... 4-20

I-8
Index
Instrument panel overview .................................................................................... 2-5
Intelligent speed limit warning (ISLW) ............................................................... 6-72
System setting and activation ........................................................................... 6-73
Display ............................................................................................................. 6-73
Limitations of the system ................................................................................ 6-76
Interior features ................................................................................................... 5-79
Cigarette lighter ................................................................................................ 5-79
Ashtray ............................................................................................................. 5-79
Cup holder ........................................................................................................ 5-80
Sunvisor ............................................................................................................ 5-81
Power outlet ...................................................................................................... 5-82
USB charger ..................................................................................................... 5-83
Wireless mobile phone charging system .......................................................... 5-83
Clock ................................................................................................................ 5-86
Coat hook ......................................................................................................... 5-86
Floor mat anchor(s) .......................................................................................... 5-87
Luggage net (holder) ........................................................................................ 5-88
Cargo area cover ............................................................................................... 5-88
Interior overview ................................................................................................... 2-4
ISG (Idle Stop and Go) system ............................................................................ 6-44
To activate the ISG system ............................................................................... 6-44
To deactivate the ISG system .......................................................................... 6-47
ISG system malfunction ................................................................................... 6-47
The battery sensor deactivation ........................................................................ 6-48
J
Jump starting .......................................................................................................... 7-6
L
Lane keeping assist (LKA) .................................................................................. 6-61
LKA operation .................................................................................................. 6-62
LKA system function change ........................................................................... 6-63
Warning light and message............................................................................... 6-65
Limitations of the system ................................................................................. 6-67

I-11
I

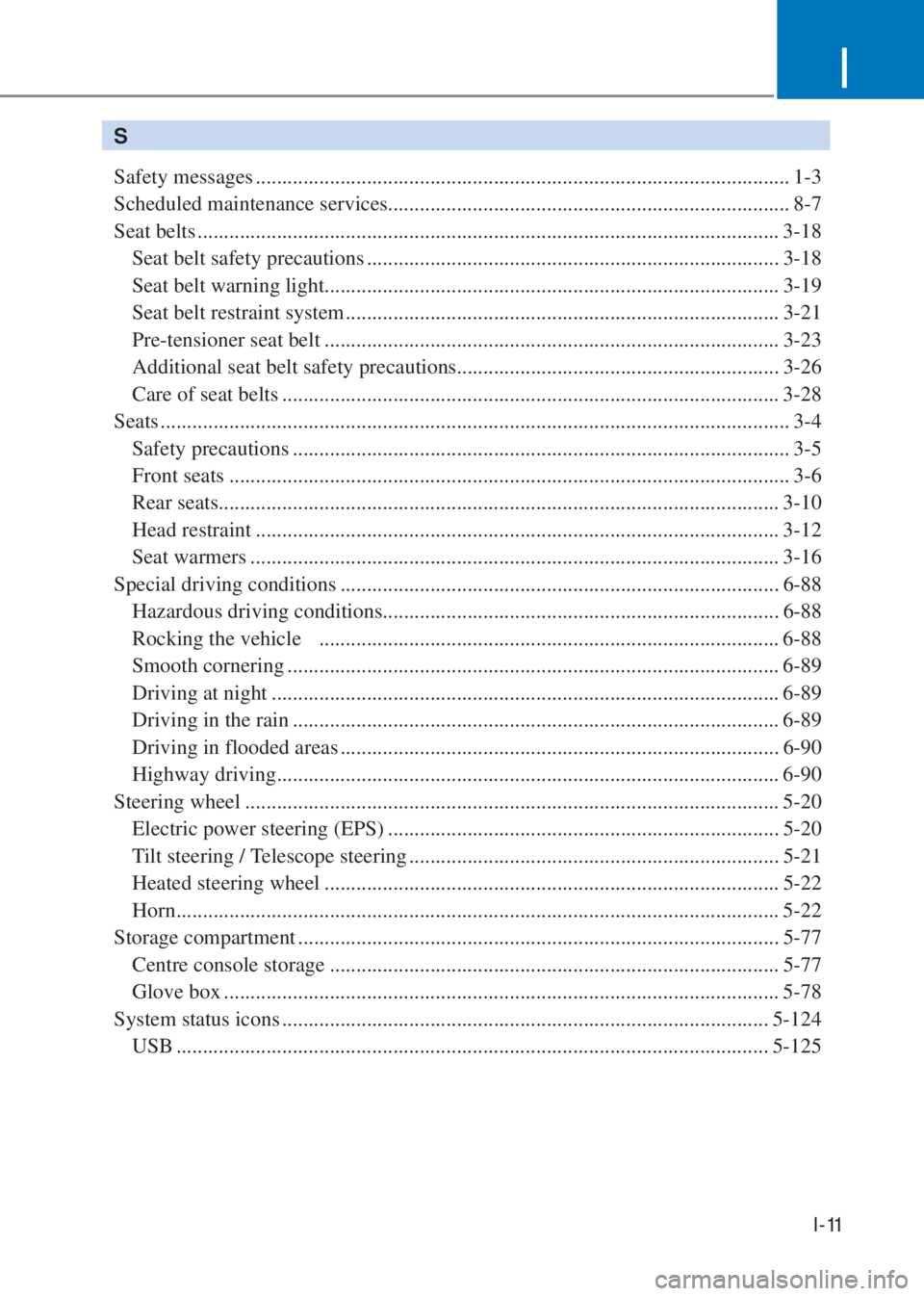

S
Safety messages ..................................................................................................... 1-3
Scheduled maintenance services............................................................................ 8-7
Seat belts .............................................................................................................. 3-18
Seat belt safety precautions .............................................................................. 3-18
Seat belt warning light ...................................................................................... 3-19
Seat belt restraint system .................................................................................. 3-21
Pre-tensioner seat belt ...................................................................................... 3-23
Additional seat belt safety precautions ............................................................. 3-26
Care of seat belts .............................................................................................. 3-28
Seats ....................................................................................................................... 3-4
Safety precautions .............................................................................................. 3-5
Front seats .......................................................................................................... 3-6
Rear seats .......................................................................................................... 3-10
Head restraint ................................................................................................... 3-12
Seat warmers .................................................................................................... 3-16
Special driving conditions ................................................................................... 6-88
Hazardous driving conditions ........................................................................... 6-88
Rocking the vehicle ....................................................................................... 6-88
Smooth cornering ............................................................................................. 6-89
Driving at night ................................................................................................ 6-89
Driving in the rain ............................................................................................ 6-89
Driving in flooded areas ................................................................................... 6-90
Highway driving ............................................................................................... 6-90
Steering wheel ..................................................................................................... 5-20
Electric power steering (EPS) .......................................................................... 5-20
Tilt steering / Telescope steering ...................................................................... 5-21
Heated steering wheel ...................................................................................... 5-22
Horn .................................................................................................................. 5-22
Storage compartment ........................................................................................... 5-77
Centre console storage ..................................................................................... 5-77
Glove box ......................................................................................................... 5-78
System status icons ............................................................................................ 5-124
USB ................................................................................................................ 5-125
