2023 HYUNDAI I10 tailgate

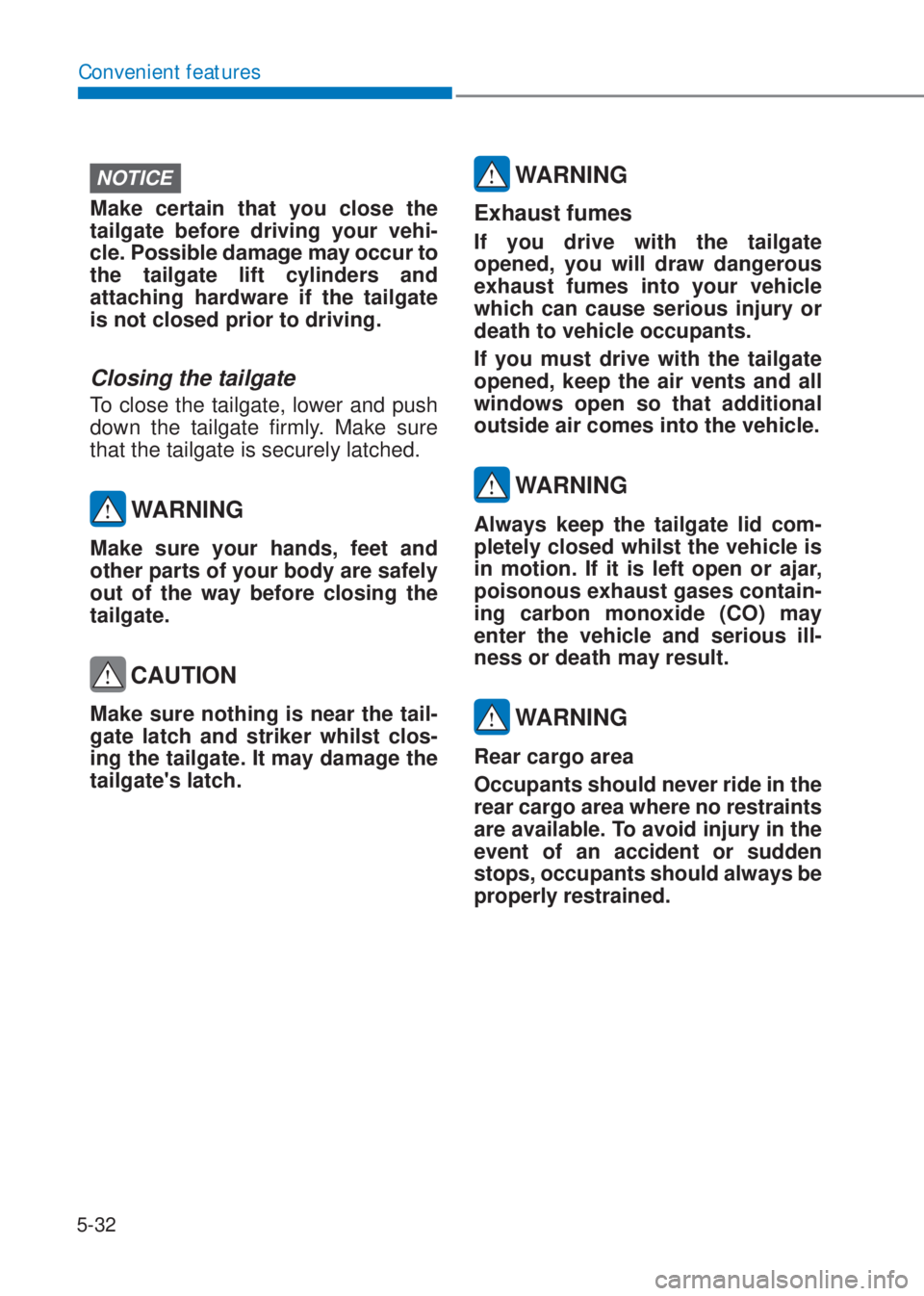

[x] Cancel search: tailgatePage 160 of 486
5-32
Convenient features
NOTICE
Make certain that you close the
tailgate before driving your vehi-
F O H 3 R V V L E O H G D P D J H P D \ R F F X U W R
the tailgate lift cylinders and
attaching hardware if the tailgate
is not closed prior to driving.
Closing the tailgate
To close the tailgate, lower and push
down the tailgate firmly. Make sure
that the tailgate is securely latched.
WARNING
Make sure your hands, feet and
other parts of your body are safely
out of the way before closing the
tailgate.
CAUTION
Make sure nothing is near the tail-
gate latch and striker whilst clos-
ing the tailgate. It may damage the
tailgate's latch.
WARNING
Exhaust fumes
If you drive with the tailgate
opened, you will draw dangerous
exhaust fumes into your vehicle
which can cause serious injury or
death to vehicle occupants.
If you must drive with the tailgate
opened, keep the air vents and all
windows open so that additional
outside air comes into the vehicle.
WARNING
Always keep the tailgate lid com-
pletely closed whilst the vehicle is
in motion. If it is left open or ajar,
poisonous exhaust gases contain-
ing carbon monoxide (CO) may
enter the vehicle and serious ill-
ness or death may result.
WARNING
Rear cargo area
Occupants should never ride in the
rear cargo area where no restraints
are available. To avoid injury in the
event of an accident or sudden
stops, occupants should always be
properly restrained.
Page 161 of 486
5-33
05
WARNING
OAC3059062TU
Do not hold the part (gas lifter) that
supports the tailgate. Be aware
that the deformation of the part
may cause vehicle damage and a
risk of safety accident.
) X H O I L O O H U G R R U
Opening the fuel filler door
OAC3059021R
The fuel filler door must be opened
from inside the vehicle by pulling up
the fuel filler door opener.
1. Stop the engine.
2. Pull the fuel filler door opener up.
OAC3059053TU
3. Pull the fuel filler door out (1) to
fully open.
4. To remove the fuel tank cap (2),
turn it counterclockwise. You may
hear a hissing noise as the pres-
sure inside the tank equalizes.
5. Place the cap on the fuel filler door
(3).
i Information
If the fuel filler door does not open
because ice has formed around it, tap
lightly or push on the door to break the
ice and release the door. 'o not pry on
the door. If necessary, spray around
the door with an approved de-icer fluid
(do not use radiator anti-free ]e) or
move the vehicle to a warm place and
allow the ice to melt.

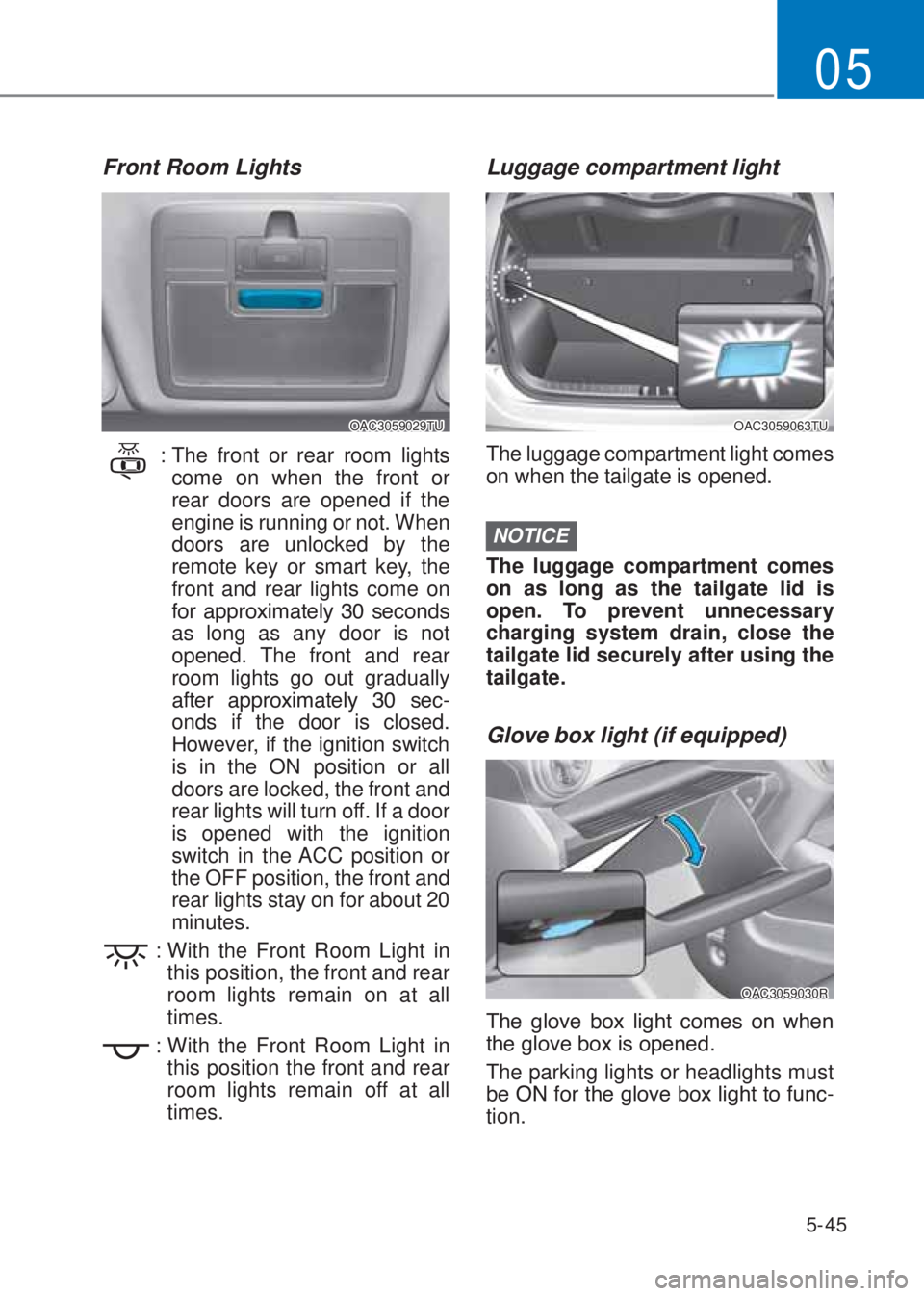

Page 173 of 486
5-45
05
Front Room Lights
OAC3059029TU
: The front or rear room lights
come on when the front or
rear doors are opened if the
engine is running or not. When
doors are unlocked by the
remote key or smart key, the
front and rear lights come on
I R U D S S U R [ L P D W H O \ V H F R Q G V
as long as any door is not
opened. The front and rear
room lights go out gradually
D I W H U D S S U R [ L P D W H O \ V H F-
onds if the door is closed.
However, if the ignition switch
is in the ON position or all
doors are locked, the front and
rear lights will turn off. If a door
is opened with the ignition
switch in the ACC position or
the OFF position, the front and
rear lights stay on for about 20
minutes.
: With the Front Room Light in
this position, the front and rear
room lights remain on at all
times.
: With the Front Room Light in
this position the front and rear
room lights remain off at all
times.
Luggage compartment light
OAC3059063TU
The luggage compartment light comes
on when the tailgate is opened.
NOTICE
The luggage compartment comes
on as long as the tailgate lid is
open. To prevent unnecessary
charging system drain, close the
tailgate lid securely after using the
tailgate.
Glove box light (if equipped)
OAC3059030R
7 K H J O R Y H E R [ O L J K W F R P H V R Q Z K H Q
W K H J O R Y H E R [ L V R S H Q H G
The parking lights or headlights must
E H 2 1 I R U W K H J O R Y H E R [ O L J K W W R I X Q F-
tion.

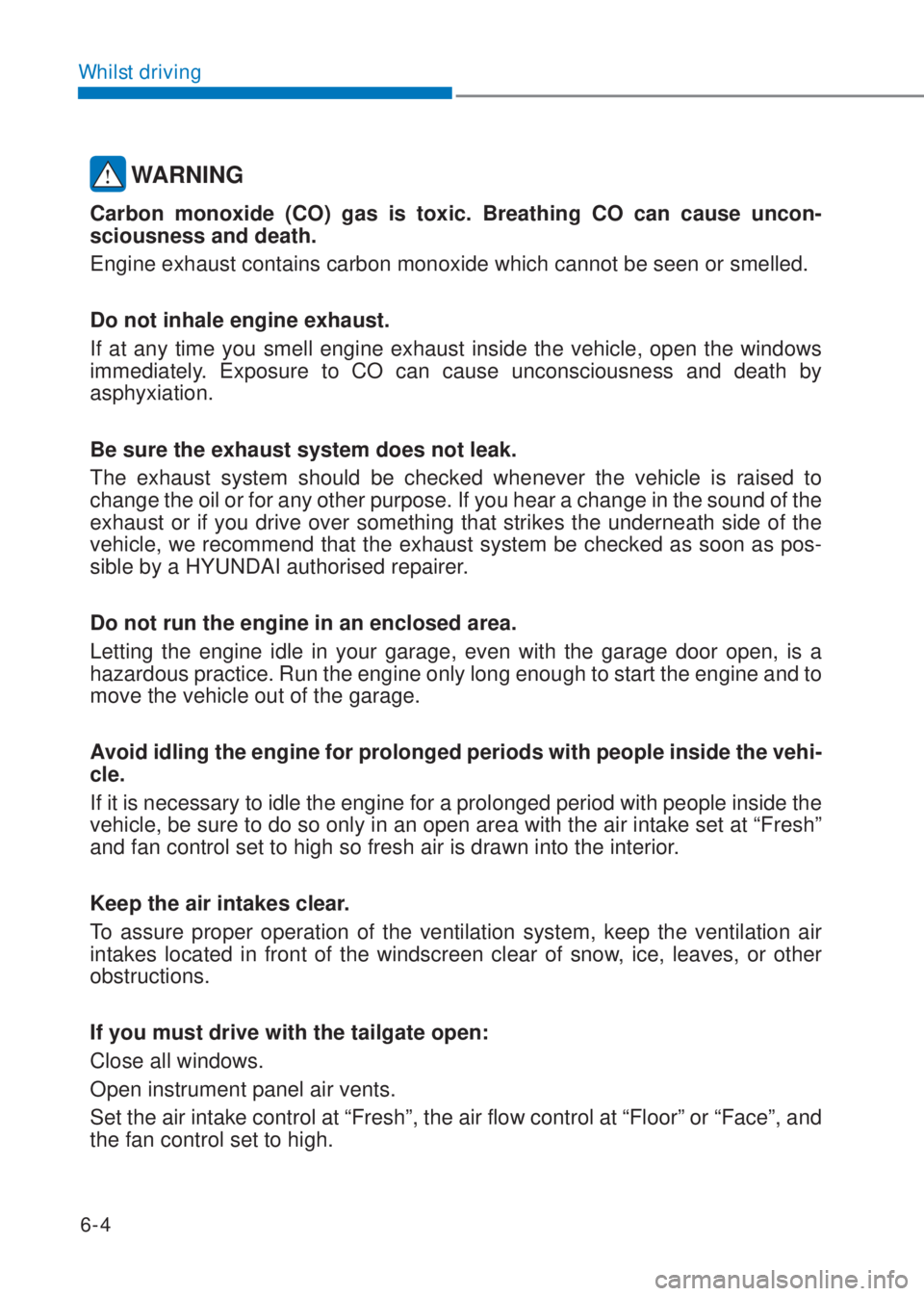

Page 260 of 486
6-4
Whilst driving
WARNING
Carbon monoxide (CO) gas is toxic. Breathing CO can cause uncon-
sciousness and death.
Engine exhaust contains carbon monoxide which cannot be seen or smelled.
Do not inhale engine exhaust.
If at any time you smell engine exhaust inside the vehicle, open the windows
immediately. Exposure to CO can cause unconsciousness and death by
asphyxiation.
Be sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to
change the oil or for any other purpose. If you hear a change in the sound of the
exhaust or if you drive over something that strikes the underneath side of the
vehicle, we recommend that the exhaust system be checked as soon as pos-
sible by a HYUNDAI authorised repairer.
Do not run the engine in an enclosed area.
Letting the engine idle in your garage, even with the garage door open, is a
hazardous practice. Run the engine only long enough to start the engine and to
move the vehicle out of the garage.
Avoid idling the engine for prolonged periods with people inside the vehi-
cle.
If it is necessary to idle the engine for a prolonged period with people inside the
vehicle, be sure to do so only in an open area with the air intake set at “Fresh”
and fan control set to high so fresh air is drawn into the interior.
Keep the air intakes clear.
To assure proper operation of the ventilation system, keep the ventilation air
intakes located in front of the windscreen clear of snow, ice, leaves, or other
obstructions.
If you must drive with the tailgate open:
Close all windows.
Open instrument panel air vents.
Set the air intake control at “Fresh”, the air flow control at “Floor” or “Face”, and
the fan control set to high.
Page 385 of 486
7-33
07
When towing your vehicle in an emer-
gency without wheel dollies:
1. Place the ignition switch in the
ACC position.
2. Place the shift lever in N (Neutral).
3. Release the parking brake.
CAUTION
) D L O X U H W R S O D F H W K H V K L I W O H Y H U L Q 1
1 H X W U D O P D \ F D X V H L Q W H U Q D O G D P-
D J H W R W K H W U D Q V P L V V L R Q
5 H P R Y D E O H W R Z L Q J K R R N
OAC3079015TU
1. Open the tailgate, and remove the
towing hook from the tool case.
OAC3079016TU
2. Remove the hole cover by press-
ing the lower part of the cover on
the bumper.
3. Install the towing hook by turning it
clockwise into the hole until it is
fully secured.
4. Remove the towing hook and
install the cover after use.
Page 477 of 486
I-5
I
E
Emergency commodity ........................................................................................ 7-36
Fire extinguisher ............................................................................................... 7-36
First aid kit ....................................................................................................... 7-36
Triangle reflector .............................................................................................. 7-36
Tyre pressure gauge .......................................................................................... 7-36
Emission control system ...................................................................................... 8-72
Crankcase emission control system .................................................................. 8-72
Evaporative emission control system ............................................................... 8-72
Exhaust emission control system ..................................................................... 8-73
Engine compartment ....................................................................................... 2-7, 8-3
Engine coolant ..................................................................................................... 8-13
Checking the coolant level ............................................................................... 8-13
Changing the engine coolant ............................................................................ 8-15
Engine number ..................................................................................................... 2-14
Engine oil ............................................................................................................. 8-11
Checking the engine oil level ........................................................................... 8-11
Checking the engine oil and filter .................................................................... 8-12
Engine specification............................................................................................... 2-8
Explanation of scheduled maintenance items ........................................................ 8-8
Exterior features.......................................................................................... 5-30, 5-89
Bonnet .............................................................................................................. 5-30
Tailgate ............................................................................................................. 5-31
Fuel filler door .................................................................................................. 5-33
Roof rack .......................................................................................................... 5-89
Exterior overview (I) ............................................................................................. 2-2
Exterior overview (II) ............................................................................................ 2-3
