Vehicle Information2-10
BULB WATTAGE
Light bulb Bulb type Wattage
Front T
ype A
Headlight
High HB3 60
Low HB3 60
Daytime running lamp (DRL)/Parking lamp LED LED
Type B Headlight
High
LED LED
Low
Daytime running lamp (DRL)/Parking lamp LED LED
Side marker Bulb type W5W 5
LED type LED LED
Turn signal lamp PY21W 21
Side repeater lamp (Outside mirror) LED LED
Rear Type A
Stop lamp P21W/5W 21
Tail lamp Inner W5W 5
Outer P21/5W 5
Type B Stop lamp
P21W/5W 21
Tail lamp LED LED
Type C Stop lamp LED LED
Tail lamp LED LED
Side marker Bulb type W5W 5
LED type LED LED
Turn signal lamp PY21W 21
License plate lamp W5W 5 Reverse lamp W16W 16
High mounted stop lamp P21W 21
Interior Map lamp
W10W10
Room lamp FESTOON 8
Vanity mirror lamp FESTOON 5
Trunk room lamp FESTOON 5
Mood lamp LEDLED

04
4-17
Turn Signal Indicator Light
This indicator light blinks:
When you operate the turn signal
indica
tor stalk.
If any of the following occur, there may be
a malfunction with the turn signal system.

- The turn signal indicator light
illuminates but does not blink

- The turn signal indicator light blinks
rapidly

- The turn signal indicator light does not
illuminate at all
If any of these conditions occur, have
your vehicle inspected by an authorized
HYUNDAI dealer.
For more details, refer to “High Beam
Assist (HBA)” in chapter 5.
Exterior Light Warning Light
(if equipped)
This warning light illuminates:

[ When one o
f the exterior bulbs
(headlight, DRL, turn signal lamp, stop
lamp, etc) is not operating properly.
One of the bulbs may need to be
replaced.
Information
Make sure to replace the burned out bulb
with a new one of the same wattage rating.
LED headlight warning light
(if equipped)
This warning light illuminates:

[ When y
ou set the Engine Start/Stop
button to the ON position.
- The LED headlight warning light illuminates for approximately 3
seconds and then goes off.

[ Whenever there is a malfunction with
the LED headlight.
If this occurs, have your vehicle
inspected by an authorized HYUNDAI
dealer.
NOTICE
Continuous driving with the LED
Headlight warning light on or blinking
can reduce LED headlight life.
High Beam Indicator Light
This indicator light illuminates:

[When the headligh
ts are on and in the
high beam position.

[ When the turn signal lever is pulled
into the Flash-to-Pass position.
Light ON Indicator Light
This indicator light illuminates:
When the tail lights or headlights are on.

Instrument Cluster4-22
Wiper
OAD048579N
This indicator displays which wiper speed
is selected using the wiper control.
Heated Steering Wheel turned off (if
equipped)
This message is displayed if you turn off
the heated steering wheel.
For more details, refer to “Heated
Steering Wheel” in chapter 5.
Low washer fluid (if equipped)
This warning message is displayed if
the washer fluid level in the reservoir is
nearly empty.
Have the washer fluid reservoir refilled.
Low fuel
This warning message is displayed if the
fuel tank is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the nearest
fueling station and refuel as soon as
possible.
Engine Overheated (if equipped)
This warning message is displayed
when the engine coolant temperature
is above 248°F (120°C). This means that
the engine is overheated and may be
damaged.
If your vehicle is overheated, refer to
“Overheating” in chapter 8.
Check headlight (if equipped)
This warning message is displayed if the
headlights are not operating
properly.
In addition, if a specific lamp(turn signal
lamp etc.) is not operating properly, the
warning message according to a specific
lamp (turn signal lamp etc.) is displayed.
A corresponding bulb may need to be
replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.

04
4-23
Check headlight (Low) (if equipped)
This warning message is displayed if
the headlight (Low) are not operating
properly.
In addition, if a specific lamp(turn signal
lamp etc.) is not operating properly, the
warning message according to a specific
lamp (turn signal lamp etc.) is displayed.
A corresponding bulb may need to be
replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating
Check turn signal (if equipped)
This warning message is displayed if the
turn signal lamps are not operat-
ing properly. A lamp may need to be
replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check brake light (if equipped)
This warning message is displayed if the
stop lamps are not operating properly. A
lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check daytime running light (if
equipped)
This warning message is displayed
if the daytime running lights are not
operating properly. A lamp may need to
be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check high mounted stop lamp (if
equipped)
This warning message is displayed if
the high mounted stop lamp are not
operating properly. A lamp may need to
be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlight LED (if equipped)
This warning message is displayed
if there is a problem with the LED
headlight. Have the vehicle inspected by
an authorized HYUNDAI dealer.

Convenience Features5-70
ODN8A059204
To flash the high beam headlight, pull the
lever towards you, then release the lever.
The high beams will remain ON as long
as you hold the lever towards you.
Turn Signals And Lane Change
Signals
ODN8A059207
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position (A). To signal a lane change,
move the turn signal lever slightly and
hold it in position (B). The lever will
return to the OFF position when released
or when the turn is completed.
If an indicator stays on and does not flash
or if it flashes abnormally, one of the turn
signal bulbs may be burned out and will
require replacement.
One touch turn signal function
To activate a one-touch turn signal
function, move the turn signal lever
slightly and then release it. The lane
change signals will blink 3, 5 or 7 times.
You can activate or deactivate the One
Touch Turn Signal function or choose
the number of blinks (3, 5, or 7) from the
User Settings Mode on the LCD display.
For more details, refer to “LCD Display
Modes” in chapter 4. If your vehicle is
equipped with additional navigation,
please refer to the infotainment system
manual separately supplied.

Tires and Wheels ........................................................................\
.................. 9-32Tire Care ........................................................................\
.......................................... 9-32
Recommended Cold Tire Inflation Pressures ....................................................... 9-32
Check Tire Inflation Pressure ........................................................................\
......... 9-33
Tire Rotation ........................................................................\
................................... 9-34
Wheel Alignment and Tire Balance ....................................................................... 9-35
Tire Replacement ........................................................................\
........................... 9-35
Wheel Replacement ........................................................................\
....................... 9-37
Tire Traction ........................................................................\
.................................... 9-37
Tire Maintenance..................................................................\
.................................. 9-37
Tire Sidewall Labeling ........................................................................\
.................... 9-37
Tire Terminology and Definitions ........................................................................\
. 9-40
All Season Tires ........................................................................\
............................... 9-43
Summer Tires ........................................................................\
................................. 9-43
Snow Tires......................................................................\
......................................... 9-43
Radial-Ply Tires ........................................................................\
............................... 9-43
Low Aspect Ratio Tires ........................................................................\
...................9-44
Fuses ...................................................................\
..........................................9-45Instrument Panel Fuse Replacement ....................................................................9-46
Engine Compartment Panel Fuse Replacement .................................................. 9-47
Fuse/Relay Panel Description........................................................................\
........9-48
Light Bulbs ........................................................................\
............................ 9-55Headlight, Parking Lamp, Daytime Running Light, Turn Signal Lamp and Side
Marker .....................................................................\
................................................ 9-55
Side repeater lamp replacement ........................................................................\
..9-58
Rear combination lamp bulb replacement .......................................................... 9-59
High mounted stop lamp replacement ................................................................ 9-62
License Plate Light Bulb Replacement ................................................................. 9-62
Interior Light Bulb Replacement ........................................................................\
...9-63
Appearance Care ........................................................................\
................ 9-64Exterior Care ........................................................................\
...................................9-64
Interior Care ........................................................................\
.................................... 9-70
Emission Control System ........................................................................\
..... 9-73
California Perchlorate Notice ...................................................................... 9-76
9

09
9-55
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlight assembly to get to the
bulb(s).
Removing/installing the headlight
assembly can result in damage to the
vehicle.
Information
The headlight and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp
inside and outside and does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlight
on. The removable level may differ
depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING

[Prior to replacing a lamp, depress
the foot brake, move the shift button
into P (Park) apply the parking brake,
place the ignition switch to the
LOCK/OFF position, and take the key
with you when leaving the vehicle
to avoid sudden movement of the
vehicle and to prevent possible
electric shock.

[ Be aware the bulbs may be hot and
may burn your fingers.

[ When the bulb is disconnected or the
lamp connector is removed while the
lamp is operating normally, the fuse
box electronics may recognize the
lamp as a malfunction. Therefore, a
fault record for the lamp may remain
in the Diagnostic Trouble Code (DTC)
recorded in the fuse box.
Headlight, Parking Lamp,
Daytime Running Light, Turn
Signal Lamp and Side Marker
OCN7090015N
OCN7090016N
(1) Headlight (Low)
(2) Headlight (High)
(3) Daytime running lamp (DRL)/
Parking lamp
(4) Turn signal lamp
(5) Side marker
LIGHT BULBS

09
9-57

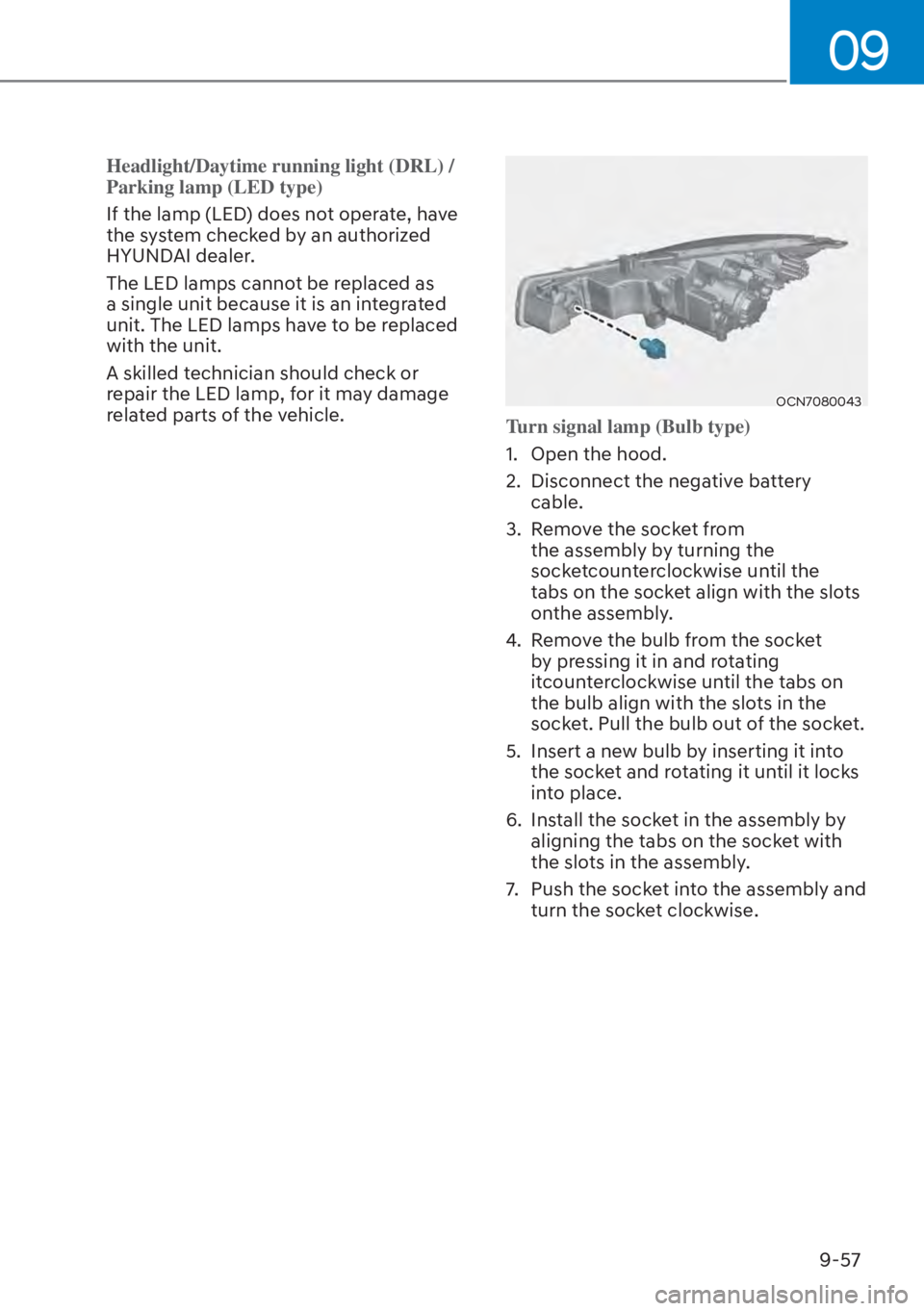

Headlight/Daytime running light (DRL) /
Parking lamp (LED type)
If the lamp (LED) does not operate, have
the s
ystem checked by an authorized
HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps have to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
OCN7080043
Turn signal lamp (Bulb type)
1. Open the hood.
2.

Disconnect the negative battery
cable.
3. Remove the socket from the assembly by turning the
socketcounterclockwise until the
tabs on the socket align with the slots
onthe assembly.
4. Remove the bulb from the socket by pressing it in and rotating
itcounterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the socket.
5. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
6. Install the socket in the assembly by aligning the tabs on the socket with
the slots in the assembly.
7. Push the socket into the assembly and turn the socket clockwise.
