2023 HYUNDAI ELANTRA clutch

2-7
02
The actual shape may differ from the illustration.OCN7012001C
INSTRUMENT PANEL OVERVIEW
1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ..............................3-37
3. Engine start button................................. 6-8
4. Key ignition switch ................................. 6-5
5. Infotainment system ............................ 5-117
6. Hazard warning flasher switch .............. 8-2
7. Climate control system ............... 5-81/5-92
8. Passenger’s front air bag ......................3-379. Glove box ............................................. 5-110
10. Manual transmission/
Intelligent variable transmission /
Dual clutch transmission ..... 6-13/6-16/6-23
11. Drive mode button ............................... 6-54
12. Parking/View button ............................ 7-114
13. Electronic parking brake switch .......... 6-37
14. AUTO HOLD button ...............................6-41
„N Line

02
2-13
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil
*1
(drain and refill) Smartstream
G 2.0 Atkinson 4.54 US qt.

b Full synthetic, API SN PLUS/
SP or ILSAC GF-6
SAE: 0W-20 *
2
Smartstream
G1.6 T-GDi 5.07 US qt.

b Full synthetic, API SN PLUS/
SP or ILSAC GF-6
SAE: 0W-20
Manual transmission fluid 1.6~1.7 US qt.
a
b HK SYN MTF 70W, SPIRAX S6
GHME 70W MTF, GS MTF HD 70W
(API GL-4, SAE 70W, TGO-9)
Intelligent variable transmission
fluid 6.87 US qt.

b Hyundai genuine SP-CVT1
Dual clutch transmission fluid 1.7~1.8 US qt.
a
b SAE 70W, API GL-4,
HK D DCTF TGO-10 PLUS (SK)
SPIRAX S6 GHDE 70W DCTF PLUS
(H.K.SHELL)
Coolant Smartstream
G 2.0 Atkinson
7.82 US qt.

b Mixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
Smartstream
G 1.6 T-GDi 7.19 US qt.

b
Brake/clutch fluid 0.74~0.85 US qt.
a
b DOT-4 *
3
Fuel 49.66 US qt.

b Refer to “Fuel requirements” in
the Foreword chapter.
*1 : Refer to the recommended SAE viscosity numbers on page 12.
*2 : Requires grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.
*3 : To maintain the best braking performance and ABS/ESC performance, have you use
genuine brake fluid that conform to specifications. (Standard : SAE J1704 DOT-4 LV,
ISO4925 CLASS-6 and FMVSS 116 DOT-4)

4
Cruise Indicator Light ........................................................................\
...................4-18
SPORT Mode Indicator Light ........................................................................\
........4-18
SMART Mode Indicator Light ........................................................................\
.......4-19
Icy Road Warning Light ........................................................................\
................4-19
LCD Display Messages ........................................................................\
....................4-19 Shift to P or N to start engine (for smart key system) ........................................4-19
Shift to P (for smart key system and intelligent variable transmission) ............4-19
Low key battery (for smart key system)...............................................................4-19
Press brake pedal to start engine (for smart key system and intelligent
variable transmission)......................................................................\
.....................4-19
Press clutch pedal to start engine (for smart key system and manual
transmission) .....................................................................\
................................... 4-20
Key not in vehicle (for smart key system) ........................................................... 4-20
Key not detected (for smart key system)............................................................ 4-20
Press START button again (for smart key system) ............................................. 4-20
Battery discharging due to external electrical devices ..................................... 4-20
Press START button with key (for smart key system) ........................................ 4-20
Check BRAKE SWITCH fuse (for smart key system and automatic
transmission/intelligent variable transmission)................................................. 4-20
Door, Hood, Trunk Open Indicator....................................................................... 4-21
Sunroof Open ........................................................................\
................................ 4-21
Low Pressure ........................................................................\
................................. 4-21
Lights Mode........................................................................\
................................... 4-21
Wiper ..................................................................\
.................................................. 4-22
Heated Steering Wheel turned off ...................................................................... 4-22
Low washer fluid ........................................................................\
.......................... 4-22
Low fuel ........................................................................\
........................................ 4-22
Engine Overheated ........................................................................\
...................... 4-22
Check headlight ........................................................................\
........................... 4-22
Check headlight (Low) ........................................................................\
................ 4-23
Check turn signal ........................................................................\
......................... 4-23
Check brake light ........................................................................\
......................... 4-23
Check daytime running light ........................................................................\
....... 4-23
Check high mounted stop lamp ........................................................................\
. 4-23
Check headlight LED ........................................................................\
................... 4-23
Check Forward Collision-Avoidance Assist system ........................................... 4-24
Check Lane Keeping Assist system .................................................................... 4-24
Check Blind-Spot Collision Warning system...................................................... 4-24
Check Driver Attention Warning system ............................................................ 4-24
Check High Beam Assist system ........................................................................\
. 4-24
Check Smart Cruise Control system ................................................................... 4-24

04
4-9

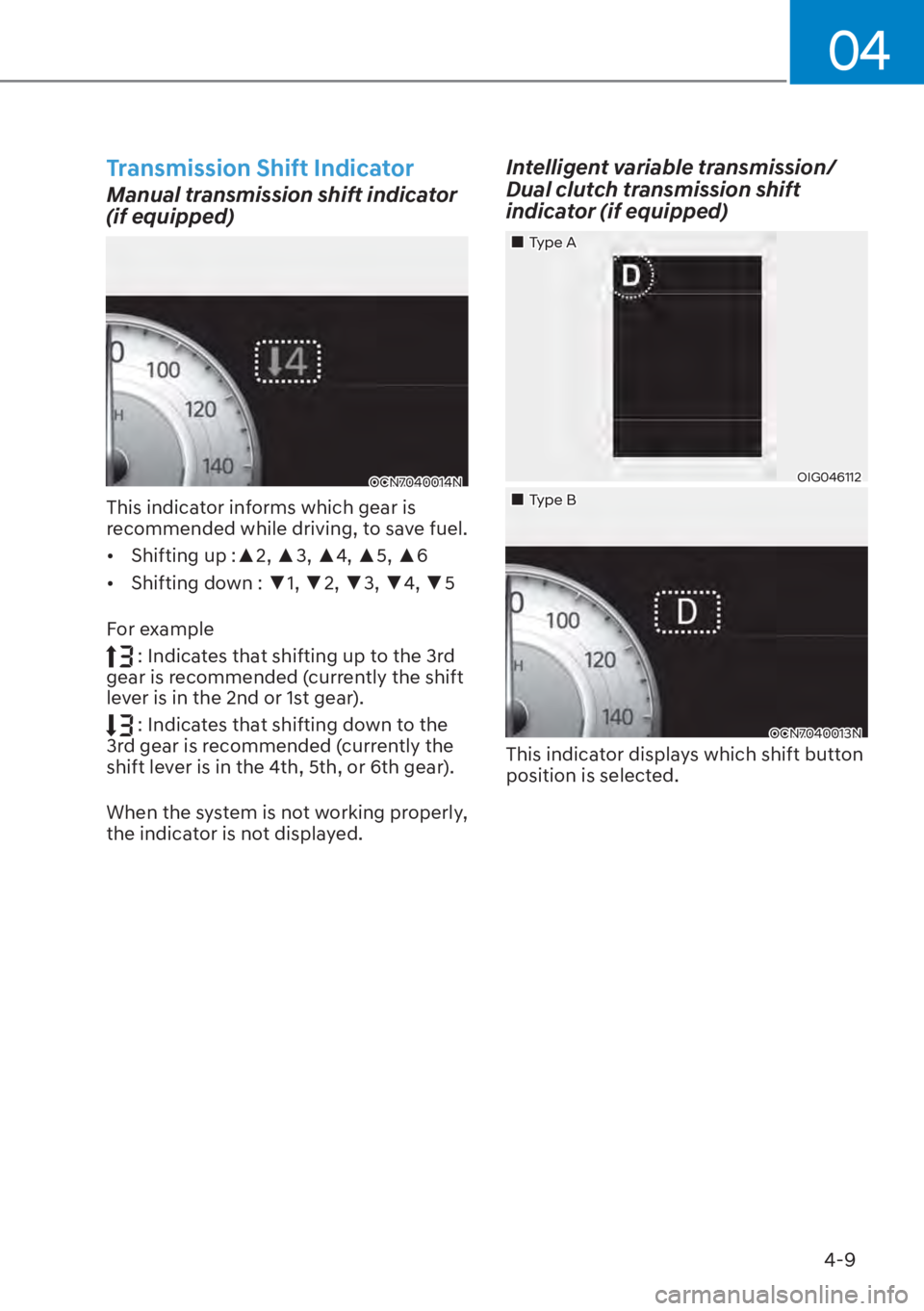

Transmission Shift Indicator
Manual transmission shift indicator
(if equipped)
OCN7040014N
This indicator informs which gear is
recommended while driving, to save fuel.

[Shifting up :
x2,
x3,
x4,
x5,
x6

[ Shifting down :
z1,
z2,
z3,
z4,
z5
For example
: Indicates that shifting up to the 3rd
gear is recommended (currently the shift
lever is in the 2nd or 1st gear).
: Indicates that shifting down to the
3rd gear is recommended (currently the
shift lever is in the 4th, 5th, or 6th gear).
When the system is not working properly,
the indicator is not displayed.
Intelligent variable transmission/
Dual clutch transmission shift
indicator (if equipped)
OIG046112
OCN7040013N
„Type A

„Type B
This indicator displays which shift button
position is selected.

Instrument Cluster4-20

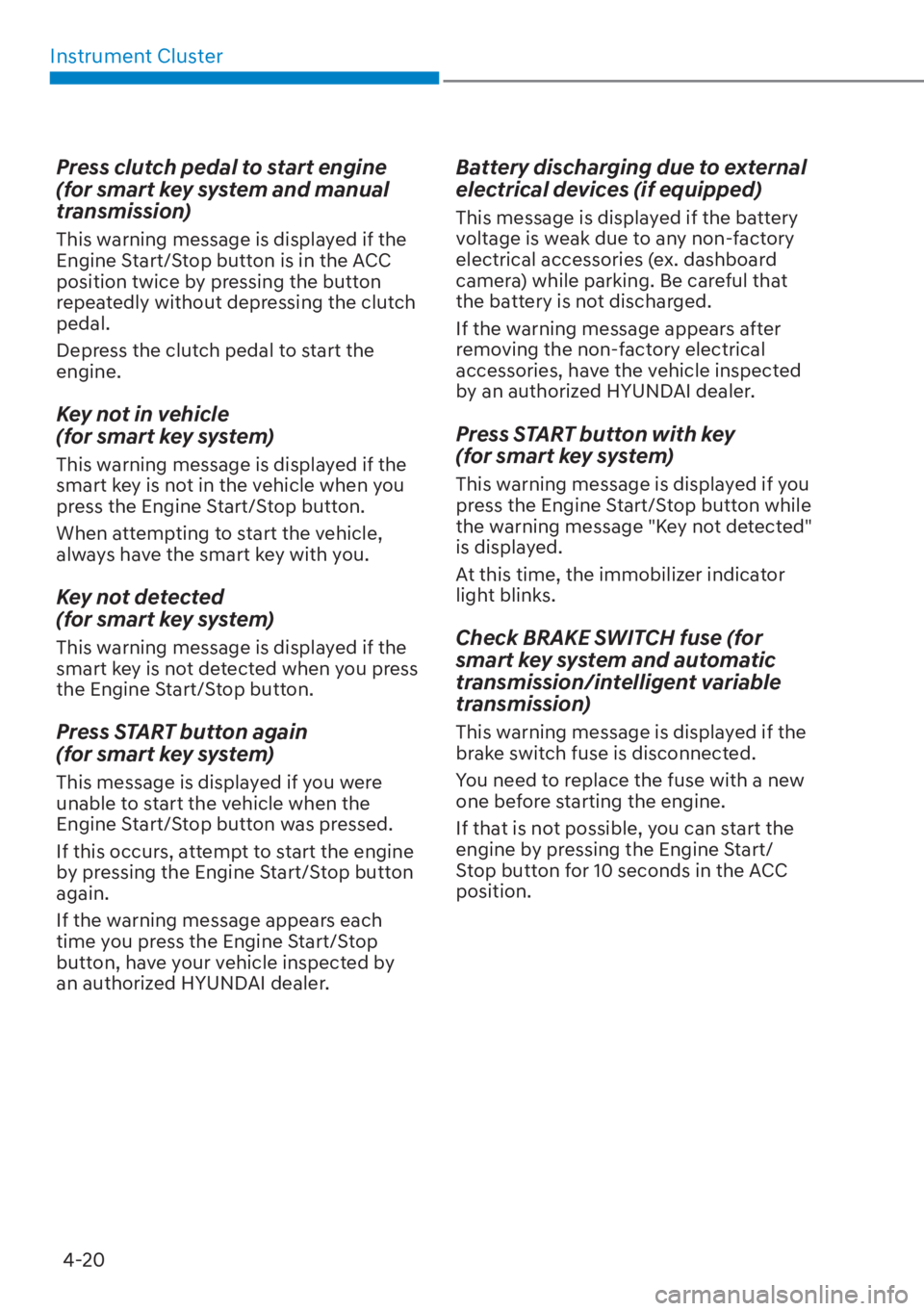

Press clutch pedal to start engine
(for smart key system and manual
transmission)
This warning message is displayed if the
Engine Start/Stop button is in the ACC
position twice by pressing the button
repeatedly without depressing the clutch
pedal.
Depress the clutch pedal to start the
engine.
Key not in vehicle
(for smart key system)
This warning message is displayed if the
smart key is not in the vehicle when you
press the Engine Start/Stop button.
When attempting to start the vehicle,
always have the smart key with you.
Key not detected
(for smart key system)
This warning message is displayed if the
smart key is not detected when you press
the Engine Start/Stop button.
Press START button again
(for smart key system)
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, have your vehicle inspected by
an authorized HYUNDAI dealer.
Battery discharging due to external
electrical devices (if equipped)
This message is displayed if the battery
voltage is weak due to any non-factory
electrical accessories (ex. dashboard
camera) while parking. Be careful that
the battery is not discharged.
If the warning message appears after
removing the non-factory electrical
accessories, have the vehicle inspected
by an authorized HYUNDAI dealer.
Press START button with key
(for smart key system)
This warning message is displayed if you
press the Engine Start/Stop button while
the warning message "Key not detected"
is displayed.
At this time, the immobilizer indicator
light blinks.
Check BRAKE SWITCH fuse (for
smart key system and automatic
transmission/intelligent variable
transmission)
This warning message is displayed if the
brake switch fuse is disconnected.
You need to replace the fuse with a new
one before starting the engine.
If that is not possible, you can start the
engine by pressing the Engine Start/
Stop button for 10 seconds in the ACC
position.

05
5-61

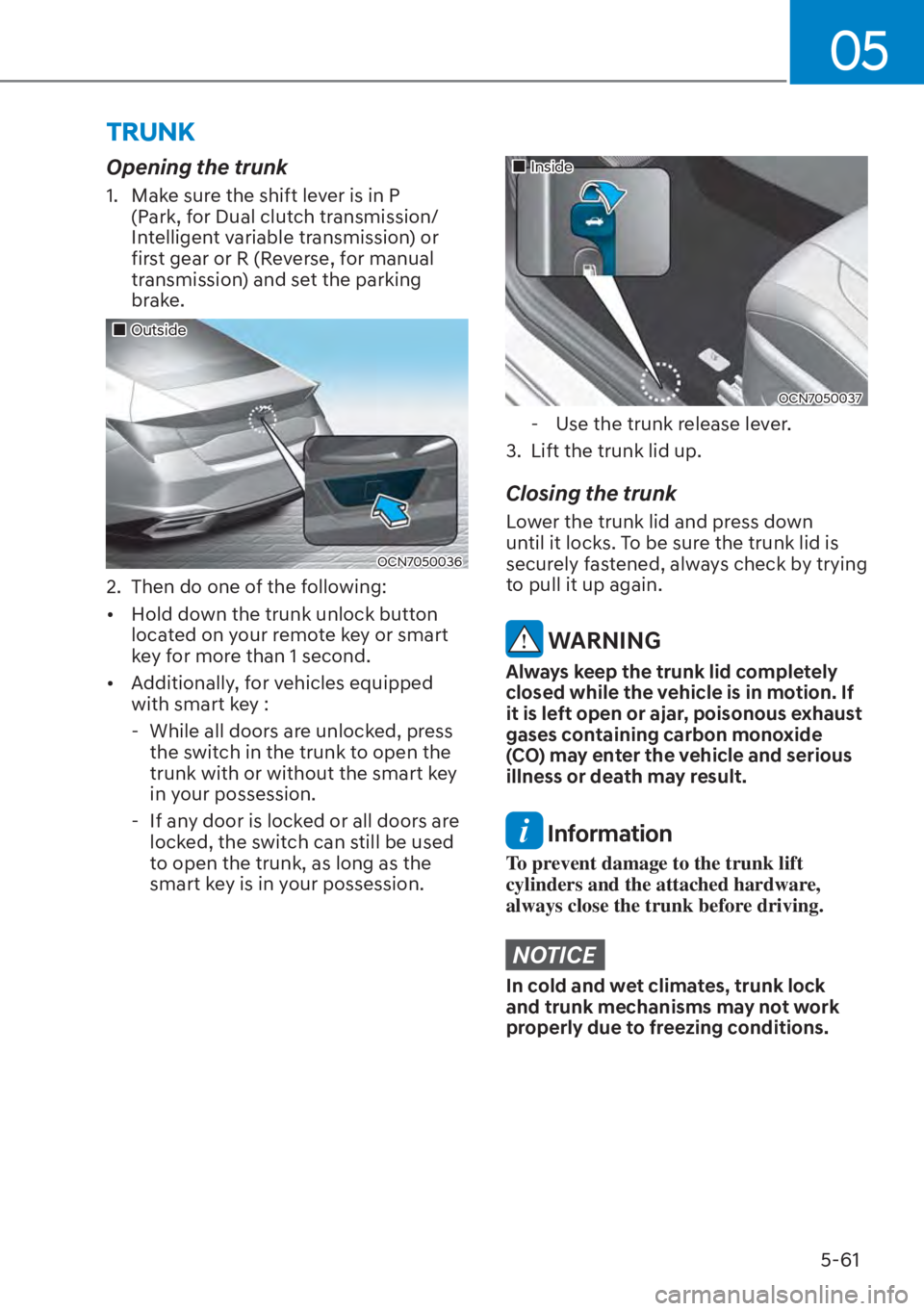

TRUNK
Opening the trunk
1. Make sure the shift lever is in P (Park, for Dual clutch transmission/
Intelligent variable transmission) or
first gear or R (Reverse, for manual
transmission) and set the parking
brake.
„Outside
OCN7050036
2. Then do one of the following:

[Hold down the trunk unlock button
located on your remote key or smart
key for more than 1 second.

[ Additionally, for vehicles equipped
with smart key :
- While all doors are unlocked, press the switch in the trunk to open the
trunk with or without the smart key
in your possession.
- If any door is locked or all doors are locked, the switch can still be used
to open the trunk, as long as the
smart key is in your possession.
„Inside
OCN7050037
- Use the trunk release lever.
3. Lift the trunk lid up.
Closing the trunk
Lower the trunk lid and press down
until it locks. To be sure the trunk lid is
securely fastened, always check by trying
to pull it up again.
WARNING
Always keep the trunk lid completely
closed while the vehicle is in motion. If
it is left open or ajar, poisonous exhaust
gases containing carbon monoxide
(CO) may enter the vehicle and serious
illness or death may result.
Information
To prevent damage to the trunk lift
cylinders and the attached hardware,
always close the trunk before driving.
NOTICE
In cold and wet climates, trunk lock
and trunk mechanisms may not work
properly due to freezing conditions.

6
6. Driving Your Vehicle
Before Driving ........................................................................\
........................6-4Before Entering the Vehicle ........................................................................\
............. 6-4
Before Starting ........................................................................\
................................. 6-4
Ignition Switch ........................................................................\
....................... 6-5Key Ignition Switch ........................................................................\
........................... 6-5
Engine Start/Stop Button ........................................................................\
................ 6-8
Vehicle Auto-Shut Off ........................................................................\
...........6-12Operating Conditions ........................................................................\
...................... 6-12
Deactivating Conditions ........................................................................\
................. 6-12
System Operation ........................................................................\
............................ 6-12
Manual Transmission ........................................................................\
............6-13Manual Transmission Operation ........................................................................\
.....6-13
Good Driving Practices ........................................................................\
................... 6-15
Intelligent Variable Transmission ................................................................ 6-16Intelligent Variable Transmission Operation .........................................................6-16
Parking .................................................................\
.................................................... 6-21
Good Driving Practices ........................................................................\
.................. 6-22
Dual Clutch Transmission ........................................................................\
.... 6-23Dual Clutch Transmission Operation .................................................................... 6-23
Lcd Display for Transmission Temperature and Warning Message .................... 6-25
Paddle Shifter (Manual Shift Mode) ..................................................................... 6-30
Parking .................................................................\
................................................... 6-32
Good Driving Practices ........................................................................\
.................. 6-32
Brake System ........................................................................\
........................ 6-34Power Brakes ........................................................................\
.................................. 6-34
Disc Brakes Wear Indicator......................................................................\
.............. 6-34
Parking Brake ........................................................................\
.................................. 6-35
Electronic Parking Brake (EPB) ........................................................................\
...... 6-37
Auto Hold ........................................................................\
.........................................6-41
Anti-lock Brake System (ABS) .....................................................................6-44Electronic Stability Control (ESC) ........................................................................\
.6-46
Vehicle Stability Management (VSM) ..................................................................6-48
Hill-Start Assist Control (HAC) ........................................................................\
......6-49
Good Braking Practices ................................................................\
.........................6-49
ISG (Idle Stop and Go) system.....................................................................6-50To Activate the ISG System ........................................................................\
............6-50
To Deactivate the ISG System ........................................................................\
....... 6-52
ISG System Malfunction ........................................................................\
................ 6-52
Battery Sensor Deactivation ........................................................................\
.......... 6-53

06
6-7

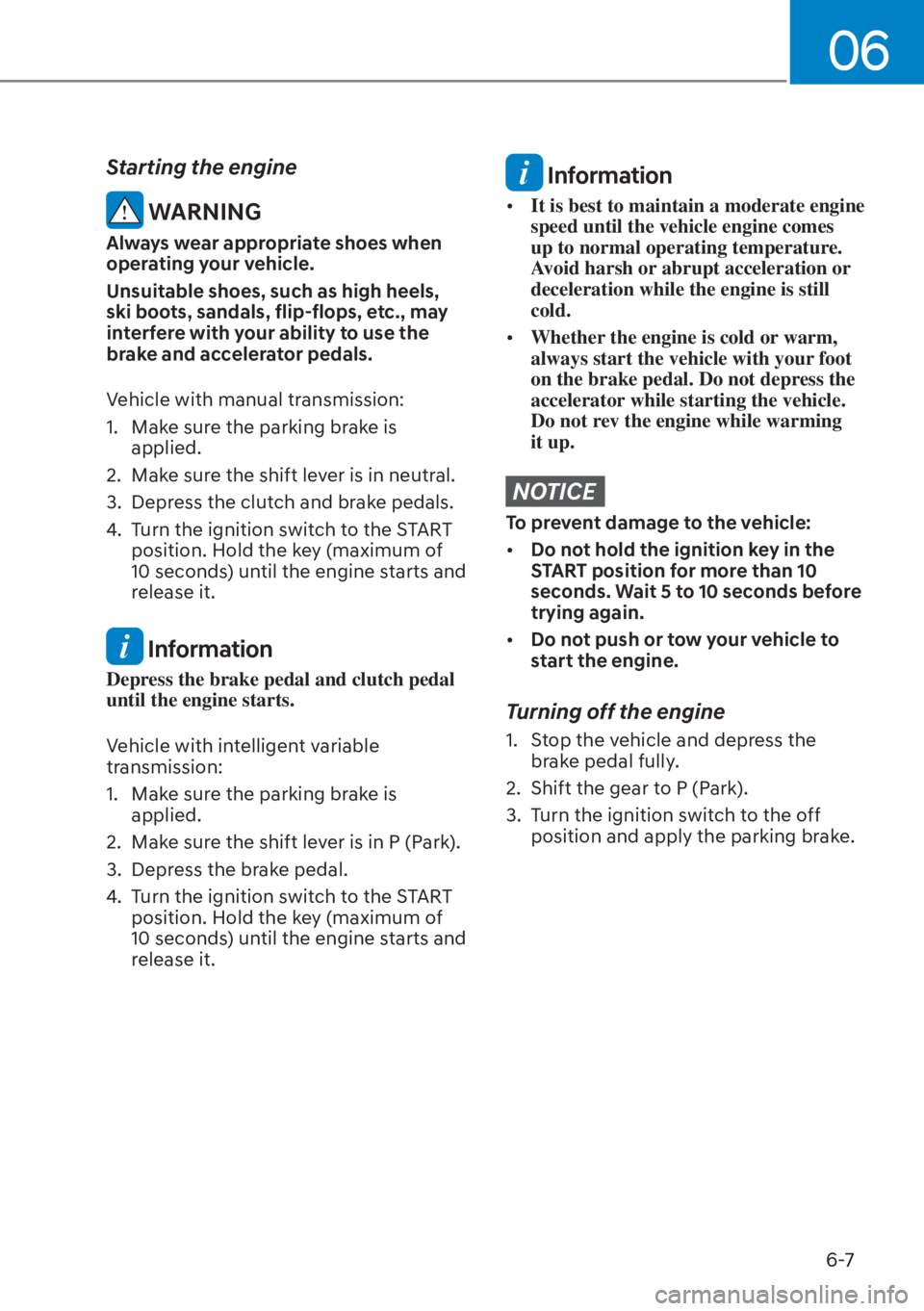

Starting the engine
WARNING
Always wear appropriate shoes when
operating your vehicle.
Unsuitable shoes, such as high heels,
ski boots, sandals, flip-flops, etc., may
interfere with your ability to use the
brake and accelerator pedals.
Vehicle with manual transmission:
1. Make sure the parking brake is applied.
2. Make sure the shift lever is in neutral.
3. Depress the clutch and brake pedals.
4. Turn the ignition switch to the START position. Hold the key (maximum of
10 seconds) until the engine starts and
release it.
Information
Depress the brake pedal and clutch pedal
until the engine starts.
Vehicle with intelligent variable
transmission:
1. Make sure the parking brake is applied.
2. Make sure the shift lever is in P (Park).
3. Depress the brake pedal.
4. Turn the ignition switch to the START position. Hold the key (maximum of
10 seconds) until the engine starts and
release it.
Information

[It is best to maintain a moderate engine
speed until the vehicle engine comes
up to normal operating temperature.
Avoid harsh or abrupt acceleration or
deceleration while the engine is still
cold.

[ Whether the engine is cold or warm,
always start the vehicle with your foot
on the brake pedal. Do not depress the
accelerator while starting the vehicle.
Do not rev the engine while warming
it up.
NOTICE
To prevent damage to the vehicle:

[Do not hold the ignition key in the
START position for more than 10
seconds. Wait 5 to 10 seconds before
trying again.

[ Do not push or tow your vehicle to
start the engine.
Turning off the engine
1. Stop the vehicle and depress the
brake pedal fully.
2. Shift the gear to P (Park).
3. Turn the ignition switch to the off position and apply the parking brake.
