Convenience Features5-20
Information
After reconnecting the vehicle battery
power supply or charging the battery, it
may take time to operate due to remote
renewal of security information. When you
lock or unlock the door with NFC, please
touch and hold your smartphone on the
door handle until it works.
When the mobile data connection of the
smartphone is weak, the remote renewal
of security information may fail. In this
case, you should lock, unlock or turn on
the vehicle with the card key. When you
are in the place where the mobile data
connection of your smartphone is available
and place your smartphone on the interior
authentication pad (wireless charger) and
start up your vehicle or touch the digital
key on the door handle to lock or unlock
the door, the remote renewal of security
information starts automatically. Even
though the engine is turned on, please
wait until the remote renewal process
is completed and wireless charger is
converted to charging mode.
CAUTION
The engine can be turned on if the
registered smartphone or card key is
placed on the interior authentication
pad (wireless charger). Do not leave
unsupervised children or people who
are not aware of the system since it
can result in serious injury or death.
Always have the registered digital key
(smartphone) or card key with you to
prevent vehicle theft when leaving the
vehicle.
For more information, refer to the
Engine Start/Stop button in chapter 6.
Remote Control with Digital Key
To use the remote control function with
y

our android smartphone, Bluetooth
must be turned on.
Remote Control Connection with Digital
Key
1. Open Hyundai digital key application on the smartphone. Select the
vehicle to activate the remote control
function as a main vehicle.
2. Approach with the activated smartphone app to your vehicle
and you can check whether the
connection is available. If it enables
your smartphone to connect, connect
with your vehicle by pressing the
connect button. The remote control
function is activated after completing
the process.
Remote Control Operation with Digital
Key
You can execute the remote control
operation including door lock/unlock,
panic on/off, remote start / remote
stop and trunk opening. The icon for
each function will be highlighted and
alarm/vibration also provided when the
operation is performed.
Note that you cannot lock your vehicle
using the Hyundai digital key app if any
of the following occurs:

[ The POWER button is in ACC or ON
position.

[ Any doors are open.
When the smartphone and the vehicle
are connected by the Bluetooth function
but the remote control command
cannot be received over 5 minutes, the
remote control connection is canceled
automatically.

05
5-21

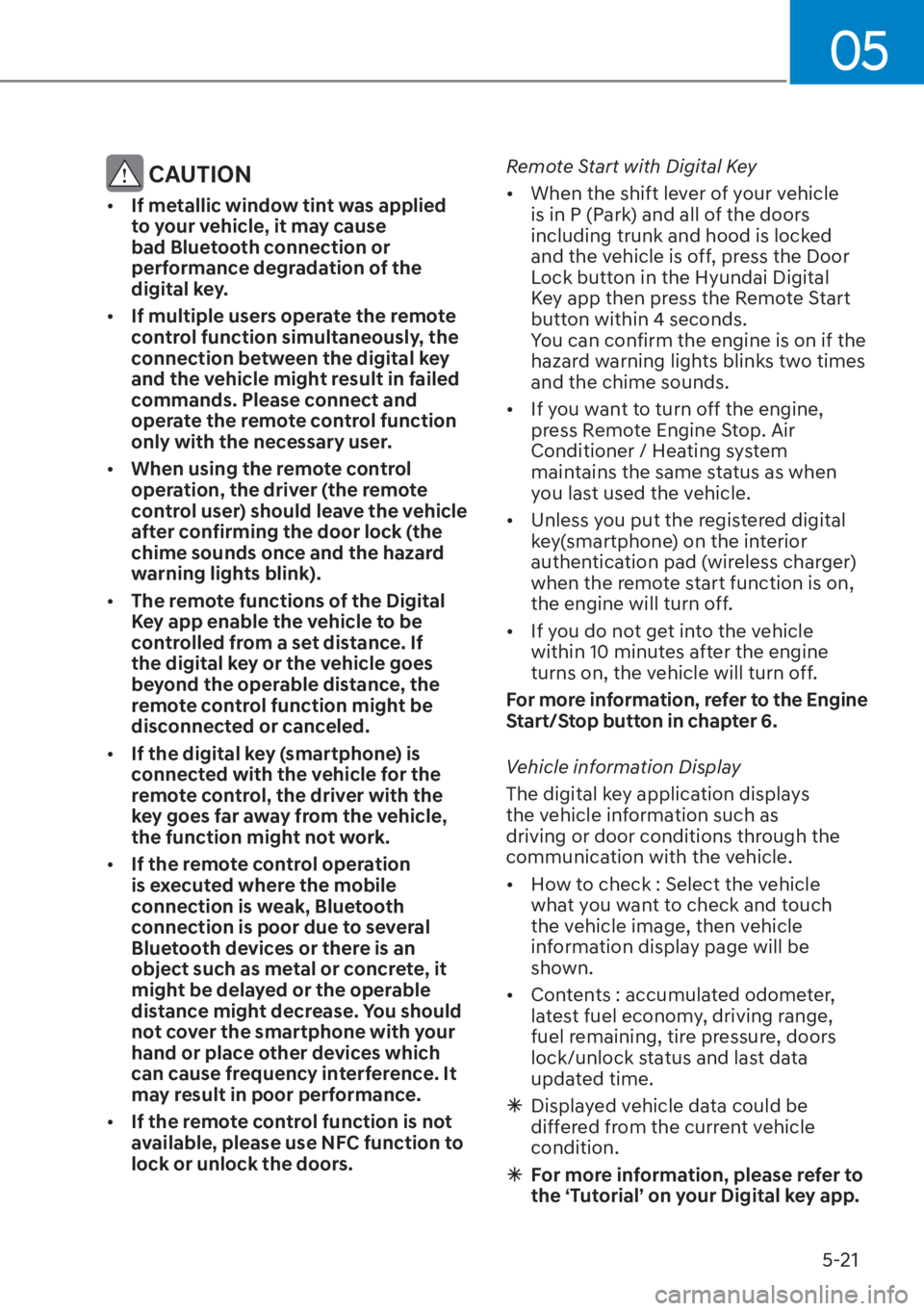

CAUTION

[If metallic window tint was applied
to your vehicle, it may cause
bad Bluetooth connection or
performance degradation of the
digital key.

[ If multiple users operate the remote
control function simultaneously, the
connection between the digital key
and the vehicle might result in failed
commands. Please connect and
operate the remote control function
only with the necessary user.

[ When using the remote control
operation, the driver (the remote
control user) should leave the vehicle
after confirming the door lock (the
chime sounds once and the hazard
warning lights blink).

[ The remote functions of the Digital
Key app enable the vehicle to be
controlled from a set distance. If
the digital key or the vehicle goes
beyond the operable distance, the
remote control function might be
disconnected or canceled.

[ If the digital key (smartphone) is
connected with the vehicle for the
remote control, the driver with the
key goes far away from the vehicle,
the function might not work.

[ If the remote control operation
is executed where the mobile
connection is weak, Bluetooth
connection is poor due to several
Bluetooth devices or there is an
object such as metal or concrete, it
might be delayed or the operable
distance might decrease. You should
not cover the smartphone with your
hand or place other devices which
can cause frequency interference. It
may result in poor performance.

[ If the remote control function is not
available, please use NFC function to
lock or unlock the doors. Remote Start with Digital Key

[
When the shift lever of your vehicle
is in P (Park) and all of the doors
including trunk and hood is locked
and the vehicle is off, press the Door
Lock button in the Hyundai Digital
Key app then press the Remote Start
button within 4 seconds.
You can confirm the engine is on if the
hazard warning lights blinks two times
and the chime sounds.

[ If you want to turn off the engine,
press Remote Engine Stop. Air
Conditioner / Heating system
maintains the same status as when
you last used the vehicle.

[ Unless you put the registered digital
key(smartphone) on the interior
authentication pad (wireless charger)
when the remote start function is on,
the engine will turn off.

[ If you do not get into the vehicle
within 10 minutes after the engine
turns on, the vehicle will turn off.
For more information, refer to the Engine
Start/Stop button in chapter 6.
Vehicle information Display
The digital key application displays
the vehicle information such as
driving or door conditions through the
communication with the vehicle.

[ How to check : Select the vehicle
what you want to check and touch
the vehicle image, then vehicle
information display page will be
shown.

[ Contents : accumulated odometer,
latest fuel economy, driving range,
fuel remaining, tire pressure, doors
lock/unlock status and last data
updated time.

à Displayed vehicle data could be
differed from the current vehicle
condition.

à For more information, please refer to
the ‘Tutorial’ on your Digital key app.

05
5-27

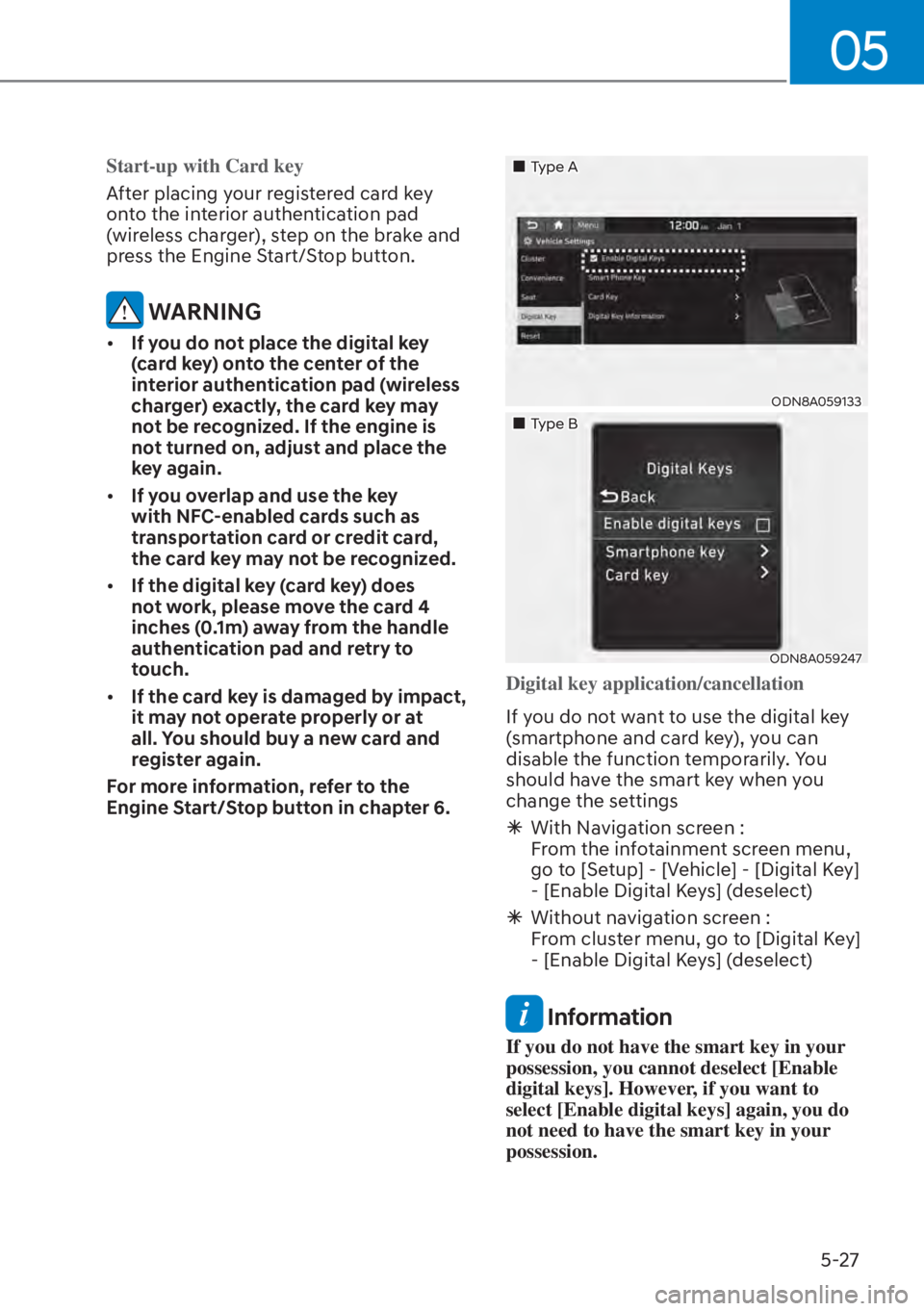

Start-up with Card key
After placing your registered card key
ont
o the interior authentication pad
(wireless charger), step on the brake and
press the Engine Start/Stop button.
WARNING

[ If you do not place the digital key
(card key) onto the center of the
interior authentication pad (wireless
charger) exactly, the card key may
not be recognized. If the engine is
not turned on, adjust and place the
key again.

[ If you overlap and use the key
with NFC-enabled cards such as
transportation card or credit card,
the card key may not be recognized.

[ If the digital key (card key) does
not work, please move the card 4
inches (0.1m) away from the handle
authentication pad and retry to
touch.

[ If the card key is damaged by impact,
it may not operate properly or at
all. You should buy a new card and
register again.
For more information, refer to the
Engine Start/Stop button in chapter 6.
„Type A
ODN8A059133
„Type B
ODN8A059247
Digital key application/cancellation
If you do not want to use the digital key
(
smartphone and card key), you can
disable the function temporarily. You
should have the smart key when you
change the settings

à With Navigation screen :
From the infotainment screen menu,
go to [Setup] - [Vehicle] - [Digital Key]
- [Enable Digital Keys] (deselect)

à Without navigation screen :
From cluster menu, go to [Digital Key]
- [Enable Digital Keys] (deselect)
Information
If you do not have the smart key in your
possession, you cannot deselect [Enable
digital keys]. However, if you want to
select [Enable digital keys] again, you do
not need to have the smart key in your
possession.

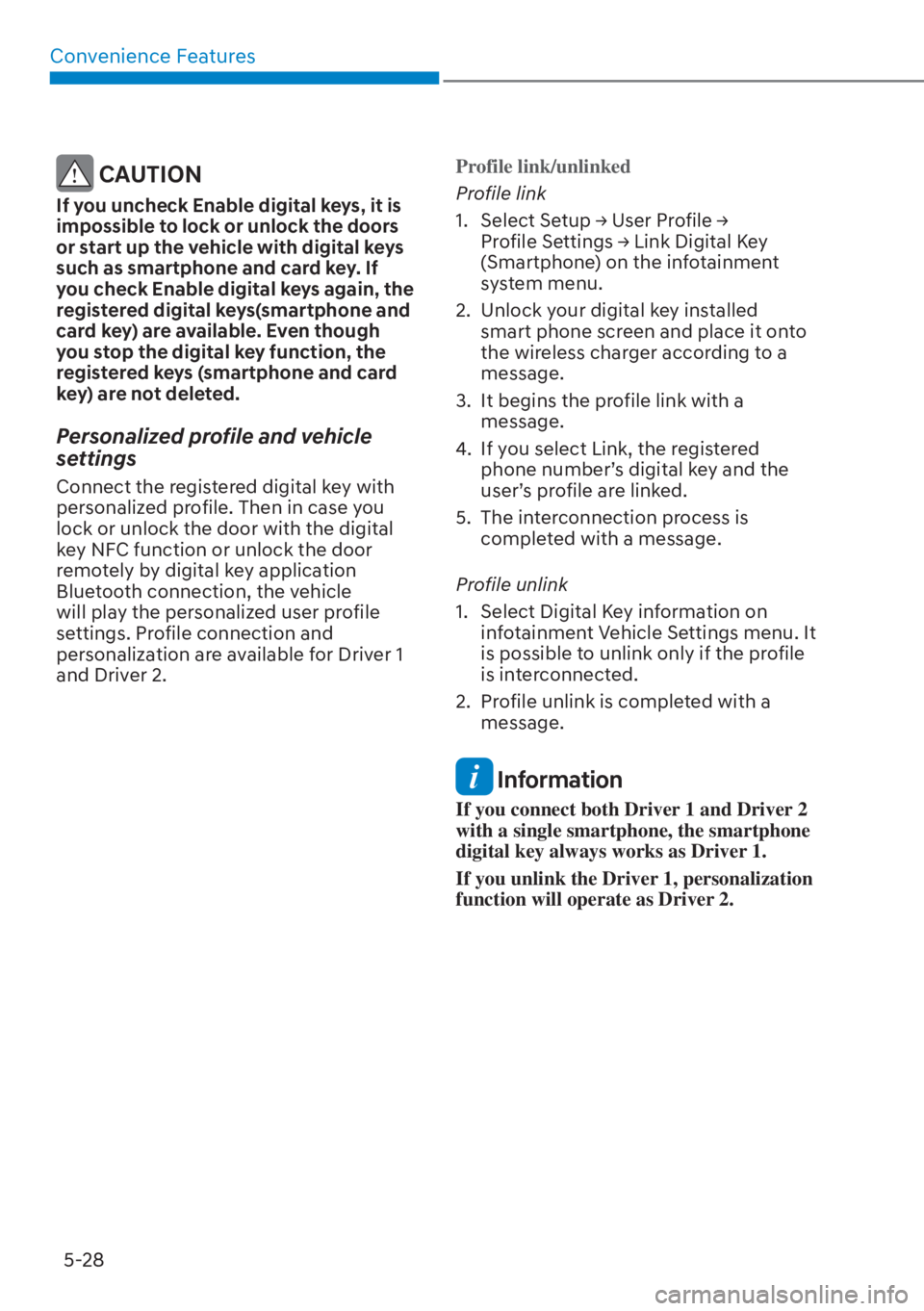

Convenience Features5-28
CAUTION
If you uncheck Enable digital keys, it is
impossible to lock or unlock the doors
or start up the vehicle with digital keys
such as smartphone and card key. If
you check Enable digital keys again, the
registered digital keys(smartphone and
card key) are available. Even though
you stop the digital key function, the
registered keys (smartphone and card
key) are not deleted.
Personalized profile and vehicle
settings
Connect the registered digital key with
personalized profile. Then in case you
lock or unlock the door with the digital
key NFC function or unlock the door
remotely by digital key application
Bluetooth connection, the vehicle
will play the personalized user profile
settings. Profile connection and
personalization are available for Driver 1
and Driver 2. Profile link/unlinked
Profile link


6HOHFW6HWXS

05
5-43

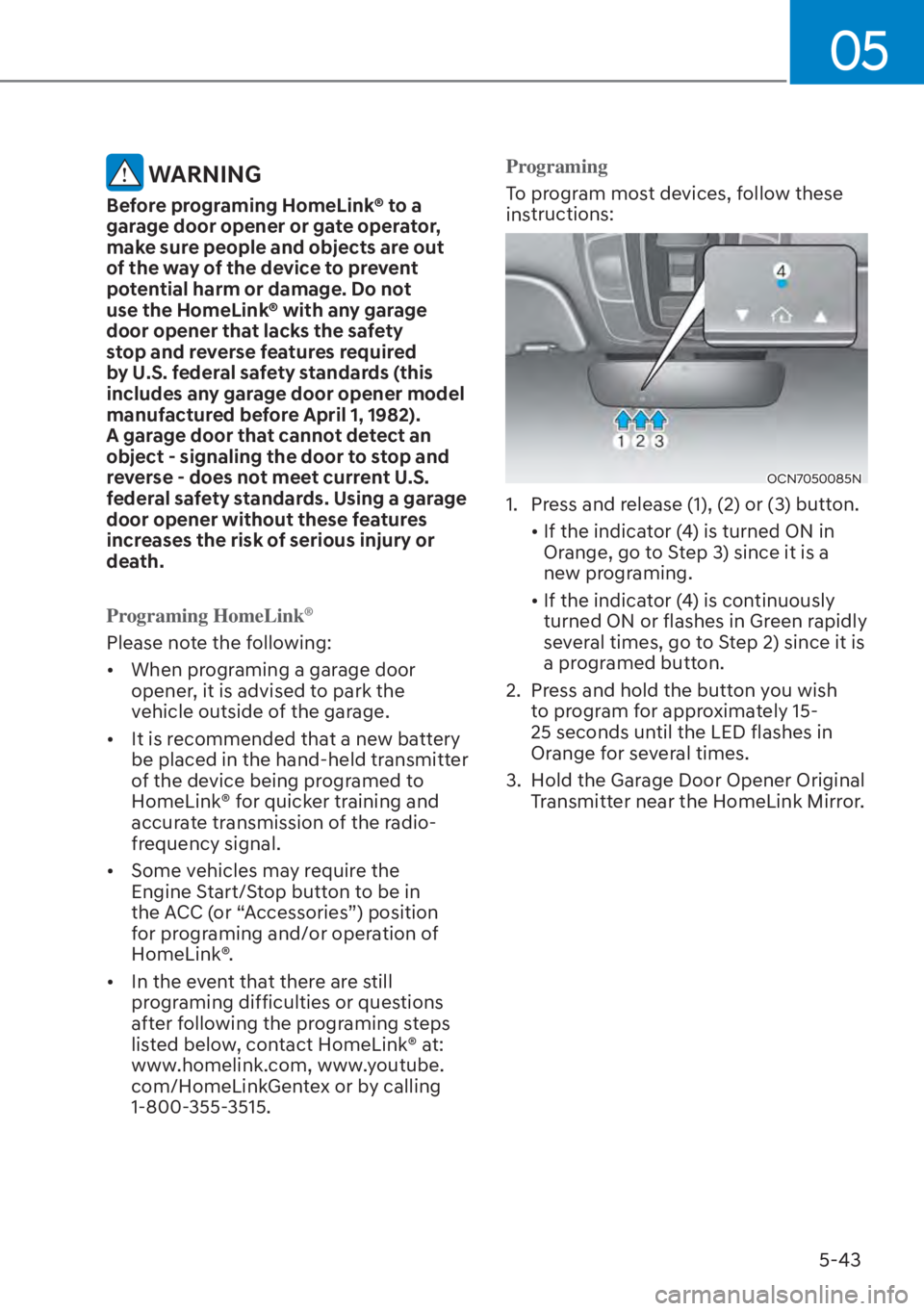

WARNING
Before programing HomeLink® to a
garage door opener or gate operator,
make sure people and objects are out
of the way of the device to prevent
potential harm or damage. Do not
use the HomeLink® with any garage
door opener that lacks the safety
stop and reverse features required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an
object - signaling the door to stop and
reverse - does not meet current U.S.
federal safety standards. Using a garage
door opener without these features
increases the risk of serious injury or
death.
Programing HomeLink
®
Please note the following:

[ :KHQSURJUDPLQJDJDUDJHGRRUopener, it is advised to park the
vehicle outside of the garage.

[ ,WLVUHFRPPHQGHGWKDWDQHZEDWWHU\ be placed in the hand-held transmitter
of the device being programed to
HomeLink® for quicker training and
accurate transmission of the radio-
frequency signal.

[ 6RPHYHKLFOHVPD\UHTXLUHWKH Engine Start/Stop button to be in
the ACC (or “Accessories”) position
for programing and/or operation of
HomeLink®.

[ ,QWKHHYHQWWKDWWKHUHDUHVWLOO programing difficulties or questions
after following the programing steps
listed below, contact HomeLink® at:
www.homelink.com, www.youtube.
com/HomeLinkGentex or by calling
1-800-355-3515. Programing
To program most devices, follow these
ins

tructions:
OCN7050085N
1. Press and release (1), (2) or (3) button.

[,IWKHLQGLFDWRULVWXUQHG21LQ Orange, go to Step 3) since it is a
new programing.

[,IWKHLQGLFDWRULVFRQWLQXRXVO\ turned ON or flashes in Green rapidly
several times, go to Step 2) since it is
a programed button.
2. Press and hold the button you wish to program for approximately 15-
25 seconds until the LED flashes in
Orange for several times.
3. Hold the Garage Door Opener Original Transmitter near the HomeLink Mirror.

05
5-111

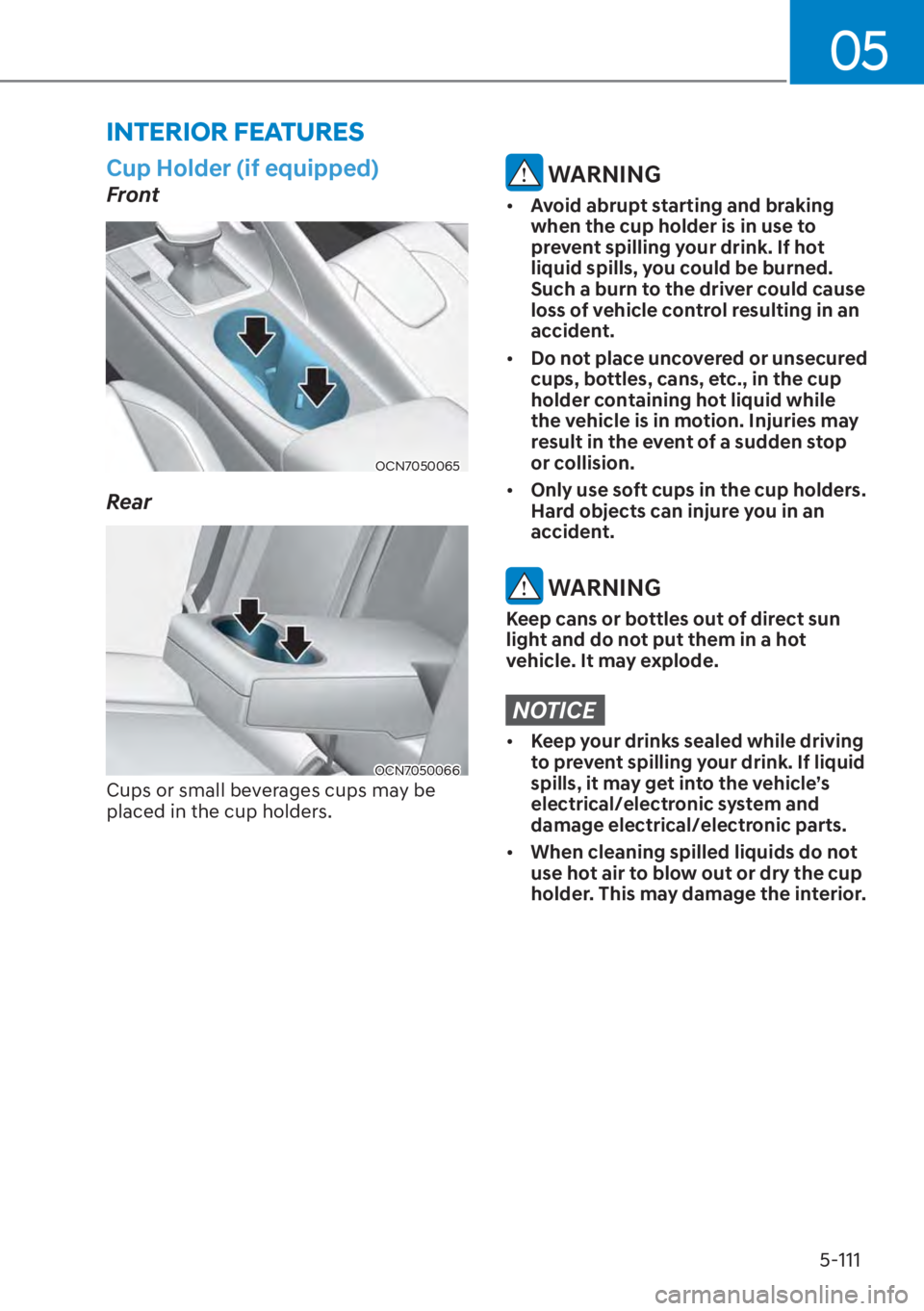

Cup Holder (if equipped)
Front
OCN7050065
Rear
OCN7050066
Cups or small beverages cups may be
placed in the cup holders.
WARNING

[Avoid abrupt starting and braking
when the cup holder is in use to
prevent spilling your drink. If hot
liquid spills, you could be burned.
Such a burn to the driver could cause
loss of vehicle control resulting in an
accident.

[ Do not place uncovered or unsecured
cups, bottles, cans, etc., in the cup
holder containing hot liquid while
the vehicle is in motion. Injuries may
result in the event of a sudden stop
or collision.

[ Only use soft cups in the cup holders.
Hard objects can injure you in an
accident.
WARNING
Keep cans or bottles out of direct sun
light and do not put them in a hot
vehicle. It may explode.
NOTICE

[ Keep your drinks sealed while driving
to prevent spilling your drink. If liquid
spills, it may get into the vehicle’s
electrical/electronic system and
damage electrical/electronic parts.

[When cleaning spilled liquids do not
use hot air to blow out or dry the cup
holder. This may damage the interior.
INTERIOR FEATURES

5-115
05

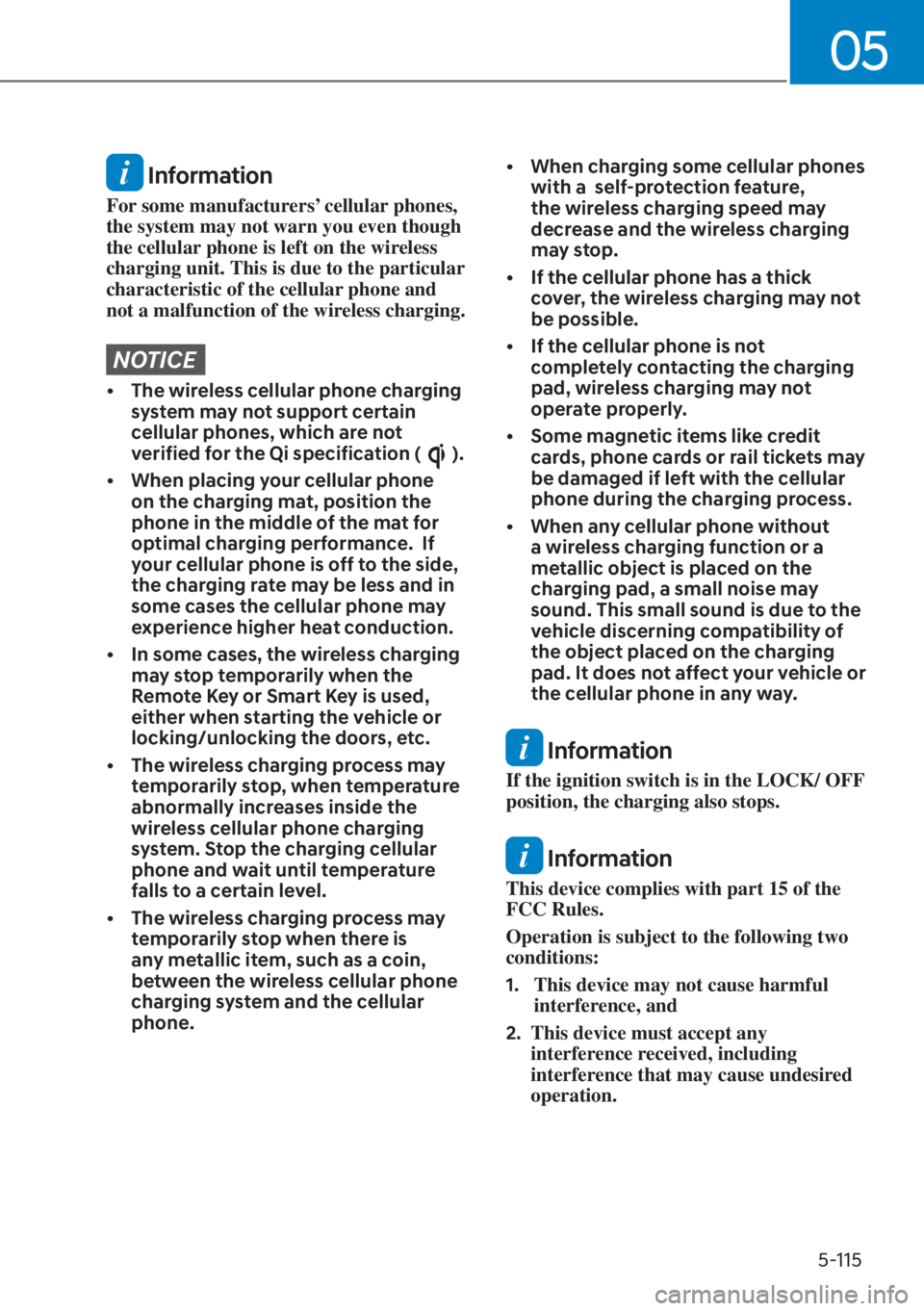

Information
For some manufacturers’ cellular phones,
the system may not warn you even though
the cellular phone is left on the wireless
charging unit. This is due to the particular
characteristic of the cellular phone and
not a malfunction of the wireless charging.
NOTICE

[ 7KHZLUHOHVVFHOOXODUSKRQHFKDUJLQJsystem may not support certain
cellular phones, which are not
verified for the Qi specification (
).

[ :KHQSODFLQJ\RXUFHOOXODUSKRQH on the charging mat, position the
phone in the middle of the mat for
optimal charging performance. If
your cellular phone is off to the side,
the charging rate may be less and in
some cases the cellular phone may
experience higher heat conduction.

[ ,QVRPHFDVHVWKHZLUHOHVVFKDUJLQJ may stop temporarily when the
Remote Key or Smart Key is used,
either when starting the vehicle or
locking/unlocking the doors, etc.

[ 7KHZLUHOHVVFKDUJLQJSURFHVVPD\ temporarily stop, when temperature
abnormally increases inside the
wireless cellular phone charging
system. Stop the charging cellular
phone and wait until temperature
falls to a certain level.

[ 7KHZLUHOHVVFKDUJLQJSURFHVVPD\ temporarily stop when there is
any metallic item, such as a coin,
between the wireless cellular phone
charging system and the cellular
phone.
[ :KHQFKDUJLQJVRPHFHOOXODUSKRQHV
with a self-protection feature,
the wireless charging speed may
decrease and the wireless charging
may stop.

[ ,IWKHFHOOXODUSKRQHKDVDWKLFN cover, the wireless charging may not
be possible.

[ ,IWKHFHOOXODUSKRQHLVQRW completely contacting the charging
pad, wireless charging may not
operate properly.

[ 6RPHPDJQHWLFLWHPVOLNHFUHGLW cards, phone cards or rail tickets may
be damaged if left with the cellular
phone during the charging process.

[ :KHQDQ\FHOOXODUSKRQHZLWKRXW a wireless charging function or a
metallic object is placed on the
charging pad, a small noise may
sound. This small sound is due to the
vehicle discerning compatibility of
the object placed on the charging
pad. It does not affect your vehicle or
the cellular phone in any way.
Information
If the ignition switch is in the LOCK/ OFF
position, the charging also stops.
Information
This device complies with part 15 of the
FCC Rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.

6
6. Driving Your Vehicle
Before Driving ........................................................................\
........................6-4Before Entering the Vehicle ........................................................................\
............. 6-4
Before Starting ........................................................................\
................................. 6-4
Ignition Switch ........................................................................\
....................... 6-5Key Ignition Switch ........................................................................\
........................... 6-5
Engine Start/Stop Button ........................................................................\
................ 6-8
Vehicle Auto-Shut Off ........................................................................\
...........6-12Operating Conditions ........................................................................\
...................... 6-12
Deactivating Conditions ........................................................................\
................. 6-12
System Operation ........................................................................\
............................ 6-12
Manual Transmission ........................................................................\
............6-13Manual Transmission Operation ........................................................................\
.....6-13
Good Driving Practices ........................................................................\
................... 6-15
Intelligent Variable Transmission ................................................................ 6-16Intelligent Variable Transmission Operation .........................................................6-16
Parking .................................................................\
.................................................... 6-21
Good Driving Practices ........................................................................\
.................. 6-22
Dual Clutch Transmission ........................................................................\
.... 6-23Dual Clutch Transmission Operation .................................................................... 6-23
Lcd Display for Transmission Temperature and Warning Message .................... 6-25
Paddle Shifter (Manual Shift Mode) ..................................................................... 6-30
Parking .................................................................\
................................................... 6-32
Good Driving Practices ........................................................................\
.................. 6-32
Brake System ........................................................................\
........................ 6-34Power Brakes ........................................................................\
.................................. 6-34
Disc Brakes Wear Indicator......................................................................\
.............. 6-34
Parking Brake ........................................................................\
.................................. 6-35
Electronic Parking Brake (EPB) ........................................................................\
...... 6-37
Auto Hold ........................................................................\
.........................................6-41
Anti-lock Brake System (ABS) .....................................................................6-44Electronic Stability Control (ESC) ........................................................................\
.6-46
Vehicle Stability Management (VSM) ..................................................................6-48
Hill-Start Assist Control (HAC) ........................................................................\
......6-49
Good Braking Practices ................................................................\
.........................6-49
ISG (Idle Stop and Go) system.....................................................................6-50To Activate the ISG System ........................................................................\
............6-50
To Deactivate the ISG System ........................................................................\
....... 6-52
ISG System Malfunction ........................................................................\
................ 6-52
Battery Sensor Deactivation ........................................................................\
.......... 6-53
