2023 HYUNDAI ELANTRA rear view mirror

5. Convenience Features
Accessing Your Vehicle ........................................................................\
.......... 5-4Remote Key ........................................................................\
....................................... 5-4
Smart Key ........................................................................\
...........................................5-7
Immobilizer System ........................................................................\
........................ 5-14
Hyundai Digital Key ........................................................................\
......................... 5-15
Door Locks ........................................................................\
............................ 5-31Operating Door Locks from Outside the Vehicle .................................................. 5-31
Operating Door Locks from Inside the Vehicle .................................................... 5-33
Automatic Door Lock and Unlock Features .......................................................... 5-35
Child-Protector Rear Door Locks ........................................................................\
.. 5-35
Rear Occupant Alert (ROA) .....................................................................\
.... 5-36Rear Occupant Alert Operation ........................................................................\
..... 5-36
Theft-Alarm System ........................................................................\
............ 5-37
Steering Wheel ........................................................................\
..................... 5-38
Electric Power Steering (EPS) ........................................................................\
........ 5-38
Tilt Steering / Telescope Steering ........................................................................\
. 5-39
Horn........................................................................\
.................................................5-40
Mirrors ......................................................................\
.....................................5-41Inside Rearview Mirror ........................................................................\
....................5-41
Side View Mirrors ........................................................................\
........................... 5-49
Windows ......................................................................\
..................................5-51Power Windows ........................................................................\
.............................. 5-52
Sunroof ......................................................................\
................................... 5-55Sunshade ...............................................................\
................................................. 5-55
Tilt Open/Close........................................................................\
............................... 5-56
Slide Open/Close .......................................................\
............................................ 5-56
Automatic Reversal ........................................................................\
....................... 5-57
Resetting the Sunroof ........................................................................\
.................... 5-58
Sunroof Open Warning ........................................................................\
.................. 5-58
Hood ....................................................................\
......................................... 5-59
Trunk ...................................................................\
.......................................... 5-61
Emergency Trunk Safety Release ........................................................................\
.. 5-62
Smart Trunk Release ........................................................................\
...................... 5-63
5

05
5-41
0,55256

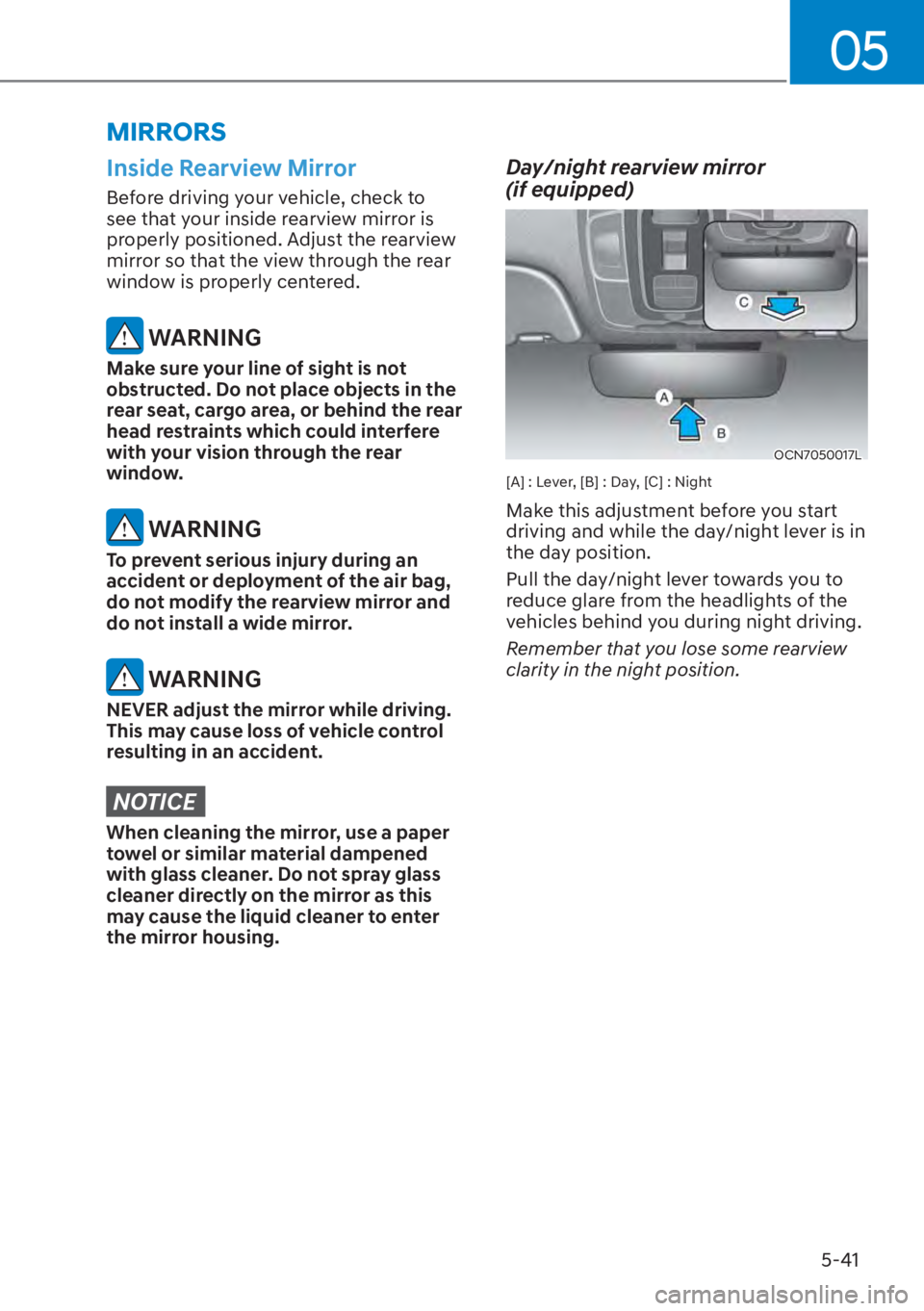

Inside Rearview Mirror
Before driving your vehicle, check to
see that your inside rearview mirror is
properly positioned. Adjust the rearview
mirror so that the view through the rear
window is properly centered.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
head restraints which could interfere
with your vision through the rear
window.
WARNING
To prevent serious injury during an
accident or deployment of the air bag,
do not modify the rearview mirror and
do not install a wide mirror.
WARNING
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE
When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as this
may cause the liquid cleaner to enter
the mirror housing.
Day/night rearview mirror
(if equipped)
OCN7050017L
[A] : Lever, [B] : Day, [C] : Night
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever towards you to
reduce glare from the headlights of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.

Convenience Features5-42
Electrochromic mirror (ECM) with
HomeLink® system (if equipped)
OCN7050084N
Your vehicle may be equipped with
a Gentex Automatic-Dimming Mirror
with an Integrated HomeLink® Wireless
Control System.
During nighttime driving, this feature will
automatically detect and help reduce
rearview mirror glare. The HomeLink®
Universal Transceiver allows you to
activate your garage door(s), electric
gate, home lighting, etc.
(1) HomeLink Channel 1
(2) HomeLink Channel 2
(3) HomeLink Channel 3
(4) Garage Door Opener Status Indicator : Closing or Closed
(5) HomeLink Operation Indicator
(6) Garage Door Opener Status Indicator : Opening or Opened
(7) HomeLink User Interface Indicator Automatic-Dimming Night Vision Safety™
(NVS
®) Mirror (if equipped)
The NVS® Mirror automatically helps
r
educe glare by monitoring light levels in
the front and the rear of the vehicle. Any
object that obstructs either light sensor
will degrade the automatic dimming
control feature.
For more information regarding NVS®
mirrors and other applications, please
refer to the Gentex website:
www.gentex.com
Your mirror will automatically dim
upon detecting glare from the vehicles
traveling behind you.
The mirror defaults to the ON position
each time the vehicle is started.
Integrated HomeLink
® Wireless Control
System
The HomeLink® Wireless Control System
can r
eplace up to three hand-held
radio-frequency (RF) transmitters with
a single built-in device. This innovative
feature will learn the radio frequency
codes of most current transmitters to
operate devices such as gate operators,
garage door openers, entry door locks,
security systems, even home lighting.
Both standard and rolling code-equipped
transmitters can be programed by
following the outlined procedures.
Additional HomeLink® information can
be found at: www.homelink.com, www.
youtube.com/HomeLinkGentex or by
calling 1-800-355-3515.
Retain the original transmitter of the
RF device you are programing for use
in other vehicles as well as for future
HomeLink® programing. It is also
suggested that upon the sale of the
vehicle, the programed HomeLink®
buttons be erased for security purposes.

05
5-49

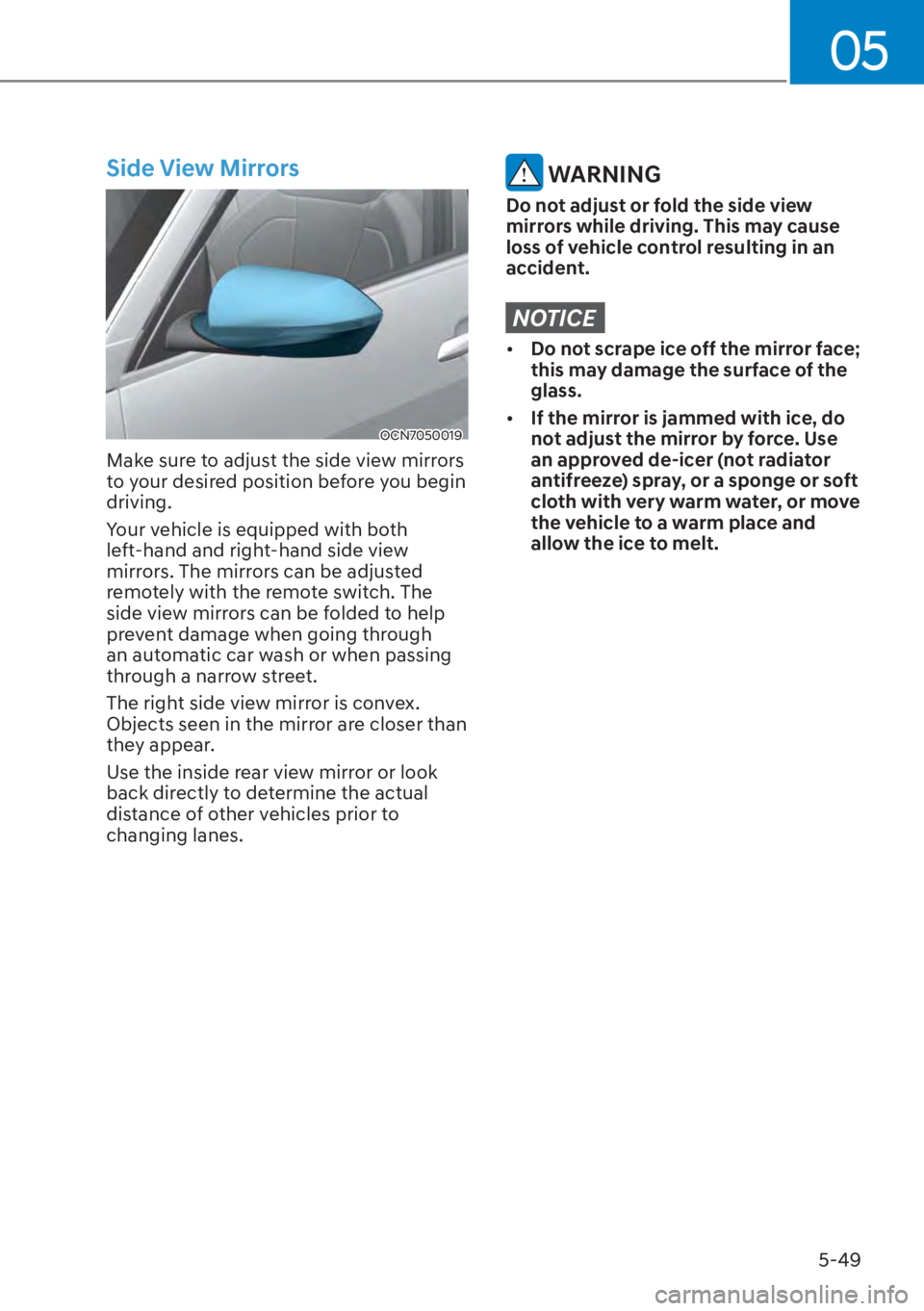

Side View Mirrors
OCN7050019
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
Your vehicle is equipped with both
left-hand and right-hand side view
mirrors. The mirrors can be adjusted
remotely with the remote switch. The
side view mirrors can be folded to help
prevent damage when going through
an automatic car wash or when passing
through a narrow street.
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside rear view mirror or look
back directly to determine the actual
distance of other vehicles prior to
changing lanes.
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
loss of vehicle control resulting in an
accident.
NOTICE

[Do not scrape ice off the mirror face;
this may damage the surface of the
glass.

[ If the mirror is jammed with ice, do
not adjust the mirror by force. Use
an approved de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.

Convenience Features5-104

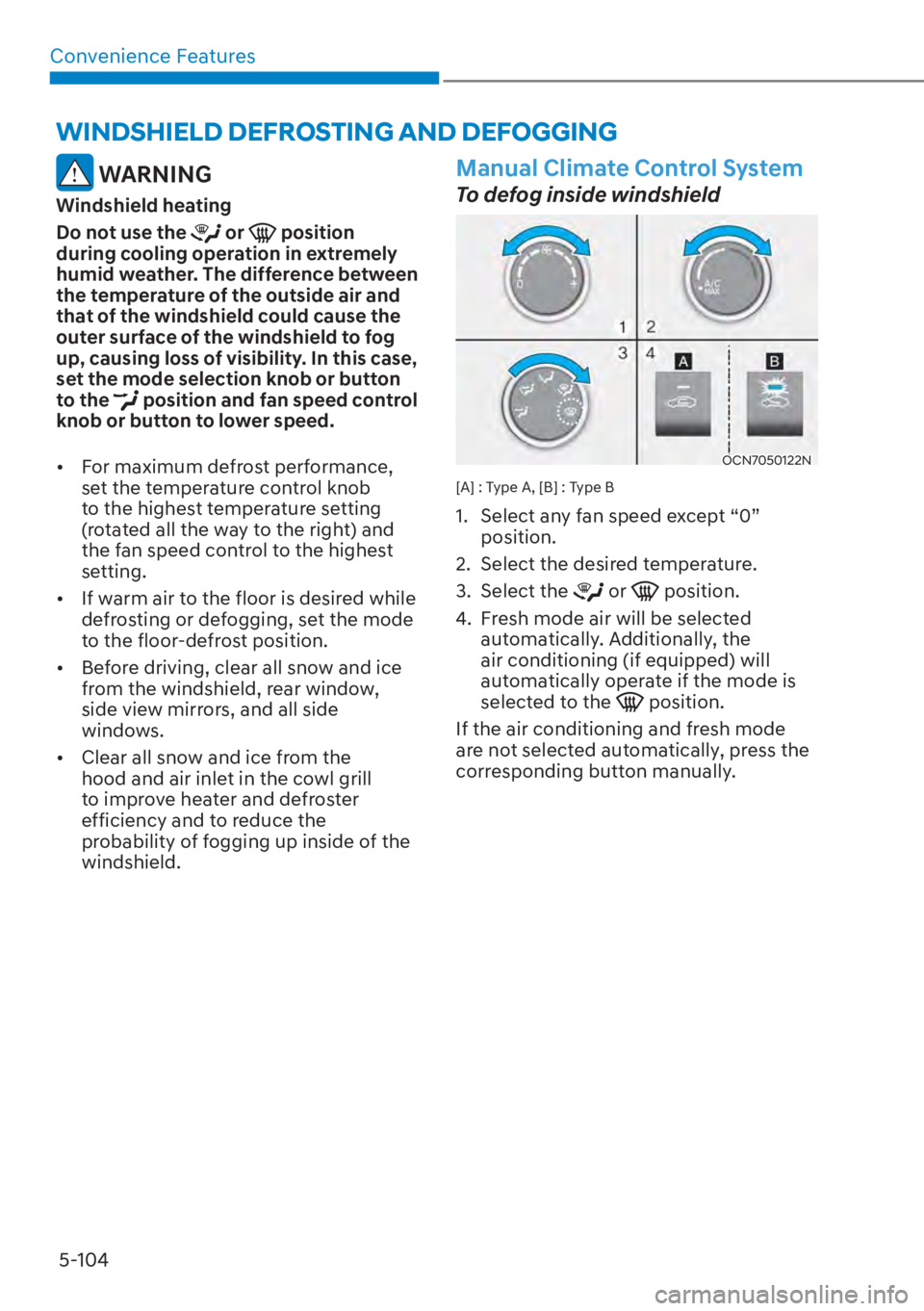

WARNING
Windshield heating
Do not use the
or position
during cooling operation in extremely
humid weather. The difference between
the temperature of the outside air and
that of the windshield could cause the
outer surface of the windshield to fog
up, causing loss of visibility. In this case,
set the mode selection knob or button
to the
position and fan speed control
knob or button to lower speed.

[ For maximum defrost performance,
set the temperature control knob
to the highest temperature setting
(rotated all the way to the right) and
the fan speed control to the highest
setting.

[ If warm air to the floor is desired while
defrosting or defogging, set the mode
to the floor-defrost position.

[ Before driving, clear all snow and ice
from the windshield, rear window,
side view mirrors, and all side
windows.

[ Clear all snow and ice from the
hood and air inlet in the cowl grill
to improve heater and defroster
efficiency and to reduce the
probability of fogging up inside of the
windshield.
Manual Climate Control System
To defog inside windshield
OCN7050122N
[A] : Type A, [B] : Type B
1. Select any fan speed except “0”
position.
2. Select the desired temperature.
3. Select the
or position.
4. Fresh mode air will be selected automatically. Additionally, the
air conditioning (if equipped) will
automatically operate if the mode is
selected to the
position.
If the air conditioning and fresh mode
are not selected automatically, press the
corresponding button manually.
WINDSHIELD DEFROSTING AND DEFOGGING

Driver Assistance System7-42
Blind-Spot Collision Warning
Malfunction and Limitations
Blind-Spot Collision Warning
malfunction
OTM070099N
When Blind-Spot Collision Warning is
not working properly, the ‘Check Blind-
6SRW6DIHW\V\VWHP
TZDUQLQJPHVVDJH
will appear on the cluster for several
seconds, and the master (
) warning
light will illuminate on the cluster. If this
occurs, have the vehicle inspected by an
authorized HYUNDAI dealer.
OTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
VLGHYLHZPLUURUZDUQLQJOLJKW
TZDUQLQJ
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
System disabled
OCN7070041L
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Blind-Spot
Collision Warning.
If this occurs, the ‘Blind-Spot Safety
V\VWHPGLVDEOHG5DGDUEORFNHG
TZDUQLQJ
message will appear on the cluster.
Blind-Spot Collision Warning will operate
properly when such foreign material or
trailer, etc., is removed, and then the
engine is restarted.
If Blind-Spot Collision Warning does not
operate properly after it is removed, have
the vehicle inspected by an authorized
HYUNDAI dealer.

07
7-51

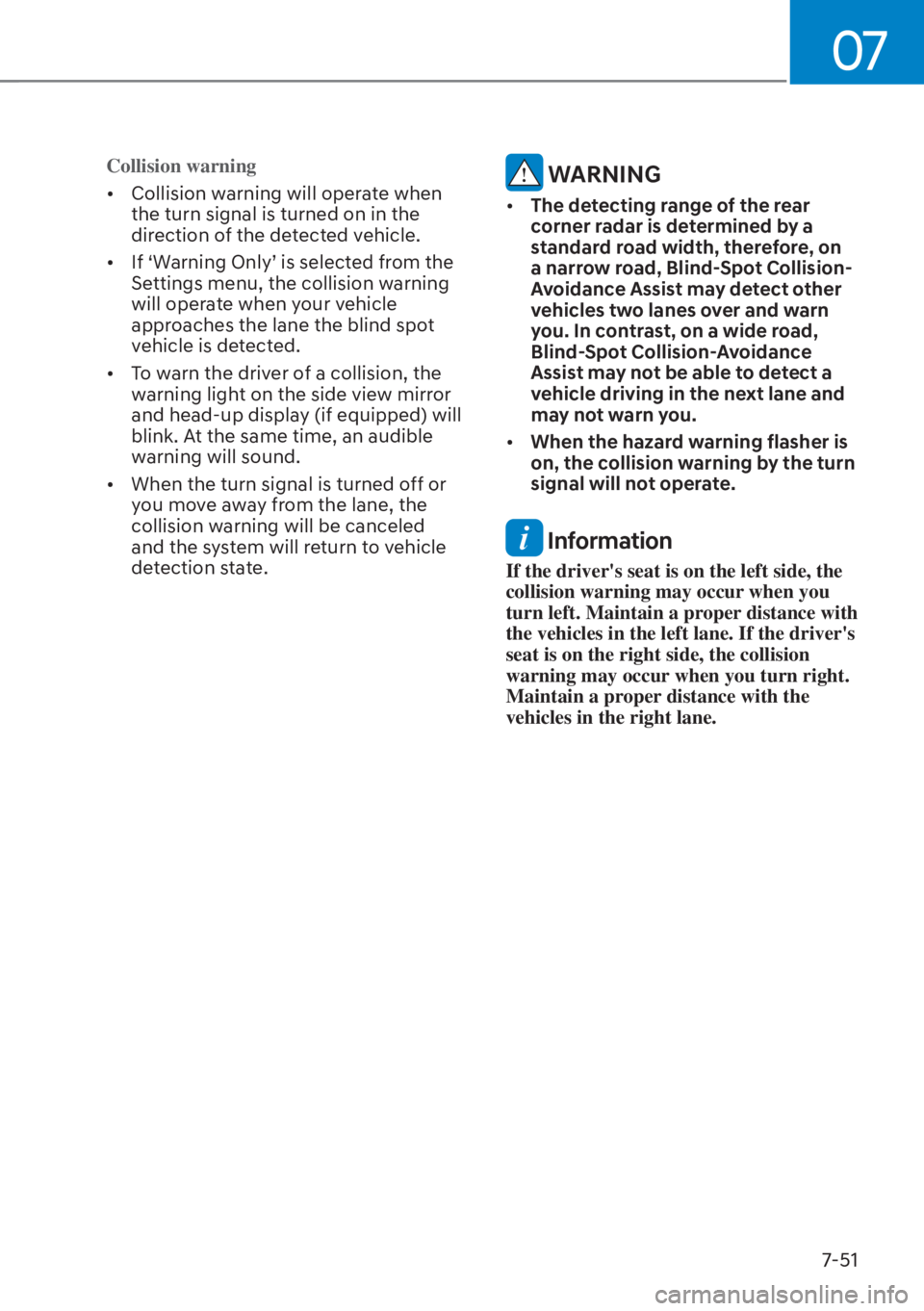

Collision warning

[Collision w
arning will operate when
the turn signal is turned on in the
direction of the detected vehicle.

[ ,I
S:DUQLQJ2QO\
TLVVHOHFWHGIURPWKH Settings menu, the collision warning
will operate when your vehicle
approaches the lane the blind spot
vehicle is detected.

[ To warn the driver of a collision, the
warning light on the side view mirror
and head-up display (if equipped) will
blink. At the same time, an audible
warning will sound.

[ When the turn signal is turned off or
you move away from the lane, the
collision warning will be canceled
and the system will return to vehicle
detection state. WARNING

[The detecting range of the rear
corner radar is determined by a
standard road width, therefore, on
a narrow road, Blind-Spot Collision-
Avoidance Assist may detect other
vehicles two lanes over and warn
you. In contrast, on a wide road,
Blind-Spot Collision-Avoidance
Assist may not be able to detect a
vehicle driving in the next lane and
may not warn you.

[ When the hazard warning flasher is
on, the collision warning by the turn
signal will not operate.
Information
If the driver's seat is on the left side, the
collision warning may occur when you
turn left. Maintain a proper distance with
the vehicles in the left lane. If the driver's
seat is on the right side, the collision
warning may occur when you turn right.
Maintain a proper distance with the
vehicles in the right lane.

07
7-55
Blind-Spot Collision-Avoidance
Assist Malfunction and
Limitations
Blind-Spot Collision-Avoidance
Assist malfunction
OTM070099N
When Blind-Spot Safety system is not
working properly, the ‘Check Blind-
6SRW6DIHW\V\VWHP
TZDUQLQJPHVVDJH
will appear on the cluster for several
seconds, and the master (
) warning
light will illuminate on the cluster. If this
occurs, have the vehicle inspected by an
authorized HYUNDAI dealer.
OTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
VLGHYLHZPLUURUZDUQLQJOLJKW
TZDUQLQJ
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Blind-Spot Collision-Avoidance
Assist disabled
OTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Blind-Spot
Collision-Avoidance Assist.
If this occurs, the ‘Blind-Spot Safety
V\VWHPGLVDEOHG5DGDUEORFNHG
TZDUQLQJ
message will appear on the cluster.
Blind-Spot Collision-Avoidance Assist
will operate properly when such foreign
material or trailer, etc., is removed, and
then the engine is restarted.
If Blind-Spot Collision-Avoidance Assist
does not operate properly after it is
removed, have the vehicle inspected by
an authorized HYUNDAI dealer.
WARNING

[ Even though the warning message
does not appear on the cluster, Blind-
Spot Collision-Avoidance Assist may
not properly operate.

[ Blind-Spot Collision-Avoidance
Assist may not properly operate in
an area (for example, open terrain)
where any objects are not detected
right after the engine is turned on, or
when the detecting sensor is blocked
with foreign material right after the
engine is turned on.
