2023 HYUNDAI ELANTRA HYBRID check engine

08
8-11

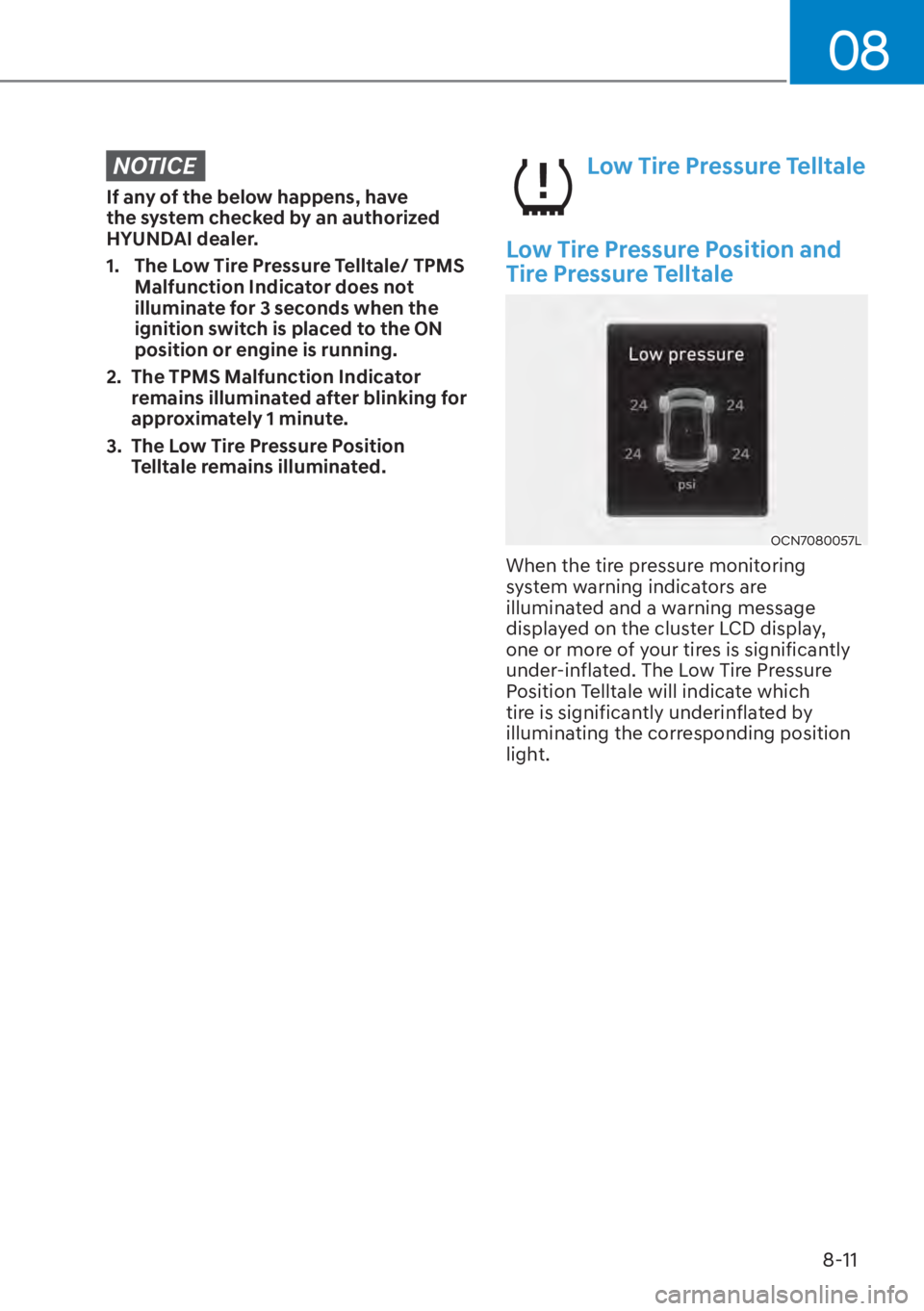

NOTICE
If any of the below happens, have
the system checked by an authorized
HYUNDAI dealer.
1. The Low Tire Pressure Telltale/ TPMS Malfunction Indicator does not
illuminate for 3 seconds when the
ignition switch is placed to the ON
position or engine is running.
2. The TPMS Malfunction Indicator remains illuminated after blinking for
approximately 1 minute.
3. The Low Tire Pressure Position Telltale remains illuminated.
Low Tire Pressure Telltale
Low Tire Pressure Position and
Tire Pressure Telltale
OCN7080057L
When the tire pressure monitoring
system warning indicators are
illuminated and a warning message
displayed on the cluster LCD display,
one or more of your tires is significantly
under-inflated. The Low Tire Pressure
Position Telltale will indicate which
tire is significantly underinflated by
illuminating the corresponding position
light.

Engine Compartment ........................................................................\
............ 9-3
Maintenance Services ........................................................................\
...........9-4
Owner’s Responsibility ........................................................................\
.................... 9-4
Owner Maintenance Precautions ........................................................................\
.... 9-4
Owner Maintenance ........................................................................\
.............. 9-5Owner Maintenance Schedule ........................................................................\
........ 9-5
Scheduled Maintenance Services ................................................................ 9-7Normal Maintenance Schedule ........................................................................\
...... 9-8
Maintenance Under Severe Usage Conditions .................................................... 9-12
Maintenance Under Severe Usage Conditions ....................................................9-13
Explanation of Scheduled Maintenance Items .......................................... 9-14HSG (Hybrid Starter & Generator) Belt ...............................................................\
..9-14
Dual Clutch Transmission Fluid ........................................................................\
..... 9-15
Engine Oil ........................................................................\
............................. 9-16Checking the Engine Oil Level ........................................................................\
........9-16
Checking the Engine Oil and Filter ........................................................................\
9-17
Engine Coolant/Inverter Coolant ................................................................ 9-19Checking the Coolant Level......................................................................\
..............9-19
Changing Engine Coolant ........................................................................\
.............. 9-22
Hybrid Starter & Generator (HSG) Belt ....................................................... 9-23Checking the Hybrid Starter & Generator (HSG) Belt .......................................... 9-23
Brake/Clutch Fluid ........................................................................\
............... 9-24Checking the Brake/Clutch Fluid Level ................................................................ 9-24
Washer Fluid ........................................................................\
......................... 9-25Checking the Washer Fluid Level ........................................................................\
.. 9-25
Air Cleaner ........................................................................\
............................ 9-25Filter Replacement ........................................................................\
......................... 9-25
Cabin Air Filter ........................................................................\
...................... 9-27Filter Inspection........................................................................\
.............................. 9-27
Filter Replacement ........................................................................\
......................... 9-27
Wiper Blades ........................................................................\
........................ 9-28Blade Inspection ........................................................................\
............................ 9-28
Blade Replacement ........................................................................\
........................ 9-28
Battery ....................................................................\
......................................9-3012V auxiliary battery ........................................................................\
...................... 9-30
9. Maintenance
9

Tires and Wheels ........................................................................\
...................9-31Tire Care ........................................................................\
...........................................9-31
Recommended Cold Tire Inflation Pressures ........................................................9-31
Check Tire Inflation Pressure ........................................................................\
......... 9-32
Tire Rotation ........................................................................\
................................... 9-33
Wheel Alignment and Tire Balance ....................................................................... 9-34
Tire Replacement ........................................................................\
........................... 9-34
Wheel Replacement ........................................................................\
....................... 9-36
Tire Traction ........................................................................\
.................................... 9-36
Tire Maintenance..................................................................\
.................................. 9-36
Tire Sidewall Labeling ........................................................................\
.................... 9-36
Tire Terminology and Definitions ........................................................................\
.. 9-39
All Season Tires ........................................................................\
............................... 9-42
Summer Tires ........................................................................\
................................. 9-42
Snow Tires......................................................................\
......................................... 9-42
Radial-Ply Tires ........................................................................\
............................... 9-42
Low Aspect Ratio Tires ........................................................................\
................... 9-43
Fuses ...................................................................\
..........................................9-44Instrument Panel Fuse Replacement .................................................................... 9-45
Engine Compartment Panel Fuse Replacement ..................................................9-46
Fuse/Relay Panel Description........................................................................\
........ 9-47
Light Bulbs ........................................................................\
............................9-54Headlight, Parking Lamp, Daytime Running Light, Turn Signal Lamp and
Side Marker ........................................................................\
..................................... 9-55
Side Repeater Lamp Replacement .......................................................................9-58
Rear Combination Lamp Bulb Replacement ........................................................9-58
High Mounted Stop Lamp Replacement .............................................................. 9-61
License Plate Light Bulb Replacement ................................................................. 9-61
Interior Light Bulb Replacement ........................................................................\
... 9-62
Appearance Care ........................................................................\
.................9-63Exterior Care ........................................................................\
...................................9-63
Interior Care ........................................................................\
....................................9-69
Emission Control System ........................................................................\
..... 9-72
California Perchlorate Notice ...................................................................... 9-75
9

09
9-5
WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience or
the proper tools and equipment to do
the work, have it done by an authorized
HYUNDAI dealer.
ALWAYS follow these precautions for
performing maintenance work:

[Park your vehicle on level ground,
move the shift lever into the P (Park)
position, place the ignition switch in
the LOCK/OFF position.

[ Block the tires (front and back) to
prevent the vehicle from moving.
Remove loose clothing or jewelry
that can become entangled in
moving parts.

[ If you must run the engine during
maintenance, do so in an outdoor
area or in an area with plenty of
ventilation.

[ Keep flames, sparks, or smoking
materials away from the battery and
fuel-related parts. The following lists are vehicle checks and
inspections that should be performed
by the owner or an authorized HYUNDAI
dealer at the frequencies indicated to
help ensure safe, dependable operation
of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used.
Owner Maintenance Schedule
When you stop for fuel:

[
Check the coolant level in the engine
coolant reservoir.

[ Check the windshield washer fluid
level.

[ Check the for low or under-inflated
tires.

[ Check the radiator and condenser.

[ Check if the front of the radiator and
condenser are clean and not blocked
with leaves, dirt or insects etc. If any
of the above parts are extremely dirty
or you are not sure of their condition,
we recommend that you contact an
authorized HYUNDAI dealer.
WARNING
Be careful when checking your engine
coolant level when the engine is hot.
This may result in coolant being blown
out of the opening and cause serious
burns and other injuries.
OWNER MAINTENANCE

Maintenance9-6
While operating your vehicle:

[ Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.

[ Check for vibrations in the steering
wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.

[ Notice if your vehicle constantly turns
slightly or “pulls” to one side when
traveling on smooth, level road.

[ When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.

[ If any slipping or changes in the
operation of your transmission occurs,
check the transmission fluid level.

[ Check the intelligent variable
transmission P (Park) function.

[ Check the parking brake.

[ Check for fluid leaks under your
vehicle (water dripping from the air
conditioning system during or after
use is normal).
At least monthly:

[Check coolant level in the engine
coolant reservoir.

[ Check the operation of all exterior
lights, including the brake lights, turn
signals and hazard warning flashers.

[ Check the inflation pressures of all
tires including the spare for tires that
are worn, show uneven wear, or are
damaged.

[ Check for loose wheel lug nuts.
At least twice a year:
(for example, every Spring and
Autumn)

[Check radiator, heater and air
conditioning hoses for leaks or
damage.

[ Check windshield washer spray and
wiper operation. Clean wiper blades
with a clean cloth dampened with
washer a fluid.

[ Check headlight alignment.

[ Check muffler, exhaust pipes, shields
and clamps.

[ Check the seat belts for wear and
function.
At least once a year:

[Clean body and door drain holes.

[ Lubricate door hinges and hood
hinges.

[ Lubricate door and hood locks and
latches.

[ Lubricate door rubber weather strips.

[ Lubricate door checker.

[ Check the air conditioning system.

[ Inspect and lubricate intelligent
variable transmission linkage and
controls.

[ Clean the battery and terminals.

[ Check the brake fluid level.

Maintenance9-8
Normal Maintenance Schedule The following maintenance services must be performed to ensure good emission control and performance.
Keep receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the frequency of
service is determined by whichever occurs first.
MAINTENANCE INTERVALS
MAINTENANCE
ITEM Number of months or driving distance, whichever comes first
Months 12 24 36 48 60 72 84 96
Miles×1,000 10 20 30 40 50 60 70 80
Km×1,000 15 30 45 60 75 90 105 120
Engine oil and engine oil filter
*1
Replace every 8,000 miles (13,000 km) or 12 months
Fuel additives
*2
RRRRRRRR
Air cleaner filter I I R I I R I I
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.*1 :
Check the engine oil level and leak every 500 km (350 miles) or before starting a long trip.
*2 :
If good quality gasolines or equivalents including fuel additives is not available, one bottle of additive is recommended.
Additives are available from your authorized HYUNDAI dealer along with information on how to use them. Do not mix other
additives.
à As it is normal for engine oil to be consumed during driving, the amount of engine oil should be checked regularly.

à The replacement cycle of engine oil is set by the period which the performance of our recommended engine oil is
maintained. So if recommended engine oil is not used, a replacement is required as indicated severe usage condition.

Maintenance9-14
Engine Oil and Filter
The engine oil and filter should be
changed at the intervals specified in the
maintenance schedule. If the vehicle
is being driven in severe conditions,
more frequent oil and filter changes are
required.
Drive Belts
Inspect all drive belts for evidence
of cuts, cracks, excessive wear or oil
saturation and replace if necessary. Drive
belts should be checked periodically
for proper tension and adjusted as
necessary.
Fuel Filter
A clogged-up fuel filter may limit the
vehicle driving speed, damage the
emission system, and cause the hard
starting. When a considerable amount
of foreign substances are accumulated
in the fuel tank, the fuel filter should be
replaced.
Upon installing a new fuel filter, operate
the engine for several minutes, and
check the connections for any leakages.
Fuel filters should be installed by an
authorized HYUNDAI dealer.
HSG (Hybrid Starter & Generator)
Belt
The HSG belt should be changed at the
intervals specified in the maintenance
schedule.
Fuel Lines, Fuel Hoses and
Connections
Check the fuel lines, fuel hoses and
connections for leakage and damage.
Have an authorized HYUNDAI dealer
replace any damaged or leaking parts
immediately.
Vapor Hose and Fuel Filler Cap
The vapor hose and fuel filler cap should
be inspected at those intervals specified
in the maintenance schedule. Make sure
a new vapor hose or fuel filler cap is
correctly replaced.
Air Cleaner Filter
A genuine HYUNDAI air cleaner filter
is recommended when the filter is
replaced.
Spark Plugs
Make sure to install new spark plugs of
the correct heat range.
When assembling parts, be sure to
wipe out foreign substances inside
and outside of the boot bottom of the
ignition coil and the insulator of the
spark plug with a soft cloth to prevent
contamination of the spark plug
insulator.
Cooling System
Check cooling system components, such
as radiator, coolant reservoir, hoses and
connections for leakage and damage.
Replace any damaged parts.
EXPLANATION OF SCHEDULED MAINTENANCE ITEMS

09
9-15
Engine Coolant/Inverter Coolant
The coolant should be changed at the
intervals specified in the maintenance
schedule.
Dual Clutch Transmission Fluid
Dual clutch transmission fluid should
not be checked under normal usage
conditions.
We recommend that the Intelligent
variable transmission fluid is changed by
an authorized HYUNDAI dealer according
to the maintenance schedule.
Brake Hoses and Lines
Visually check for proper installation,
chafing, cracks, deterioration and any
leakage. Replace any deteriorated or
damaged parts immediately.
Brake Fluid
Check the brake fluid level in the brake
fluid reservoir. The level should be
between the MIN and the MAX marks
on the side of the reservoir. Use only
hydraulic brake fluid conforming to DOT
4 specification..
Brake Discs, Pads, Calipers and
Rotors
Check the pads for excessive wear, discs
for run out and wear, and calipers for
fluid leakage.
Suspension Mounting Bolts
Check the suspension connections for
looseness or damage. Retighten to the
specified torque.
Steering Gear Box, Linkage &
Boots/Lower Arm Ball Joint
With the vehicle stopped and the engine
off, check for excessive freeplay in the
steering wheel. Check the linkage for
bends or damage. Check the dust boots
and ball joints for deterioration, cracks,
or damage.
Replace any damaged parts.
Drive Shafts and Boots
Check the drive shafts, boots and clamps
for cracks, deterioration, or damage.
Replace any damaged parts and, if
necessary, repack the grease.
Air Conditioning Refrigerant
Check the air conditioning lines and
connections for leakage and damage.
