uuReplacing Light Bulbs uTaillights* and Back-Up Light Bulbs
Maintenance
Taillights* and Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Remove the cover by prying on the edge
using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Turn the socket counter-clockwise and
remove it.
3. Remove the old bulb and insert a new bulb.
Rear License Plate Light
Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Taillight: LED*
Back-Up Light: 21 W
1Taillights* and Back-Up Light Bulbs
Taillights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Cover
Bulb
Socket
* Not available on all models
23 PILOT-31T906000_03.book 721 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

722

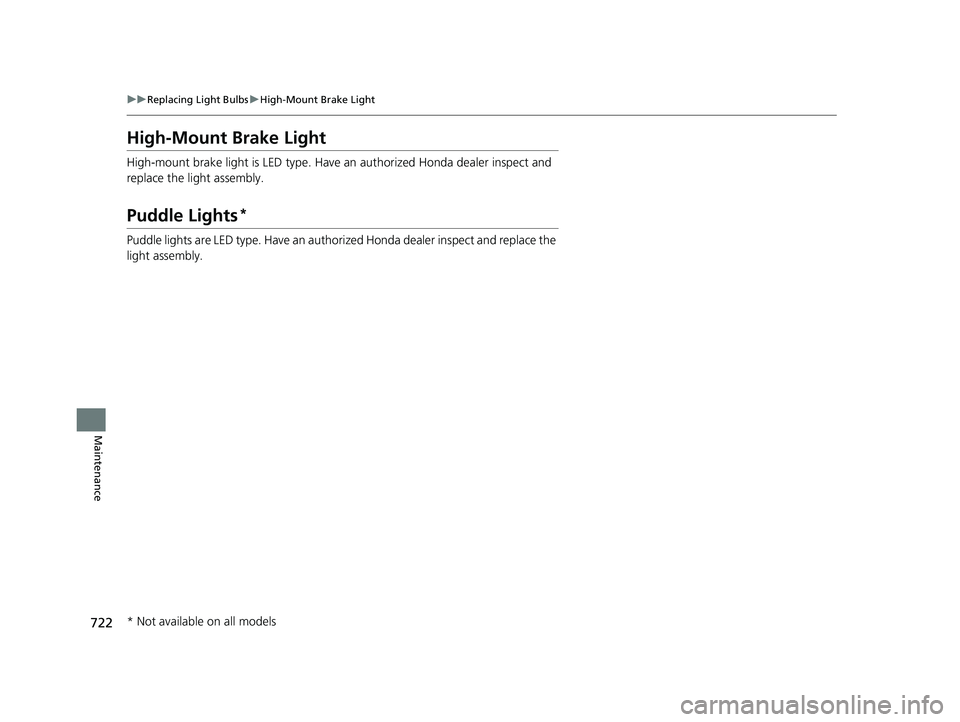

uuReplacing Light Bulbs uHigh-Mount Brake Light
Maintenance
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Puddle Lights*
Puddle lights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
* Not available on all models
23 PILOT-31T906000_03.book 722 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

790
Information
Specifications
■Vehicle Specifications
*1: Models without second row center seat
*2: Models with second row center seat
*3: 2WD models
*4: AWD models
ModelPilot
No. of Passengers:
Front 2
Rear 2nd Row 2
*1
3*2
3rd Row 3
Total7*1
8*2
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver's
doorjamb
Gross Combined Weight
RatingU.S.:8,444 lbs (3,830 kg)*3
10,141 lbs (4,600 kg)*4
Canada:4,600 kg
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
*1: Models without surround view camera system
*2: Models with surround view camera system
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 17.8 – 19.6 oz (505 – 555 g)
Lubricant TypeRB100EV-01 (POE)Quantity7.75 – 9.33 cu-in (127 – 153 cm3)
Displacement211.7 cu-in (3,471 cm3)
Spark Plugs NGK DILZKAR7H11H
TypeUnleaded gasoline, pump octane number
87 or higher
Fuel Tank Capacity 18.5 US gal (70.0 L)
Tank CapacityU.S.:2.6 US qt (2.5 L)*1
4.8 US qt (4.5 L)*2
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)LEDHeadlights (High Beam)LEDFog Lights*LEDFront Turn Signal LightsLEDFront Side Marker LightsLEDParking/Daytime Running LightsLEDSide Turn Signal Lights*
(on Door Mirrors)LED
Brake Lights LED
Rear Side Marker LightsLED
Taillights LED
Back-Up Lights21 W
Rear Turn Signal Lights 21 W (Amber)
High-Mount Brake LightLED
Rear License Plate Light LED
Puddle Lights*LED
Interior Lights
Front, Second Row, and Third Row Map
Lights LED
Ambient Lights LED
Vanity Mirror Lights
*2.3 W
Door Courtesy Lights*LED
Door Inner Handle Lights*LED
Door Pocket Lights*LED
Foot Lights*LED
Instrument Panel Tray Lights*LED
Glove Box Light LED
Cargo Area Light LED
* Not available on all models
23 PILOT-31T906000_03.book 790 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

805
Index
Automatic Transmission.......................... 532
Creeping................................................. 532
Fluid ....................................................... 716
Kickdown ............................................... 532
Operating the Shift Button ...................... 535
Shifting ................................................... 533
Average Fuel Economy .................... 128, 157
Average Speed ................................. 130, 159
AWD Torque Distribution Monitor ........................................... 135, 163
B
Battery...................................................... 737
Charging System Indicator .............. 103, 772
If the Battery Is Dead............................... 767
Maintenance (Checking the Battery) ....... 737
Maintenance (Replacing) ......................... 739
Belts (Seat) .................................................. 43
Beverage Holders ..................................... 264
Blind Spot Information System ............... 563
Bluetooth ® Audio ............................. 312, 373
Bluetooth ® HandsFreeLink ®........... 459, 479
Booster Seats (For Children) ...................... 94
Brake System ............................................ 652
Anti-lock Brake System (ABS) .................. 659
Automatic Brake Hold ............................. 656
Brake Assist System................................. 660
Fluid ....................................................... 717
Foot Brake .............................................. 655
Indicator (Amber) ............................ 102, 775 Indicator (Red) ................. 100, 101, 773, 775
Parking Brake .......................................... 652
Brightness ......................................... 138, 166
Bulb Replacement .................................... 718
Brake Lights, Taillights, Rear Side Marker
Lights, and Rear Turn Signal Light
Bulbs ..................................................... 719
Fog Lights ................................................ 718
Front Side Marker Lights .......................... 718
Front Turn Signal Lights ........................... 718
Headlights ............................................... 718
High-Mount Brake Light .......................... 722
Parking/Daytime Running Lights .............. 718
Puddle Lights ........................................... 722
Rear License Plate Light ........................... 721
Side Turn Signal/Em ergency Indicator
Lights .................................................... 718
Taillight and Back-Up Light Bulbs ............. 721
Bulb Specifications ................................... 790
C
CabinTalk®............................................... 499
CAMERA Button ....................................... 675
Car Wash Mode ........................................ 537
Carbon Monoxide Gas ................................ 95
Cargo Hooks ............................................. 268
Carrying Cargo .................................. 503, 505
Certification Label .................................... 792
Changing Bulbs ......................................... 718
Charging System Indicator ............... 103, 772Child Safety
................................................. 77
Childproof Door Locks............................. 194
Child Seat .................................................... 77
Booster Seats ............................................ 94
Child Seat for Infants................................. 79
Child Seat for Small Children ..................... 80
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 87
Larger Children ......................................... 93
Rear-facing Child Seat ............................... 79
Selecting a Child Seat ................................ 81
Childproof Door Locks ............................. 194
Cleaning the Exterior ............................... 744
Cleaning the Interior ................................ 742
Climate Control System ............................ 283
Defrosting the Windshield and Windows ............................................... 285
Dust and Pollen Filter............................... 741
Sensors ................................................... 289
Synchronized Mode................................. 286
Using Automatic Climate Control ............ 283
Clock .......................................................... 176
CMBS (Collision Mitigation Braking System) .................................................... 572
Coat Hook ................................................. 266
Collision Mitigation Braking System (CMBS) ..................................................... 572
Compact Spare Tire .......................... 751, 791
Console Compartment ............................. 263
Controls ..................................................... 175
23 PILOT-31T906000_03.book 805 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

809
Index
K
Keyless Access System.............................. 181
Keys ........................................................... 178
Number Tag............................................ 179
Rear Door Won’t Open ........................... 194
Remote Transmitter ................................ 187
Kickdown (Automatic Transmission) ...... 532
Knee Airbags .............................................. 67
L
Lane Keeping Assist System (LKAS) ........ 612
LATCH (Child Seats) ............................. 82, 89
Lights ................................................ 220, 718
Auto High-Beam ..................................... 226
Bulb Replacement ................................... 718
Daytime Running Lights .......................... 225
Fog Light ................................................ 224
High Beam Indicator ............................... 108
Interior.................................................... 260
Light Switches......................................... 220
Lights On Indicator.................................. 108
Parking Lights ......................................... 220
Load Limits ............................................... 505
Locking/Unlocking ................................... 178
Auto Door Locking/Unlocking ................. 195
Childproof Door Locks ............................ 194
From Inside ............................................. 192
From Outside .......................................... 181
Keys........................................................ 178
Using a Key............................................. 188 Low Battery Charge
.................................. 772
Low Fuel Indicator .................................... 105
Low Speed Braking Control ..................... 584
Lower Anchors ............................................ 82
Lubricant Specifications Chart ................. 791
Luggage (Maximum Load Limit) ............. 505
Lumbar Support ........................................ 240
Lumbar Support Adjustment Switch ....... 240
M
Maintenance............................................. 691
Battery .................................................... 737
Brake Fluid .............................................. 717
Cleaning .................................................. 742
Coolant ................................................... 714
Maintenance Minder
TM............................ 695
Oil ........................................................... 710
Precautions .............................................. 692
Radiator .................................................. 715
Remote Transmitter ................................. 739
Replacing Light Bulbs ............................... 718
Safety ...................................................... 693
Service Items ........................................... 700
Tires ........................................................ 728
Transfer Assembly Fluid ........................... 716
Transmission Fluid ................................... 716
Under the Hood ...................................... 705
Malfunction Indicator Lamp ............ 103, 772
Map Light Switches .................................. 261
Maximum Load Limit ............................... 505 Meters, Gauges
......................................... 121
Mirrors ...................................................... 236
Adjusting ................................................ 236
Door ....................................................... 237
Exterior ................................................... 237
Interior Rearview ..................................... 236
Modifications (and Accessories) .............. 747
MP3 ................................................... 309, 370
Multi-View Rear Camera .......................... 672
N
Navigation........................................ 131, 159
No Content ............................................... 138
Numbers (Identification) .......................... 792
O
Odometer................................................. 122
Off-Highway Driving Guidelines ............. 519
Oil (Engine) ............................................... 709
Adding .................................................... 711
Checking................................................. 710
Displaying Oil Life .................................... 696
Engine oil pressure low Warning ............. 771
Recommended Engine Oil ....................... 709
Viscosity .................................................. 709
Open Source Licenses ....................... 416, 802
Opening/Closing
Hood....................................................... 706
Panoramic Roof ....................................... 213
23 PILOT-31T906000_03.book 809 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

810
Index
Power Windows ...................................... 210
Tailgate ................................................... 196
Other Interior Convenience Items ........... 272
Outside Temperature Display .................. 123
Overheating .............................................. 769
P
Paddle Shifters (Sequential Mode) .... 28, 541
Panic Mode ............................................... 209
Panoramic Roof ........................................ 213
Parking ...................................................... 661
Parking Brake ............................................ 652
Parking Brake and Brake System Indicator (Amber) ........................................... 102, 775
Parking Brake and Brake System Indicator
(Red) ................................ 100, 101, 773, 775
Parking Lights ........................................... 220
Parking Sensor System .............................. 663
Passenger Airbag Off Indicator ................. 74
Passing Indicators ..................................... 220
Phone ........................................................ 130
Playing Bluetooth ® Audio ................ 312, 373
Power Tailgate .......................................... 199
Power Windows ........................................ 210
Precautions While Driving ........................ 531
Driving Guidelines for Your Utility
Vehicle................................................... 531
Rain ......................................................... 531
Pregnant Women ....................................... 57
Puddle Lights ............................................ 183 Puncture (Tire)
.......................................... 751
R
Radiator.................................................... 715
Radio (FM/AM) ................................. 304, 352
Radio (SiriusXM ®) ..................................... 356
Radio Data System (RDS) ................. 305, 354
Range ................................................ 128, 157
RDS (Radio Data System) ................. 305, 354
Readiness Codes (Emissions Testing) ....... 795
Rear Climate Control System From the Rear Panel ................................ 288
Rear Defogger/Heated Door Mirror Button ..................................................... 232
Rear Seat Reminder .................................. 251
Rear Seats Second Row Seat .................................... 243
Third Row Seat ........................................ 250
Rearview Mirror ....................................... 236
Refueling .......................................... 498, 686
Fuel Gauge.............................................. 122
Gasoline .......................................... 686, 790
Low Fuel Indicator ................................... 105
Regulations ............................... 561, 731, 793
Remote Transmitter ................................. 187
Removing the Second Row Center
Seat .......................................................... 246
Replacement Battery .................................................... 739
Bulbs ....................................................... 718 Front Wiper Blade Rubber ....................... 723
Fuses ...................................... 778, 780, 782
Rear Wiper Blade Rubber ........................ 726
Tires........................................................ 734
Reporting Safety Defects ......................... 794
Resetting a Trip Meter ..................... 128, 156
Reverse Tilt Door Mirror .......................... 237
Road Departure Mitigation ..................... 634
On and Off ............................................. 637
S
Safe Driving ................................................ 37
Safety Check ............................................... 42
Safety Labels .............................................. 96
Safety Message ............................................ 4
Safety Support ................................. 136, 164
Seat Belts .................................................... 43
Adjusting the Shoulder Anchor ................. 53
Automatic Seat Belt Tensioners ................. 51
Checking .................................................. 58
Detachable Anchor ................................... 54
Fastening .................................................. 52
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 87
Pregnant Women...................................... 57
Reminder .................................................. 45
Warning Indicator ............................. 45, 105
Seat Heaters ............................. 280, 281, 282
Seats .......................................................... 239
Adjusting ................................................ 239
23 PILOT-31T906000_03.book 810 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
