2023 HONDA HRV check engine

645Continued
Information

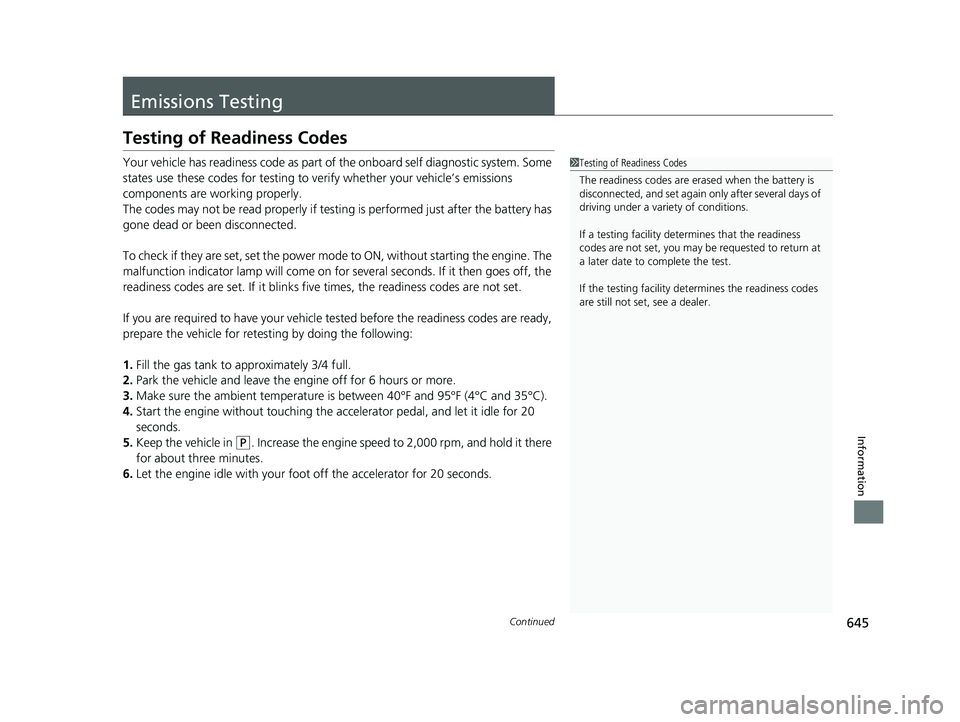

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system. Some
states use these codes for testing to ve rify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
23 HR-V-313V06000_01.book 645 ページ ２０２２年４月４日　月曜日　午前１０時４９分

654
Index
B
Battery....................................................... 592
Charging System Indicator ................. 91, 623
If the Battery Is Dead ............................... 617
Maintenance (Checking the Battery) ........ 592
Maintenance (Replacing).......................... 594
Belts (Seat) .................................................. 39
Beverage Holders ...................................... 193
Blind Spot Information System ................ 445
Bluetooth ® Audio ............................. 230, 290
Bluetooth ® HandsFreeLink ®........... 369, 389
Booster Seats (For Children) ....................... 82
Brake System ............................................. 528
Anti-lock Brake System (ABS) ................... 535
Automatic Brake Hold.............................. 532
Brake Assist System ................................. 536
Fluid ........................................................ 573
Foot Brake ............................................... 531
Indicator (Amber)............................... 90, 626
Indicator (Red) ..................... 88, 89, 624, 626
Parking Brake .......................................... 528
Bulb Replacement ..................................... 575
Back-Up Lights......................................... 576
Brake Lights ............................................. 576
Front Turn Signal/Parking, Daytime Running and Front Side Marker Lights ................. 575
Headlights ............................................... 575
High-Mount Brake Light .......................... 576
Rear License Plate Light............................ 576
Rear Side Marker Lights ........................... 576
Rear Turn Signal Lights ............................ 576 Side Turn Signal/Emergency Indicator
Lights .................................................... 575
Taillights.................................................. 576
Bulb Specifications ................................... 640
C
Carbon Monoxide Gas ............................... 83
Cargo Floor Box ........................................ 195
Carrying Cargo ................................. 411, 413
Certification Label .................................... 642
Changing Bulbs ........................................ 575
Charging System Indicator ................. 91, 623
Child Safety ................................................. 70
Childproof Door Locks............................. 151
Child Seat .................................................... 70
Booster Seats ............................................ 82
Child Seat for Infants................................. 72
Child Seat for Small Children ..................... 73
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 77
Larger Children ......................................... 81
Rear-facing Child Seat ............................... 72
Selecting a Child Seat ................................ 74
Childproof Door Locks ............................. 151
Cleaning the Exterior ............................... 598
Cleaning the Interior ................................ 596
Climate Control System ............................ 203
Changing the Mode ........................ 203, 204
Defrosting the Windshield and
Windows ............................................... 206 Recirculation/Fresh Air Mode................... 205
Synchronization Mode ............................ 208
Using Automatic Climate Control............ 203
Clock ......................................................... 134
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 453
Coat Hook ................................................ 194
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 453
Compact Spare Tire .......................... 605, 641
Console Compartment ............................. 192
Continuously Variable Transmission ....... 426
Creeping................................................. 426
Kickdown ............................................... 426
Operating the Shift ................................. 428
Operating the Shift Lever .......................... 24
Shift Lever Does Not Move ...................... 619
Shifting ................................................... 427
Continuously Variable Transmission (CVT)
Fluid ....................................................... 572
Controls .................................................... 133
Coolant (Engine) ...................................... 570
Adding to the Radiator ........................... 571
Adding to the Reserve Tank .................... 570
Overheating ............................................ 620
Creeping (Continuously Variable Transmission) .......................................... 426
Cross Traffic Monitor ............................... 542
Cup Holders .............................................. 193
Customer Service Information ................ 651
Customize Display .................................... 121
23 HR-V-313V06000_01.book 654 ページ ２０２２年４月４日　月曜日　午前１０時４９分

655
Index
Customized Features............... 123, 337, 345
D
Daytime Running Lights .......................... 170
Dead Battery ............................................ 617
Defaulting All the Settings .............. 344, 368
Defrosting the Windshield and Windows ................................................. 206
Devices that Emit Radio Waves ............... 643
Dimming Headlights .............................................. 166
Rearview Mirror ...................................... 178
Dipstick (Engine Oil) ................................ 566
Display Setup .................................... 221, 264
Door Mirrors ............................................. 179
Doors ........................................................ 136
Auto Door Locking.................................. 152
Auto Door Unlocking .............................. 152
Door and Tailgate Open Indicator ............. 38
Keys........................................................ 136
Locking/Unlocking the Doors from the Inside .............................................. 149
Locking/Unlocking the Doors from
the Outside ........................................... 139
DOT Tire Quality Grading ........................ 585
Drive Mode Switch ................................... 429
Driver Attention Monitor ........................ 114
Driver Information Interface ................... 107
Switching the Display .............................. 107 Driving
....................................................... 409
Braking .................................................... 528
Continuously Variable Transmission ......... 426
Shifting Position ...................................... 427
Starting the Engine .................................. 418
Dust and Pollen Filter ............................... 595
E
Eco Assist® System ...................................... 13
ECON Mode Indicator ................................ 98
Elapsed Time ............................................. 112
Electric Power Steering (EPS) System
Indicator ............................................ 93, 625
Electronic Stability Control (ESC) ............. 434
Emergency ................................................ 634
Emissions Testing (Readiness Codes) ....... 645
Engine
Coolant ................................................... 570
If the Battery Is Dead ............................... 617
Number ................................................... 642
Oil ........................................................... 565
Starting ................................................... 418
Switch Buzzer .................................. 164, 165
Engine Coolant ......................................... 570
Adding to the Radiator ............................ 571
Adding to the Reserve Tank ..................... 570
Overheating ............................................ 620
Engine Oil ................................................. 565
Adding .................................................... 567
Checking ................................................. 566 Displaying Oil Life .................................... 556
Engine oil pressure low Warning ............. 622
Recommended Engine Oil ....................... 565
ENGINE START/STOP Button .................... 163
Exhaust Gas Hazard (Carbon Monoxide) .. 83
Exterior Care (Cleaning) ........................... 598
Exterior Mirrors ........................................ 179F
Features.................................................... 211
Filters Dust and Pollen ....................................... 595
Oil ........................................................... 568
Flat Tire ..................................................... 605
Floor Mats ................................................. 597
Fluids Brake ...................................................... 573
Continuously Variable Transmission (CVT) ..................................................... 572
Engine Coolant ....................................... 570
Windshield Washer ................................. 574
FM/AM Radio .................................... 222, 269
Folding Down the Rear Seats .................. 183
Foot Brake ................................................ 531
Front Airbags (SRS) ..................................... 53
Front Seat Heaters .................................... 202
Front Seats Adjusting ................................................ 180
Front Wide View Camera ......................... 525
23 HR-V-313V06000_01.book 655 ページ ２０２２年４月４日　月曜日　午前１０時４９分

658
Index
Replacing Light Bulbs ............................... 575
Safety ...................................................... 553
Service Items............................................ 559
Tires ........................................................ 581
Transmission Fluid.................................... 572
Under the Hood....................................... 563
Malfunction Indicator Lamp .............. 91, 623
Map Light Switches .................................. 190
Maximum Load Limit ................................ 413
Meters, Gauges ......................................... 104
Mirrors ....................................................... 178
Adjusting ................................................. 178
Door ........................................................ 179
Exterior .................................................... 179
Interior Rearview...................................... 178
Modifications (and Accessories) ............... 601
Moonroof .................................................. 162
MP3 .................................................... 227, 287
Multi-View Rear Camera .......................... 545
N
Navigation................................................. 113
No Content ................................................ 122
NORMAL Mode Indicator ........................... 98
Numbers (Identification) .......................... 642
O
Odometer.................................................. 105
Off-Highway Driving Guidelines .............. 416Oil (Engine)
............................................... 565
Adding .................................................... 567
Checking................................................. 566
Displaying Oil Life .................................... 556
Engine oil pressure low Warning ............. 622
Recommended Engine Oil ....................... 565
Viscosity .................................................. 565
Open Source Licenses ....................... 332, 652
Opening and Closing the Moonroof ....... 162
Opening/Closing Hood....................................................... 564
Moonroof ............................................... 162
Power Windows ...................................... 159
Tailgate ................................................... 153
Outside Temperature Display .................. 105
Overheating .............................................. 620
P
Panic Mode............................................... 158
Parking ...................................................... 537
Parking Brake ........................................... 528
Parking Brake and Brake System Indicator (Amber) ............................................. 90, 626
Parking Brake and Brake System Indicator (Red) .................................... 88, 89, 624, 626
Parking Lights ........................................... 166
Parking Sensor System ............................. 538
Passenger Airbag Off Indicator ................. 67
Passing Indicators ..................................... 166
Phone ........................................................ 112 Playing Bluetooth
® Audio ............... 230, 290
Power Windows ....................................... 159
Precautions While Driving Driving Guidelines for Your Utility Vehicle .................................................. 425
Rain ........................................................ 425
Pregnant Women ....................................... 48
Puncture (Tire) ......................................... 605
R
Radiator.................................................... 571
Radio (FM/AM) ................................. 222, 269
Radio (SiriusXM ®)..................................... 273
Radio Data System (RDS) ................. 223, 271
Range ........................................................ 110
RDS (Radio Data System) ................. 223, 271
Readiness Codes (Emissions Testing) ...... 645
Real Time AWD with Intelligent Control System
TM.................................................. 437
Rear Defogger/Heated Door Mirror
Button ..................................................... 176
Rear Seats (Folding Down) ...................... 183
Rearview Mirror ....................................... 178
Refueling .......................................... 408, 547
Fuel Gauge ............................................. 104
Gasoline ......................................... 547, 640
Low Fuel Indicator (Amber) ....................... 92
Regulations .............................. 443, 585, 643
Remote Transmitter ................................. 145
23 HR-V-313V06000_01.book 658 ページ ２０２２年４月４日　月曜日　午前１０時４９分

659
Index
ReplacementBattery .................................................... 594
Bulbs ...................................................... 575
Front Wiper Blade Rubber ....................... 577
Fuses .............................................. 628, 630
Tires........................................................ 588
Wiper Blade Rubber ................................ 579
Reporting Safety Defects ......................... 644
Resetting a Trip Meter ............................. 110
Road Departure Mitigation ..................... 511
On and Off ............................................. 514
S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels .............................................. 84
Safety Message ............................................ 4
Safety Support ......................................... 118
Seat Belts .................................................... 39
Adjusting the Shoulder Anchor ................. 46
Automatic Seat Belt Tensioners ................. 43
Checking .................................................. 49
Detachable Anchor ................................... 47
Fastening .................................................. 44
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 77
Pregnant Women...................................... 48
Reminder .................................................. 41
Warning Indicator ............................... 41, 92
Seat Heaters ............................................. 202 Seats
.......................................................... 180
Adjusting ................................................. 180
Front Seat Heaters ................................... 202
Front Seats .............................................. 180
Rear Seats ............................................... 183
Security System ......................................... 156
Immobilizer System Indicator ..................... 97
Security System Alarm Indicator ................. 97
Selecting a Child Seat ................................. 74
Selector Knob (Audio) .............................. 219
Settings ..................................................... 123
Shift Operation ................................................ 428
Shift Lever ........................................... 24, 427
Operation .................................................. 24
Releasing ................................................. 619
Won’t Move ............................................ 619
Shift Position Indicator ....................... 91, 428
Shifting (Transmission) ............................. 427
Shoulder Anchor ......................................... 46
Side Airbags ................................................ 61
Side Curtain Airbags ................................... 64
Siri Eyes Free ............................................. 234
SiriusXM ® Radio ........................................ 273
Smart Shortcuts ........................................ 297
SNOW Mode Indicator ............................... 98
Snow Tires ................................................. 590
Spare Tire .......................................... 605, 641
Spark Plugs ................................................ 640
Specifications ............................................ 640
Specified Fuel .................................... 547, 640 Speed/Distance Units
................................ 122
Speedometer ............................................ 104
SRS Airbags (Airbags) ................................. 53
Starting the Engine .................................. 418
Does Not Start......................................... 612
If the Battery Is Dead ............................... 617
Steering Wheel Adjusting ................................................ 177
Stopping ................................................... 537
Summer Tires ............................................ 590
Supplemental Restraint System (SRS) ........ 53
Switches (Around the Steering Wheel) ............................................. 8, 9, 163
System Message Indicator .......................... 98
System Updates ........................................ 257
T
Tachometer............................................... 104
Tailgate ..................................................... 153
Unable to Open....................................... 636
Temperature Outside Temperature Display ................... 105
Temperature Sensor ................................. 105
Tie-down Anchors .................................... 194
Tire Pressure Monitoring System (TPMS) ..................................................... 438
Indicator............................................ 95, 627
Tires ........................................................... 581
Air Pressure ..................................... 583, 641
Checking and Maintaining ...................... 581
23 HR-V-313V06000_01.book 659 ページ ２０２２年４月４日　月曜日　午前１０時４９分
