2023 HONDA CIVIC turn signal

9
Quick Reference Guide❚Headlights/Turn Signals (P205, 206)
❚Fog Lights* (P209)
❚Paddle Shifter (Shift down)* (P507)
❚Left Selector Wheel (P126)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons* (P578)
❚Lane Keeping Assist System (LKAS) Button
(P621)
❚Interval Button (P592)
❚Steering Wheel Adjustments (P219)
❚Heated Steering Wheel* (P246)
Canadian models
❚Right Selector Wheel* (P155)
❚Bluetooth® HandsFreeLink ® System Voice Control Button* (P464)
❚Audio Remote Controls (P260)
❚ (home) Button* (P125)
❚Horn (Press an area around .)
❚Adaptive Cruise Control (ACC) Buttons*
(P598)
❚Paddle Shifter (Shift up)* (P507)
❚Wipers/Washers (P213)
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 9 ページ ２０２２年６月２３日　 木曜日　午後９時２８分

Visual Index
12
Quick Reference Guide❚Maintenance Under the Hood (P707)
❚Windshield Wipers (P213, 733)
❚Tires (P736, 761)
❚Fog Lights* (P209, 728)
❚Power Door Mirrors (P221)
❚How to Refuel (P687)
❚Rear Wiper (P215, 735)
❚Opening/Closing the Hatch (P192)
❚Side Turn Signal Lights* (P205, 728)
❚Headlights (P206, 728)
❚Front Turn Signal Lights (P205, 728)
❚Front Side Marker Lights (P206, 728)
❚Taillights (P731)
❚Rear Side Marker Lights (P729)
❚Hatch Release Button (P193)
❚Rear License Plate Light (P731)
❚Back-Up Lights (P731)
❚High-Mount Brake Light (P732)
❚Door Lock/Unlock Control (P179)
❚Parking/Daytime Running Lights (P209, 728)
❚Multi-View Rear Camera (P681)
❚Brake Lights (P729)
❚Rear Turn Signal Lights (P729)
❚Taillights (P729)
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 12 ページ ２０２２年６月２３日　木曜日　午後９時２８分

21
Quick Reference Guide
Turn Signals (P205)
Lights (P206)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P213)
*1:Models with automatic intermittent wipers
*2:Models with manual intermittent operation
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Wiper/Washer Control Lever
Adjustment Ring
*
( -: Low sensitivity*1
: Lower speed, fewer sweeps*2
(+: High sensitivity*1
: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Models with automatic intermittent wipers
Steering Wheel (P219)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P189)
●Pull either front door inner handle to
unlock and open it at the same time.
To adjust
To lock
*
Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 21 ページ ２０２２年６月２３日　木曜日　午後９時２８分

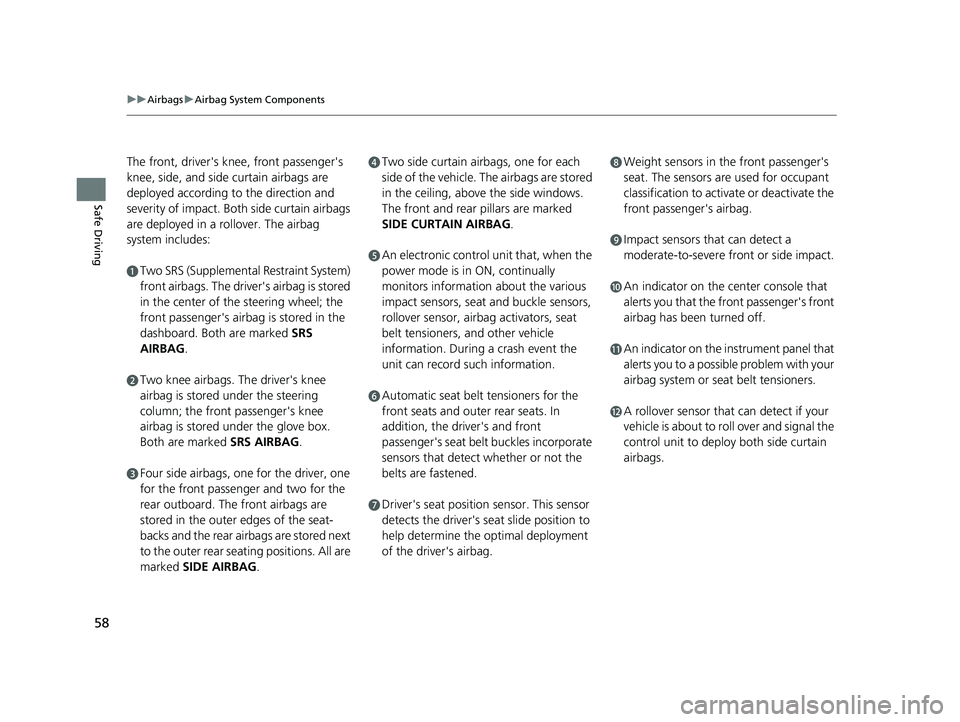

58
uuAirbags uAirbag System Components
Safe Driving
The front, driver's knee, front passenger's
knee, side, and side curtain airbags are
deployed according to the direction and
severity of impact. Both side curtain airbags
are deployed in a ro llover. The airbag
system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver's airbag is stored
in the center of the steering wheel; the
front passenger's airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bTwo knee airbags. Th e driver's knee
airbag is stored under the steering
column; the front passenger's knee
airbag is stored under the glove box.
Both are marked SRS AIRBAG.
cFour side airbags, one for the driver, one
for the front passenger and two for the
rear outboard. The front airbags are
stored in the outer edges of the seat-
backs and the rear airbags are stored next
to the outer rear seating positions. All are
marked SIDE AIRBAG .
dTwo side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG .
eAn electronic control unit that, when the
power mode is in ON, continually
monitors information about the various
impact sensors, seat and buckle sensors,
rollover sensor, airbag activators, seat
belt tensioners, and other vehicle
information. During a crash event the
unit can record such information.
fAutomatic seat belt tensioners for the
front seats and outer rear seats. In
addition, the driver's and front
passenger's seat belt buckles incorporate
sensors that detect whether or not the
belts are fastened.
gDriver's seat position sensor. This sensor
detects the driver's seat slide position to
help determine the optimal deployment
of the driver's airbag.
hWeight sensors in the front passenger's
seat. The sensors are used for occupant
classification to activa te or deactivate the
front passenger's airbag.
iImpact sensors that can detect a
moderate-to-severe front or side impact.
jAn indicator on the center console that
alerts you that the front passenger's front
airbag has been turned off.
kAn indicator on the instrument panel that
alerts you to a possib le problem with your
airbag system or seat belt tensioners.
lA rollover sensor that can detect if your
vehicle is about to roll over and signal the
control unit to deploy both side curtain
airbags.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 58 ページ ２０２２年６月２３日　木曜日　午後９時２８分

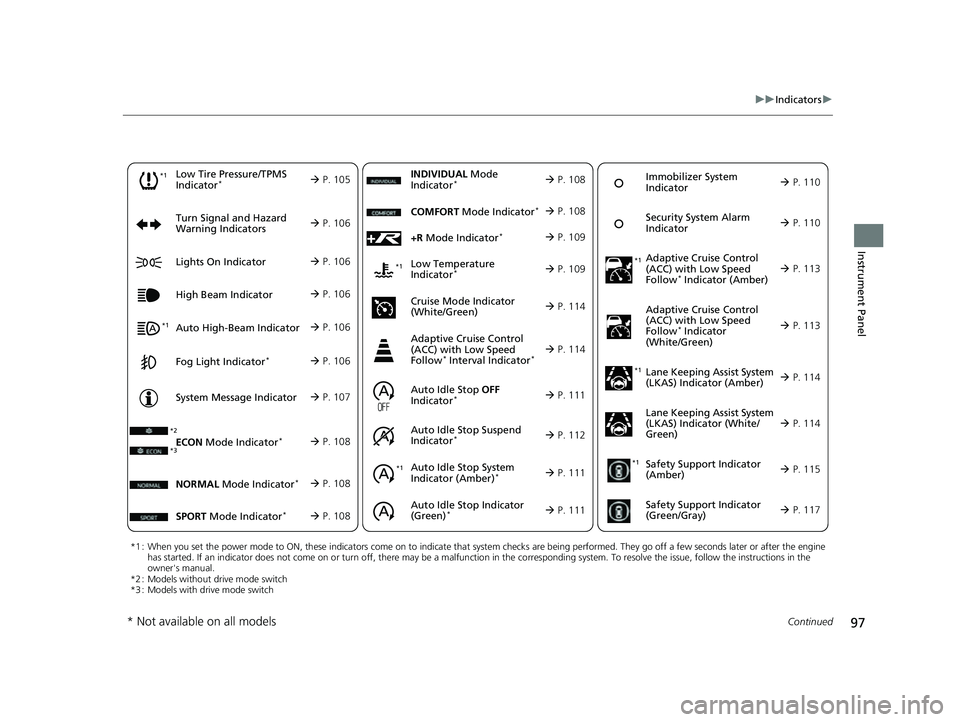

97
uuIndicators u
Continued
Instrument Panel
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being perf ormed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, th ere may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the
owner's manual.
*2 : Models without drive mode switch
*3 : Models with drive mode switch
Auto High-Beam Indicator
Low Tire Pressure/TPMS
Indicator*
Turn Signal and Hazard
Warning Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
System Message Indicator Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator (Amber)
Lane Keeping Assist System
(LKAS) Indicator (Amber)
Safety Support Indicator
(Green/Gray)

P. 105
Auto Idle S
top System
Indica
tor (Amber)* P. 111
 P. 106
 P. 106 
P. 113
*1
 P. 106
 P. 106

P. 106 Immobilizer System
Indicator

P.

110
Secu
rity System Alarm
Indicator 
P.

110
 P. 107 
P. 114
 P. 117
*1
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator
(White/Green) P. 113
*1
Lane Keeping Assist System
(LKAS) Indicator (White/
Green) 
P. 114
*1 *1Safety Support Indicator
(Amber)

P. 115
*1
NORMAL Mode Indicator* P. 108
Auto Idle Stop OFF
Indicator* P. 111
Auto Idle Stop Suspend
Indicator
* P. 112ECON Mode Indicator* P. 108*3
SPORT Mode Indicator* P. 108
INDIVIDUAL Mode
Indicator* P. 108
Cruise Mode Indicator
(White
/Green)
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Interval Indicator* P. 114
*2
Auto Idle Stop Indicator
(Green)* P. 111
Low Temperature
Indicator* P. 109
COMFORT Mode Indicator* P. 108
+R Mode Indicator* P. 109
 P. 114
*1
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 97 ページ ２０２２年６月２３日　木曜日　午後９時２８分

106
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Turn Signal and
Hazard Warning
Indicators•Blinks when you oper ate the turn signal
lever.
• Blinks along with all turn signals when you
press the hazard warning button.•Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 729
Lights On Indicator•Comes on when the parking, tail, and
other external lights are on.2 Light Switches P. 206
High Beam
Indicator•Comes on when the high beam headlights
are on.—
Auto High-Beam
Indicator•Comes on when all the operating
conditions of the auto high-beam are met.2 Auto High-Beam P. 210
Fog Light
Indicator*
•Comes on when the fog lights are on.2 Fog Lights* P. 209
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 106 ページ ２０２２年６月２３日　木曜日　午後９時２８分

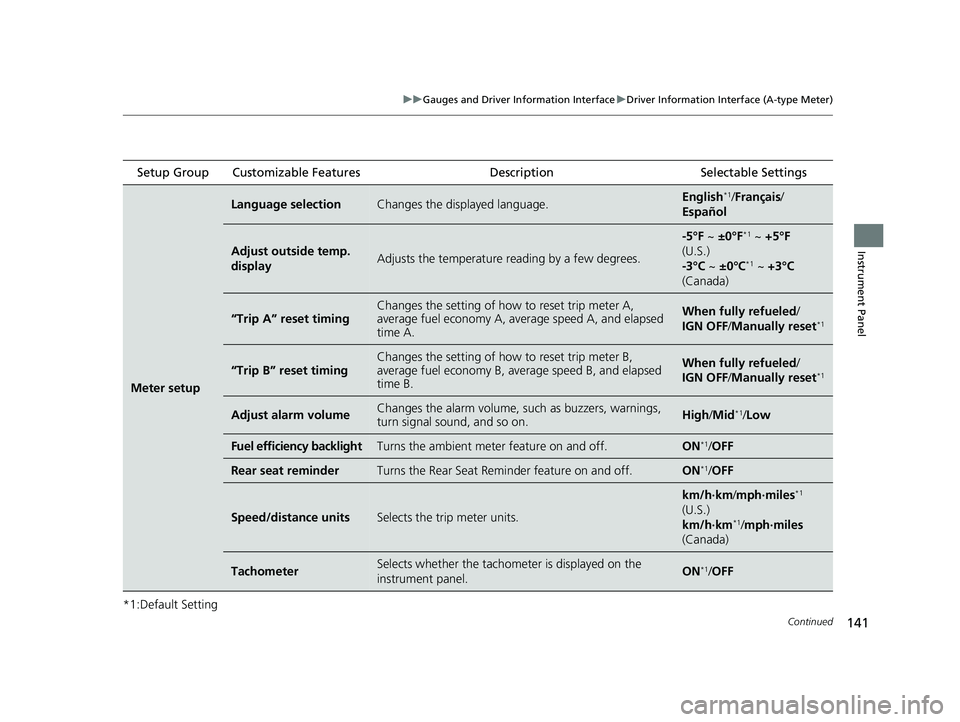

141
uuGauges and Driver Information Interface uDriver Information Interface (A-type Meter)
Continued
Instrument Panel
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
Meter setup
Language selectionChanges the displayed language.English*1/Français /
Español
Adjust outside temp.
displayAdjusts the temperature r eading by a few degrees.
-5°F ~ ±0°F*1 ~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” reset timingChanges the setting of how to reset trip meter A,
average fuel economy A, av erage speed A, and elapsed
time A.When fully refueled/
IGN OFF /Manually reset*1
“Trip B” reset timing
Changes the setting of ho w to reset trip meter B,
average fuel economy B, av erage speed B, and elapsed
time B.When fully refueled/
IGN OFF /Manually reset*1
Adjust alarm volumeChanges the alarm volume, su ch as buzzers, warnings,
turn signal sound, and so on.High /Mid*1/Low
Fuel efficiency backlightTurns the ambient meter feature on and off.ON*1/ OFF
Rear seat reminderTurns the Rear Seat Reminder feature on and off.ON*1/OFF
Speed/distance unitsSelects the trip meter units.
km/h∙km /mph∙miles*1
(U.S.)
km/h∙km
*1/ mph∙miles
(Canada)
TachometerSelects whether the tachom eter is displayed on the
instrument panel.ON*1/ OFF
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 141 ページ ２０２２年６月２３日　木曜日　午後９時２８分

173
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 174
Locking and Unlocking the Doors Key .................................................. 176
Low Keyless Remote Signal Strength .... 178
Locking/Unlocking the Doors from the Outside .......................................... 179
Locking/Unlocking the Doors from the Inside ............................................. 188
Childproof Door Locks ..................... 190
Auto Door Locking/Unlocking .......... 191
Hatch ................................................. 192
Security System ................................ 195 Windows
........................................... 198
Moonroof
*........................................ 201
Operating the Switches Around the Steering Wheel ENGINE START/STOP Button............. 202
Turn Signals ..................................... 205
Light Switches.................................. 206
Fog Lights
*...................................... 209
Daytime Running Lights ................... 209
Auto High-Beam .............................. 210
Wipers and Washers ........................ 213 Rear Defogger/Heated Door Mirror
*
Button ........................................... 216
Brightness Control ........................... 217
Adjusting the Steering Wheel .......... 219
Mirrors Interior Rearview Mirror ................... 220
Power Door Mirrors ......................... 221
Seats .................................................. 222
Interior Convenience Items .............. 231
Climate Control System ................... 249
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 173 ページ ２０２２年６月２３日　木曜日　午後９時２８分
