GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-16417394) - 2023 - CRC - 4/26/22
Vehicle Care 323
Engine Fan
If the vehicle has electric cooling fans, the
fans may be heard spinning at low speed
during most everyday driving. The fans may
turn off if no cooling is required. Under
heavy vehicle loading, trailer towing, high
outside temperatures, or operation of the air
conditioning system, the fans may change
to high speed and an increase in fan noise
may be heard. This is normal and indicates
that the cooling system is functioning
properly. The fans will change to low speed
when additional cooling is no longer
required.
The electric engine cooling fans may run
after the engine has been turned. off. This is
normal and no service is required.
Washer Fluid
What to Use
When windshield washer fluid needs to be
added, be sure to read the manufacturer's
instructions before use. Use a fluid that has
sufficient protection against freezing in an
area where the temperature may fall below
freezing.
Adding Washer Fluid
The vehicle has a low washer fluid message
on the DIC that comes on when the washer
fluid is low. The message is displayed for
15 seconds at the start of each ignition cycle.
When the WASHER FLUID LOW ADD FLUID
message displays, washer fluid will need to
be added to the windshield washer fluid
reservoir.
Open the cap with the washer symbol on it.
Add washer fluid until the tank is full. See
Engine Compartment Overview0311 for
reservoir location.
Caution
.Do not use washer fluid that contains
any type of water repellent coating.
This can cause the wiper blades to
chatter or skip.
(Continued)
Caution (Continued)
.Do not use engine coolant (antifreeze)
in the windshield washer. It can
damage the windshield washer system
and paint.
.Do not mix water with ready-to-use
washer fluid. Water can cause the
solution to freeze and damage the
washer fluid tank and other parts of
the washer system.
.When using concentrated washer fluid,
follow the manufacturer instructions
for adding water.
.Fill the washer fluid tank only
three-quarters full when it is very cold.
This allows for fluid expansion if
freezing occurs, which could damage
the tank if it is completely full.
Brakes
Disc brake linings have built-in wear
indicators that make a high-pitched warning
sound when the brake linings are worn and
new linings are needed. The sound can come
and go or can be heard all the time when
the vehicle is moving, except when applying
the brake pedal firmly.
Page 391 of 432
GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-16417394) - 2023 - CRC - 4/26/22
390 Service and Maintenance
.Vehicles that are regularly used for short
trips of 6 km (4 mi) or less.
The oil life indicator will show you when
to change the oil and filter. Under severe
conditions the indicator may come on
before 12 000 km (7,500 mi).
* Footnote: Under extreme driving
conditions listed above, it may be
necessary to replace your spark plugs at
more frequent intervals. For further
assistance in determining the most
suitable service maintenance intervals for
your vehicle, please contact your
authorized GM Dealer.
Extreme service is for vehicles mainly
driven off-road in four-wheel drive or used
in farming, mining, forestry, or snow
plowing.Additional Required Services—Severe
Service
Every 72 000 km (45,000 mi)
.Change automatic transmission fluid and
filter.
.Change transfer case fluid, if equipped
with 4WD. Do not directly power wash
the transfer case and/or front/rear axle
output seals. High pressure water can
overcome the seals and contaminate the
transfer case fluid. Contaminated fluid will
decrease the life of the transfer case
and/or axles and should be replaced.
Owner Checks and Services
Every Five Years
.Replace brake fluid.
Every Seven Years
.Replace Air Conditioning Desiccant every
seven years. The air conditioning system
requires maintenance every seven years.
This service requires replacement of the
desiccant to help the longevity and
efficient operation of the air conditioning
system. This service can be complex. See
your dealer.
Multi-Point Vehicle
Inspection (MPVI)
A Multi Point Vehicle Inspection (MPVI)
completed by a GM dealer technician is a
maintenance assessment of your vehicle.
The benefit of the MPVI is to identify and
inform the customer of service items that
require immediate attention and those that
may require attention in the future.
The technician will perform the following
checks on your vehicle. For a complete list
of checks, inspections, and services, see your
dealer.
Some items may not apply to your vehicle
and/or region.
Diagnostics
.OnStar active, if equipped
.Service history/recall check
Engine Oil and Filter
.Engine oil
.Oil life monitor
‐ Reset oil life monitor
Page 424 of 432
GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-16417394) - 2023 - CRC - 5/11/22
Index 423
Fluid (cont'd)Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
Fog Lamp Light Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Forward Collision Alert (FCA) System . . . . . . . . . . . 264
Four Corner Air Suspension Light . . . . . . . . . 119
Four Corner Air Suspension System . . . . . . 220
Four-Wheel Drive . . . . . . . . . . . . . . . . . . . 208, 326
Four-Wheel-Drive Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407
Front Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327
Heated and Ventilated Seats . . . . . . . . . . . . 44
Pedestrian Braking (FPB) System . . . . . . . 267
Fuel
Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Dynamic Management . . . . . . . . . . . . . . . . . 203
Economy, Driving for Better . . . . . . . . . . . 184
Filling a Portable Fuel Container . . . . . . . 277
Filling the Tank . . . . . . . . . . . . . . . . . . . . . . . . 275
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 275
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Fuel (cont'd)
Low Fuel Warning Light . . . . . . . . . . . . . . . . 121
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 275
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . 274
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Full-Size Spare Tire . . . . . . . . . . . . . . . . . . . . . . . 370
Fuses Engine Compartment Fuse Block . . . . . . . 332
Fuses and Circuit Breakers . . . . . . . . . . . . . 332
Instrument Panel Fuse Block . . . . . . . . . . . 336
Rear Compartment Fuse Block . . . . . . . . . 338
G
Garage Door Opener . . . . . . . . . . . . . . . . . . . . . 130Programming . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Gauges Engine Coolant Temperature . . . . . . . . . . . 109
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . 109
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Transmission Temperature . . . . . . . . . . . . . 110
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . 108
Voltmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Warning Lights and Indicators . . . . . . . . . 104 General Information
Service and Maintenance . . . . . . . . . . . . . . 387
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
Glass Replacement . . . . . . . . . . . . . . . . . . . . . . . 329
Global Positioning System (GPS) . . . . . . . . . .158
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 402
Guidance Problems with the Route . . . . . . . . . . . . . . 159
H
Hazard Warning Flashers . . . . . . . . . . . . . . . . 136
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Head-Up Display (HUD) . . . . . . . . . . . . . . . . . . . 125
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Daytime Running Lamps (DRL) . . . . . . . . . 135
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
High-Beam On Light . . . . . . . . . . . . . . . . . . . 122
High/Low Beam Changer . . . . . . . . . . . . . . 135
Lamps On Reminder . . . . . . . . . . . . . . . . . . . 122
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 97
Page 426 of 432
GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-16417394) - 2023 - CRC - 5/11/22
Index 425
Lights (cont'd)Automatic Emergency Braking (AEB)
Disabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Brake System Warning . . . . . . . . . . . . . . . . . 115
Charging System . . . . . . . . . . . . . . . . . . . . . . . 113
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Cruise Control Light . . . . . . . . . . . . . . . . . . . . 122
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Driver Mode Control . . . . . . . . . . . . . . . . . . . . 119
Electric Parking Brake . . . . . . . . . . . . . . . . . . . 115
Engine Coolant Temperature Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 121
Four Corner Air Suspension . . . . . . . . . . . . . 119
Four-Wheel-Drive . . . . . . . . . . . . . . . . . . . . . . . 116
Front Fog Lamp . . . . . . . . . . . . . . . . . . . . . . . . 122
Gauges and Indicators . . . . . . . . . . . . . . . . . 104
High-Beam On . . . . . . . . . . . . . . . . . . . . . . . . . 122
Hill Descent Control . . . . . . . . . . . . . . . . . . . . 116
Lane Keep Assist . . . . . . . . . . . . . . . . . . . . . . . . 116
Low Fuel Warning . . . . . . . . . . . . . . . . . . . . . . 121
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 111
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Service Electric Parking Brake . . . . . . . . . . . 115
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 Lights (cont'd)
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . . . . . . . . . . . 118
Traction Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Lock Steering Column . . . . . . . . . . . . . . . . . . . . . . . . 26
Locking Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . 220
Locks
Automatic Door . . . . . . . . . . . . . . . . . . . . . . . . . 16
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . 16
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . . 17
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . .187
Low Fuel Warning Light . . . . . . . . . . . . . . . . . . 121
Low-Profile Tires . . . . . . . . . . . . . . . . . . . . . . . . . .341
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . . . . . . . . 78
Lumbar Adjustment . . . . . . . . . . . . . . . . . . . . . . . 40 Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
M
Magnetic Ride Control . . . . . . . . . . . . . . . . . . . 220
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 394
Maintenance Schedule . . . . . . . . . . . . . . . . . . . 388 Maintenance Schedule (cont'd)
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392
Malfunction Indicator Lamp . . . . . . . . . . . . . . . 113
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Massage
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Media Avoiding Untrusted Devices . . . . . . . . . . . . 149
Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Messages
Engine Power . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Mirrors Automatic Dimming . . . . . . . . . . . . . . . . . . . . 29
Automatic Dimming Rearview . . . . . . . . . . 29
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Interior Rearview . . . . . . . . . . . . . . . . . . . . . . . 29
Manual Rearview . . . . . . . . . . . . . . . . . . . . . . . 29
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Rear Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Page 427 of 432
GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-16417394) - 2023 - CRC - 5/11/22

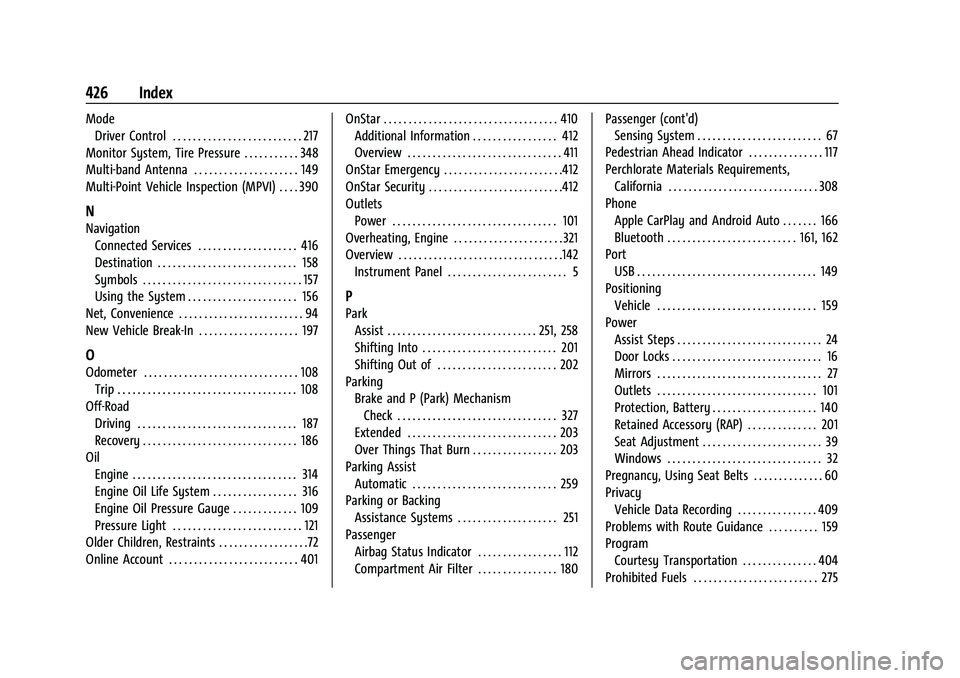

426 Index
ModeDriver Control . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Monitor System, Tire Pressure . . . . . . . . . . . 348
Multi-band Antenna . . . . . . . . . . . . . . . . . . . . . 149
Multi-Point Vehicle Inspection (MPVI) . . . . 390
N
Navigation Connected Services . . . . . . . . . . . . . . . . . . . . 416
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Using the System . . . . . . . . . . . . . . . . . . . . . . 156
Net, Convenience . . . . . . . . . . . . . . . . . . . . . . . . . 94
New Vehicle Break-In . . . . . . . . . . . . . . . . . . . . 197
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Off-Road Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Oil
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Engine Oil Life System . . . . . . . . . . . . . . . . . 316
Engine Oil Pressure Gauge . . . . . . . . . . . . . 109
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Older Children, Restraints . . . . . . . . . . . . . . . . . .72
Online Account . . . . . . . . . . . . . . . . . . . . . . . . . . 401 OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410
Additional Information . . . . . . . . . . . . . . . . . 412
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 411
OnStar Emergency . . . . . . . . . . . . . . . . . . . . . . . .412
OnStar Security . . . . . . . . . . . . . . . . . . . . . . . . . . .412
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Overheating, Engine . . . . . . . . . . . . . . . . . . . . . . 321
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142 Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . 5
P
ParkAssist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251, 258
Shifting Into . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Shifting Out of . . . . . . . . . . . . . . . . . . . . . . . . 202
Parking
Brake and P (Park) MechanismCheck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Over Things That Burn . . . . . . . . . . . . . . . . . 203
Parking Assist Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Parking or Backing Assistance Systems . . . . . . . . . . . . . . . . . . . . 251
Passenger
Airbag Status Indicator . . . . . . . . . . . . . . . . . 112
Compartment Air Filter . . . . . . . . . . . . . . . . 180 Passenger (cont'd)
Sensing System . . . . . . . . . . . . . . . . . . . . . . . . . 67
Pedestrian Ahead Indicator . . . . . . . . . . . . . . . 117
Perchlorate Materials Requirements, California . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
Phone Apple CarPlay and Android Auto . . . . . . . 166
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . 161, 162
Port USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Positioning Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Power Assist Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Protection, Battery . . . . . . . . . . . . . . . . . . . . . 140
Retained Accessory (RAP) . . . . . . . . . . . . . . 201
Seat Adjustment . . . . . . . . . . . . . . . . . . . . . . . . 39
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Pregnancy, Using Seat Belts . . . . . . . . . . . . . . 60
Privacy Vehicle Data Recording . . . . . . . . . . . . . . . . 409
Problems with Route Guidance . . . . . . . . . . 159
Program Courtesy Transportation . . . . . . . . . . . . . . . 404
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . . . 275
