2023 GENESIS GV60 warning

5-20
Convenience Features
How to use the Digital key (Card key)
Card key touch control
The driver can lock and unlock the door
by touching the card key on the door
handle. Also, the vehicle can be started
by placing the card key on the in-vehicle
authentication pad (wireless charging
pad).
OJWEV051229
[A] : Door handle authentication pad,
[B] : Card key NFC antenna

[Locking/Unlocking the doors
- If the driver touches the card key
on the driver’s or passenger’s door
handle authentication pad for more
than 2 seconds, the door will lock
or unlock.
- If Two Press Unlock function is
set, only the driver’s door will be
unlocked by touching the card key
on the driver’s door handle. Touch
the card key once more within 4
seconds to unlock all doors.
- After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.Note that you cannot lock your vehicle
using the NFC antenna if any of the
following occur:
- The Smart Key is in the vehicle
- The Start/Stop button is in ACC or ON
position
- Any of the doors are open except for
the vehicle hood or liftgate

[Starting the vehicle
After placing your registered card key
on the in-vehicle authentication pad
(wireless charger pad), depress the brake
pedal and press the Start/ Stop button.
For more details, refer to the “Start/
Stop Button” section in chapter 6.
WARNING
The vehicle can be started when the
registered card key is placed on the
in-vehicle authentication pad (wireless
charging pad). Therefore, do not leave
unsupervised children or people who
are not aware of the system since it
can result in serious injury or death. In
addition, always have the registered
card key with you to prevent vehicle
theft when leaving the vehicle.

5-27
05

[If face registration is not possible, audio
guidance is provided from the vehicle's
interior speaker 15 seconds after
registration starts. Faces cannot be
registered in the following situations.
-:KHQWKHIDFHLVFRYHUHGE\DPDVN
sunglasses, hat, etc.
-:KHQWKHGULYHULVQRWLQIURQWRIWKH
face recognition camera.
-:KHQWKHIDFHLVQRWGLUHFWO\IDFLQJ
the camera lens.
-:KHQWKHIDFHLVWRRIDUDZD\RYHU
0.8 m) from the camera.
-:KHQWKHIDFHLVWRRFORVHPRU
less) to the camera.

[Face registration may be canceled in
the following situations.
-:KHQWKHLQIRWDLQPHQWV\VWHPVFUHHQ
is changed.
-:KHQWKHYHKLFOHLVWXUQHGRII
-:KHQ\RXVWDUWGULYLQJ

[After registration, if there are
difficulties recognizing the face due to
changes in appearance such as makeup,
beard, or glasses, register the face
again.
WARNING
Never cooperate with others in
replicating your face, as this may result
in theft or safety accidents.
Deleting registered face information
1. Place one or more smart keys inside
the vehicle.
2. While the Start/Stop button is ON,
VHOHFW
S9HKLFOH6HWWLQJV

5-29
05

[When the vehicle entry with face
recognition is disabled, touching
the sensor on the outer door handle
will not operate the face recognition
camera. It is activated automatically
when the face is registered.

[If you have left your smart key or
digital key in your vehicle and locked
the vehicle door with Face Connect,
keep the smart key out of sight to
prevent theft.
WARNING
Do not register a child’s face on the
vehicle as unexpected accidents may
occur.
When Purchasing a Used Vehicle
If you purchase a used vehicle, you
should confirm and delete all registered
face in Driver 1 and Driver 2 profile.
If a face is registered, the message
“Biometric authentication active”
appears on the instrument cluster once
when the vehicle is turned on while the
doors are unlocked.
Legal Compliance
This system uses facial recognition and
authentication which may be considered
"biometrics" under law. Use of this
system consents to the collection,
use, and storage of your data for the
disclosed activities. (By setting your
Facial Recognition Profile, you consent to
using facial recognition for locking and
unlocking the vehicle.) We will only use
or share your data as needed for system
use, maintenance, and storage. Stored
data cannot be converted into your
facial image. You may delete your facial
recognition data at any time.

5-32
Convenience Features
Limitations of the System

[Fingerprint authentication system
may not work when:
- Trying to authorize with
unregistered fingerprint.
- Not touching the center of
fingerprint authentication sensor.
- Any water or substances is on your
finger or the sensor.
- The film on the sensor is not
removed.
- The registered fingerprint is
damaged or swollen.
- The hand is overly dry.
- The sensor is touched shortly.

[If fingerprint authentication fails
over 5 consecutive times, fingerprint
recognition is temporarily restricted.
You should try it later or try other
methods such as inputting your
password.

[When you visit an authorized retailer
of Genesis Branded products to repair
parts due to fingerprint authorization
system or related part failure, your
registered fingerprint might be
deleted. Have your smart key when
you visit an authorized retailer of
Genesis Branded products.

[You cannot use the fingerprint sensor
when the vehicle is discharged.

[If you turn the vehicle on or off
while proceeding the fingerprint
authorization, the process will not be
complete. WARNING
Do not enroll children’s fingerprints in
the vehicle.
If you enroll children’s fingerprints and
leave them in the vehicle, unexpected
accidents may occur.
Used vehicle
When purchasing a used vehicle
If you purchase a used vehicle, you
should confirm and delete all of the
enrolled fingerprints in Driver 1 and
Driver 2 profile.

5-39
05
In case of an emergency
OJWEV051020
In case of emergency such as when the
battery is discharged, the only way to
lock the door(s) is with the mechanical
key from the outside key hole.
Doors without an outside key hole can be
locked as follows:
1. Open the door.
2. Insert the key into the emergency
door lock hole and turn the key to the
lock position.
3. Close the door securely.
Information
If the electrical power door lock switch
does not operate (ex. dead car battery) and
the liftgate is closed, you will not be able to
open the liftgate until power is restored.
WARNING

[The doors should always be fully
closed and locked while the
vehicle is in motion. If the doors
are unlocked, the risk of being
thrown from the vehicle in a crash is
increased.

[Do not pull the inner door handle of
the driver’s or passenger’s door while
the vehicle is moving.
WARNING
Do not leave children or animals
unattended in your vehicle. An enclosed
vehicle can become extremely hot,
causing death or serious injury to
unattended children or animals who
cannot escape from the vehicle.
Children might operate features of the
vehicle that could injure them, or they
could encounter other harm, possibly
from someone gaining entry to the
vehicle.
WARNING
Always secure your vehicle.
Leaving your vehicle unlocked increases
the potential risk to you or others from
someone hiding in your vehicle.
To secure your vehicle, while
depressing the brake, shift the gear
to the P (Park) position, engage the
parking brake, and press the Start/
Stop button to the OFF position, close
all windows, lock all doors, and always
take the key with you.

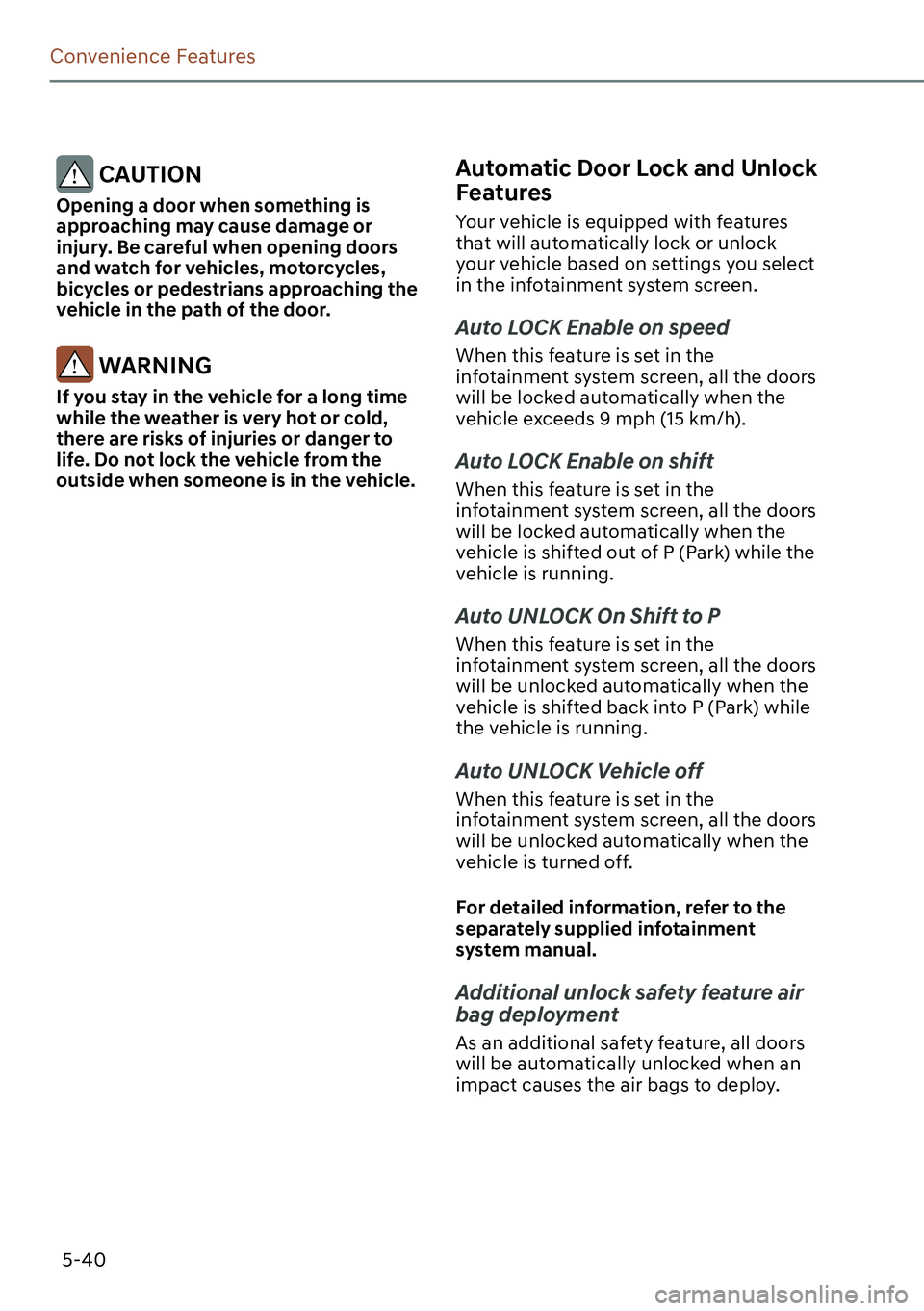

5-40
Convenience Features
CAUTION
Opening a door when something is
approaching may cause damage or
injury. Be careful when opening doors
and watch for vehicles, motorcycles,
bicycles or pedestrians approaching the
vehicle in the path of the door.
WARNING
If you stay in the vehicle for a long time
while the weather is very hot or cold,
there are risks of injuries or danger to
life. Do not lock the vehicle from the
outside when someone is in the vehicle.
Automatic Door Lock and Unlock
Features
Your vehicle is equipped with features
that will automatically lock or unlock
your vehicle based on settings you select
in the infotainment system screen.
Auto LOCK Enable on speed
When this feature is set in the
infotainment system screen, all the doors
will be locked automatically when the
vehicle exceeds 9 mph (15 km/h).
Auto LOCK Enable on shift
When this feature is set in the
infotainment system screen, all the doors
will be locked automatically when the
vehicle is shifted out of P (Park) while the
vehicle is running.
Auto UNLOCK On Shift to P
When this feature is set in the
infotainment system screen, all the doors
will be unlocked automatically when the
vehicle is shifted back into P (Park) while
the vehicle is running.
Auto UNLOCK Vehicle off
When this feature is set in the
infotainment system screen, all the doors
will be unlocked automatically when the
vehicle is turned off.
For detailed information, refer to the
separately supplied infotainment
system manual.
Additional unlock safety feature air
bag deployment
As an additional safety feature, all doors
will be automatically unlocked when an
impact causes the air bags to deploy.

5-41
05
Child-protector Rear Door Locks
(if equipped)
OJWEV051020L
The child safety lock is provided to help
prevent children seated in the rear from
accidentally opening the rear doors. The
rear door safety locks should be used
whenever children are in the vehicle.
The child safety lock is located on the
edge of each rear door. When the child
safety lock is in the lock position, the
rear door will not open if the inner door
handle is pulled.
To lock the child safety lock, insert a
small flat blade tool (like a screwdriver or
similar) (1) into the slot and turn it to the
lock position as shown.
To allow a rear door to be opened from
inside the vehicle, unlock the child safety
lock.
WARNING
If children accidently open the rear
doors while the vehicle is in motion,
they could fall out of the vehicle. The
rear door safety locks should always
be used whenever children are in the
vehicle.
Electronic Child Safety Lock (if
equipped)
OJWEV051021
When the electronic child safety lock
button is pressed and the indicator
light on the button illuminates, the rear
doors cannot be opened from inside the
vehicle.

[The rear door window cannot be
opened or closed while the electronic
child safety lock button is in the LOCK
position (indicator light ON).
For more details, refer to “Windows”
section in this chapter.

[Electronic child safety lock does not
automatically turn on unless the driver
presses the electronic child safety
lock button.

[If 3 minutes passes after the Start/
Stop button is pressed to the OFF
or ACC, the indicator on the button
turns off, and the driver cannot turn
off electronic child safety lock by
pressing the button. To turn off the
function, press the Start/Stop button
to the ON position, and then press the
electronic child safety lock button.

5-42
Convenience Features

[If the power is supplied again after
removing the battery or battery is
discharged while the electronic child
safety lock button is in the LOCK
position, press the button once more
to match the state of the indicator on
the electronic child safety lock button
and actual status of the electronic
child safety lock function.

[If the airbag is activated while the
electronic child safety lock button
is in the LOCK position (indicator
light ON), the rear doors will unlock
automatically.

[Vehicles equipped with the electronic
child safety lock feature is not
provided with a manual child safety
lock.
WARNING
If children accidentally opens the rear
door while the vehicle is in motion, they
could fall out of the vehicle. Electronic
child safety lock should always be used
whenever children are in the vehicle.
NOTICE
Child safety lock failure
OJK050082L
When electronic child safety lock does
not work even though the button is
pressed, the message will be displayed
and an alarm will sound. If this occurs,
have the vehicle be inspected by an
authorized retailer Genesis Branded
products.
Safe Exit Assist (if equipped with
electronic child safety lock)
Safe Exit Assist prevents the rear
occupant from opening the rear door.
When an approaching vehicle from the
rear area is detected after the vehicle
stops, the rear doors will not unlock even
when the driver tries to unlock the rear
doors using the electronic child safety
lock button.
For more details, refer to “Safe Exit
Assist (SEA)” section in chapter 7.
