2023 GENESIS G90 headlights

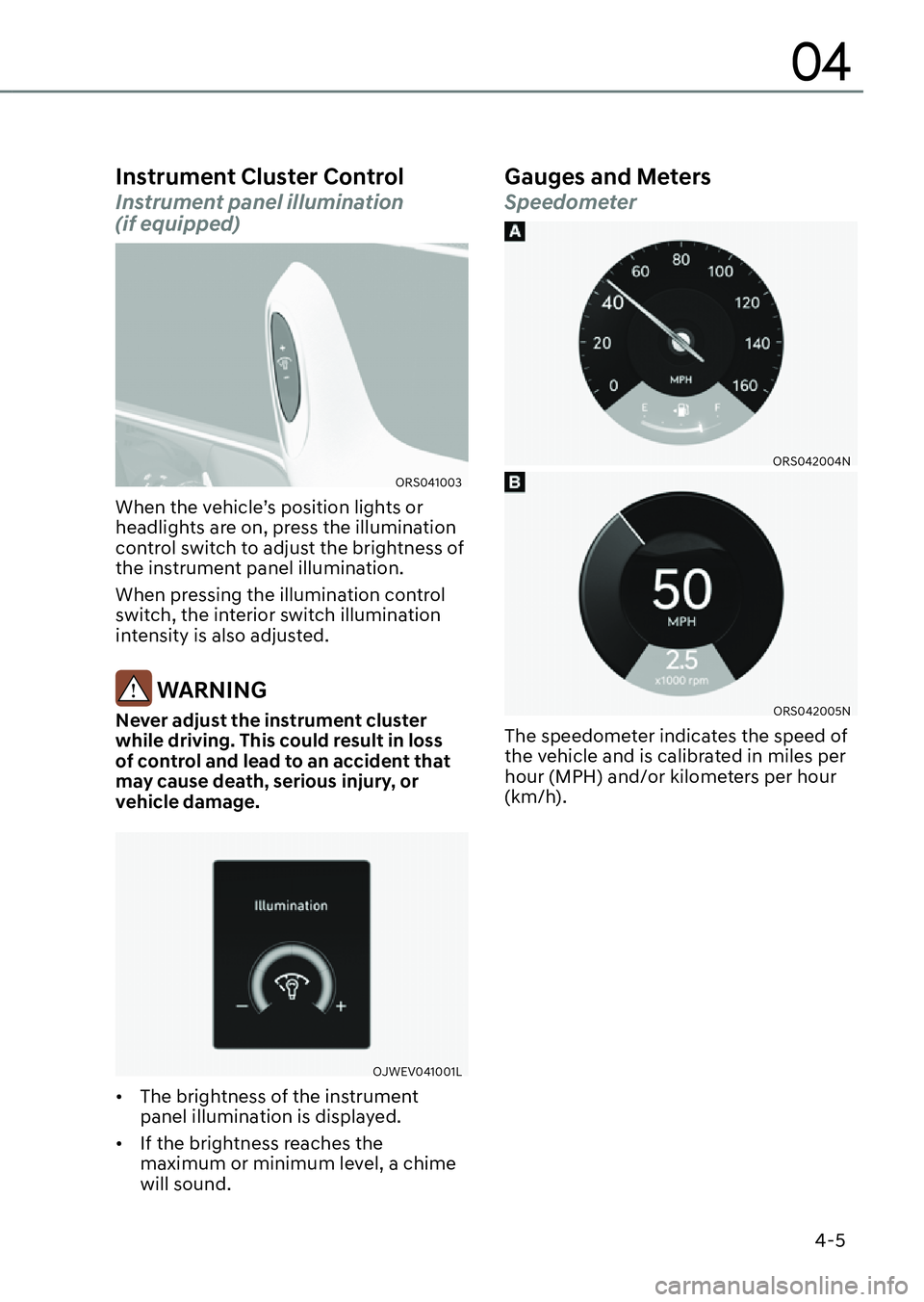

4-5
04
Instrument Cluster Control
Instrument panel illumination
(if equipped)
ORS041003ORS041003
When the vehicle’s position lights or
headlights are on, press the illumination
control switch to adjust the brightness of
the instrument panel illumination.
When pressing the illumination control
switch, the interior switch illumination
intensity is also adjusted.
WARNING
Never adjust the instrument cluster
while driving. This could result in loss
of control and lead to an accident that
may cause death, serious injury, or
vehicle damage.
OJWEV041001LOJWEV041001L
• The brightness of the instrument
panel illumination is displayed.
• If the brightness reaches the
maximum or minimum level, a chime
will sound.
Gauges and Meters
Speedometer
ORS042004NORS042004N
ORS042005NORS042005N
The speedometer indicates the speed of
the vehicle and is calibrated in miles per
hour (MPH) and/or kilometers per hour
(km/h).
004_RS4_HMA.indd 4-52022-04-06  3:02:26

4-19
04
AUTO STOP indicator light
(if equipped)
This indicator light illuminates:
When the engine enters the Idle Stop
mode of ISG (Idle Stop and Go) system.
This indicator light blinks:
When the engine automatically starts,
the AUTO STOP indicator on the cluster
will blink for 5 seconds.
For more details, refer to "ISG (Idle Stop
and Go) system" section in chapter 6.
Information
When the engine automatically starts
by the ISG system, some warning lights
(ABS, ESC, ESC OFF, MDPS or Parking
brake warning light) may turn on for a
few seconds. This happens because of
low battery voltage. It does not mean the
system has malfunctioned.
Turn signal indicator light
This indicator light blinks:
When you operate the turn signal
indicator stalk.
If any of the following occur, there may
be a malfunction with the turn signal
system.
-The turn signal indicator light
illuminates but does not blink
-The turn signal indicator light blinks
rapidly
-The turn signal indicator light does not
illuminate at all
If any of these conditions occur, have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
High beam indicator light
This indicator light illuminates:
• When the headlights are on and in the
high beam position
• When the turn signal lever is pulled
into the Flash-to-Pass position.
004_RS4_HMA.indd 4-192022-04-06  3:02:31

4-20
Instrument Cluster, Armrest touchscreen, Infotainment system
Low beam indicator light
This indicator light illuminates:
When the headlights are on.
Light ON indicator light
This indicator light illuminates:
When the parking lamps or headlights
are on.
High Beam Assist indicator
light
This indicator light illuminates:
When the high-beam is on with the light
switch in the AUTO position.
• White: When High Beam Assist is
ready to operate.
• Green: When High Beam Assist is
operating.
If your vehicle detects oncoming or
preceding vehicles, High Beam Assist
will switch the high beam to low beam
automatically.
For more details, refer to “High Beam
Assist (HBA)” section in chapter 5.
AUTO HOLD indicator light
This indicator light illuminates:
• White: When you activate Auto Hold
by pressing the AUTO HOLD switch.
• Green: When you stop the vehicle
completely by depressing the brake
pedal with Auto Hold activated.
• Yellow: Whenever there is a
malfunction with the Auto Hold
function.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
For more details, refer to “Electronic
Parking Brake (EPB)” section in chapter
6.
004_RS4_HMA.indd 4-202022-04-06  3:02:32

4-25
04
Low washer fluid
This message is displayed if the washer
fluid level in the reservoir is nearly empty.
Have the washer fluid reservoir refilled.
Low fuel
This message is displayed if the fuel tank
is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the nearest
fueling station and refuel as soon as
possible.
Low engine oil (if equipped)
This warning message is displayed when
the engine oil level should be checked.
If this warning message is displayed,
check the engine oil level as soon as
possible and add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel.
Use only the specified engine oil. (Refer
to "Recommended Lubricants and
Capacities“ section in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.
Information
After adding engine oil, if you travel
approximately 31~62 miles (50~100 km)
after the engine warms up, the warning
message should disappear.
Engine overheated
This message is displayed when the
engine coolant temperature is above
248°F (120°C). This means that the
engine is overheated and may be
damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check haptic steering wheel system
This message is displayed if there is a
problem with the haptic steering wheel
system. Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Check headlight (if equipped)
This message is displayed if the
headlights are not operating properly. A
lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal (if equipped)
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlight LED (if equipped)
This message is displayed if there is a
problem with the LED headlight. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
004_RS4_HMA.indd 4-252022-04-06  3:02:33

5-104
Convenience Features
EXTERIOR LIGHTS
Lighting Control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
OJX1059057
M OFF
N AUTO headlight
O Parking lamp
P Headlight
Daytime Running Light (DRL)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
lamp OFF when:

[The headlights are ON.

[The parking brake is applied.

[The vehicle is turned off.
$872KHDGOLJKW
ORS051076
The parking lamp and headlight will
be turned ON or OFF automatically
depending on the amount of daylight as
measured by the ambient light sensor M
at the upper end of the windshield glass.
Even with the AUTO headlight feature
in operation, it is recommended to
manually turn ON the headlights when
driving at night or in a fog, driving in the
rain, or when you enter dark areas, such
as tunnels and parking facilities.
NOTICE

[Do not cover or spill anything on the
sensor M located at the upper end of
the windshield glass.

[Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.

[If your vehicle window is tinted or
other types of metallic coating are
on the front windshield, the AUTO
headlight system may not work
properly.

5-107
05
+HDGOLJKW'HOD\)XQFWLRQ
If the Engine Start/Stop button is in the
ACC position or the OFF position with
the headlights ON, the headlights (and/
or parking lamps) remain on for about
5 minutes. However, if the driver’s door
is opened and closed, the headlights
are turned off after 15 seconds. Also,
with the vehicle off if the driver’s door is
opened and closed, the headlights (and/
or parking lamps) are turned off after 15
seconds.
The headlights (and/or parking lamps)
can be turned off by pressing the lock
button on the smart key twice or turning
the headlight switch to the OFF or AUTO
position.
You can enable the headlight delay
IXQFWLRQE\VHOHFWLQJ
S6HWXS

5-117
05
High Beam Assist Malfunction
and Limitations
High Beam Assist malfunction
OJWEV051094L
When High Beam Assist is not working
properly, the ‘Check High Beam Assist
system’ warning message will appear
and
warning light will illuminate on
the cluster. Have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Limitations of High Beam Assist

[Light from an oncoming or front
vehicle is not detected because of
lamp damage, or because it is hidden
from sight, etc.

[Headlight of an oncoming or front
vehicle is covered with dust, snow or
water.

[An oncoming or front vehicle’s
headlights are off, but the fog lamps
are on, etc.

[There is a lamp that has a similar
shape as a vehicle’s lamp.

[Headlights have been damaged or not
repaired properly.

[Headlights are not aimed properly.

[Driving on a narrow-curved road,
curved road, rough road, uphill or
downhill.
[Vehicle in front is partially visible on a
crossroad or curved road.

[There is a traffic light, reflecting sign,
flashing sign or mirror ahead.

[There is a temporary reflector or flash
ahead (construction area).

[The road conditions are bad such as
being wet, iced or covered with snow.

[A vehicle suddenly appears from a
curve.

[The vehicle is tilted from a flat tire or
is being towed.

[Light from an oncoming or front
vehicle is not detected due to
obstacles in the air such as exhaust
fume, smoke, fog, snow, or water spay
or blizzard on the road, or fogging in
the lamp, etc.
Information
For more details on the limitations of the
)URQW9LHZ&DPHUDUHIHUWR

6-67
06
Information
The ESC system must be turned OFF
before rocking the vehicle.
NOTICE
If you are still stuck after rocking the
vehicle a few times, have the vehicle
pulled out by a tow vehicle to avoid
engine overheating, possible damage to
the transmission, and tire damage. See
“Towing” section in chapter 8.
Smooth Cornering
Avoid braking or gear changing in
corners, especially when roads are wet.
Ideally, corners should always be taken
under gentle acceleration.
Driving at Night
Night driving presents more hazards than
driving in the daylight. Here are some
important tips to remember:

[Slow down and keep more distance
between you and other vehicles, as it
may be more difficult to see at night,
especially in areas where there may
not be any street lights.

[Adjust your mirrors to reduce the glare
from other drivers’ headlights.

[Keep your headlights clean and
properly aimed. Dirty or improperly
aimed headlights will make it much
more difficult to see at night.

[Avoid staring directly at the headlights
of oncoming vehicles. You could be
temporarily blinded, and it will take
several seconds for your eyes to
readjust to the darkness.
