3-31
03
Pre-active Safety Seat (PSS) (if
equipped)
When Pre-active Safety Seat detects
a collision or hazardous situation, it
provides safety by repositioning the seat
as follows:

[Seatback (power passenger seat and
rear seat): Raises the seatback when
reclined.

[Seat cushion (power rear seat): If
the cushion height is low, raises the
cushion.
WARNING
Pre-active Safety Seat is a
supplementary device. The driver
should keep their eyes on the road and
verify that there are no obstructions
ahead. If there are no passengers or the
seatbelts are not fastened, the system
will not function.
System operation

[Pre-active Safety Seat limits
passenger’s movement and helps
decrease the chance of injury by
raising the seatback right before
collision to tighten the seatbelt.
The system may operate under the
following situations:
- The brake pedal was depressed
abruptly.
- The vehicle is difficult to control.
- Collision risk is considered high by
the vehicle distance sensor.
[Pre-active Safety Seat helps prevent
the passenger from leaning forward
or to the side by raising the seatback
during sudden braking or rapid
turning to tighten the seatbelt.
The system may operate under the
following situations:
- The upper body is leaned forward
due to sudden braking.
- The upper body is leaned to the side
due to rapid turning.
- Driving on a slippery icy road.
- There is high risk of a rollover.
System pause
If the passenger adjusts the seat
manually, the system stops immediately.
However, it restarts to operate after 5
seconds when the hazardous situation
continues.
System malfunction
If the Pre-active Safety Seat system does
not operate properly, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.

3-60
Safety System
Side air bags and front center side
air (if equipped)
ORS031064
ORS031065
ORS031075
A : Side air bag (Front row),
B : Side air bag (Second row),
C : Front center side air bag (Driver’s seat)
Your vehicle is equipped with a side air
bag in each front and outboard second
row seat. Additionally, a front center
side air bag is provided in the inboard
side of the driver seatback. The purpose
of the air bag is to provide the vehicle’s
additional protection than that offered by
the seat belt alone.
The side air bags and front center side
air bag are designed to deploy during
certain side impact collisions, depending
on the crash severity.
For vehicles equipped with a rollover
sensor the front center side air bag,
side and/or curtain air bags and pre-
tensioners on both sides of the vehicle
may deploy if a rollover or possible
rollover is detected.
The side air bags and front center side air
bag are not designed to deploy in all side
impact or rollover situations.

3-62
Safety System
Curtain air bags
ORS031066
ORS031076
Curtain air bags are located along both
sides of the roof rails above the front and
rear doors.
They are designed to help protect the
heads of the front seat occupants and
the rear outboard seat occupants in
certain side impact collisions.
The curtain air bags are designed to
deploy during certain side impact
collisions, depending on the crash
severity.For vehicles equipped with a rollover
sensor the side and/or curtain air bags
and pre-tensioners on both sides of
the vehicle may deploy if a rollover or
possible rollover is detected.
The curtain air bags are not designed
to deploy in all side impact or rollover
situations.
WARNING
To reduce the risk of serious injury or
death from an inflating curtain air bag,
take the following precautions:

[All seat occupants must wear
seat belts at all times to help keep
occupants positioned properly.

[Properly secure Child Restraint
System as far away from the door as
possible.

[Do not place any objects over the air
bag. Also, do not attach any objects
around the area the air bag inflates
such as the door, side door glass,
front and rear pillar, roof side rail.

[Do not hang other objects except
clothes, especially hard or breakable
objects.
In an accident, it may cause vehicle
damage or personal injury.

[Do not allow passengers to lean their
heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.

[Do not attempt to open or repair
the side curtain air bags yourself.
If necessary, have the air back be
inspected by an authorized retailer of
Genesis Branded products.

3-68
Safety System
For example, if a child restraint of the
type specified in the regulations is on the
seat, the occupant classification sensor
can detect it and cause the air bag to
turn OFF.
Front passenger seat adult occupants
who are properly seated and wearing the
seat belt properly, should not cause the
passenger air bag to be automatically
turned OFF. For smaller adults it may turn
off. However, if the occupant does not
sit in the seat properly (for example, by
not sitting upright, by sitting on the edge
of the seat, or by otherwise being out of
position), this could cause the sensor to
turn the air bag OFF.
You will find the “PASSENGER AIR BAG
OFF” indicator overhead console panel.
This system detects the conditions 1-4
in the following table and activates or
deactivates the front passenger air bag
based on these conditions.
Always be sure that you and all vehicle
occupants are seated properly and
wearing the seat belt properly for the
most effective protection by the air bag
and the seat belt.The OCS may not function properly if the
passenger takes actions which can affect
the classification system. These include:

[Failing to sit in an upright position.

[Leaning against the door or center
console.

[Sitting towards the sides of the front
of the seat.

[Putting their legs on the dashboard or
resting them on other locations which
reduce the passenger weight on the
front seat.

[Wearing the seat belt improperly.

[Reclining the seatback.

[Wearing a thick clothes like ski wear
or hip protection wear.

[Putting an additional thick cushion on
the seat.

[Putting electrical devices (for
example, notebook, satellite radio) on
the seat with inverter charging.

3-76
Safety System

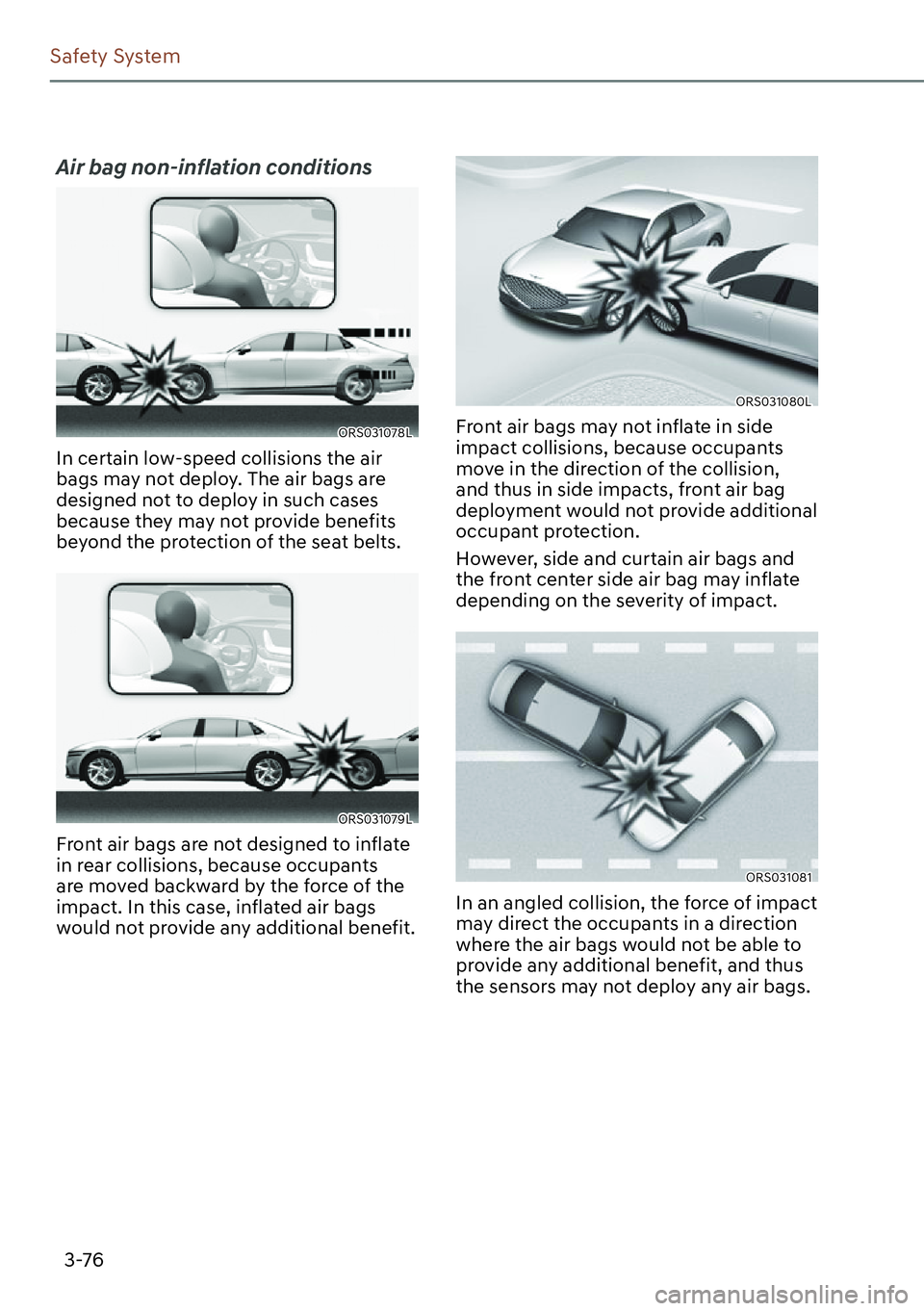

Air bag non-inflation conditions
ORS031078L
In certain low-speed collisions the air
bags may not deploy. The air bags are
designed not to deploy in such cases
because they may not provide benefits
beyond the protection of the seat belts.
ORS031079L
Front air bags are not designed to inflate
in rear collisions, because occupants
are moved backward by the force of the
impact. In this case, inflated air bags
would not provide any additional benefit.
ORS031080L
Front air bags may not inflate in side
impact collisions, because occupants
move in the direction of the collision,
and thus in side impacts, front air bag
deployment would not provide additional
occupant protection.
However, side and curtain air bags and
the front center side air bag may inflate
depending on the severity of impact.
ORS031081
In an angled collision, the force of impact
may direct the occupants in a direction
where the air bags would not be able to
provide any additional benefit, and thus
the sensors may not deploy any air bags.

5-6
Convenience Features
Using Smart Key
ORS051003
ORS051004
Your Genesis Branded Vehicle uses a
Smart Key, which you can use to lock or
unlock the driver and passenger doors or
the rear trunk.
M Door lock
N Door unlock
O Trunk open
P Panic
Q Remote Start
R Remote Smart Parking Assist
(Forward/Backward)
Locking your vehicle
ORS051005
To lock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure all doors, the hood and the
trunk are closed.
2. Make sure you have the smart key in
your possession.
3. Touch the door lock/unlock sensor on
the door handle (the engraved part) or
press the Door Lock button M on the
smart key. The hazard warning lights
will blink.

[Make sure the doors are locked.
When doors lock, the handle
become flush to the body.
ACCESSING YOUR VEHICLE

5-18
Convenience Features
Locking places the digital key (smart
phone)

[Ultra Wide Band unsupported smart
phone
ORS051009
A : Door handle authentication pad
B : NFC antenna (Backside of the smart phone) (The
antenna position differs depending on models.)
- The door will lock or unlock by
touching the registered digital
key (card key) NFC antenna to the
driver’s or passenger’s door handle
authentication pad
A for more than
2 seconds.
- If the Two Press Unlock feature
is set, only the driver’s door pops
out and unlocks when the digital
key (smart phone) is placed on the
driver’s door handle authentication
pad
A. Place the digital key (smart
phone) on the driver’s door handle
authentication pad once more
within 4 seconds to unlock all doors.
[Ultra Wide Band supported smart
phone
- If you touch the door lock/unlock
sensor (engraved part) on the
door handle with the smart phone
in possession, the door locks or
unlocks.
- If you approach the front door
handle with the smart phone
in possession when ‘On driver
approach’ is set, the door unlocks
automatically.

[After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.

[If the smart phone digital key does
not operate, try again after moving
the smart phone away from the door
handle authentication pad (more than
4 in. (0.1 m)).
Information

[You cannot lock your vehicle using the
digital key (smart phone) if any of the
following occurs:
-The smart key is in the vehicle.
-The Engine Start/Stop button is in
WKH$&&RU21SRVLWLRQ
-Any of the doors, hood, or trunk are
open.

[The door may not unlock automatically
if you stay near the vehicle for several
minutes with the Ultra Wide Band
supported smart phone in possession.

[If the smart phone is kept in the back
pocket or bag, it may cause poor
Bluetooth connection, or the door lock/
unlock or vehicle start-up operation my
be delayed.

7-91
07

[Situations when detecting are limited
ORS071046
ORS071047
In the following cases, some vehicles,
pedestrians or animals in your lane
cannot be detected by the sensor:
- Vehicles offset to one side
- Slow-moving vehicles or sudden-
decelerating vehicles
- Vehicles with higher ground
clearance or vehicles carrying loads
that stick out of the back of the
vehicle
- Vehicles that has the front lifted
dueto heavy loads
- Vehicles within approximately 6 ft.
(2m) from your vehicle
- Oncoming vehicles
- Stopped vehicles - Vehicles with small rear profile, such
as trailers
- Narrow vehicles, such as
motorcycles or bicycles
- Special vehicles
- Animals and pedestrians
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.
In the following cases, the vehicle
in front cannot be detected by the
sensor:
- You are steering your vehicle
- Driving on narrow or sharply curved
roads
