2023 GENESIS G90 remote start

5-103
05
NOTICE

[Observe the following restrictions
during the update.
-You cannot use the vehicle during
the update. Be sure to have
enough time for the update, and
safely park the vehicle before
starting the update process.
-You cannot use remote features,
including remote start.
-The Rear Occupant Alert feature
may not work. Check if there are
any occupants in the rear seat.
-If there is an update for the Genesis
Digital Key feature, the doors
cannot be locked or unlocked
using the digital key, or fingerprint
recognition. If the Genesis Digital
Key feature is being updated, use
the smart key to lock or unlock the
doors.
[The update will be automatically
canceled if any vehicle conditions
required for the update are changed
before starting the update.

[Once the update has started, you
cannot cancel the update.

[You cannot use the Over-The-Air
software update feature if you
modify or replace any vehicle
software.

[Do not open the hood or replace
the battery in the vehicle during the
update. The update may fail.

[If a diagnostic tool of any kind is
connected to the vehicle OBD (On-
board Diagnostic) terminal, the
vehicle cannot be updated. The
vehicle can be updated by removing
the diagnostic tool connected to the
OBD terminal and then restarting the
vehicle.

[If the update is not completed
successfully, contact Genesis
Customer Care.

[Vehicle reception must be identified
as Verizon to safely install any
downloaded software.

[Vehicle signal strength, must be
strong (above -82 dbm) to safely
install any downloaded software.

6
Before Driving ................................................................................................... 6-4Before Entering the Vehicle ........................................................................................ 6-4
Before Starting ............................................................................................................ 6-4
Engine Start/Stop Button ................................................................................. 6-5Engine Stop/Start Button Positions ........................................................................... 6-6
Starting the Engine ...................................................................................................... 6-7
Turning Off the Engine ................................................................................................ 6-8
Remote Starting .......................................................................................................... 6-9
Vehicle Auto-Shut Off ......................................................................................6-10Operating Conditions ................................................................................................ 6-10
Deactivating Conditions ........................................................................................... 6-10
System Operation ....................................................................................................... 6-10
Automatic Transmission ...................................................................................6-11Automatic Transmission Operation ............................................................................ 6-11
LCD Display Messages (Cluster) .................................................................................6-17
Paddle Shifter (Manual Shift Mode) .......................................................................... 6-21
Good Driving Practices .............................................................................................. 6-21
Braking System ............................................................................................... 6-23Power-Assist Brakes ................................................................................................... 6-23
Disc Brakes Wear Indicator........................................................................................ 6-23
Electronic Parking Brake (EPB) ..................................................................................6-24
Auto Hold ....................................................................................................................6-28
Anti-Lock Brake System (ABS) ................................................................................... 6-31
Electronic Stability Control (ESC) .............................................................................6-33
Vehicle Stability Management (VSM) .......................................................................6-35
Hill-Start Assist Control (HAC) ................................................................................... 6-37
Brake Assistant System (BAS) .................................................................................... 6-37
Good Braking Practices ............................................................................................ 6-38
All Wheel Drive (AWD) ................................................................................... 6-39All Wheel Drive (AWD) Operation ............................................................................. 6-40
Emergency Precautions ............................................................................................. 6-41
Electronically Controlled Suspension with Road Preview ........................... 6-43System Malfunction .................................................................................................. 6-44
Limitations of the System ......................................................................................... 6-44
Multi-chamber Air Suspension ...................................................................... 6-45Vehicle Height Adjustment ...................................................................................... 6-45
Multi-Chamber Air Suspension Malfunction ........................................................... 6-46
Additional Height Adjustment Function ...................................................................6-47
Towing When the Air Suspension Malfunction ...................................................... 6-48
6. Driving Your Vehicle

6-9
06
Remote Starting
ORS061002
You can start the vehicle using the
Remote Start button of the smart key.To start the vehicle remotely:
1. Press the door lock button within
32 ft. (10 m) from the vehicle.
2. Press the remote start (
) button for
over 2 seconds within 4 seconds after
locking the doors. The hazard warning
lights will blink.
3. To turn off the remote start function,
press the remote start (
) button
once.

[The remote start (
) button may not
operate if the smart key is not within
32 ft. (10 m).

[The vehicle will not remotely start if
the engine hood or trunk is opened.

[The vehicle must be in P (Park) for the
remote start function to start.

[The engine turns off if you get in the
vehicle without a registered smart key.

[The engine turns off if you do not get
in the vehicle within 10 minutes after
remotely starting the vehicle.

[Do not idle the engine for a long
period.

7-152
Driver Assistance System
5HPRWH6PDUW3DUNLQJ$VVLVW2SHUDWLRQ
Remote Smart Parking Assist button
3DUNLQJ9LHZEXWWRQ3DUNLQJ6DIHW\EXWWRQ 6PDUWNH\
ORS071142ORS071019 ORS071037
Location Name6\PERODescription
Inside
vehicleParking/View
button

[Press and hold the Parking/View button to turn
on Remote Smart Parking Assist. Also, Forward/
Reverse Parking Distance warning will automatically
turn on.
However, functions may differ depending on the
situations. Refer to each function's description for
more details in the following pages.

[Press and hold the Parking/View button while Smart
Parking or Smart Exit function is on to operate the
function.
Parking
Safety button

[Press the Parking Safety button while Remote Smart
Parking Assist is operating to end Remote Smart
Parking Assist operation.
Smart
keyRemote Start
button

[Press the Remote Start button after the door is
locked with the engine off to start the engine
remotely.

[Press the Remote Start button while Remote Smart
Parking or Remote Operation function is operating
to end function operation.
Forward
button

[When using Remote Smart Parking function,
regardless of which direction button is pressed,
parking is supported while the button is pressed.

[When using the Remote Operation function, the
vehicle moves in the direction of the button while
the button is pressed. Backward
button

7-153
07
Remote Operation
2SHUDWLQJRUGHU
Remote Operation functions in the
following order:
1. Getting ready to remotely move
forward and backward
2. Remotely moving forward and
backward
*HWWLQJUHDG\WRUHPRWHO\PRYHIRUZDUG
DQGEDFNZDUG
There are two ways to operate Remote
Operation function.
ORS071136
Method (1) Using the function with
engine off
(1) Within a certain range from the
vehicle press the door lock (
)
button on the smart key and lock
all doors.
(2) Press and hold the Remote Start
button (
) within 4 seconds until
the engine starts.
For more details on remotely
starting the engine, refer to
“Remote Start” section in chapter
6.
ORS071075
ORS071164L
Method (2) Using the function with
engine on
(1) Park the vehicle in front of the
space where you want to use
Remote Operation function, and
shift the gear to P (Park).
(2) Press and hold the Parking/View
(
) button to turn on Smart
Parking Assist. A message ‘Remote
Parking Instructions’ will appear
on the infotainment system
screen.
(3) Get out of the vehicle with the
smart key and close all doors.

7-154
Driver Assistance System

['Agree' must be selected on the
infotainment system screen and the
infotainment system has to operate
properly to use Remote Operation
function.

[Method (2) can be used after the
vehicle has been driven above 3
mph (5 km/h).

[If the function is turned on again
after parking is completed by
Remote Smart Parking Assist,
Remote Operation function can be
used with Method (2).

[Check that all smart keys are
outside the vehicle when using
Remote Operation function.
5HPRWHO\PRYLQJIRUZDUGDQG
EDFNZDUG
ORS071036
(1) Press and hold one of the Forward
() or Backward () button on
the smart key. Remote Smart
Parking Assist will automatically
control the steering wheel, vehicle
speed and gearshift. The vehicle
will move in the direction of the
button pressed. (2) While Remote Operation function
is operating, if you do not
hold down the Forward (
) or
Backward () button, the vehicle
will stop and function control
will pause. The function will start
operating again when the button is
pressed and held again.
(3) When the vehicle reaches the
target location, release the smart
key Forward or Backward button.
(4) When the driver gets in the vehicle
with the smart key, a message
will appear informing the driver
Remote Operation function is
complete on the infotainment
system screen and the engine will
remain on.
In addition, when the Remote Start
(
) button is pressed on the smart
key from outside the vehicle, a
message will appear informing the
driver Remote Operation function
is complete and the engine will
turn off.

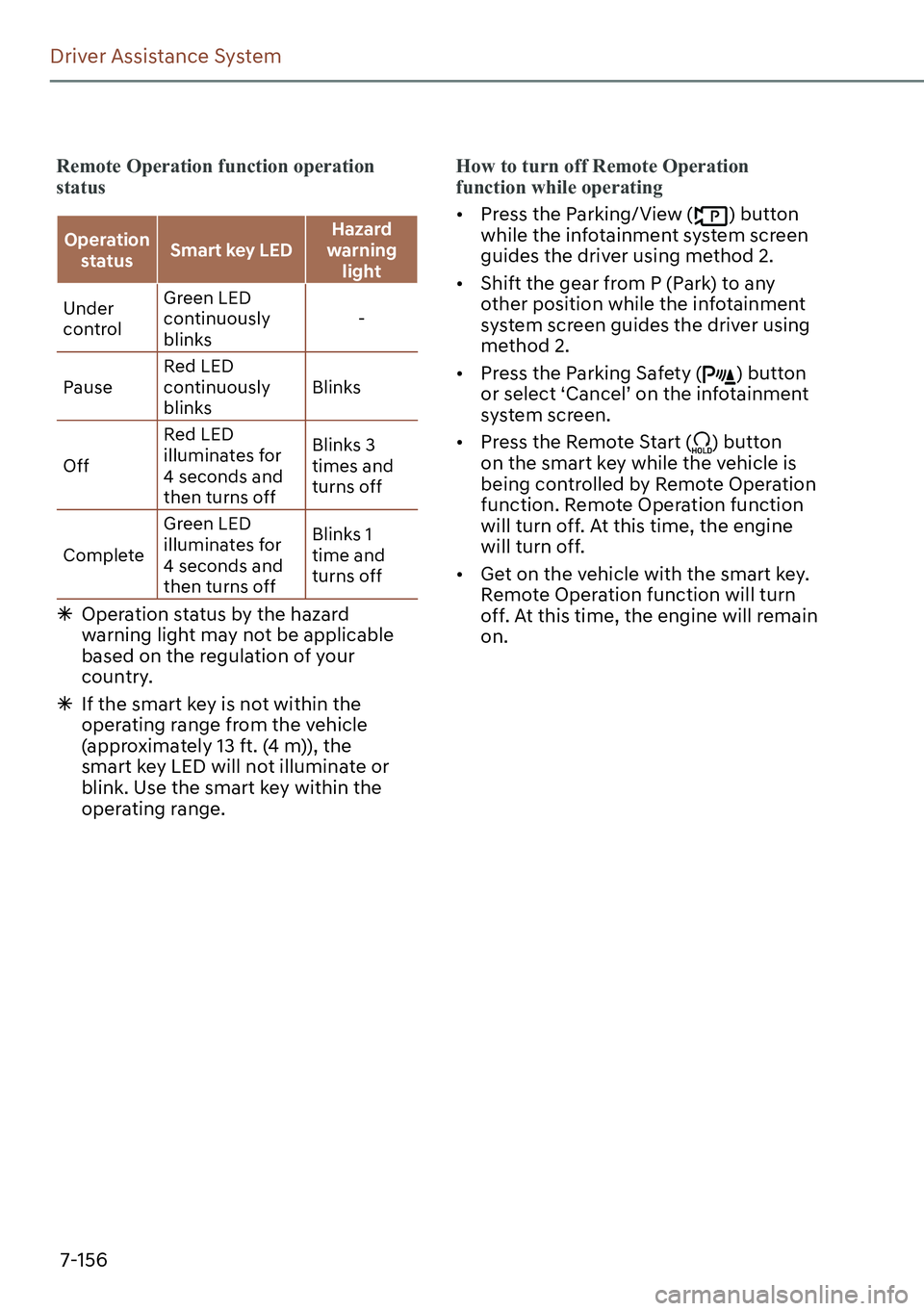

7-156
Driver Assistance System
5HPRWH2SHUDWLRQIXQFWLRQRSHUDWLRQ
status
Operation
status6PDUWNH\/('+D]DUG
warning
light
Under
controlGreen LED
continuously
blinks-
PauseRed LED
continuously
blinksBlinks
OffRed LED
illuminates for
4 seconds and
then turns offBlinks 3
times and
turns off
CompleteGreen LED
illuminates for
4 seconds and
then turns offBlinks 1
time and
turns off
ÃOperation status by the hazard
warning light may not be applicable
based on the regulation of your
country.
ÃIf the smart key is not within the
operating range from the vehicle
(approximately 13 ft. (4 m)), the
smart key LED will not illuminate or
blink. Use the smart key within the
operating range.
+RZWRWXUQRII5HPRWH2SHUDWLRQ
IXQFWLRQZKLOHRSHUDWLQJ

[Press the Parking/View () button
while the infotainment system screen
guides the driver using method 2.

[Shift the gear from P (Park) to any
other position while the infotainment
system screen guides the driver using
method 2.

[Press the Parking Safety (
) button
or select ‘Cancel’ on the infotainment
system screen.

[Press the Remote Start (
) button
on the smart key while the vehicle is
being controlled by Remote Operation
function. Remote Operation function
will turn off. At this time, the engine
will turn off.

[Get on the vehicle with the smart key.
Remote Operation function will turn
off. At this time, the engine will remain
on.

7-157
07
7KHIXQFWLRQZLOOSDXVHLQWKHIROORZLQJ
conditions when:

[There is a pedestrian, animal or object
in the direction the vehicle is moving

[The door or trunk is open

[The Forward (
) or Backward ()
button is not continuously pressed

[Simultaneously pressing multiple
buttons on a smart key

[The smart key is not operated within
13 ft. (4 m) from the vehicle

[Button of another smart key is pressed
in addition to the operating smart key

[Blind-Spot Collision-Avoidance
Assist or Rear Cross-Traffic Collision-
Avoidance Assist operates while the
vehicle is being controlled in the
reverse direction.

[The vehicle moves 22 ft. (7 m) while
the smart key is pressed with Remote
Operation function (maximum travel
distance per button press)
When Remote operation function is
paused, the vehicle will stop. If the
condition that made the function to
pause disappears, the function may
operate again.
The function will cancel in the following
conditions when:

[The steering wheel is steered

[The gear is shifted while the vehicle is
moving

[Operating EPB while the vehicle is
moving

[The hood is open

[The brake pedal or accelerator pedal
is depressed when all the doors are
closed

[The smart key is outside the vehicle
when the brake pedal is depressed
while the driver's door is open

[Rapid acceleration occurs

[Vehicle skid occurs

[The wheel is stuck by an obstacle and
cannot move

[Approximately 3 minutes and 50
seconds have past after Remote
Operation function has started to
operate

[The slope of the road exceeds the
operational range

[The function is paused for more than
1 minute

[The total travel distance of the vehicle
has exceeded 45 ft. (14 m) after
Remote Operation function operation

[The steering wheel, gearshift, braking,
and drive controls are not working
properly

[There is a problem with the smart key
or the smart key battery is low

[ABS, TCS or ESC system operates due
to slippery road conditions

[The alarm of the Theft Alarm System
sounds
When Remote Operation function is
canceled, the vehicle will automatically
stop, shift the gear to P (Park) and
engage EPB (Electronic Parking Brake).
The engine will turn off.
