2023 GENESIS G90 glove box

5-135
05
ORS051124
ORS051139L
A : Front seat,
B : Rear seat
Press from the climate control
information screen or armrest
touchscreen to select the desired
fragrance intensity.

[Intensity can be selected among
Strong, Medium and Light. Pressing
the button each time will change
the intensity in the order of Strong,
Medium, Light and Off.

[The fragrance cannot be selected with
the button. Fragrance can only be
selected from the settings menu.
ORS051244
How to replace cartridges
1. Turn the engine off, and open the
glove box.
2. Press the upper part of the diffuser
tray.
3. Replace the cartridge.
Information

[For smooth operation of diffuser, it is
recommended to install 2 cartridges.

[If the cartridge is empty or diffuser
replacement alarm is displayed, replace
with a new cartridge.

[The built-in diffuser may not work if
the cartridge is not installed properly.
&KHFNZKHWKHUWKHFDUWULGJHLVLQVWDOOHG
properly.

5-138
Convenience Features
System Maintenance
Cabin air filter
OHI048581L
A : Outside air,
B : Recirculated air,
C : Climate control air filter,
D : Blower,
E : Evaporator core,
F : Heater core
The cabin air filter is installed behind
the glove box. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
We recommend that the cabin air filter
be replaced by an authorized retailer of
Genesis Branded products according to
the maintenance schedule. If the vehicle
is being driven in severe conditions such
as dusty or rough roads, more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
have the system inspected at an
authorized retailer of Genesis Branded
products.
Checking the amount of air
conditioner refrigerant and
compressor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also reduces the
performance of the air conditioning
system.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized retailer of Genesis Branded
products.
NOTICE
It is important that the correct type and
amount of oil and refrigerant is used.
Otherwise, damage to the compressor
and abnormal system operation may
occur. To prevent damage, the air
conditioning system in your vehicle
should only be serviced by trained and
certified technicians.
NOTICE

[The refrigerant system should only
be serviced by trained and certified
technicians to insure proper and safe
operation.

[The refrigerant system should be
serviced in a well-ventilated place.

[The air conditioning evaporator
(cooling coil) shall never be repaired
or replaced with one removed from
a used or salvaged vehicle and new
replacement MAC evaporators shall
be certified (and labeled) as meeting
SAE Standard J2842.

5-152
Convenience Features

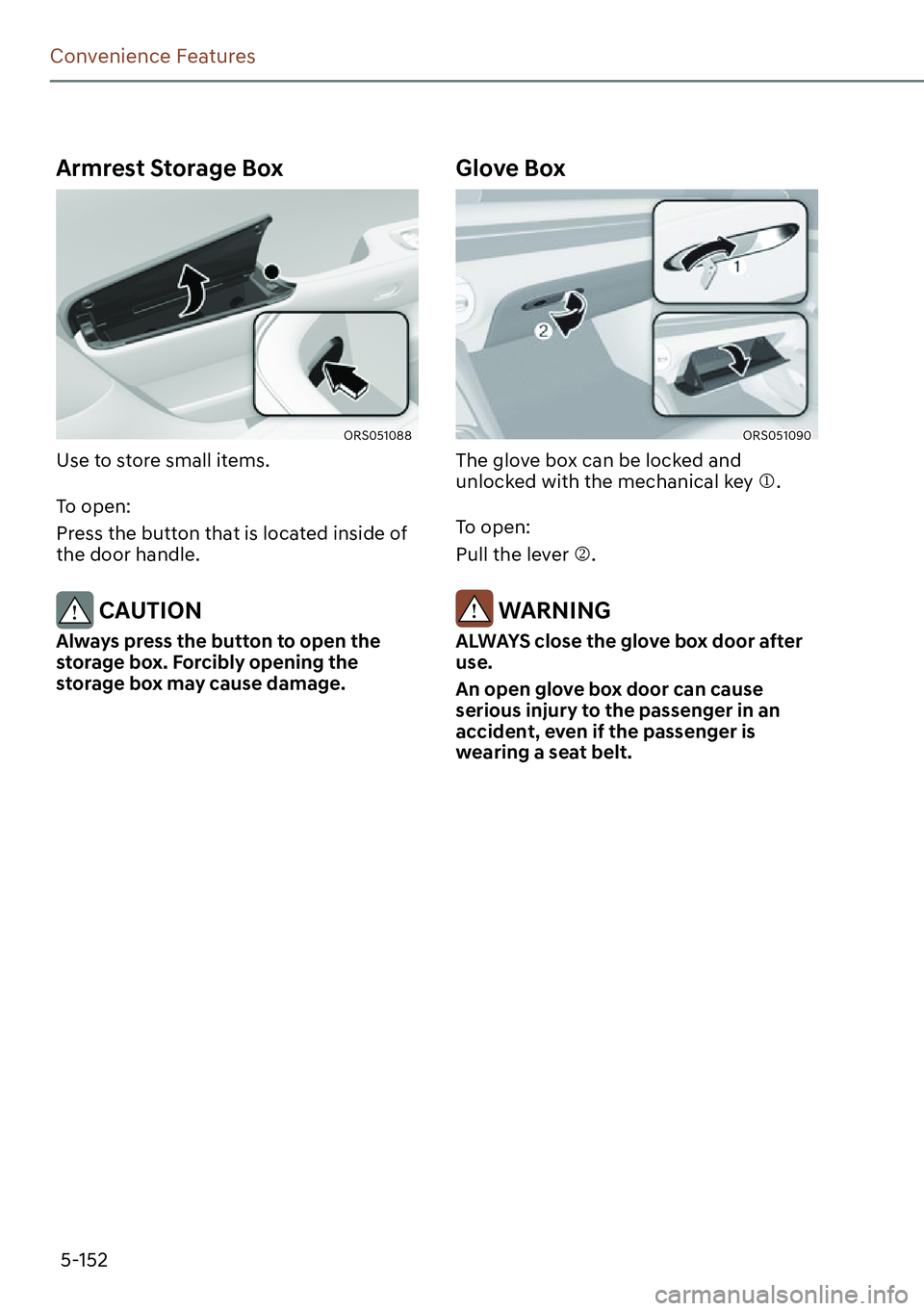

Armrest Storage Box
ORS051088
Use to store small items.
To open:
Press the button that is located inside of
the door handle.
CAUTION
Always press the button to open the
VWRUDJHER[)RUFLEO\RSHQLQJWKH
storage box may cause damage.
Glove Box
ORS051090
The glove box can be locked and
unlocked with the mechanical key M.
To open:
Pull the lever N.
WARNING
ALWAYS close the glove box door after
use.
An open glove box door can cause
serious injury to the passenger in an
accident, even if the passenger is
wearing a seat belt.

9-24
Maintenance
Filter Inspection
The cabin air filter should be replaced
according to the Maintenance Schedule.
If the vehicle is operated in severely air-
polluted cities or on dusty rough roads
for a long period, it should be inspected
more frequently and replaced sooner.
Replace the cabin air filter by following
the procedure below and be careful to
avoid damaging other components.
Filter Replacement
ORS091009
1. Open the glove box and remove the
support rod M.
ORS091010
2. Remove the stoppers on both sides to
allow the glove box to hang freely on
the hinges.
ORS092011N
3. Press and hold the lock M on the left
side of the cover.
4. Pull out N the cover
5. Replace the cabin air filter.
6. Reassemble in the reverse order of
disassembly.
CABIN AIR FILTER

9-25
09
Engine Compartment
ORS091012
ORS092054N
1. Open the engine hood and remove
the cover of the air conditioning
assembly to locate the air filter.
2. Open the engine hood and remove
the cover of air conditioning unit.
3. Press and hold the lock M on the left
side of the cover.
4. Pull out N the cover
5. Replace the cabin air filter.
6. Reassemble in the reverse order of
disassembly.
NOTICE
ORS091061
A : Glove box,
B : Engine compartment
Install a new cabin air filter in the
correct direction to prevent noise and
reduce effectiveness.

[Glove box: Install with the arrow
V\PEROIDFLQJGRZQZDUG

9-66
Maintenance
ORS091043
ORS091044
D : Vanity mirror lamp,
E : Glove box lamp
If the LED lamp does not operate, have
the system inspected by an authorized
retailer of Genesis Branded products.The
LED lamps cannot be replaced as a single
unit because it is an integrated unit. The
LED lamps has to be replaced with the
unit. A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
ORS091046
ORS091045
F : M Mood lamp, N Door foot lamp, O Foot lamp,
G : Trunk lamp
If the LED lamp does not operate, have
the system inspected by an authorized
retailer of Genesis Branded products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
