2023 GENESIS G80 window

1-37
01

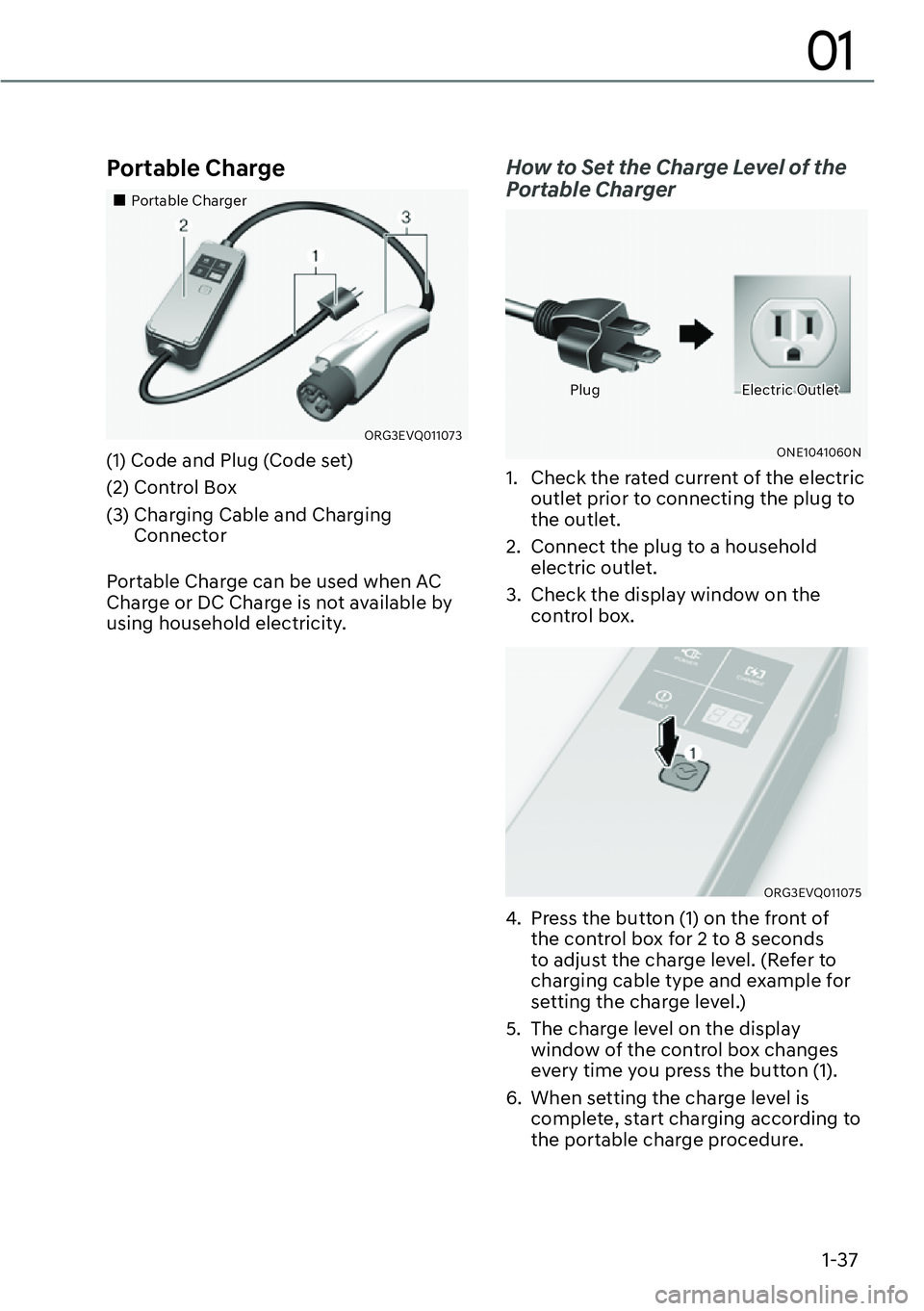

Portable Charge
„Portable Charger
ORG3EVQ011073
(1) Code and Plug (Code set)
(2) Control Box
(3) Charging Cable and Charging
Connector
Portable Charge can be used when AC
Charge or DC Charge is not available by
using household electricity.
How to Set the Charge Level of the
Portable Charger
Plug Electric Outlet
ONE1041060N
1. Check the rated current of the electric
outlet prior to connecting the plug to
the outlet.
2. Connect the plug to a household
electric outlet.
3. Check the display window on the
control box.
ORG3EVQ011075
4. Press the button (1) on the front of
the control box for 2 to 8 seconds
to adjust the charge level. (Refer to
charging cable type and example for
setting the charge level.)
5. The charge level on the display
window of the control box changes
every time you press the button (1).
6. When setting the charge level is
complete, start charging according to
the portable charge procedure.

1-38
Foreword / Starting Your Electric Vehicle
ÃExample for setting the ICCB charge level
The example is only for reference and may vary according to the surrounding
environment.
Outlet current ICCB charge level Control box display window
14-16A 12A
ORG3EVQ011076
13-12A 10A
11-10A 8A
9-8A 6A
CAUTION
Please make sure that charge level selection matches the capacity of your circuit
breaker to avoid blown fuse.

1-63
01
If an Accident Occurs
WARNING

[When a vehicle accident occurs,
move the vehicle to a safe place,
turn OFF the vehicle and disconnect
the high voltage cut-off switch from
the auxiliary battery (12V) to prevent
high voltage electricity from flowing.

[If electric wires are exposed from
inside or outside the vehicle, do not
touch the wires.
Also, do not touch the high voltage
electric wire (orange), connector,
and all electric components and
devices. This may cause electric
shock and lead to injuries.
WARNING

[When a vehicle accident occurs and
the high voltage battery is damaged,
harmful gas and electrolytes may
leak. Be careful not to touch the
leaked liquid.

[When you suspect leakage of
inflammable gas and other harmful
gases, open the windows and
evacuate to a safe place. If any
leaked fluid comes in contact with
your eyes or skin, immediately clean
the affected area thoroughly with
tap water or saline solution and
have doctors inspect it as soon as
possible.
WARNING

[If a small scale fire occurs, use a fire
extinguisher (ABC, BC) that is meant
for electrical fires. If it is impossible
to extinguish the fire in the early
stage, maintain a safe distance from
the vehicle and immediately call your
local fire emergency responders.
Also, advise them that an electric
vehicle is involved.

[If the fire spreads to the high
voltage battery, large amount of
water is needed to put out the fire.
Using small amount of water or
fire extinguishers not meant for
electrical fires could cause serious
injury or death from electrical
shocks.
WARNING

[If you cannot put out the fire
immediately, the high voltage
battery may explode. Evacuate to
a safe place and do not let other
people approach the site.
Contact the fire department and
notify them of an electric vehicle fire.

[If the vehicle is flooded with water,
immediately turn off the vehicle and
evacuate to a safe place. Contact
the fire department or an authorized
retailer of Genesis Branded products.
SAFETY PRECAUTIONS FOR ELECTRIC VEHICLE

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects

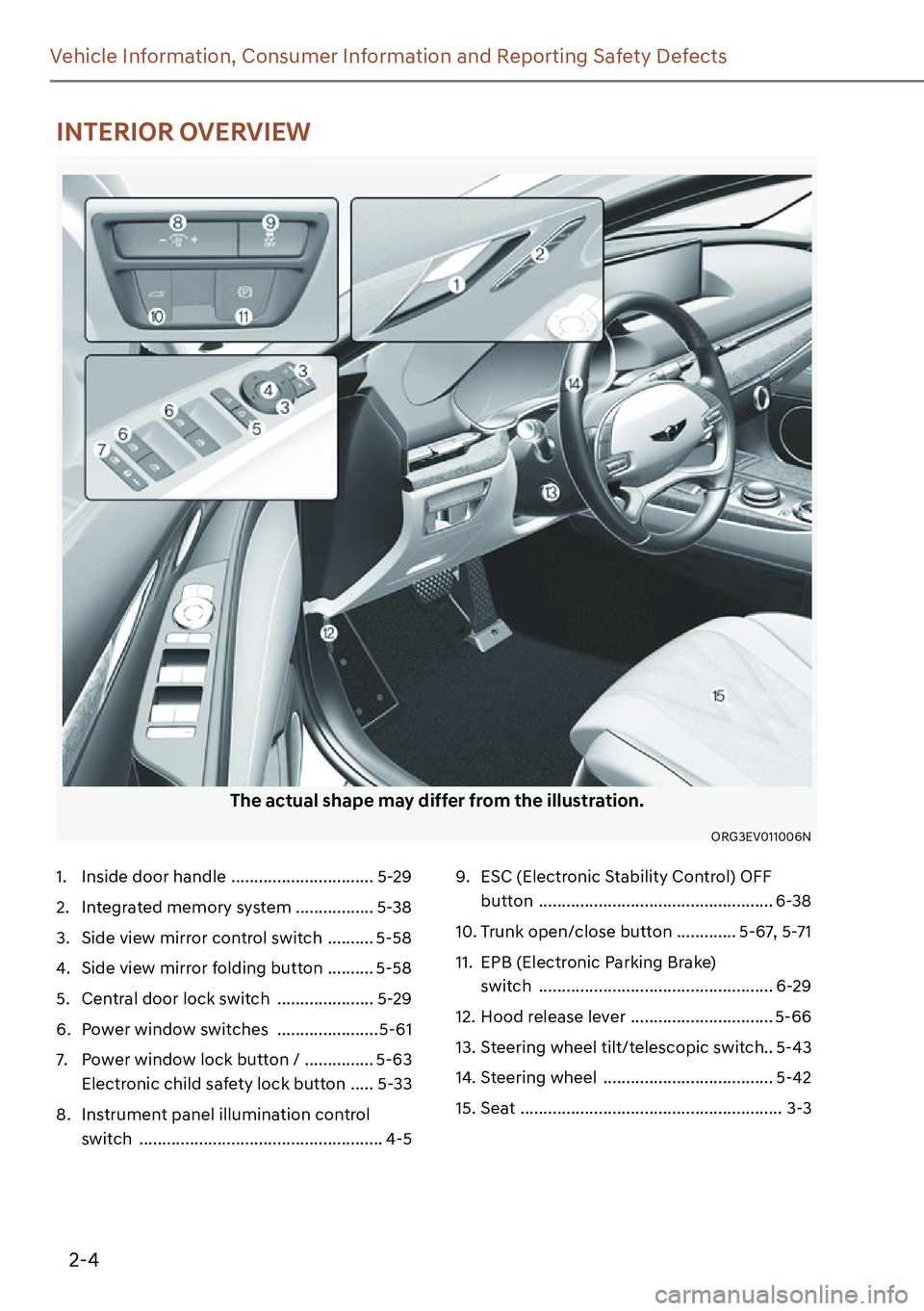

The actual shape may differ from the illustration.
ORG3EV011006N
1. Inside door handle ............................... 5-29
2. Integrated memory system ................. 5-38
3. Side view mirror control switch .......... 5-58
4. Side view mirror folding button .......... 5-58
5. Central door lock switch ..................... 5-29
6. Power window switches ...................... 5-61
7. Power window lock button / ............... 5-63
Electronic child safety lock button ..... 5-33
8. Instrument panel illumination control
switch ..................................................... 4-59. ESC (Electronic Stability Control) OFF
button ................................................... 6-38
10. Trunk open/close button ............. 5-67, 5-71
11. EPB (Electronic Parking Brake)
switch ................................................... 6-29
12. Hood release lever ............................... 5-66
13. Steering wheel tilt/telescopic switch.. 5-43
14. Steering wheel ..................................... 5-42
15. Seat ......................................................... 3-3
INTERIOR OVERVIEW

3-4
Seats and Safety System
The actual shape may differ from the illustration.ORG3EV031002N
Rear seat
(1) Seat warmer
(2) Rear window sunshade control
(3) Armrest
(4) Ski through

3-49
03
The side air bags and front center side
air bag are designed to deploy during
certain side impact collisions, depending
on the crash severity.
For vehicles equipped with a rollover
sensor the front center side air bag,
side and/or curtain air bags and pre-
tensioners on both sides of the vehicle
may deploy if a rollover or possible
rollover is detected.
The side air bags and front center side air
bag are not designed to deploy in all side
impact or rollover situations.
WARNING
To reduce the risk of serious injury or
death from an inflating side air bag
and front center side air bag, take the
following precautions:

[Seat belts must be worn at all times
to help keep occupants positioned
properly.

[Do not allow passengers to lean their
heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.

[Hold the steering wheel at the 9
o’clock and 3 o’clock positions, to
minimize the risk of injuries to your
hands and arms.

[Do not use any accessory seat
covers. This could reduce or prevent
the effectiveness of the system.

[Do not hang objects over the airbags.
In an accident it may cause vehicle
damage or personal injury especially
when air bag is inflated.
[Do not place any objects over the
air bag or between the air bag and
yourself. Also, do not attach any
objects around the area the air bag
inflates such as the door, side door
glass, front and rear pillar.

[Do not place any objects between
the door and the seat. They may
become dangerous projectiles if the
side air bag inflates.

[Do not install any accessories on the
side or near the side air bags.

[Do not cause impact to the doors
when the Start/Stop button is in the
ON or START position as this may
cause the side air bags to inflate.

[If the seat or seat cover is damaged,
have the system be serviced by
an authorized retailer of Genesis
Branded products.

3-50
Seats and Safety System
Curtain air bags
ORG3030032
ORG3EV031058
Curtain air bags are located along both
sides of the roof rails above the front and
rear doors.
They are designed to help protect the
heads of the front seat occupants and
the rear outboard seat occupants in
certain side impact collisions.
The curtain air bags are designed to
deploy during certain side impact
collisions, depending on the crash
severity.For vehicles equipped with a rollover
sensor the side and/or curtain air bags
and pre-tensioners on both sides of
the vehicle may deploy if a rollover or
possible rollover is detected.
The curtain air bags are not designed
to deploy in all side impact or rollover
situations.
WARNING
To reduce the risk of serious injury or
death from an inflating curtain air bag,
take the following precautions:

[All seat occupants must wear
seat belts at all times to help keep
occupants positioned properly.

[Properly secure Child Restraint
System as far away from the door as
possible.

[Do not place any objects over the air
bag. Also, do not attach any objects
around the area the air bag inflates
such as the door, side door glass,
front and rear pillar, roof side rail.

[Do not hang other objects, especially
hard or breakable objects.
In an accident, it may cause vehicle
damage or personal injury.

[Do not allow passengers to lean their
heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.

[Do not attempt to open or repair
the side curtain airbags. If the side
curtain airbags require repair or
maintenance, have them serviced
by an authorized retailer of Genesis
Branded products.

3-54
Seats and Safety System
„Driver’s front air bag (3)
OHI038173L
„Passenger’s front air bag
ODN8039080L
After complete inflation, the air bag
immediately starts deflating, enabling
the driver to maintain forward visibility
and the ability to steer or operate other
controls.
WARNING
To prevent objects from becoming
dangerous projectiles when the
passenger’s air bag inflates:

[Do not install or place any objects
(drink holder, CD holder, stickers,
etc.) on the front passenger’s panel
above the glove box where the
passenger’s air bag is located.

[Do not install a container of liquid
air freshener near the instrument
cluster or on the instrument panel
surface.
What to Expect After an Air Bag
Inflates
After a frontal or side air bag inflates, it
will deflate very quickly. Air bag inflation
will not prevent the driver from seeing
out of the windshield or being able
to steer. Curtain air bags may remain
partially inflated for some time after they
deploy.
WARNING
After an air bag inflates, take the
following precautions:

[Open your windows and doors as
soon as possible after impact to
reduce prolonged exposure to the
smoke and powder released by the
inflating air bag.

[Do not touch the air bag storage
area’s internal components
immediately after an air bag has
inflated. The parts that come into
contact with an inflating air bag may
be very hot.

[Always wash exposed skin areas
thoroughly with cold water and mild
soap.

[Have an authorized retailer of
Genesis Branded products replaced
the air bag immediately after
deployment. Air bags are designed to
be used only once.
