2023 GENESIS G80 ground clearance

3-65
03
ORG3EV031069
Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it
to “ride” under a vehicle with a higher
ground clearance. Air bags may not
inflate in this “underride” situation
because deceleration forces that are
detected by sensors may be significantly
reduced by such “underride” collisions.
ORG3EV031070
Front air bags may not inflate in
rollover accidents because front air bag
deployment would not provide additional
occupant protection.
Information
With rollover sensor
The side and curtain air bags may inflate
in a rollover situation, when it is detected
by the rollover sensor.
Information
Without rollover sensor
The side and/or curtain air bags may
inflate when the vehicle is rolled over
by a side impact collision, if the vehicle
is equipped with side and/or curtain air
bags.
ORG3EV031071
Air bags may not inflate if the vehicle
collides with objects such as utility poles
or trees, where the point of impact is
concentrated and the collision energy is
absorbed by the vehicle structure.

7-19
07

[Your vehicle is being towed

[The surrounding is very bright

[The surrounding is very dark, such as
in a tunnel, etc.

[The brightness changes suddenly, for
example when entering or exiting a
tunnel

[The brightness outside is low, and the
headlamps are not on or are not bright

[Driving through steam, smoke or
shadow

[Only part of the vehicle, pedestrian or
cyclist is detected

[The vehicle in front is a bus, heavy
truck, truck with an unusually shaped
cargo, trailer, etc.

[The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[The brightness outside is low, and the
tail lamps are not on or are not bright

[The rear of the front vehicle is small
or the vehicle does not look normal,
such as when the vehicle is tilted,
overturned, or the side of the vehicle
is visble, etc.

[The front vehicle’s ground clearance is
low or high

[A vehicle, pedestrian or cyclist
suddenly cuts in front

[The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[The temperature around the front
radar is high or low

[Driving through a tunnel or iron bridge

[Driving in vast areas where there
are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)

[Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.
[A material is near that reflects very
well on the front radar, such as a
guardrail, nearby vehicle, etc.

[The cyclist in front is on a bicycle
made of material that does not reflect
on the front radar

[The vehicle in front is detected late

[The vehicle in front is suddenly
blocked by an obstacle

[The vehicle in front suddenly changes
lane or suddenly reduces speed

[The vehicle in front is bent out of
shape

[The front vehicle’s speed is fast or
slow

[The vehicle in front steers in the
opposite direction of your vehicle to
avoid a collision

[With a vehicle in front, your vehicle
changes lane at low speed

[The vehicle in front is covered with
snow

[You are departing or returning to the
lane

[Unstable driving

[You are on a roundabout and the
vehicle in front is not detected

[You are continuously driving in a circle

[The vehicle in front has an unusual
shape

[The vehicle in front is driving uphill or
downhill

[The pedestrian or cyclist is not
fully detected, for example, if the
pedestrian is leaning over or is not
fully walking upright

[The pedestrian or cyclist is wearing
clothing or equipment that makes it
difficult to detect

7-95
07

[Only part of the vehicle is detected

[The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[The brightness outside is low, and the
tail lamps are not on or are not bright

[The rear of the front vehicle is small
or does not look normal (for example,
tilted, overturned, etc.)

[The front vehicle’s ground clearance is
low or high

[A vehicle suddenly cuts in front

[Your vehicle is being towed

[Driving through a tunnel or iron bridge

[Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.

[An object reflecting off the front radar
such as a guardrail, nearby vehicle,
etc.

[The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[The temperature around the front
radar is high or low

[Driving in vast areas where there
are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)

[The vehicle in front is made of
material that does not reflect on the
front radar

[Driving near a highway (or motorway)
interchange or tollgate

[Driving on a slippery surface due to
snow, water puddle, ice, etc.

[Driving on a curved road

[The vehicle in front is detected late

[The vehicle in front is suddenly
blocked by an obstacle

[The vehicle in front suddenly changes
lane or suddenly reduces speed
[The vehicle in front is bent out of
shape

[The front vehicle’s speed is fast or
slow

[With a vehicle in front, your vehicle
changes lane at low speed

[The vehicle in front is covered with
snow

[Unstable driving

[You are on a roundabout and the
vehicle in front is not detected

[You are continuously driving in a circle

[Driving in a parking lot

[Driving through a construction area,
unpaved road, partial paved road,
uneven road, speed bumps, etc.

[Driving on an incline road, curved
road, etc.

[Driving through a roadside with trees
or streetlights

[The adverse road conditions cause
excessive vehicle vibrations while
driving

[Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[Driving through a narrow road where
trees or grass are overgrown

[There is interference by
electromagnetic waves, such as
driving in an area with strong radio
waves or electrical noise

7-97
07

[Changing lanes
ORG3EV071103[A] : Your vehicle, [B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot be
detected by the sensor until it is in the
sensor's detection range. Smart Cruise
Control may not immediately detect
the vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.
[Detecting vehicle
ORG3EV071126
ORG3EV071089
In the following cases, some vehicles
in your lane cannot be detected by the
sensor:
-Vehicles offset to one side
-Slow-moving vehicles or sudden-
decelerating vehicles
-Vehicles with higher ground
clearance or vehicles carrying loads
that stick out of the back of the
vehicle
-Vehicles that has the front lifted due
to heavy loads
-Vehicles within approximately 6
feet(2 m) from your vehicle
-Oncoming vehicles
-Stopped vehicles
-Vehicles with small rear profile, such
as trailers
-Narrow vehicles, such as
motorcycles or bicycles
-Special vehicles
-Animals and pedestrians

7-179
07

[There is a circular pillar or narrow
pillar, or a pillar surrounded by objects
such as fire extinguisher, etc., near the
parking space

[The road surface is bumpy (curbstone,
speed bump, etc.)

[The road is slippery

[The parking space is near a vehicle
with higher ground clearance or big,
such as a truck, etc.

[The parking space is Inclined

[There is heavy wind

[Operating Remote Smart Parking
Assist on uneven roads, gravel roads,
bushes, etc.

[The performance of the ultrasonic
sensor is affected by extremely hot or
cold weather

[The ultrasonic sensor is covered with
snow or water

[An object that generates ultrasonic
waves is nearby

[A wireless device with a transmission
function operates near the ultrasonic
sensors

[Your vehicle is affected by another
vehicle’s Parking Distance Warning

[The sensor is mounted or positioned
incorrectly by an impact to the
bumper

[When the ultrasonic sensor cannot
detect the following objects:
-Sharp or slim objects, such as ropes,
chains or small poles
-Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter
-Objects which tend to absorb
sensor frequency, such as clothes,
spongy material or snow
-A narrow object such as a corner of
a square pillar
-Person, animal or object near the
ultrasonic sensorRemote Smart Parking Assist may not
operate properly under the following
circumstances:

[Parking on inclines
ORG3EV071172
Park manually when parking on
inclines.

[Parking in snow
ORG3EV071178
Snow may interfere with sensor
operation, or Remote Smart Parking
Assist may cancel if the road is
slippery while parking.

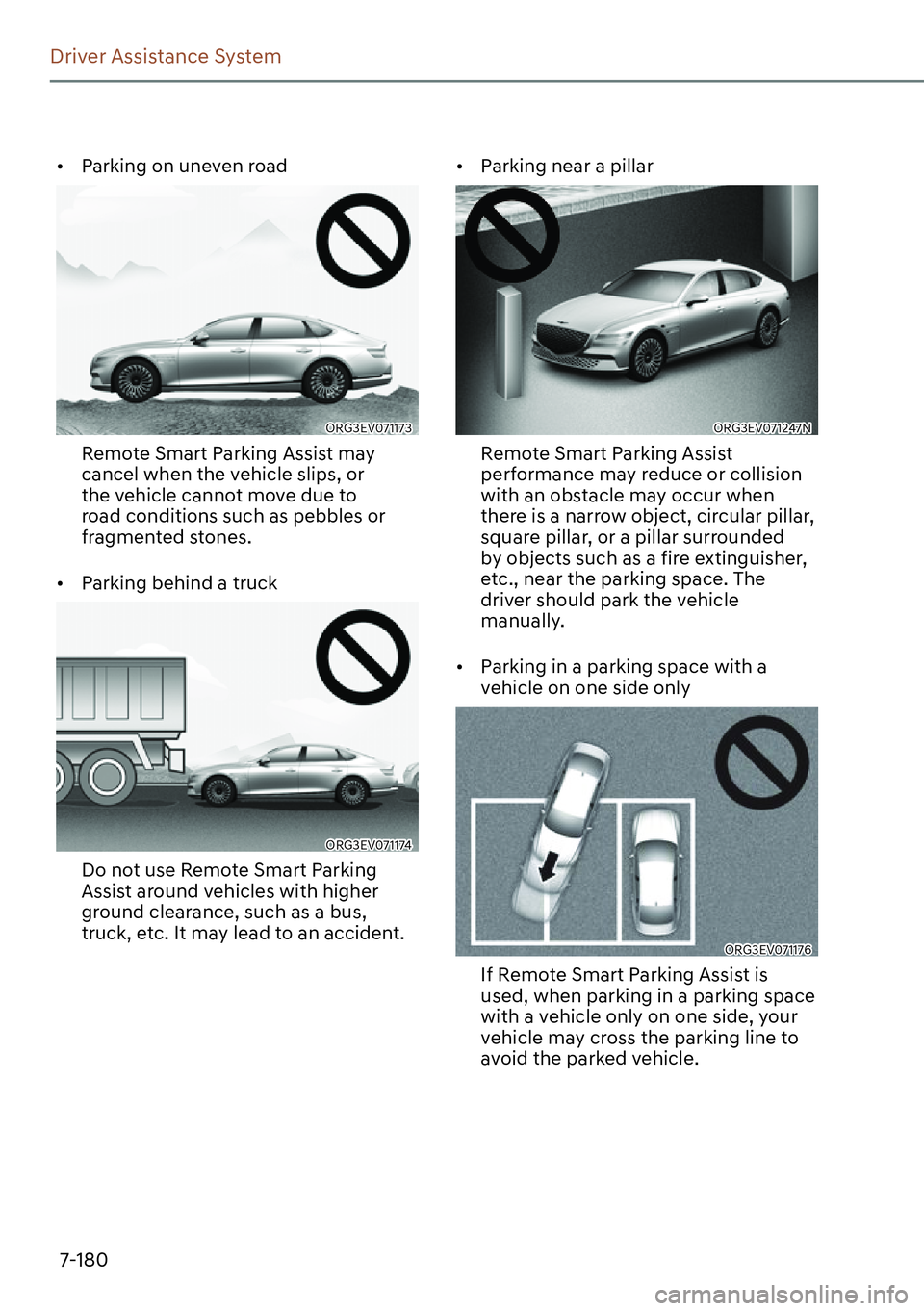

7-180
Driver Assistance System

[Parking on uneven road
ORG3EV071173
Remote Smart Parking Assist may
cancel when the vehicle slips, or
the vehicle cannot move due to
road conditions such as pebbles or
fragmented stones.

[Parking behind a truck
ORG3EV071174
Do not use Remote Smart Parking
Assist around vehicles with higher
ground clearance, such as a bus,
truck, etc. It may lead to an accident.
[Parking near a pillar
ORG3EV071247N
Remote Smart Parking Assist
performance may reduce or collision
with an obstacle may occur when
there is a narrow object, circular pillar,
square pillar, or a pillar surrounded
by objects such as a fire extinguisher,
etc., near the parking space. The
driver should park the vehicle
manually.

[Parking in a parking space with a
vehicle on one side only
ORG3EV071176
If Remote Smart Parking Assist is
used, when parking in a parking space
with a vehicle only on one side, your
vehicle may cross the parking line to
avoid the parked vehicle.
