2023 GENESIS G80 Oil Type

2-15
02
AIR CONDITIONER
COMPRESSOR LABEL
ORG3EVQ011137L
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model (1), serial number (2),
supplier part number (3), lot number (4),
refrigerant (4) and refrigerant oil (5).
5()5,*(5$17/$%(/
í,)
(48,33('

5-111
05
Checking the amount of air
conditioner refrigerant and
compressor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also reduces the
performance of the air conditixoning
system.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized retailer of Genesis Branded
products.
NOTICE
It is important that the correct type and
amount of oil and refrigerant is used.
Otherwise, damage to the compressor
and abnormal system operation may
occur. To prevent damage, the air
conditioning system in your vehicle
should only be serviced by trained and
certified technicians.
NOTICE
The refrigerant system should only
be serviced by trained and certified
technicians to insure proper and safe
operation.
The refrigerant system should be
serviced in a well-ventilated place.
The air conditioning evaporator (cooling
coil) shall never be repaired or replaced
with one removed from a used or
salvaged vehicle and new replacement
MAC evaporators shall be certified
(and labeled) as meeting SAE Standard
J2842.
WARNING
Vehicles equipped with R-1234yf
refrigerant
Since the refrigerant is
mildly flammable and
operated at high pressure,
the air conditioning system
should only be serviced
by trained and certified
technicians. It is important
that the correct type and
amount of oil and refrigerant
are used.
All refrigerants should be reclaimed
with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individuals
and environment. Failure to heed these
warnings can lead to serious injuries.

9-14
Maintenance
Checking the Brake Fluid Level
ORG3EV091004
Check the fluid level in the reservoir
periodically. The fluid level should be
between MAX and MIN marks on the side
of the reservoir.
Before removing the reservoir cap and
adding brake fluid, clean the area around
the reservoir cap thoroughly to prevent
brake fluid contamination.
If the level is low, add the specified brake
fluid to the MAX level. The level will fall
with accumulated kilometers. This is a
normal condition associated with the
wear of the brake linings. If the fluid level
is excessively low, have the brake system
checked by an authorized retailer of
Genesis Branded products.
WARNING
If the brake system requires frequent
additions of fluid this could indicate
a leak in the brake system. Have the
vehicle inspected by an authorized
retailer of Genesis Branded products.
WARNING
Do not let brake fluid enter into your
eyes. If brake fluid gets in your eyes,
flush your eyes with clean water for
at least 15 minutes and get immediate
medical attention.
NOTICE

[Do not allow brake fluid to contact
the vehicle’s body paint, as it will
result in paint damage.

[NEVER use brake fluid which has
been exposed to open air for an
extended time, as its quality cannot
be guaranteed. It should be disposed
of properly.

[Do not use the wrong type of brake
fluid. A few drops of mineral based
oil in your brake system can damage
brake system parts.
Information
Use only the specified brake fluid (refer
to “Recommended Lubricants and
Capacities” section in chapter 2).
BRAKE FLUID

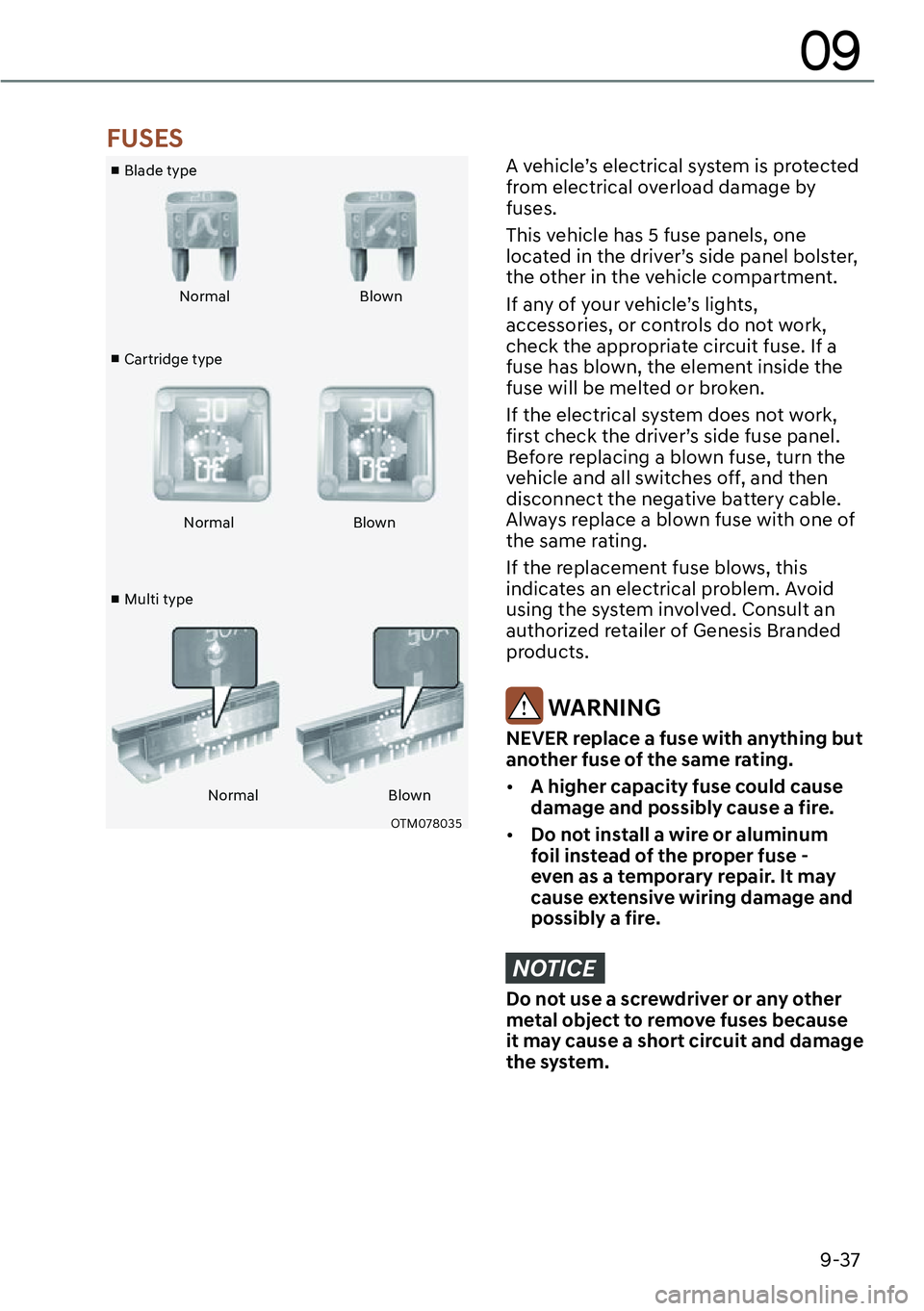

9-37
09

v
Blade type

v
Cartridge type

v
Multi typeNormal Blown
Normal Blown
Normal Blown
OTM078035
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 5 fuse panels, one
located in the driver’s side panel bolster,
the other in the vehicle compartment.
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
vehicle and all switches off, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved. Consult an
authorized retailer of Genesis Branded
products.
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.

[A higher capacity fuse could cause
damage and possibly cause a fire.

[Do not install a wire or aluminum
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.
FUSES

9-44
Maintenance
Motor compartment fuse panel
Type Fuse NameFuse Rating Circuit Protected
MINELDC225A ICCU (LDC)
B+5150AP/R Junction Block (Fuse(EWP 1, EWP 2, EOP
1, HEAD LAMP LH, HEAD LAMP RH, VCU 2)),
PCB Block (Fuse(IG1, IG2, IG3 1, ACC))
MDPS 1 125A MDPS Unit
MULTICOOLING FAN100A Cooling Fan Motor
REAR HEATED80A Rear Heated Relay
IEB 160A IEB Unit
IEB 260A IEB Unit
BLOWER50A Blower Relay
IEB 350A IEB Unit
E-SHIFTER40A E-Shifter Relay
VCU 130A VCU
WIPER30A Wiper Motor
SBHEAD LAMP LH30A Head Lamp LH
EOP 140A Electronic Traction Motor Oil Pump (Front)
HEAD LAMP RH30A Head Lamp RH
EOP 240A Electronic Traction Motor Oil Pump (Rear)
MICROOBC10A VCMS, ICCU
HORN15A PCB Block(Horn Relay)
INVERTER 110A Inverter (Front)
BMS15A BMU
HTD IND10A Front A/C Controller
EWP 220A Electronic Water Pump (BSA)
EWP 120A Electronic Water Pump (Radiator)
VCU 220A VCU
