2023 GENESIS G70 Glove

2-5
02
1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ............................. 3-45
3. Engine Start/Stop button ....................... 6-5
4. Hazard warning flasher button .............. 8-2
5. Infotainment system ........................... 5-122
6. Automatic climate control system ....... 5-91
7. Heated steering wheel button ............. 5-38
8. Seat warmer button .............................. 3-18
9. Air ventilation seat button .................... 3-19
10. Passenger’s front air bag ..................... 3-45
11. Glove box .............................................. 5-113
12. Transmission shift lever .......................... 6-913. Drive mode integrated control ............ 6-46
14. ESC (Electronic Stability Control) OFF
button .................................................... 6-32
15. Parking Safety button ........................... 7-110
16. Auto Hold button ...................................6-27
17. Parking/View button .............................7-92
18. EPB (Electronic Parking Brake) switch .................................................... 6-23
19. Power outlet .......................................... 5-115
20. USB port ............................................... 5-122
21. Wireless charging system indicator .... 5-117
22. Wireless charging system pad ............. 5-117
The actual shape may differ from the illustration.
OIK010004N
,167580(173$1(/29(59,(:

02
2-9
Light bulbBulb type Wattage
Front H
eadlight
Low
LEDLED
High LEDLED
Turn signal lamp LEDLED
Parking lamp LEDLED
Side marker LEDLED
Daytime Running Lamp (DRL) LEDLED
Puddle lamp LEDLED
Rear Tail lamp
LEDLED
Stop lamp / Turn signal lamp LEDLED
Reverse lamp LEDLED
Side marker LEDLED
License plate lamp LEDLED
High mounted stop lamp LEDLED
Interior Map lamp
LEDLED
Room lamp LEDLED
Vanity mirror lamp LEDLED
Glove box lamp LEDLED
Foot lamp LEDLED
Trunk lamp LEDLED
BULB WATTAGE

03
3-45
Where are the Air Bags?
Driver’s and passenger’s front air
bags
„Driver’s front air bag
OIK037035
„Driver’s knee air bag
OIK030064
„Passenger’s front air bag
OIK030065
Your vehicle is equipped with a
Supplemental Restraint System (SRS)
and lap/shoulder belts at both the driver
and passenger seating positions.The SRS consists of air bags which are
located in the center of the steering
wheel, in the driver’s side lower crash
pad below the steering wheel, and the
passenger’s side front panel pad above
the glove box.
The air bags are labeled with the letters
“AIR BAG” embossed on the pad covers.
The purpose of the SRS is to provide the
vehicle’s driver and front passengers with
additional protection than that offered
by the seat belt system alone. The SRS
uses sensors to gather information about
the driver’s and front passenger’s seat
belt usage and impact severity. The seat
belt buckle sensors determine if the
driver and front passenger’s seat belts
are fastened. These sensors provide the
ability to control the SRS deployment
based on whether or not the seat belts
are fastened, and how severe the impact
is. The advanced SRS offers the ability to
control the air bag inflation within two
levels. A first stage level is provided for
moderate-severity impacts. A second
stage level is provided for more severe
impacts. According to the impact
severity, and seat belt usage, the SRS
Control Module (SRSCM) controls the
air bag inflation. Failure to properly
wear seat belts can increase the risk or
severity of injury in an accident.

Safety System3-46
WARNING
To reduce the risk of serious injury or
death from inflating front air bags, take
the following precautions:

[ Seat belts must be worn at all times
to help keep occupants positioned
properly.

[ Move your seat as far back as
possible from front air bags, while
still maintaining control of the
vehicle.

[ Never lean against the door or center
console.

[ Do not allow the front passenger
to place their feet or legs on the
dashboard.

[ No objects (such as crash pad cover,
mobile phone holder, cup holder,
air fresheners or stickers) should
be placed over or near the air bag
modules on the steering wheel,
instrument panel, windshield glass,
and the front passenger’s panel
above the glove box. Such objects
could cause harm if the vehicle is in a
crash severe enough to cause the air
bags to deploy.

[ Do not attach any objects on the
front windshield and inside mirror.
Side air bags and front center air
bag
„Side air bag
OIK030068
„Front center air bag (Driver’s seat)
OIK030090
OIK031071N
Your vehicle is equipped with a side air
bag in each front and outboard second
row seat. Additionally, a front center air
bag is provided in the inboard side of the
driver seatback. The purpose of the air
bag is to provide the vehicle’s additional
protection than that offered by the seat
belt alone.

Safety System3-52
„Driver’s front air bag (1)
OHI038171L
When the SRSCM detects a sufficiently
severe impact to the front of the vehicle,
it will automatically deploy the front air
bags.
„Driver’s front air bag (2)
OHI038172L
Upon deployment, tear seam molded
directly into the pad cover will separate
under pressure from the expansion of the
air bags. Further opening of the covers
allows full inflation of the air bags.
A fully inflated air bag, in combination
with a properly worn seat belt, slows the
driver’s or the front passenger’s forward
motion, reducing the risk of head and
chest injury.
„Driver’s front air bag (3)
OHI038173L
„Passenger’s front air bag
ODN8039080L
After complete inflation, the air bag
immediately starts deflating, enabling
the driver to maintain forward visibility
and the ability to steer or operate other
controls.
WARNING
To prevent objects from becoming
dangerous projectiles when the
passenger’s air bag inflates:

[ Do not install or place any objects
(drink holder, CD holder, stickers,
etc.) on the front passenger’s panel
above the glove box where the
passenger’s air bag is located.

[ Do not install a container of liquid
air freshener near the instrument
cluster or on the instrument panel
surface.

Safety System3-64

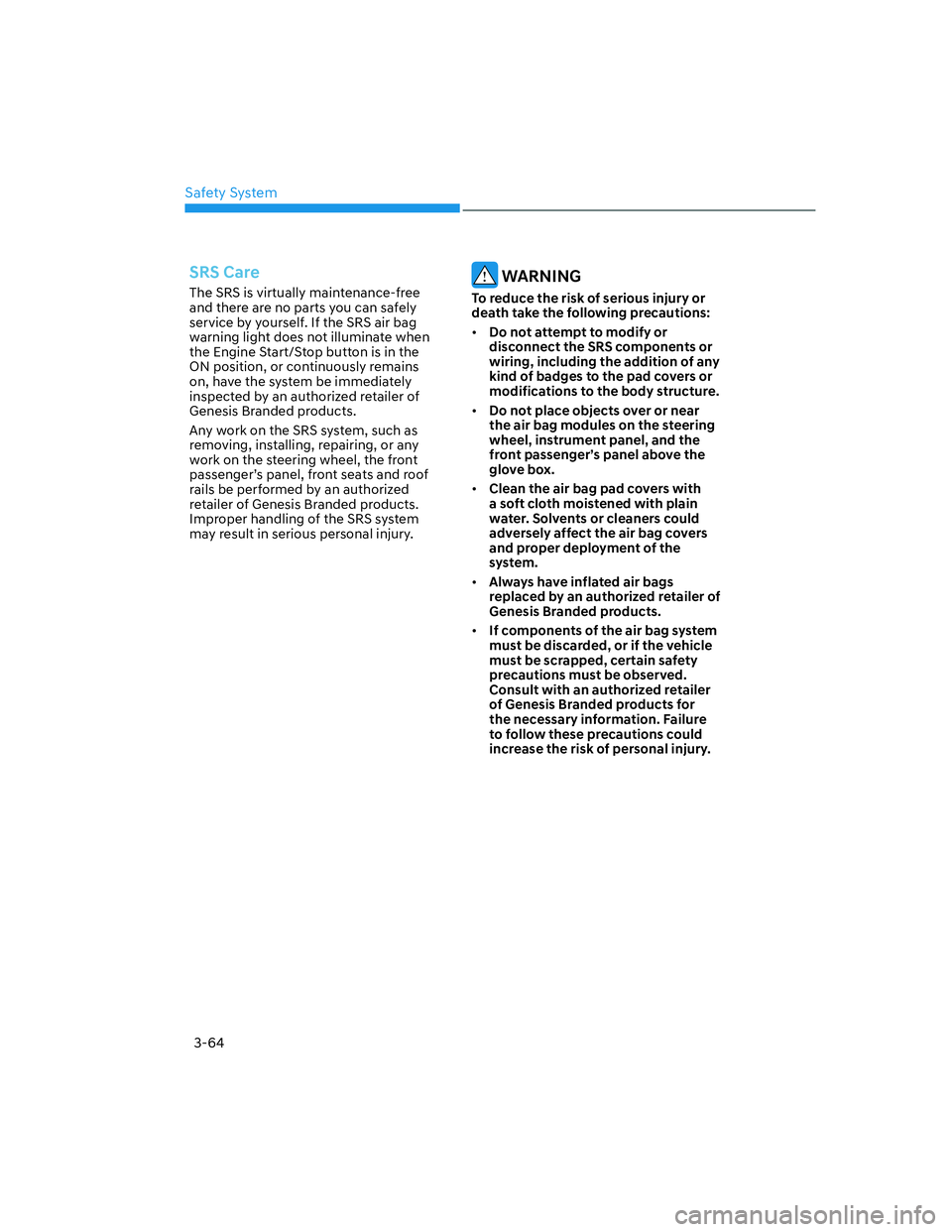

SRS Care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate when
the Engine Start/Stop button is in the
ON position, or continuously remains
on, have the system be immediately
inspected by an authorized retailer of
Genesis Branded products.
Any work on the SRS system, such as
removing, installing, repairing, or any
work on the steering wheel, the front
passenger’s panel, front seats and roof
rails be performed by an authorized
retailer of Genesis Branded products.
Improper handling of the SRS system
may result in serious personal injury. WARNING
To reduce the risk of serious injury or
death take the following precautions:

[ Do not attempt to modify or
disconnect the SRS components or
wiring, including the addition of any
kind of badges to the pad covers or
modifications to the body structure.

[ Do not place objects over or near
the air bag modules on the steering
wheel, instrument panel, and the
front passenger’s panel above the
glove box.

[ Clean the air bag pad covers with
a soft cloth moistened with plain
water. Solvents or cleaners could
adversely affect the air bag covers
and proper deployment of the
system.

[ Always have inflated air bags
replaced by an authorized retailer of
Genesis Branded products.

[ If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed.
Consult with an authorized retailer
of Genesis Branded products for
the necessary information. Failure
to follow these precautions could
increase the risk of personal injury.

5
Exterior Features ........................................................................\
..................... 5-63Hood ....................................................................\
........................................................5-63Trunk .......................................................................\
.................................................... 5-6 4
Power Trunk ........................................................................\
............................. 5-66
Power trunk operating conditions ........................................................\
................... 5-66
Operating the power trunk .......................................................................\
................. 5-67
Power trunk settings .......................................................................\
........................... 5-70
Resetting the power trunk .......................................................................\
.................. 5-70
Emergency trunk safety release .......................................................................\
......... 5-70
Smart Trunk .......................................................................\
.......................................... 5-71
Fuel Filler Door .......................................................................\
.................................... 5-73
Head-Up Display (HUD)......................................................................\
.............5-76Head-Up Display Settings ........................................................................\
................. 5-76
Head-Up Display Information .......................................................................\
............ 5-76
Precautions While Using the Head-Up Display ........................................................ 5-77
Lighting ...............................................................\
............................................. 5-78Exterior Lights ........................................................................\
.................................... 5-78
Puddle Lamp .......................................................................\
........................................5-82
Welcome System .......................................................................\
.................................5-83
High Beam Assist (HBA) ........................................................................\
......... 5-84High Beam Assist Settings ........................................................................\
................ 5-84
High Beam Assist Operation .......................................................................\
...............5-85
High Beam Assist Malfunction and Limitations .......................................................5-85
Interior Lights ........................................................................\
.......................... 5-87Interior Lamp AUTO cut ........................................................................\
..................... 5-87
Front Lamps .......................................................................\
......................................... 5-87
Rear Lamps .......................................................................\
......................................... 5-88
Vanity Mirror Lamp .......................................................................\
............................. 5-88
Glove Box Lamp .......................................................................\
................................. 5-89
Foot Lamp .......................................................................\
........................................... 5-89
Trunk Lamp .......................................................................\
......................................... 5-89
Wipers and Washers ........................................................................\
............... 5-90Front Windshield Wipers ........................................................................\
.................. 5-90
Windshield Washers .......................................................................\
............................5-92
Automatic Climate Control System ............................................................... 5-93Automatic Heating and Air Conditioning .................................................................5-95
Manual Heating and Air Conditioning ..................................................................... 5-96
System Operation .......................................................................\
.............................. 5-102
System Maintenance .......................................................................\
........................ 5-104

5
Windshield Defrosting and Defogging .........................................................5-106To Defog Inside Windshield ........................................................................\
............. 5-106
To Defrost Inside Windshield .......................................................................\
.............5-107
Defogging Logic .......................................................................\
.................................5-107
Rear Window Defroster........................................................................\
.................... 5-108
Climate Control Additional Features ............................................................5-109Auto Defogging System ........................................................................\
................... 5-109
Automatic Ventilation .......................................................................\
...................... 5-110
Recirculating Air when Washer Fluid is Used ........................................................... 5-111
Sunroof Inside Air Recirculation .......................................................................\
......... 5-111
Storage Compartment ........................................................................\
............ 5-112Center Console Storage ........................................................................\
.................... 5-112
Glove Box .......................................................................\
............................................ 5-113
Sunglass Holder .......................................................................\
................................. 5-113
Interior Features ........................................................................\
......................5-114Cup Holder ........................................................................\
......................................... 5-114
Sunvisor .......................................................................\
.............................................. 5-115
Power Outlet .......................................................................\
....................................... 5-115
USB Charger .......................................................................\
....................................... 5-116
Wireless Smart Phone Charging System ................................................................. 5-117
Clock .......................................................................\
.................................................. 5-120
Coat Hook .......................................................................\
.......................................... 5-120
Floor Mat Anchor(s) .......................................................................\
........................... 5-120
Luggage Net Holder .......................................................................\
........................... 5-121
Infotainment System ........................................................................\
............. 5-122USB Port ........................................................................\
.............................................5-122
Antenna .......................................................................\
...............................................5-122
Steering Wheel Remote Controls .......................................................................\
......5-123
Infotainment System .......................................................................\
..........................5-123
Voice Recognition .......................................................................\
..............................5-123
Bluetooth® Wireless Technology .......................................................................\
...... 5-124
Lexicon Premium Sound System .......................................................................\
..... 5-124
5. Convenience Features
