2023 GENESIS G70 Display

Driver Assistance System7-22

[ There is a road edge without a lane

[ There is a boundary structure in the
roadway, such as a tollgate, sidewalk,
curb, etc.

[ The distance to the front vehicle is
extremely short or the vehicle in front
is covering the lane marking (or road
edge)
Information
For more details on the limitations of the
front view camera, refer to Forward
Collision-Avoidance Assist (FCA) section
in chapter .
WARNING
Take the following precautions when
using Lane Keeping Assist:

[The driver has the responsibility to
safely drive and control the vehicle.
Do not solely rely on Lane Keeping
Assist and drive dangerously.

[ The operation of Lane Keeping Assist
can be canceled or not work properly
depending on road conditions and
surroundings. Always be cautious
while driving.

[ Refer to “Limitations of Lane Keeping
Assist” if the lane is not detected
properly.

[ If emergency towing is necessary, we
recommend that Lane Keeping Assist
is turned off due to safety reasons.

[ If the vehicle is driven at high speed,
the steering wheel will not be
controlled. The driver must always
follow the speed limit when using
Lane Keeping Assist.
[
If any other system’s warning
message is displayed or audible
warning is generated, Lane Keeping
Assist warning message may not be
displayed and audible warning may
not be generated.

[ You may not hear the warning
sound of Lane Keeping Assist if the
surrounding is noisy.

[ If you attach objects to the steering
wheel, steering may not be assisted
properly.

[ Lane Keeping Assist may not operate
for 15 seconds after the vehicle is
started, or the front view camera is
initialized.

[ Lane Keeping Assist will not operate
when:
- The turn signal or hazard warning
flasher is turned on
- The vehicle is not driven in the
center of the lane when Lane
Keeping Assist is turned on or right
after changing a lane
- ESC (Electronic Stability Control)
or VSM (Vehicle Stability
Management) is activated
- The vehicle is driven on a sharp
curve
- The vehicle speed is below 35 mph
(55 km/h) or above 130 mph
(210 km/h)
- The vehicle makes sudden lane
changes
- The vehicle brakes suddenly

Driver Assistance System7-28
Collision warning

[ Collision w
arning will operate when
the turn signal is turned on in the
direction of the detected vehicle.

[ ,I
S:DUQLQJ2QO\
TLVVHOHFWHGIURPWKH
Settings menu, the collision warning
will operate when your vehicle
approaches the lane the blind spot
vehicle is detected.

[ To warn the driver of a collision, the
warning light on the side view mirror
and head-up display (if equipped) will
blink. At the same time, an audible
warning will sound and the steering
wheel will vibrate.

[ When the turn signal is turned off or
you move away from the lane, the
collision warning will be canceled and
Blind-Spot Collision-Avoidance Assist
will return to vehicle detection state. WARNING

[The detecting range of the rear
corner radar is determined by a
standard road width, therefore, on
a narrow road, Blind-Spot Collision-
Avoidance Assist may detect other
vehicles two lanes over and warn
you. In contrast, on a wide road,
Blind-Spot Collision-Avoidance
Assist may not be able to detect a
vehicle driving in the next lane and
may not warn you.

[ When the hazard warning flasher is
on, the collision warning by the turn
signal will not operate.
Information

[If the driver s seat is on the left side, the
collision warning may occur when you
turn left. Maintain a proper distance
with the vehicles in the left lane. If the
driver s seat is on the right side, the
collision warning may occur when you
turn right. Maintain a proper distance
with the vehicles in the right lane.

[ The images and colors in the
instrument cluster may differ
depending on the cluster type or theme
selected from the instrument cluster.

07
7-29
OIK070087L
Collision-avoidance assist (while driving)

[T
o warn the driver of a collision, the
warning light on the side view mirror
will blink and a warning message
will appear on the cluster. At the
same time, an audible warning will
sound, warning light on the head-up
display (if equipped) will blink and the
steering wheel will vibrate.

[ Blind-Spot Collision-Avoidance Assist
will operate when your vehicle speed
is between 40-120 mph (60-200 km/h)
and both lane markings of the driving
lane are detected.

[ Emergency braking will be assisted to
help prevent collision with the vehicle
in the blind spot area.
WARNING

[Blind-Spot Collision-Avoidance
Assist will be canceled under the
following circumstances:
- Your vehicle enters the next lane
by a certain distance
- Your vehicle is away from the
collision risk
- The steering wheel is sharply
steered
- The brake pedal is depressed
- Forward Collision-Avoidance Assist
is operating

[ After Blind-Spot Collision-Avoidance
Assist operation or lane change,
you must drive to the center of the
lane. Blind-Spot Collision-Avoidance
Assist will not operate if the vehicle is
not driven in the center of the lane.

Driver Assistance System7-30
OIK070088L
Collision-avoidance assist (while
departing)

[ T
o warn the driver of a collision, the
warning light on the side view mirror
will blink and a warning message
will appear on the cluster. At the
same time, an audible warning will
sound, warning light on the head-up
display (if equipped) will blink and the
steering wheel will vibrate.

[ Blind-Spot Collision-Avoidance Assist
will operate when your vehicle speed
is below 2 mph (3 km/h) and the
speed of the vehicle in the blind spot
area is above 3 mph (5 km/h).

[ Emergency braking will be assisted to
help prevent collision with the vehicle
in the blind spot area.
OIK070009L

[When the vehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.

07
7-31
WARNING
Take the following precautions when
using Blind-Spot Collision-Avoidance
Assist :

[For your safety, only change the
Settings after parking the vehicle at a
safe location.

[ If any other system’s warning
message is displayed or audible
warning is generated, Blind-Spot
Collision-Avoidance Assist warning
message may not be displayed
and audible warning may not be
generated.

[ You may not hear the warning sound
of Blind-Spot Collision-Avoidance
Assist if the surrounding is noisy.

[ Blind-Spot Collision-Avoidance
Assist may not operate if the driver
applies the brake pedal to avoid
collision.

[ When Blind-Spot Collision-Avoidance
Assist is operating, braking control
by the function will automatically
cancel when the driver excessively
depresses the accelerator pedal or
sharply steers the vehicle.

[ During Blind-Spot Collision-
Avoidance Assist operation, the
vehicle may stop suddenly injuring
passengers and shifting loose
objects. Always have the seat belt on
and keep loose objects secured.

[ Even if there is a problem with Blind-
Spot Collision-Avoidance Assist, the
vehicle’s basic braking performance
will operate properly.

[ Blind-Spot Collision-Avoidance Assist
does not operate in all situations or
cannot avoid all collisions.
[
Blind-Spot Collision-Avoidance
Assist may warn the driver late or
may not warn the driver depending
on the road and driving conditions.

[ Driver should maintain control of the
vehicle at all times. Do not depend
on Blind-Spot Collision-Avoidance
Assist. Maintain a safe braking
distance, and if necessary, depress
the brake pedal to reduce driving
speed or to stop the vehicle.

[ Never operate Blind-Spot Collision-
Avoidance Assist on people, animal,
objects, etc. It may cause serious
injury or death.
WARNING
The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
- The ESC (Electronic Stability Control)
warning light is on
- ESC (Electronic Stability Control) is
engaged in a different function

07
7-39
Safe Exit Warning Operation
Safe Exit Warning
OIK070024L
Collision warning when exiting vehicle

[When an appr
oaching vehicle from
the rear is detected at the moment a
GRRULVRSHQHGWKH
S:DWFKIRUWUDIILF
T
warning message will appear on the
cluster, and an audible warning will
sound.

[ Safe Exit Warning will warn the driver
when your vehicle speed is below 2
mph (3 km/h), and the speed of the
approaching vehicle from the rear is
above 3 mph (5 km/h).
WARNING
Take the following precautions when
using Safe Exit Warning:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[ If any other system’s warning
message is displayed or audible
warning is generated, Safe Exit
Warning warning message may not
be displayed and audible warning
may not be generated.

[ You may not hear the warning
sound of Safe Exit Warning if the
surrounding are noisy.

[ Safe Exit Warning does not operate
in all situations and cannot prevent
all collisions.

[ Safe Exit Warning may warn the
driver late or may not warn the driver
depending on the road and driving
conditions. Always check vehicle
surroundings.

[ The driver and passengers are
responsible for accidents that occur
while exiting the vehicle. Always
check the surroundings before you
exit the vehicle.

[ Never deliberately operate Safe
Exit Warning. Doing so may lead to
serious injury or death.

07
7-45

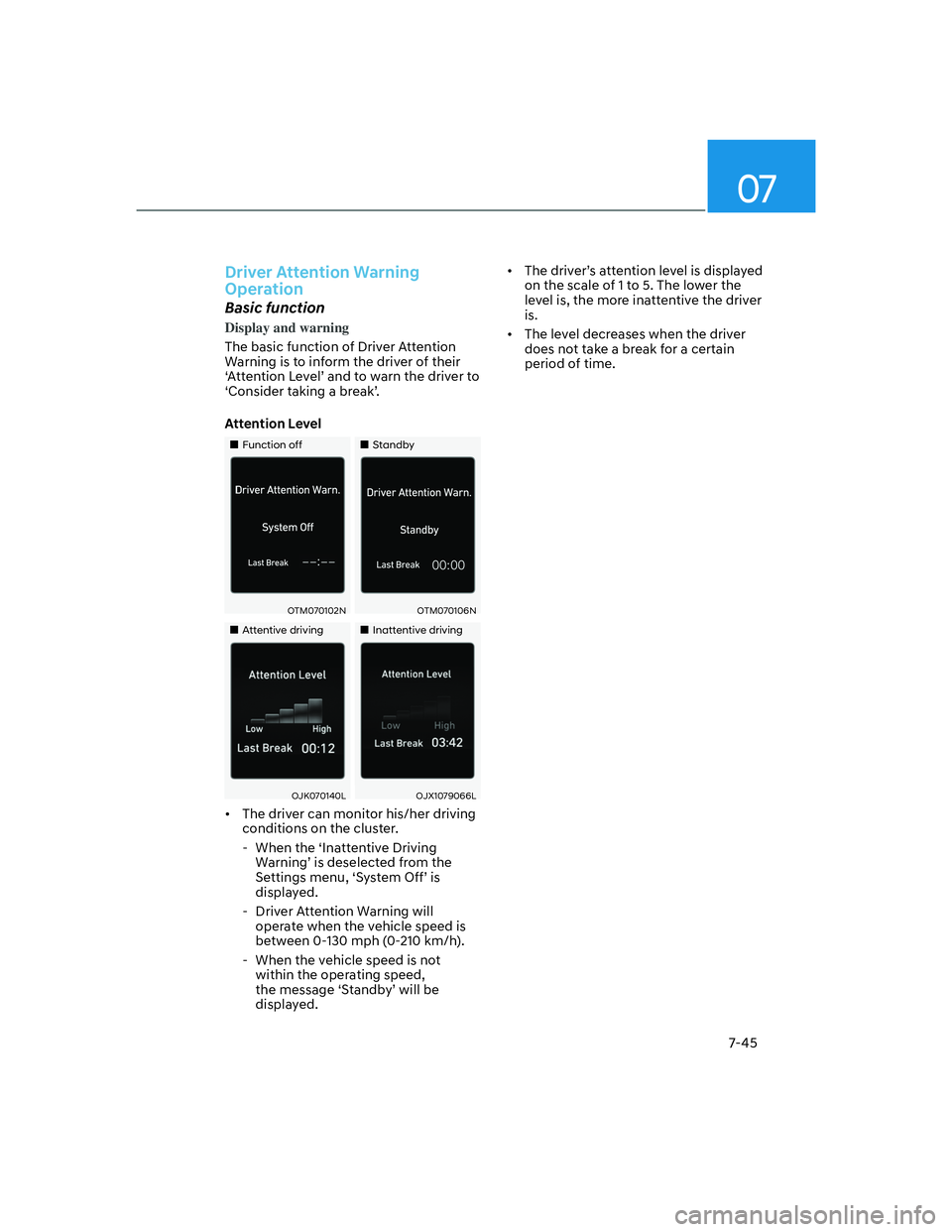

Driver Attention Warning
Operation
Basic function
Display and warning
The basic function of Driver Attention
W
arning is to inform the driver of their

S$WWHQWLRQ/HYHO
TDQGWRZDUQWKHGULYHUWR

S&RQVLGHUWDNLQJDEUHDN
T
Attention Level
„Function off „Standby
OTM070102NOTM070106N
„Attentive driving„Inattentive driving
OJK070140L OJX1079066L

[The driver can monitor his/her driving
conditions on the cluster.

- When the ‘Inattentive Driving
:DUQLQJ
TLVGHVHOHFWHGIURPWKH
6HWWLQJVPHQX
S6\VWHP2II
TLV
displayed.
- Driver Attention Warning will operate when the vehicle speed is
between 0-130 mph (0-210 km/h).
- When the vehicle speed is not within the operating speed,
WKHPHVVDJH
S6WDQGE\
TZLOOEH
displayed.
[
7KHGULYHU
TVDWWHQWLRQOHYHOLVGLVSOD\HG
on the scale of 1 to 5. The lower the
level is, the more inattentive the driver
is.

[ The level decreases when the driver
does not take a break for a certain
period of time.

07
7-47
Leading vehicle departure alert
function
OIK070031L
When a detected vehicle in front departs
from a stop, Leading Vehicle Departure
Alert will inform the driver by displaying
WKH
S/HDGLQJ YHKLFOH LV GULYLQJ DZD\
T
message on the cluster and an audible
warning will sound.
WARNING

[If any other system’s warning
message is displayed or audible
warning is generated, Driver
Attention Warning message may not
be displayed and audible warning
may not be generated.

[ The driver has the responsibility to
safely drive and control the vehicle.
CAUTION

[Leading Vehicle Departure Alert is a
supplemental function and may not
alert the driver whenever the front
vehicle departs from a stop.

[ Always check the front of the
vehicle and road conditions before
departure.
Driver Attention Warning
Malfunction and Limitations
Driver Attention Warning
malfunction
OTM070107L
When Driver Attention Warning is not
working properly, the ‘Check Driver
$WWHQWLRQ :DUQLQJ '$: V\VWHP
T
warning message will appear on the
cluster will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Limitations of Driver Attention
Warning
Driver Attention Warning may not work
properly in the following situations:

[ The vehicle is driven violently

[ The vehicle intentionally crosses over
lanes frequently

[ The vehicle is controlled by Driver
Assistance system, such as Lane
Keeping Assist
