06
6-39
Driving up or down hills

[Driving uphill
- Before starting off, check if it is possible to drive uphill.

- Drive as straight as possible.

[ Driving downhill
- Do not change gear while driving downhill. Select gear before driving
downhill.
- Drive slowly using engine braking while driving downhill.
- Drive straight as possible.
WARNING
Exercise extreme caution driving up or
down steep hills. The vehicle may flip
over depending on the grade, terrain,
water and mud conditions.
WARNING
Do not drive across the contour of steep
hills. A slight change in the wheel angle
can destabilize the vehicle, or a stable
vehicle may lose stability if the vehicle
stops its forward motion. Your vehicle
may roll over and lead to a serious injury
or death.
Emergency Precautions
Tires
When replacing tires, be sure to equip
all four tires with the same size, type,
tread pattern, brand and load-carrying
capacity.
WARNING
Do not use tire and wheel with different
size and type from the one originally
installed on your vehicle. It can affect
the safety and performance of your
vehicle, which could lead to steering
failure or rollover causing serious injury.
In an emergency situation, a compact
spare tire may be used. But, do not use
the compact spare tire continuously.
Repair or replace the original tire as
soon as possible to avoid failure of the
differential or AWD system.

Driving Your Vehicle6-52
The severe weather conditions of winter quickly wear out tires and cause other
problems. To minimize winter driving problems, you should take the following
suggestions:
Snow or Icy Conditions
You need to keep sufficient distance between your vehicle and the vehicle in front of
you.
Apply the brakes gently. Speeding, rapid acceleration, sudden brake applications, and
sharp turns are potentially very hazardous practices. During deceleration, use engine
braking to the fullest extent. Sudden brake applications on snowy or icy roads may
cause the vehicle to skid.
To drive your vehicle in deep snow, it may be necessary to use snow tires or to install
tire chains on your tires.
Always carry emergency equipment. Some of the items you may want to carry include
tire chains, tow straps or chains, a flashlight, emergency flares, sand, a shovel, jumper
cables, a window scraper, gloves, ground cloth, coveralls, a blanket, etc.
Snow tires
WARNING
Snow tires should be equivalent in size and type to the vehicle’s standard tires.
Otherwise, the safety and handling of your vehicle may be adversely affected.
We recommend that you use snow tires when road temperature is below 45°F (7°C).
Refer to the below chart, and mount the recommended snow tire for your vehicle.
Standard tire Recommended snow tire
Front RearFront Rear
Tire size Wheel
size Tire size Wheel
size Tire size Wheel
size Tire size Wheel
size
225/45R18 8.0Jx18 225/45R18 8.0Jx18 225/45R18
8.0Jx18 225/45R18 8.0Jx18
225/40R19 8.0Jx19 255/35R19 8.5Jx19
225/40R19 8.0Jx19 255/35R19 8.5Jx19 225/45R18 8.0Jx18 225/45R18 8.0Jx18
225/40R19 8.0Jx19 255/35R19 8.5Jx19
If you mount snow tires on your vehicle, make sure to use the same Inflation pressure
as the original tires. Mount snow tires on all four wheels to balance your vehicle’s
handling in all weather conditions. The traction provided by snow tires on dry roads
may not be as high as your vehicle’s original equipment tires. Check with the tire dealer
for maximum speed recommendations.
WINTER DRIVING

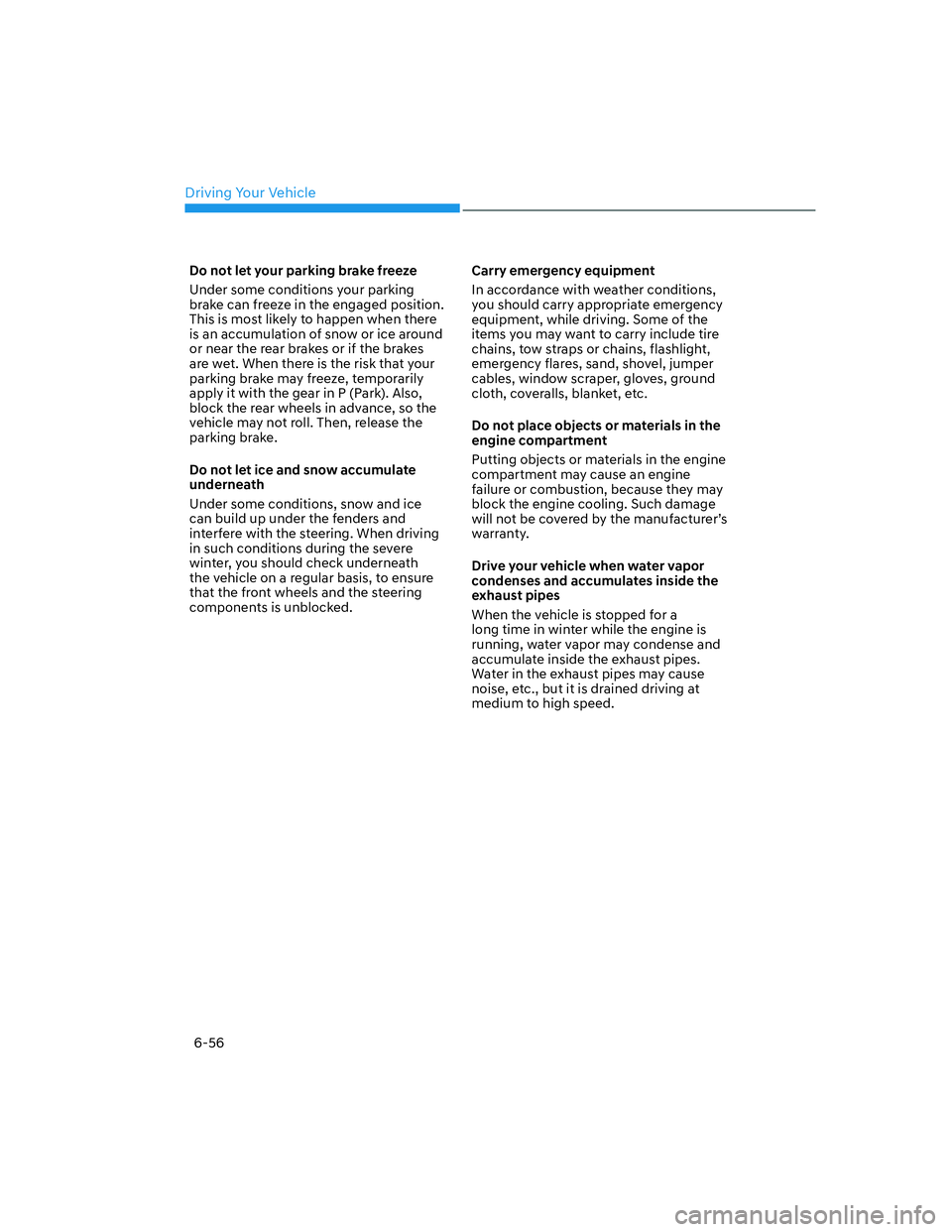

Driving Your Vehicle6-56
Do not let your parking brake freeze
Under some conditions your parking
brake can freeze in the engaged position.
This is most likely to happen when there
is an accumulation of snow or ice around
or near the rear brakes or if the brakes
are wet. When there is the risk that your
parking brake may freeze, temporarily
apply it with the gear in P (Park). Also,
block the rear wheels in advance, so the
vehicle may not roll. Then, release the
parking brake.
Do not let ice and snow accumulate
underneath
Under some conditions, snow and ice
can build up under the fenders and
interfere with the steering. When driving
in such conditions during the severe
winter, you should check underneath
the vehicle on a regular basis, to ensure
that the front wheels and the steering
components is unblocked. Carry emergency equipment
In accordance with weather conditions,
you should carry appropriate emergency
equipment, while driving. Some of the
items you may want to carry include tire
chains, tow straps or chains, flashlight,
emergency flares, sand, shovel, jumper
cables, window scraper, gloves, ground
cloth, coveralls, blanket, etc.
Do not place objects or materials in the
engine compartment
Putting objects or materials in the engine
compartment may cause an engine
failure or combustion, because they may
block the engine cooling. Such damage
will not be covered by the manufacturer’s
warranty.
Drive your vehicle when water vapor
condenses and accumulates inside the
exhaust pipes
When the vehicle is stopped for a
long time in winter while the engine is
running, water vapor may condense and
accumulate inside the exhaust pipes.
Water in the exhaust pipes may cause
noise, etc., but it is drained driving at
medium to high speed.

Driver Assistance System7-10
Forward Collision-Avoidance
Assist Malfunction and
Limitations
Forward Collision-Avoidance Assist
malfunction
OTM070094N
When Forward Collision-Avoidance
Assist is not working properly, the ‘Check
)RUZDUG 6DIHW\ V\VWHP
T ZDUQLQJ PHVVDJH
will appear, and the
and warning
lights will illuminate on the cluster. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
Forward Collision-Avoidance Assist
disabled
OTM070093NOTM070095N
When the front windshield where the
front view camera is located, front radar
cover or sensor is covered with foreign
material, such as snow or rain, it can
reduce the detecting performance and
temporarily limit or disable Forward
Collision-Avoidance Assist.
If this occurs the ‘Forward Safety system
GLVDEOHG &DPHUD REVFXUHG
T RU WKH
‘Forward Safety system disabled. Radar
EORFNHG
T ZDUQLQJ PHVVDJH DQG WKH
and warning lights will illuminate on
the cluster.
Forward Collision-Avoidance Assist will
operate properly when such snow, rain or
foreign material is removed.
If Forward Collision-Avoidance Assist
does not operate properly after
obstruction (snow, rain, or foreign
material) is removed, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
WARNING

[ Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.

[ Forward Collision-Avoidance Assist
may not properly operate in an area
(for example, open terrain), where
any objects are not detected after
turning ON the engine.

Driver Assistance System7-32
Blind-Spot Collision-Avoidance
Assist Malfunction and
Limitations
Blind-Spot Collision-Avoidance
Assist malfunction
OTM070099N
When Blind-Spot Collision-Avoidance
Assist is not working properly, the ‘Check
%OLQG6SRW 6DIHW\ V\VWHP
T ZDUQLQJ
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. Have the vehicle inspected by
an authorized retailer of Genesis Branded
products.
OTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
VLGH YLHZ PLUURU ZDUQLQJ OLJKW
T ZDUQLQJ
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Blind-Spot Collision-Avoidance
Assist disabled
OTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Blind-Spot
Collision-Avoidance Assist.
If this occurs, the ‘Blind-Spot Safety
V\VWHP GLVDEOHG 5DGDU EORFNHG
T ZDUQLQJ
message will appear on the cluster.
Blind-Spot Collision-Avoidance Assist
will operate properly when such foreign
material or trailer, etc., is removed, and
then the engine is restarted.
If Blind-Spot Collision-Avoidance Assist
does not operate normally after it is
removed, have the vehicle inspected by
an authorized retailer of Genesis Branded
products.
WARNING

[ Even though the warning message
does not appear on the cluster, Blind-
Spot Collision-Avoidance Assist may
not properly operate.

[ Blind-Spot Collision-Avoidance
Assist may not properly operate in
an area (for example, open terrain)
where any objects are not detected
right after the engine is turned on, or
when the detecting sensor is blocked
with foreign material right after the
engine is turned on.

Driver Assistance System7-40

[ Safe Exit Warning does not operate
if there is a problem with Blind- Spot
Collision-Avoidance Assist. The
warning message of Blind- Spot
Collision-Avoidance Assist will
appear when:
- Blind- Spot Collision-Avoidance
Assist sensor or the sensor
surrounding is polluted or covered
- Blind- Spot Collision-Avoidance
Assist fails to warn passengers or
falsely warn passengers
Information
After the engine is turned off, Safe Exit
arning operates approximately for 3
minutes, but turns off immediately if the
doors are locked.
Safe Exit Warning Malfunction
and Limitations
Safe Exit Warning malfunction
OTM070099N
When Safe Exit Warning is not working
properly, the ‘Check Blind-Spot Safety
V\VWHP
T ZDUQLQJ PHVVDJH ZLOO DSSHDU RQ
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If the master warning light
illuminates, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.

07
7-41
OTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
VLGH YLHZ PLUURU ZDUQLQJ OLJKW
T ZDUQLQJ
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on
the cluster. If the master warning light
illuminates, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Safe Exit Warning disabled
OTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Safe Exit
Warning.
If this occurs, the ‘Blind-Spot Safety
V\VWHP GLVDEOHG 5DGDU EORFNHG
T ZDUQLQJ
message will appear on the cluster.
Safe Exit Warning will operate normally
when such foreign material or trailer,
etc. is removed, and then the engine is
restarted.
If Safe Exit Warning does not operate
normally after it is removed, have the
vehicle inspected by an authorized
retailer of Genesis Branded products.

8
Hazard Warning Flasher ........................................................................\
........... 8-2
In Case of an Emergency while Driving........................................................... 8-2
If the Engine Stalls While Driving ........................................................................\
........ 8-2
If the Engine Stalls at a Crossroad or Crossing .......................................................... 8-2
If You Have a Flat Tire While Driving .......................................................................\
....8-3
If the Engine will not Start ........................................................................\
........ 8-3
Jump Starting .......................................................................\
............................ 8-4
If the Engine Overheats .......................................................................\
..............8-7
Tire Pressure Monitoring System (TPMS) ........................................................ 8-8
Check Tire Pressure ........................................................................\
............................. 8-8
Tire Pressure Monitoring System .......................................................................\
........ 8-9
Low Tire Pressure Warning Light .......................................................................\
........ 8-10
Low Tire Pressure Position and Tire Pressure Telltale .............................................. 8-10
TPMS (Tire Pressure Monitoring System) Malfunction Indicator ............................. 8-11
Changing a Tire with TPMS .......................................................................\
................. 8-11
If you have a Flat Tire (with Spare Tire) .......................................................... 8-13
Jack and Tools ........................................................................\
.................................... 8-13
Changing Tires .......................................................................\
..................................... 8-14
Jack Label .......................................................................\
............................................ 8-18
If you have a Flat Tire (with Tire Mobility Kit) .................................................8-19Introduction ...............................................................\
................................................. 8- 19
Notes on the Safe use of the Tire Mobility Kit ......................................................... 8-20
Components of the Tire Mobility Kit .......................................................................\
. 8-21
Using the Tire Mobility Kit When a Tire is Flat .......................................................... 8-22
How to Adjust Tire Pressure ........................................................................\
.............. 8-25
Towing ...................................................................\
.......................................... 8-26
Towing Service ........................................................................\
...................................8-26
Removable Towing Hook .......................................................................\
.................... 8-27
Emergency Towing .......................................................................\
..............................8-28
8. Emergency Situations
